Gamber Johnson

$1,506.65
SKU: 7160-1451-00

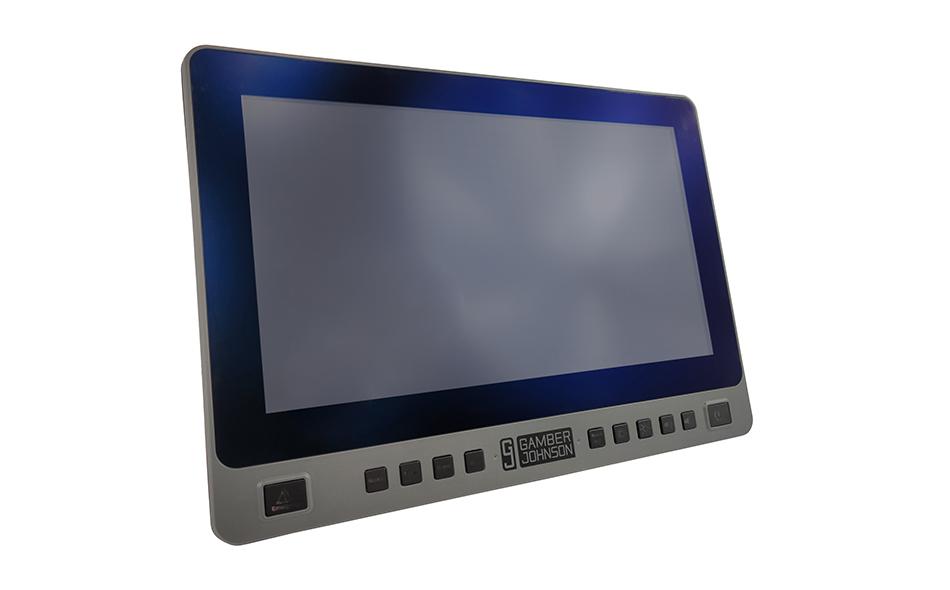

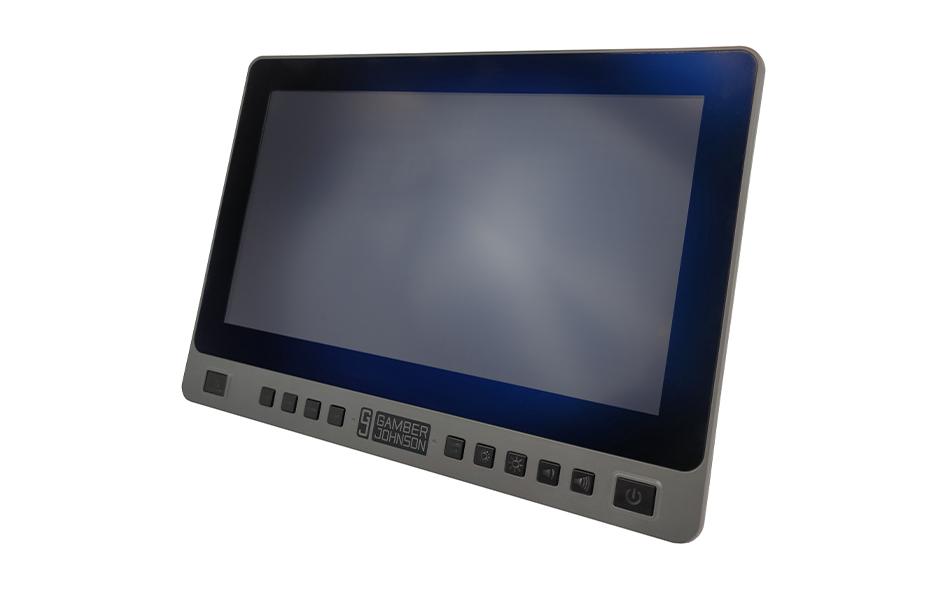

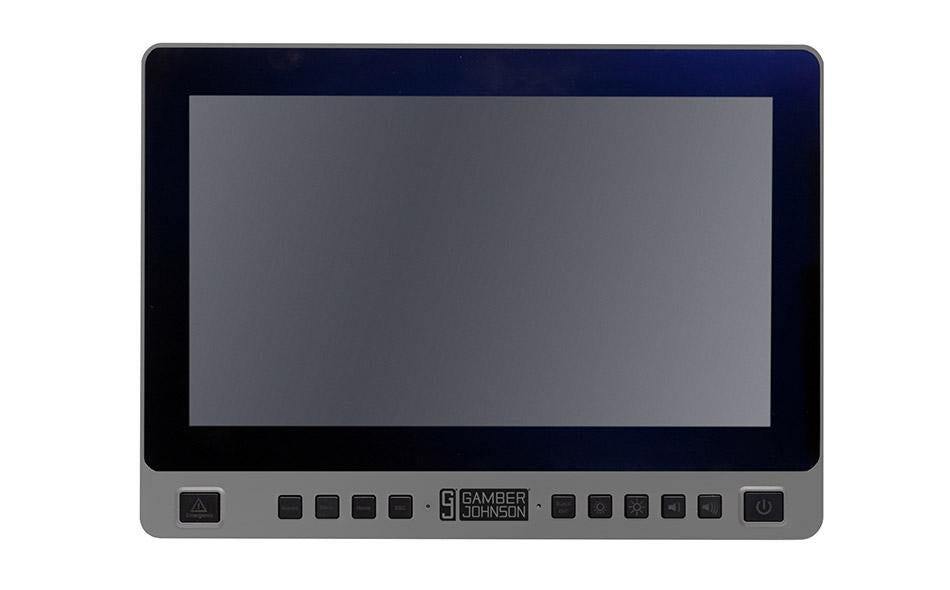

This 13.3-inch touch-screen provides a wide view display and a five-point capacitive touch screen integrated with a wide range of functionality and port replication. The 1000-nit display with adjustable brightness offers just the right view and the capacitive five-point touchscreen technology provides better accuracy and more fluid response. Combine this touch-screen with a smartphone charging cradle, multi-adapter hub, and mobile keyboard for a complete mobile office solution.

KIT INCLUDES

  • 13.3" touchscreen
  • Power cable with bare wire end
  • HDMI cable (4 ft.)
  • USB Type B cabl  (5 ft.)
  • Mounting hardware
  • Instruction Guide

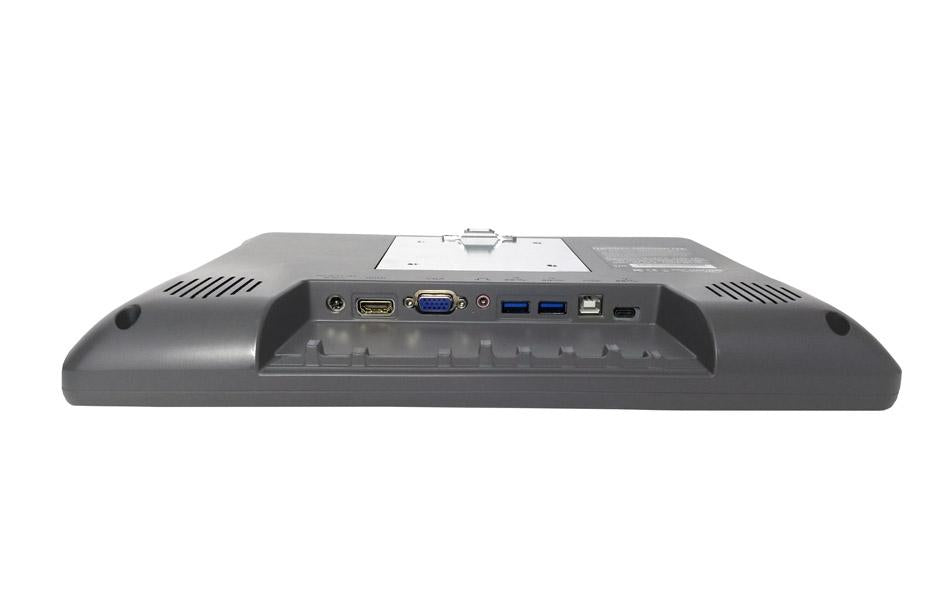

PORT REPLICATOR

  • (1) HDMI
  • (1) VGA
  • (1) USB type C (2A @ 5V) fast charging
  • (1) USB type B (for Touch Control)
  • (2) USB 3.0 (fast charging 1.5A)
  • (1) Aux. out 3.5 mm
  • (1) DC input (Barrel Jack)

FEATURES

  • Utilize this capacitive touch screen to connect devices for a complete mobile office solution

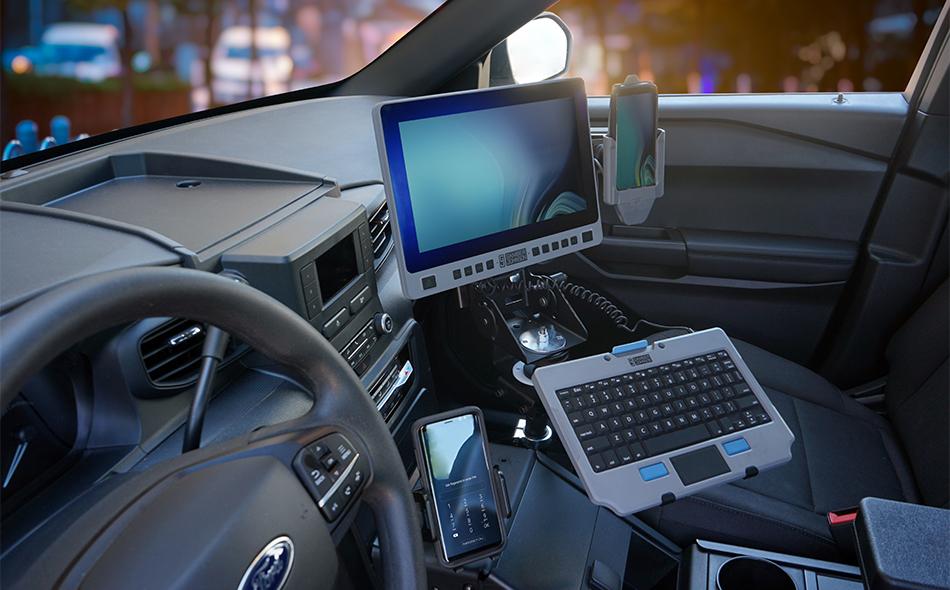

  • Combine this touch-screen with a Gamber-Johnson smartphone docking station, rugged USB hub, and Rugged Lite keyboard for a complete mobile office solution.
  • 13.3 inch touch-screen display, high resolution 1920 x 1080, Brightness: 50-1000 nits (adjustable)
  • Ambient light sensor - automatically adjusts screen brightness
  • 5-Point muliti-touch technology - better accuracy and fluidity (speed) with greater support for smartphone gesture support
  • Blackout button allows screen to be blacked out for privacy or to minimize driver distraction without having to reboot the touch-screen
  • Brightness and Volume buttons enable adjustments to be done right on the touchscreen
  • Programmable Emergency button - send instant notification in case of an emergency
  • Sleep mode to reduce power consumption when not in use.
  • Bottom-facing ports with integrated cable restraint system
  • Integrated stereo speakers allow for sound directly from the computing device
  • Warm up indicator light - indicates that the touch-screen is powered up
  • Anti-glare coating to reduce glare for better visibility

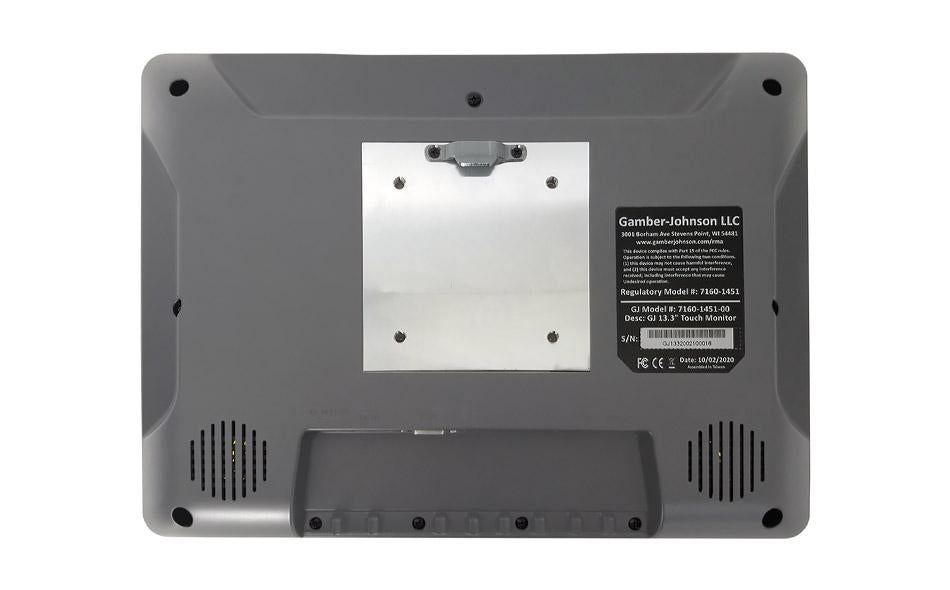

  • VESA 75mm and 100mm mounting holes
  • Includes the following cables: HDMI, USB type B, and power cable with bare wire end
  • Height: 9.94 in / 25.25 cm
  • Width: 13.75 in / 34.93 cm
  • Depth: 1.57 in / 3.99 cm

SPECIFICATIONS

  • Glass: Anti-glare, anti reflective
  • Contrast Ratio: 900:1
  • Resolution: 1920 x 1080
  • Backlight: LED
  • Brightness: 1000 nits
  • Auto Brightness Adjust: (50 nits - 1000 nits) Option to disable in the Menu
  • Display Color: 16.7M
  • Aspect Ratio: 16:09
  • Viewing Angle: 85°/85°/85°/85° (R/L/U/D) CF>10
  • Active Area: 293.76 x 165.24 mm
  • Power: 11-16 V @ 5A (12V Nominal)
  • OSD Buttons: Emergency, Source,Menu, Home, Escape, Blackout, Brightness +/-, Volume +/-, Power
  • I/O: (1) DC Power in, (1) Audio 3.5mm, (1) HDMI, (1) VGA, (1) USB type B, (2) USB type A, (1) USB type C
  • Platforms Supported: Windows (XP or Above), Android, Linux, Mac OS / iOS
  • Ingress Protection: Front Panel (IP65)
  • Response Time: 40 ms (max)
  • Temperature Range: Operating: -20C to +70C; Storage: -30C to +80C
  • Speakers: (2) 5W
  • Mounting Capability: VESA 75MM

TESTING & CERTIFICATES

  • MIL-STD 810G shock and vibration specifications
  • MIL-STD 810G Temperature and Humidity (operational and storage)
  • SAE J1455 30mph crash testing

COMPLIANCE

  • FCC, CE, RCM, RoHS, REACH

WARRANTY

  • 1 Year Limited Warranty
