Standard Clevis VESA 75mm & Gamber-Johnson Hole Pattern With 3/8" Hole

Standard Clevis VESA 75mm & Gamber-Johnson Hole Pattern With 3/8" Hole
Standard Clevis VESA 75mm & Gamber-Johnson Hole Pattern With 3/8" Hole
Standard Clevis VESA 75mm & Gamber-Johnson Hole Pattern With 3/8" Hole
Standard Clevis VESA 75mm & Gamber-Johnson Hole Pattern With 3/8" Hole
Standard Clevis VESA 75mm & Gamber-Johnson Hole Pattern With 3/8" Hole
Standard Clevis VESA 75mm & Gamber-Johnson Hole Pattern With 3/8" Hole

Gamber Johnson

$135.48
SKU: 7110-1200

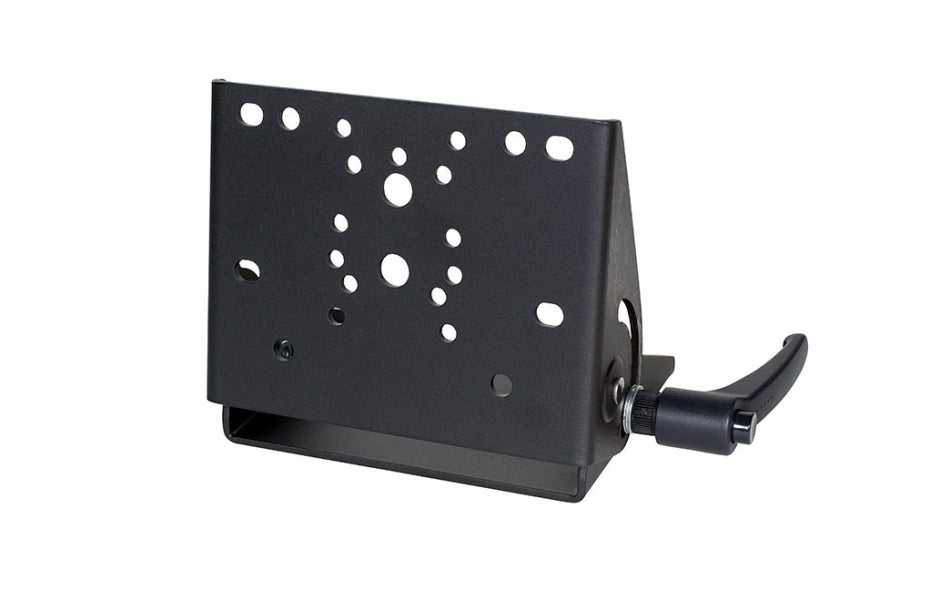

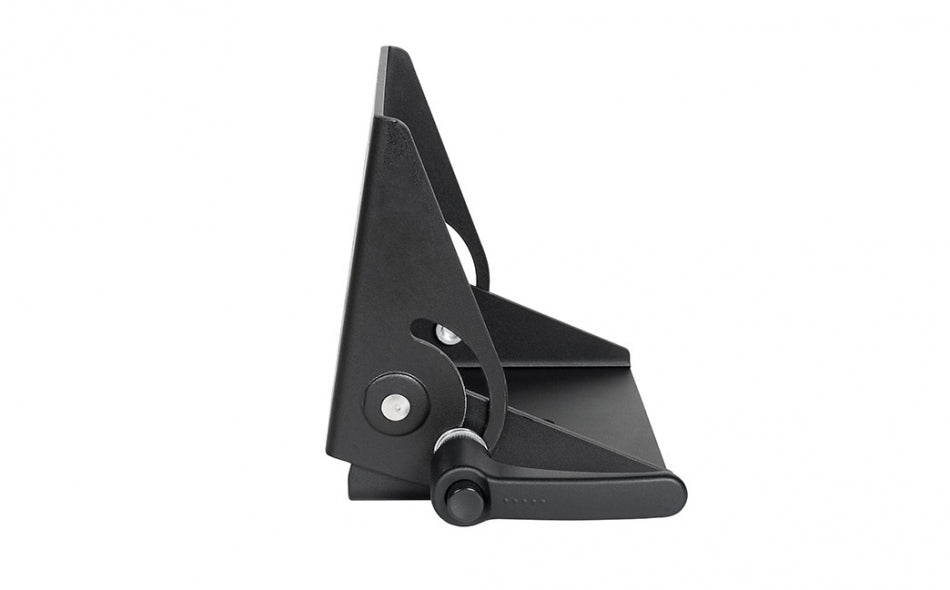

Gamber-Johnson's new VESA 75mm Clevis Motion Attachment combines Gamber-Johnson’s proprietary 2x4 mounting-hole pattern with the international standard VESA 75mm pattern.

PLACEMENT

  • Has a 3/8" center hole and is recommended for use with any 3/8" stud motion attachment (item no. 7160-0427 or 7160-0514).

TILT

  • Yes - up to 90º fore/26º aft

SWIVEL

  • Yes - 360º

SLIDE

  • No

SPECS

  • Height: 2.4" /  6.1 cm
  • Width: 8.2" / 20.8 cm
  • Depth: 4.4" / 11.2 cm

FEATURES

  • New clevis works with the follow hole patterns:
    • VESA 75mm
    • Gamber-Johnson 2x4
    • NEC
    • AMPS
  • Tilt capabilities:
    • 90° forward allows for tablets to be easily mounted
    • 26° aft movement
    • Riveted design allows for smoother tilt movement
  • Swivel capabilities:
    • 360°
  • Mount using supplied 3/8” hardware or on any Gamber-Johnson motion attachment with a 3/8” stud
  • Rear fastening stud allows the clevis to be locked in a fixed position
  • Lever provides a secure clamping force when tilted
  • Heavy gauge steel construction for long-term durability
  • Black powdercoat finish for maximum corrosion resistance

WARRANTY

  • Limited lifetime warranty
