Gamber Johnson

$835.93
SKU: 7160-1576-00

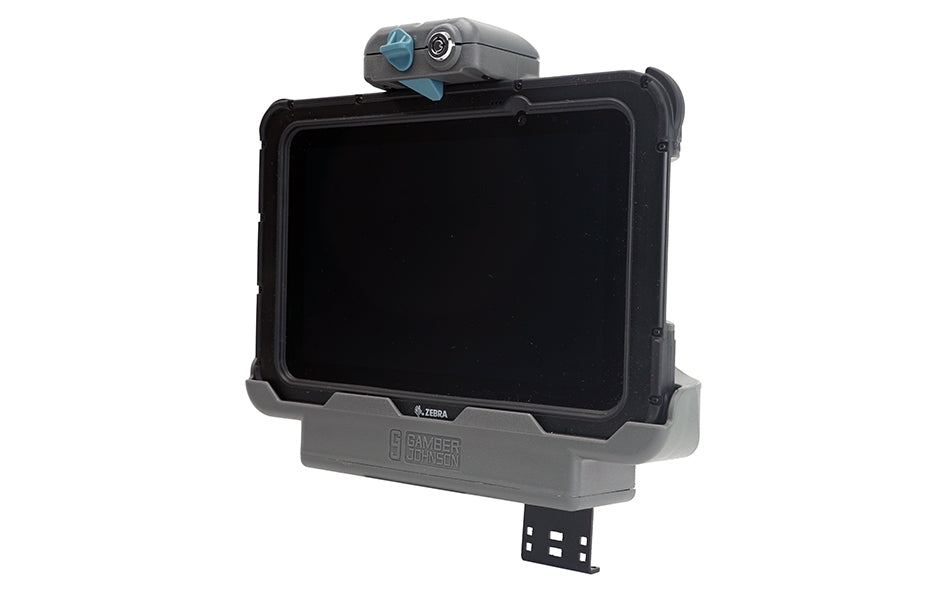

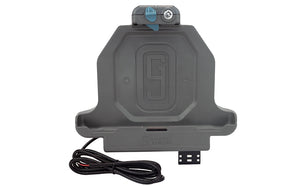

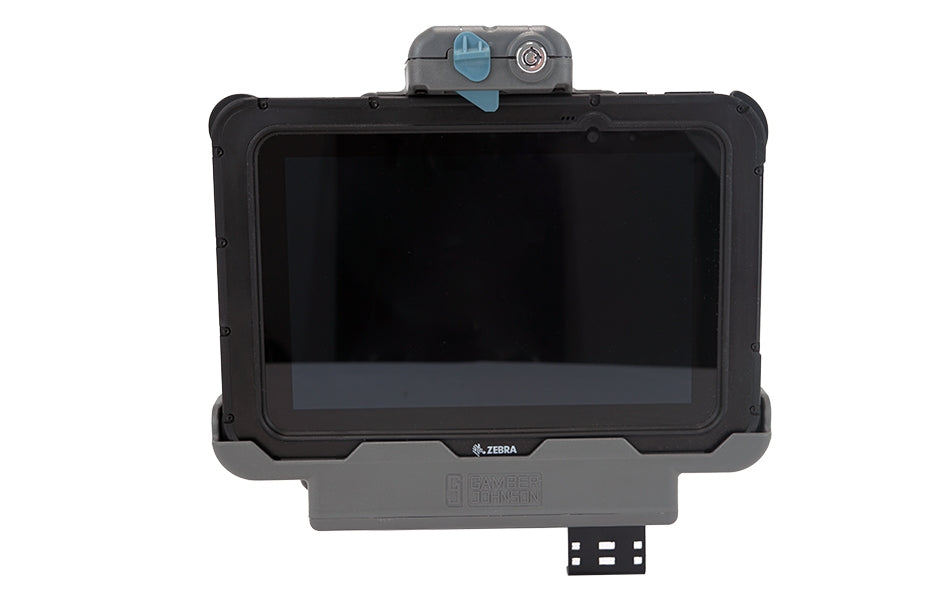

Gamber-Johnson's Zebra ET51/56 10" SLIM Dual USB docking station provides dual powered (1.5A each) USB ports; strong enough to connect a long-range scanner and other peripherals. The front-facing release latch button makes one-handed docking/release very easy and the 75mm VESA mounting pattern will attach to most Gamber-Johnson motion attachments.

ANTENNA PASS-THROUGH

  • None

COMPATIBILITY

  • Compatible with Zebra ET51/56 rugged tablet computer with rugged frame

PORT REPLICATOR

  • (2) Powered USB 2.0 (1.5A each)

POWER SUPPLY

  • Internal powered PCB with 8-40V power input range provides power to charge the Zebra tablet while docked.

FEATURES

  • Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
  • This docking station does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems

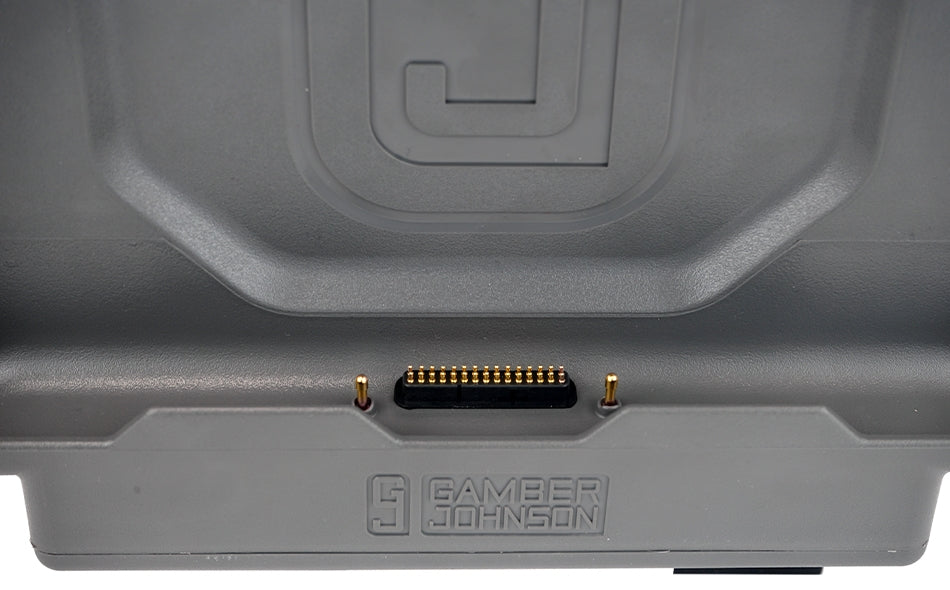

  • POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
  • 8-40V power input range with power filtering PCB
  • Dual powered USB ports; 1.5A for each port to connect peripheral devices
  • Access to all control buttons and ports while the tablet is safely docked

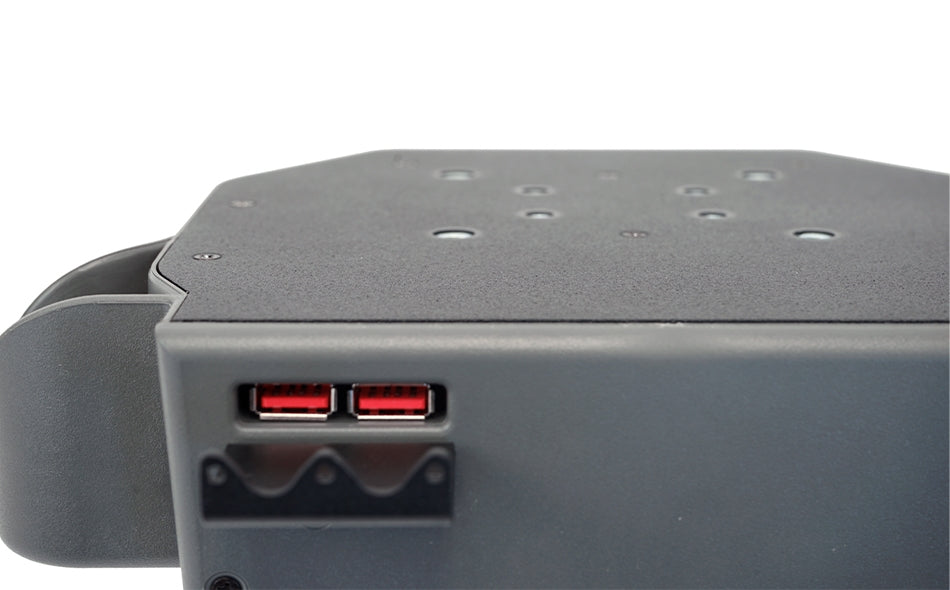

  • Bottom-facing I/O ports; integrated cable restraint/cable management system

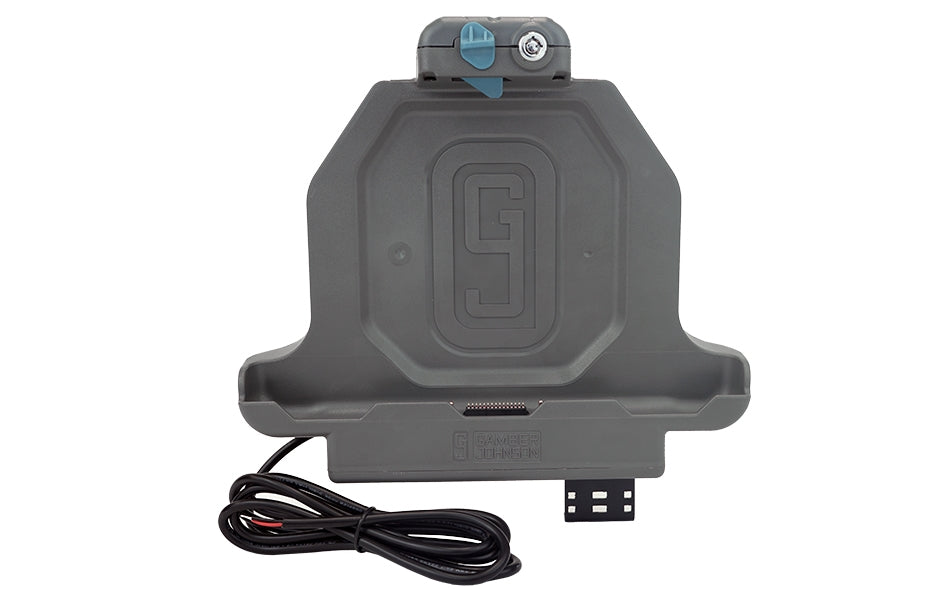

  • Approximately 60” (152.4 cm) power cable with bare wire end to attach to power source
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station

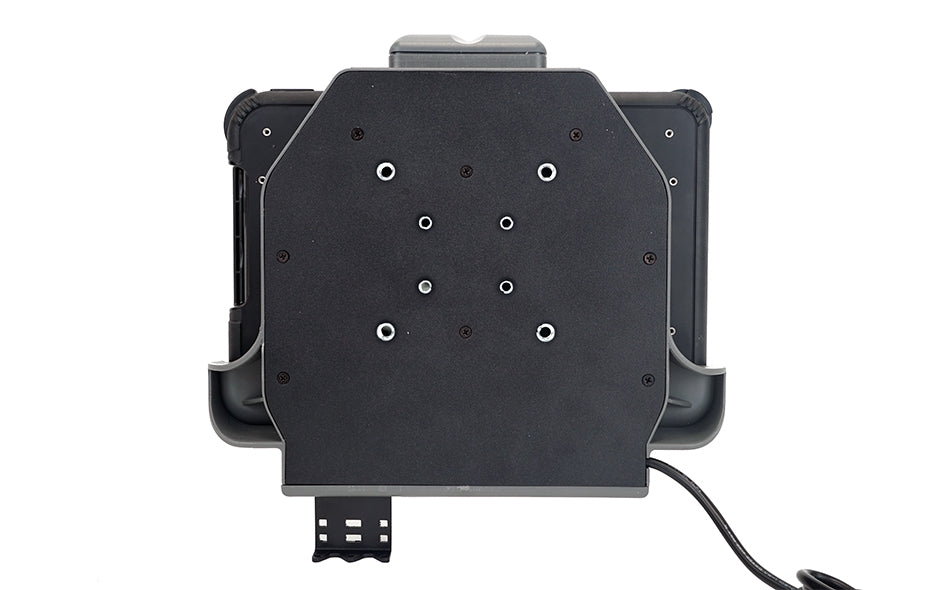

  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
  • Height: 11.37 in / 28.88 cm
  • Width: 11.72 in / 29.77 cm
  • Depth: 3.05 in / 7.75 cm

CERTIFICATES & TESTING

  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
  • SAE J1455 Crash Tested
  • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
  • RoHS, FCC, CE Certifications

INCLUDES

  • Zebra ET51/56   10" SLIM Dual USB Docking Station
  • Mounting hardware
  • Installation guide

WARRANTY

  • 3-Year Limited Warranty
