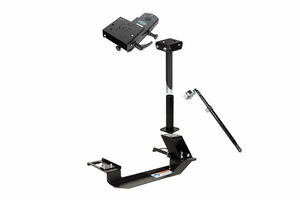

2006-2013 Chevrolet Impala Civilian Model & 2006-2016 Chevrolet Impala PPV Pedestal System Kit
KIT COMPONENTS
-
Vehicle Base (7160-0055)
Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability. Vehicle Base works with both the Police Package and the Street Model. -
Lower Tube (DS-LOWER-7)
The Lower Tube provides vertical clearance over the center console or the seat. -
Upper Pole (7160-0178)
Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment. -
9" Locking Swing Arm - Mongoose (7160-0220)
Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns. -
Support Brace (7160-0230)
Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.
COMPATIBLE VEHICLES
- Chevrolet Impala Civilian Model (2006-2013)
- Chevrolet Impala Police Patrol Vehicle (2006-2016)
Must order as is. There are no substitutions.
