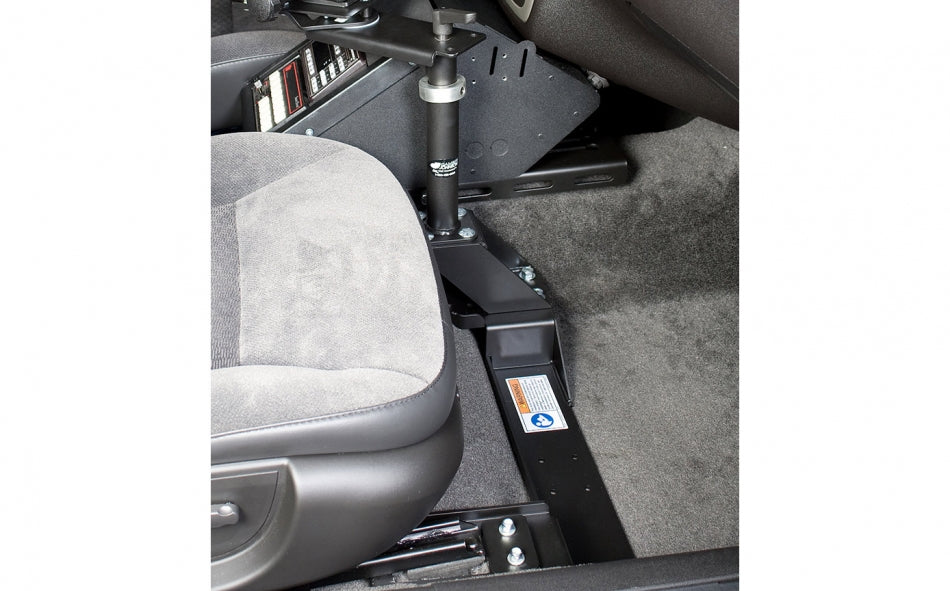

Base uses weight and pressure of the seat and the mechanical counter balance of the base design to secure it under the seat. We recommend fastening the base using the four (4) holes located on the base and drilling into the vehicle floor for extra security rather than using the seat bolts.
One (1) Offset Universal Mounting Step (DS-STEP) included with vehicle base. Additional Offset Universal Mounting Steps can be ordered to stack on top of each other if needed. Offset Universal Mounting Step should be pointed towards the passenger seat to move the mounting system away from the dash.
Support Brace (7160-0230) is highly recommended to reduce system vibration
Heavy gauge steel construction for long-term durability
Black powder coat finish for maximum corrosion resistance
Height: 6.68 in / 16.97 cm
Width: 20.70 in / 52.58 cm
Depth: 10.92 in / 27.745 cm
Chevrolet Impala civilian model (2006-2013)
Chevrolet Impala Police Patrol Vehicle (2006-2016)
RECOMMENDED POLE SOLUTION
DS-LOWER-7 - Lower Tube
7160-0178 - Upper Pole
7160-0220 - Mongoose Motion Attachment
Tubes, poles and motion attachment ordered separately
For vehicle kit, see7170-0144. Kit includes vehicle base and the recommended pole solution as stated above. No substitutions.
WARRANTY: LIMITED LIFETIME
A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
