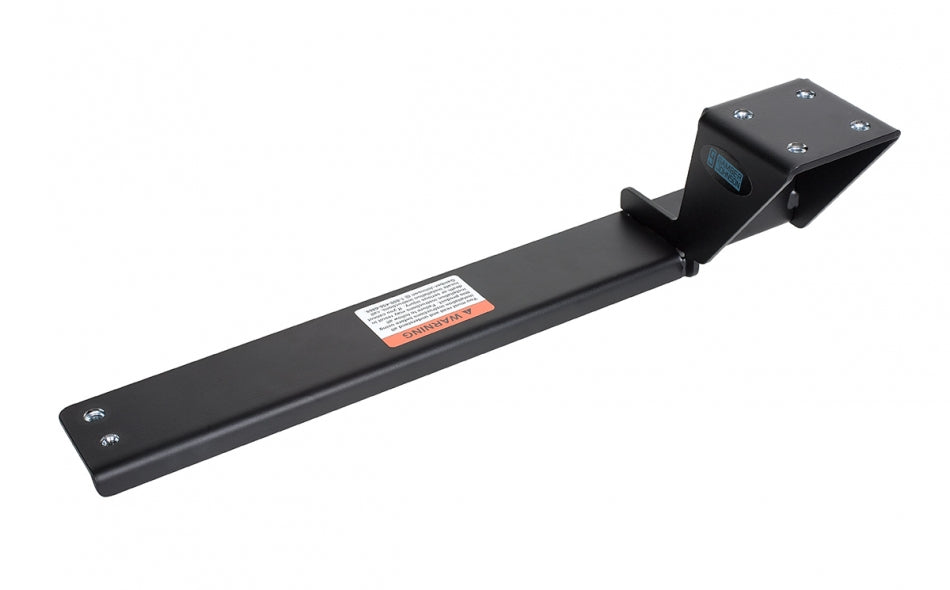

2010-2017 Chevrolet Equinox / GMC Terrain Base

• Bucket (does not work with electric seats)

• Yes - drilling is recommended but not required

• Attaches to the passenger side floor, under seat rails
• Can be used with factory installed console
• A Support Brace (Item no. 7160-0230) is highly recommended.
• Heavy gauge steel construction for long-term durability
• Black powdercoat finish for maximum corrosion resistance
• Height: 4.80 in / 12.2 cm
• Width: 19.83 in / 50.4 cm
• Depth: 6.68 in / 17.0 cm

Note:

• Due to inboard seat rail only having one pre-drilled hole, we strongly recommend drilling another hole due to the weight of the equipment is on that rail.
• Rearward travel of the passenger seat is not affected, however there is limited forward seat travel.

• Item No. DS-LOWER-9: Lower Tube
• Item No. 7160-0178: Upper Pole
• Item No. 7160-0230: Support Brace
• Item No. 7160-0500: Motion Attachment

Tubes/Poles and Motion Attachments ordered separately

• A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
