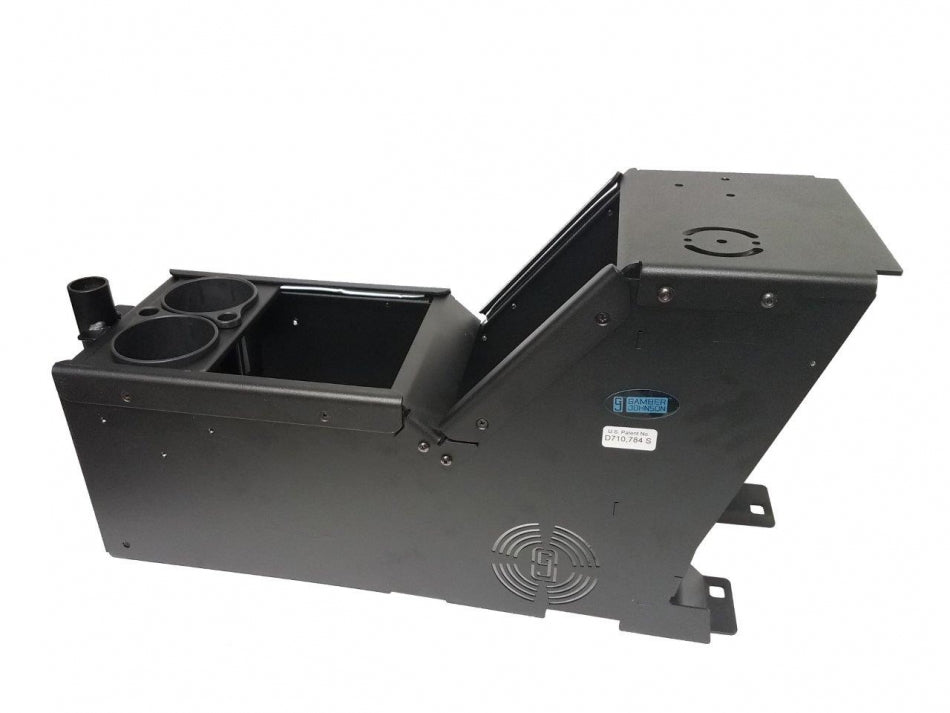

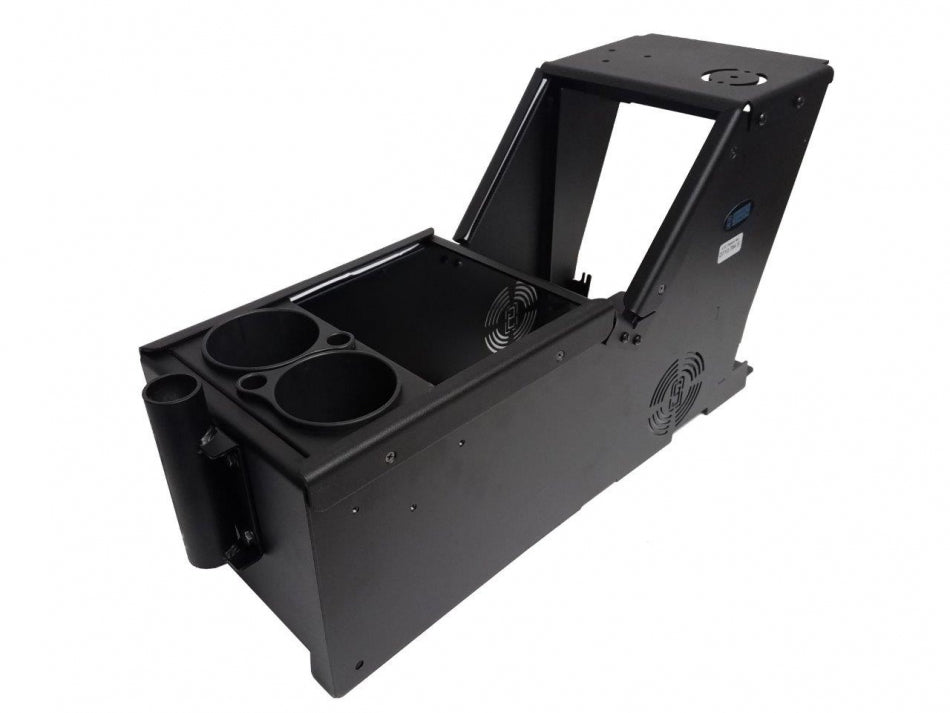

A low profile vehicle specific console box kit crafted for exceptional performance This console box is made of heavy steel, fully welded construction, and black powder coat for long term durability and maximum corrosion resistance.
Console box (item no. 7160-0412)
Cup holder (item no. 7160-0846)
Vertical surface mount (item no. 14593)
Hardware bag (item no. 7120-0539)
Note: Only the accessories listed above are included in the kit. Items such as control heads, radios, docking stations, motion attachments, computers, toggle switch plates, and locking pocket shown in photos are not included.Must order kit as is. There are no substitutions for accessories. Accessories may need to be assembled.
Height: 13.5” / 34.3 cm
Width: 9.20” / 23.4 cm
Depth: 25.5” / 64.8 cm
No - Attaches to transmission hump
Low profile vehicle specific console box
Six (6) fasteners for mounting to transmission hump
A removable top and center plate for easy radio installation and wire routing.
12 Volt plug insert located on passenger side
Factory USB and audio jack must be relocated using item no. 16648 & 15082 or 16648 & 15083 if you want to use them
Four (4) 12 Volt knockouts located on passenger side

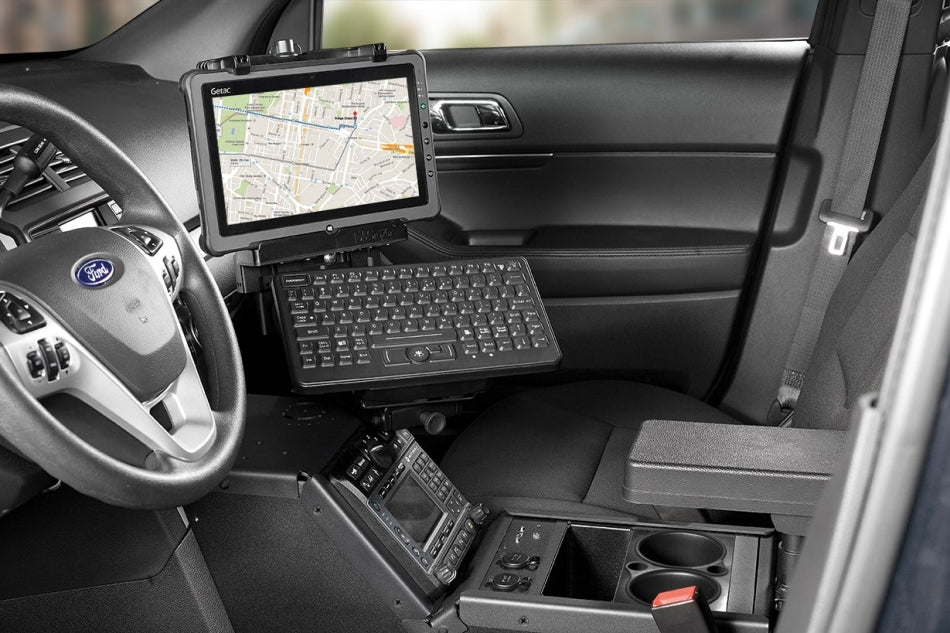

Computer can be mounted on top of the console box and be off-set towards the passenger on the “smiley face pattern” or mounted to the driver side with the 3-bolt hole pattern
Heavy gauge steel, fully welded constructed for long-term durability
Black powder coat finish for maximum corrosion resistance
Horizontal, low profile section
Accommodates a mounting space of 11” (27.9 cm) long to house radio control heads, full-sized devices and accessories. The included cup holder uses 4.5" (11.43 cm) of that space
Vertical, angled section
Accommodates 7.5” (19.1 cm) of mounting space to house 1 to 2 full-sized radios
3 faceplates and 3 filler panels included
Console box ships fully assembled (except for accessories)
Will not work with the relocation cable kit (item no. 7120-0579)
WARRANTY: LIMITED LIFETIME
A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
