2019+ RAM 1500 Pedestal Kit

2019+ RAM 1500 Pedestal Kit

Gamber Johnson

SKU: 7170-0770

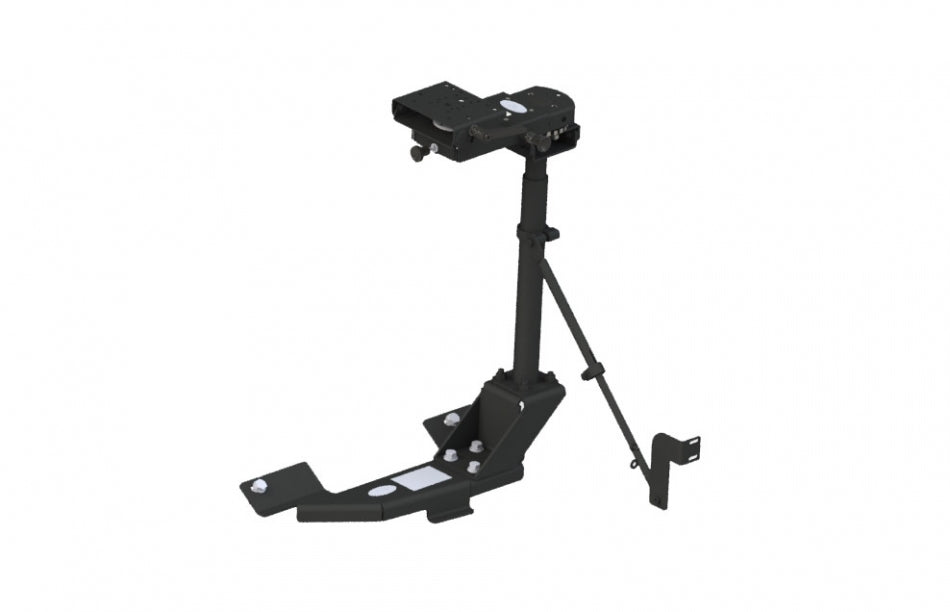

2019+ RAM 1500 pedestal kit. Mount your computer with the ruggedness needed to get them job done. Using the existing passenger side front seat bolts, this base creates a quick and easy setup.


  • Vehicle Base (Item no. 7160-1324)
    Vehicle base for 2019+ RAM 1500 new body style trucks
  • Lower Tube (Item no. DS-LOWER-13)
    Provides vertical clearance over the center console or the seat
  • Center Upper Pole (Item no. 7160-0178)
    Allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment
  • Locking Slide Arm (Item no. 7160-0928)
    Can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9” position. Motion Attachment has tilt capabilities up to 45° forward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns
  • Support Brace (Item no. 7160-0230)
  • Support Brace Bracket (Item no. 7160-1391)
  • 2019+ RAM 1500 New Body Style (NOT Classic)

Must order as is. There are no substitutions


  • A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
