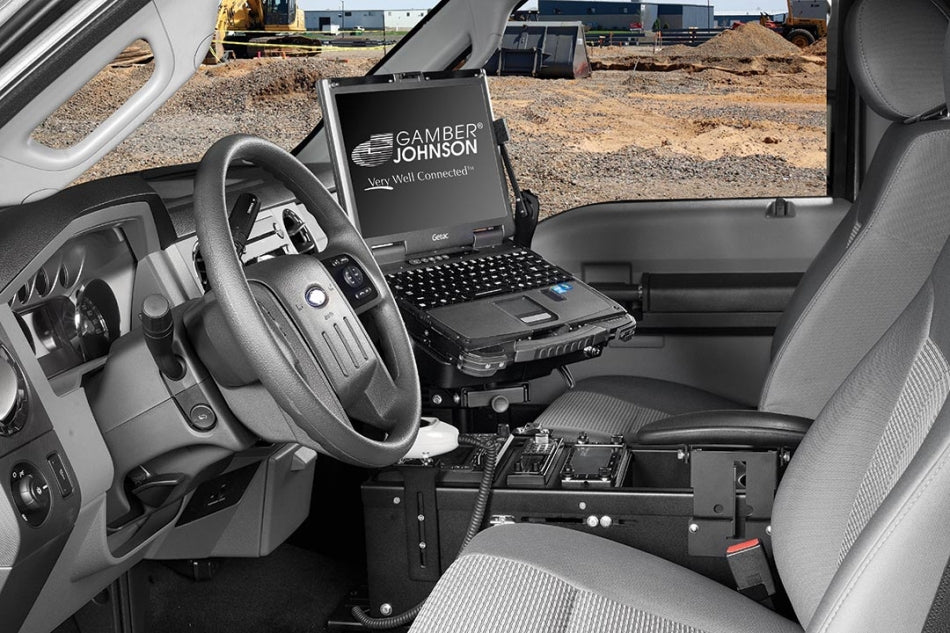

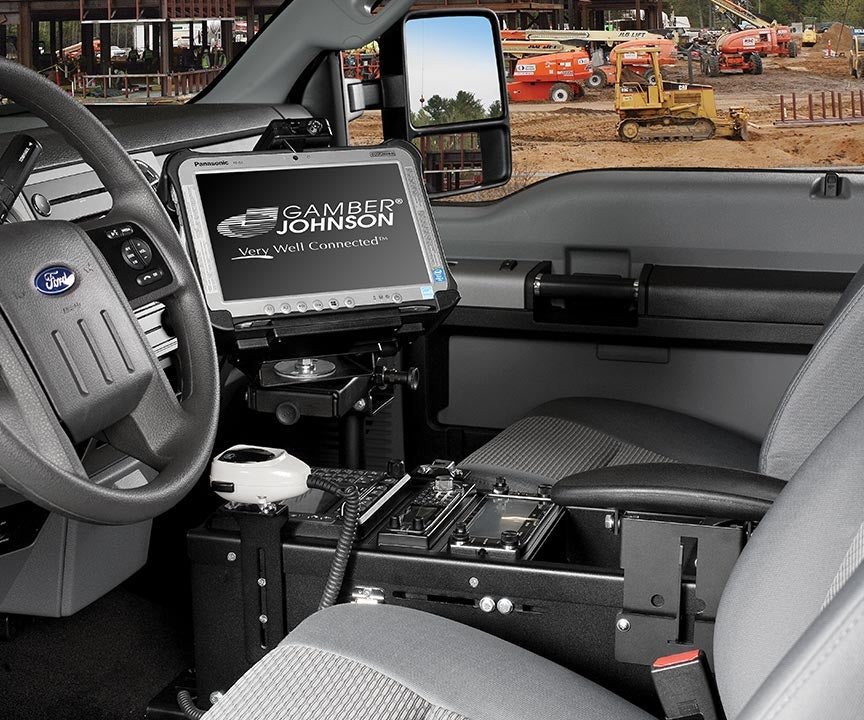

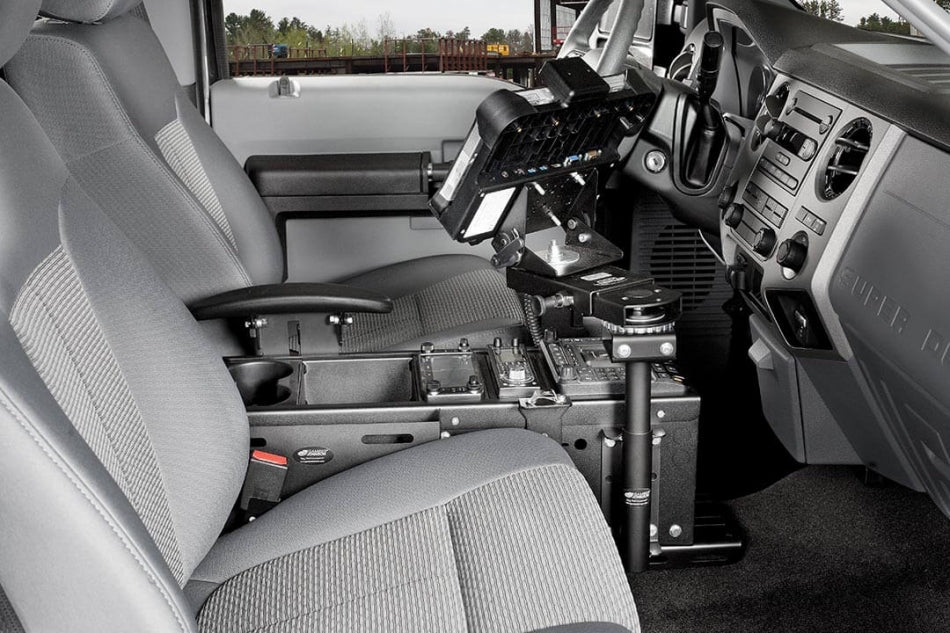

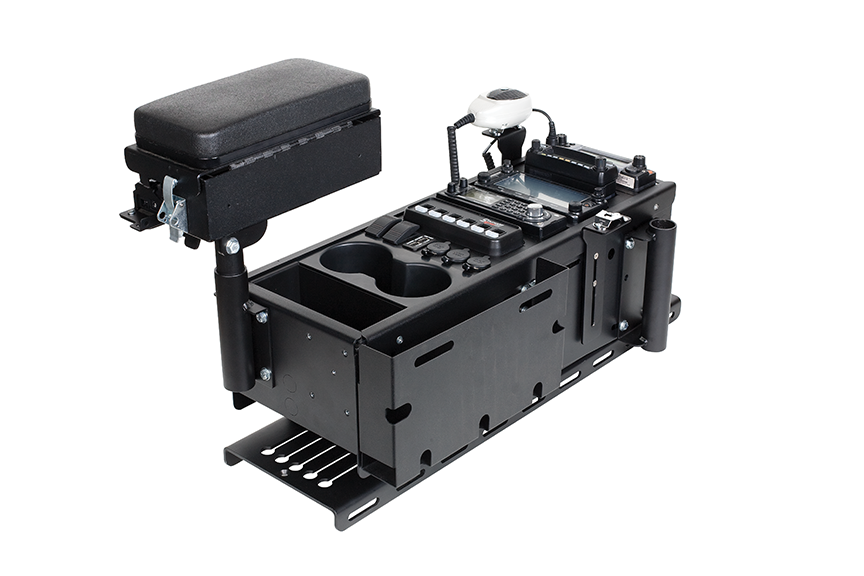

This box is big, sturdy, and completely adjustable to fit your vehicle. Take advantage of the spacious design by adding full size radios, light, and other electronics. Note: Items such as control heads, radios, docking stations, motion attachments, armrests, cupholders, computers, toggle switch plates, and locking pocket shown in photos are not included.
On any MCS Top Plate (Item No.7160-0086or7160-0085)
24.5" (62.2 cm) of straight mounting space plus 0.5" of overlap space to allow faceplates to fit flush
Designed to house full sized devices and accessories
Height adjustable with no side gaps in the console, ranges from 8.36" to 11.36" (21.2 cm - 28.9 cm)
Angle adjustable at any height, ranges from 0° to 9°
Adjustable support bracket in the center to strengthen the console box, along with fixed gussets in the bottom
Can accommodate a power distribution block or Lind shut-down timer on the Front Plate
Can accommodate most console box accessories including armrests, exterior cup holder, side pocket,DS-138, etc.
For a list of armrests and accessories that work with this box click here
Side pole mount (DS-138, sold separately) is angle adjustable to keep the pole vertical
Rear armrest can be angle adjusted be using spacers on the bottom two bolts
Three mounting locations on the side of the box for a mic clip or Adjustable Mic Clip (Item No.7160-0826)
Six 12V knockout panels for cigarette adapters
Fully welded construction for long term product life span
Box will ship fully assembled (except for accessories)
3 faceplates and 3 filler panels are included
Height: 8.36" - 11.36" / 21.2 cm - 28.9 cm
Width: 8.75" / 22.2 cm
Length: 25.0" / 63.5 cm
WARRANTY: LIMITED LIFETIME
A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
