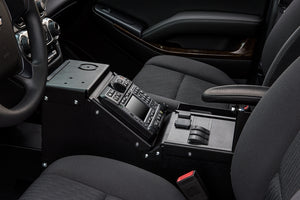

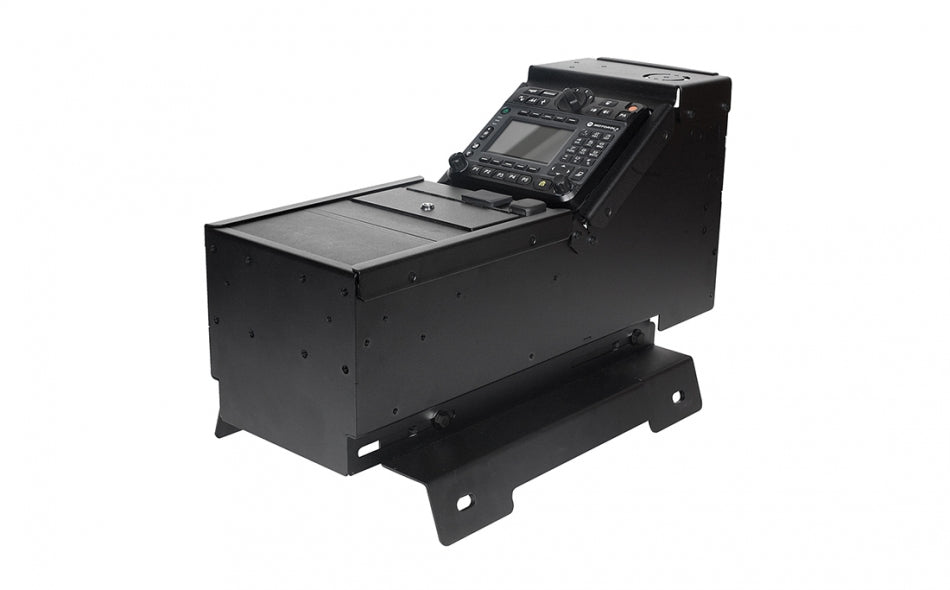

Chevrolet/GMC Truck and Full-Size SUV Console Kit
PLACEMENT
- On top of transmission hump
SEAT CONFIGURATION
- Bucket
DRILLING REQUIRED
- No - attaches to transmission hump
MOUNTING SPACE
- Vertical, angled section: 7.50" (19.1 cm)
- Horizontal section: 11.5” (29.2 cm) without cupholder, 8.0" (20.32 cm) with cupholder
FEATURES
- Heavy gauge steel, fully welded construction for long-term durability.
- Black powder coat finish for maximum corrosion resistance.
- Attaches to the vehicle without the need to order a separate top plate. Leg kit is provided with the console box.
- Two 12 volt plug inserts located on passenger side.
- USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12 Volt from factory console can be relocated using faceplate (item no. 15250).
- Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes.

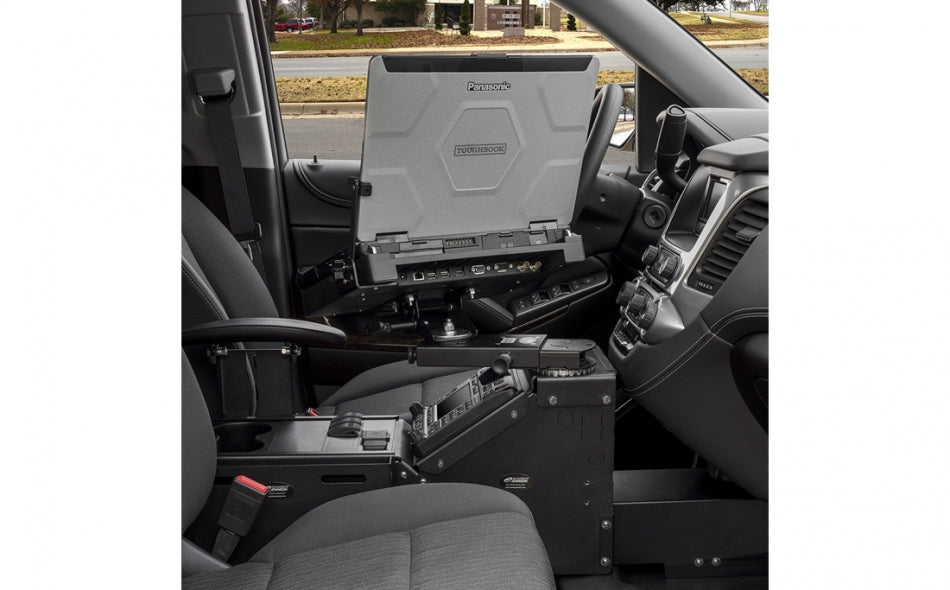

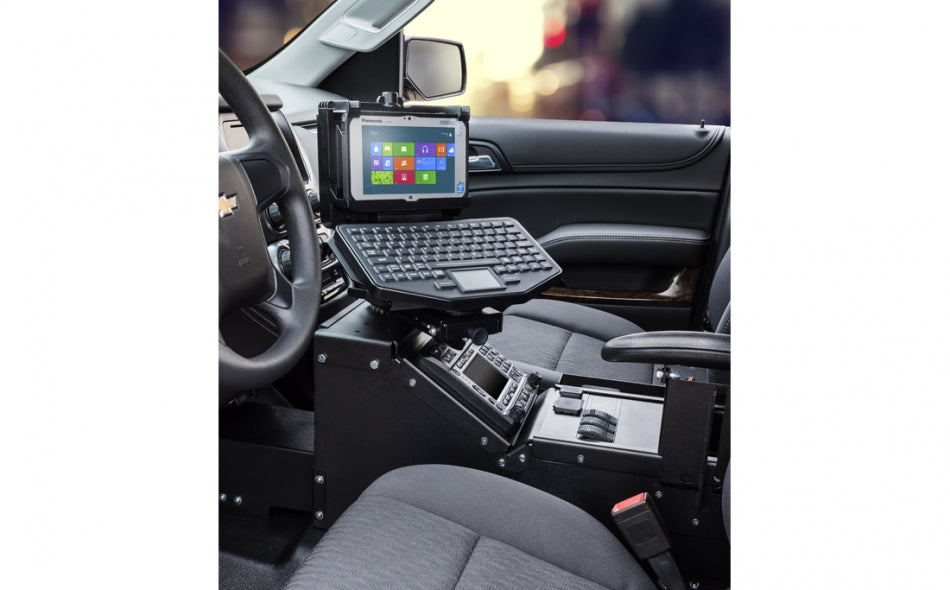

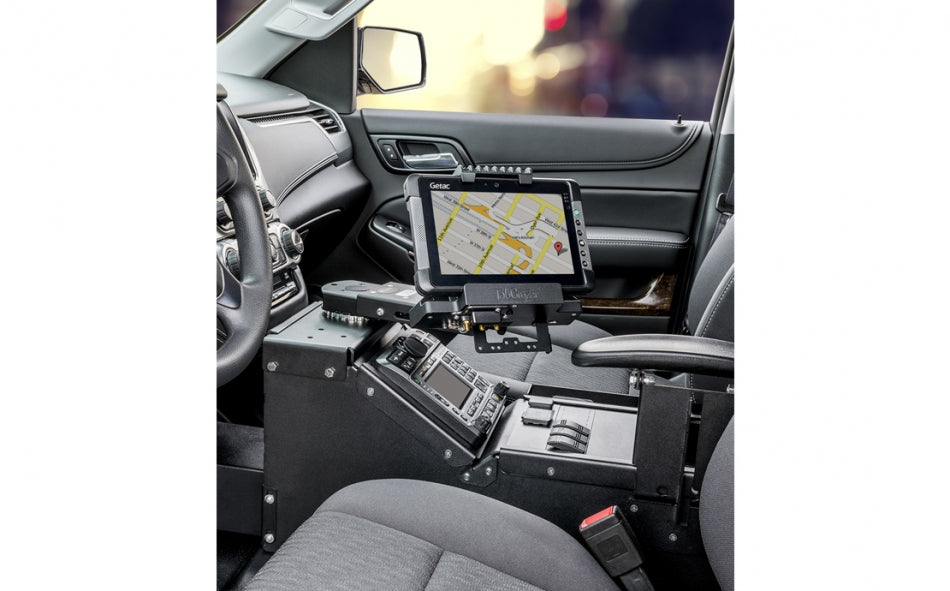

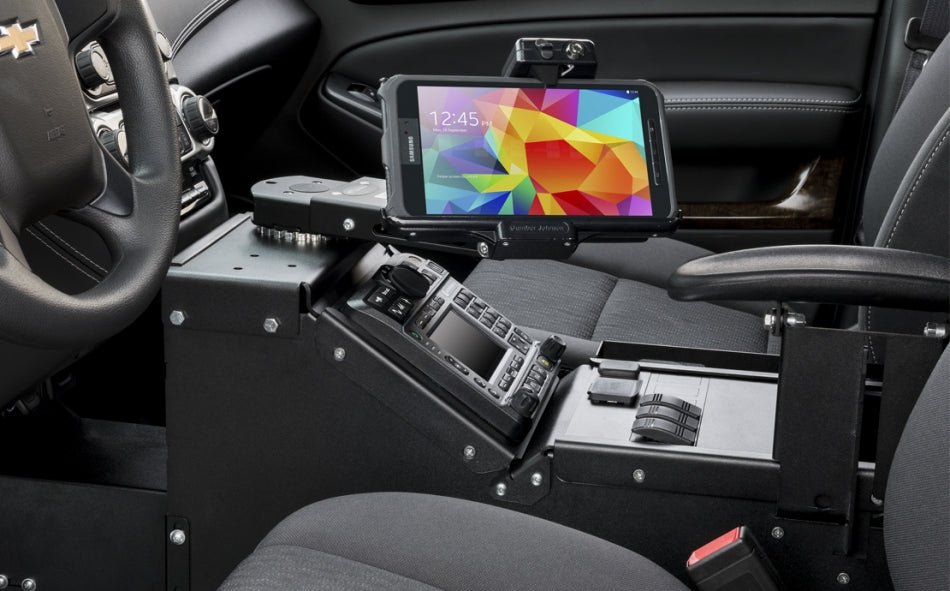

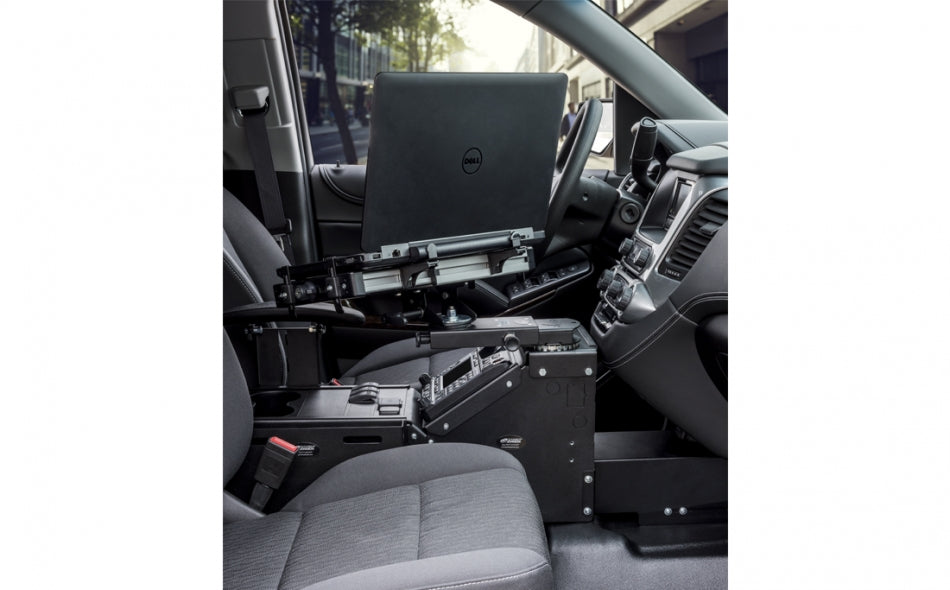

- Computer can be center mounted in two locations: off-set towards the passenger on the “smiley face pattern" or on the 3-bolt pattern closer to the driver for easy articulation access.
- Vertical, angled section accommodates 7.5” (19.1 cm) of mounting space and is designed to house 1 to 2 full sized radios or a larger radio such as the Motorola APX 09.
- Horizontal, low profile section accommodates 11.5" (29.2 cm) of mounting space and is designed to house radio control heads and accessories.
- Box will ship fully assembled.
- 3 faceplates and 3 filler panels are included.
- Console box works with manual 4x4 shift lever.
- Must order as is. There are no substitutions for accessories. Accessories may need to be assembled.
- Height: 14.82” (37.6 cm)
- Width: 13.71” (34.8 cm)
- Depth: 24.92” (63.3 cm)
COMPATIBILITY
- 2014-2018 Chevrolet Silverado 1500
- 2015-2019 Chevrolet Silverado 2500/3500
- 2015-2020 Chevrolet Suburban/Tahoe
- 2014-2018 GMC Sierra 1500
- 2015-2019 GMC Sierra 2500/3500
- 2015-2020 GMC Yukon/Yukon XL
KIT INCLUDES
- Console box (item no. 7160-0548)
- Leg kit (item no. 7160-0509)
- Note: Only the accessories listed above are included in the kit. Items such as control heads, radios, docking stations, motion attachments, computers, toggle switch plates, and locking pocket shown in photos are not included.
COMPATIBLE ACCESSORIES

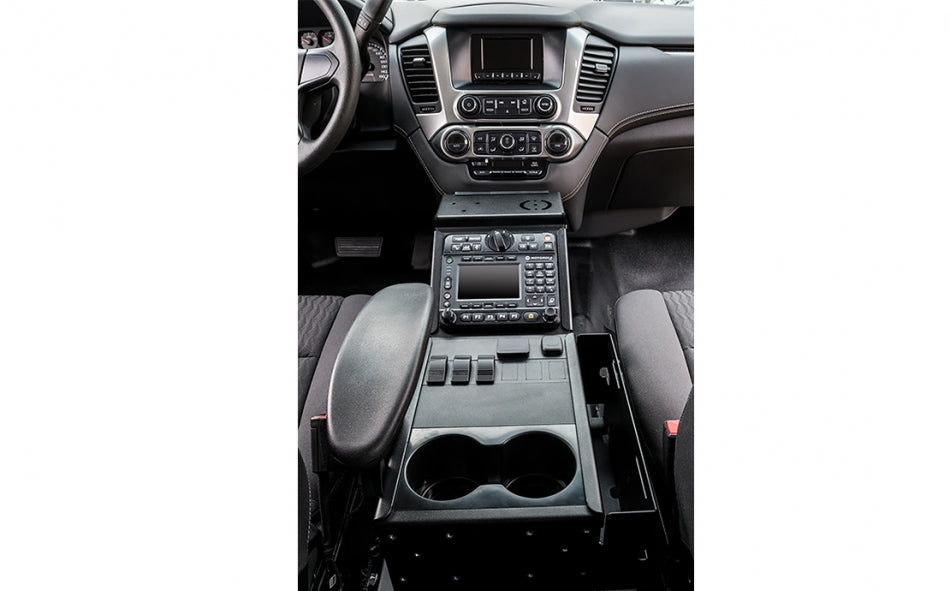

- If you require a cupholder, use the Internal Cupholder (item no. 7160-0846) or any external cupholders. If you require an armrest, there are threaded PEMS on both sides of the console to attach driver armrest (Item No. 7110-1013) and passenger armrest (Item No. 7110-1012). There are also threaded PEMS on the back of the console to use the following armrests: 7160-0429, 7160-0430 or 7160-0524.
WARRANTY: LIMITED LIFETIME
- A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
