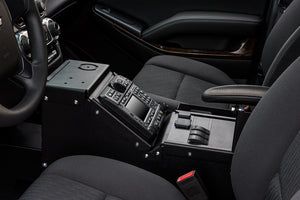

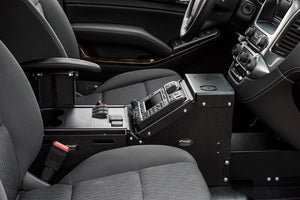

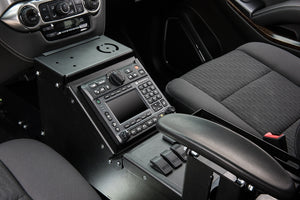

Vertical Section accommodates 7.5" (19.05 cm) of mounting space
Horizontal Section accommodates 7" (17.78 cm) of mounting space including internal cup holder
No-drill solution that attaches to the vehicle without the need to order a separate top plate (leg kit is provided with the console box)
Two 12 volt plug inserts located on passenger side
USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12 Volt from factory console can be relocated using faceplate (item no. 15250)
Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes

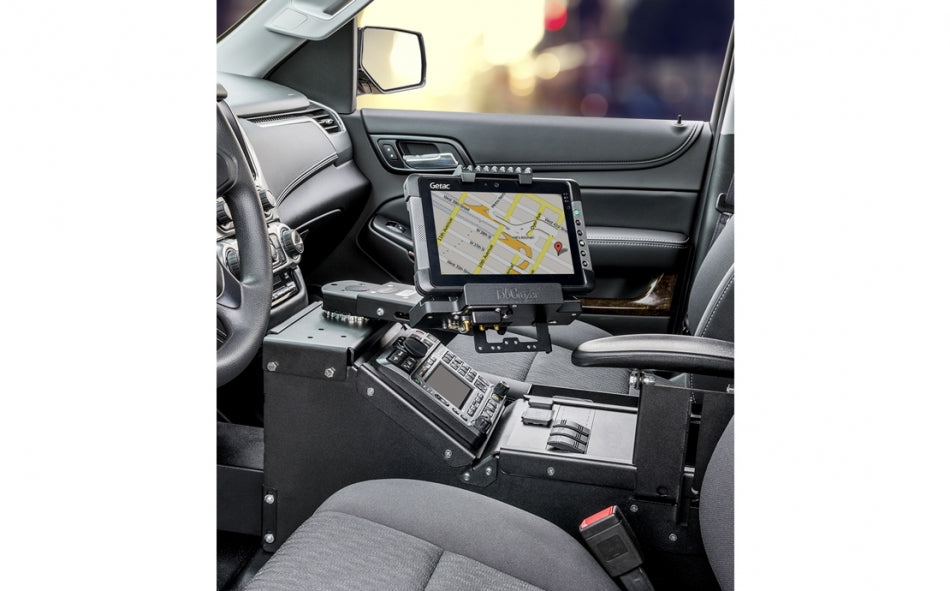

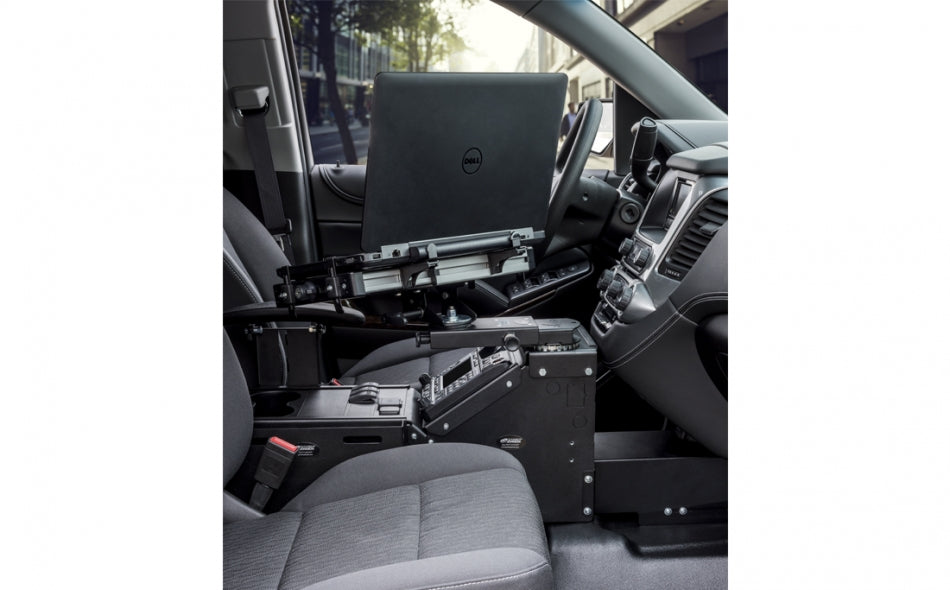

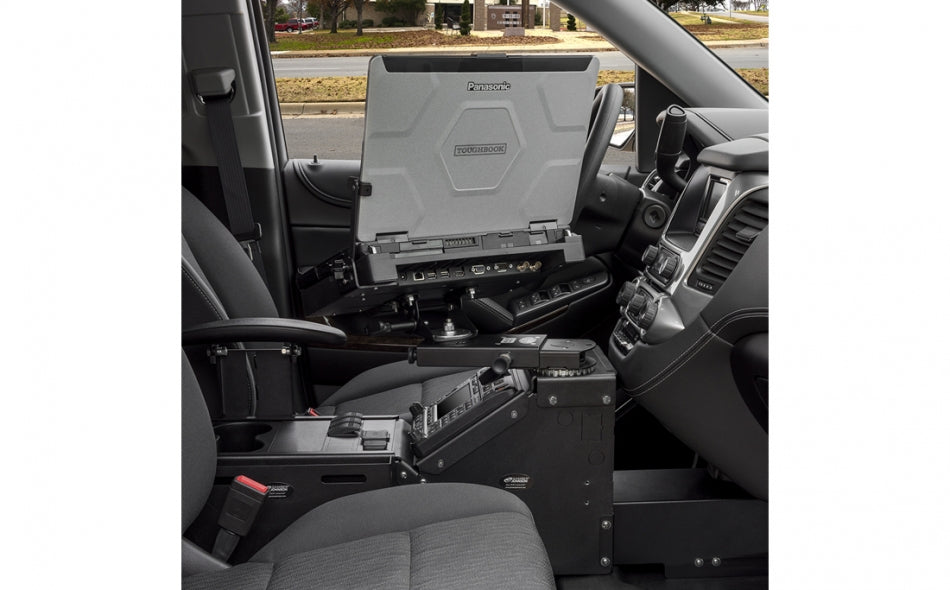

Computer can be center mounted in two locations:
Off-set towards the passenger on the “smiley face pattern"
On the 3-bolt pattern closer to the driver for easy articulation access
Vertical, angled section accommodates 7.5” (19.1 cm) of mounting space and is designed to house 1 to 2 full sized radios or a larger radio such as the Motorola APX 09

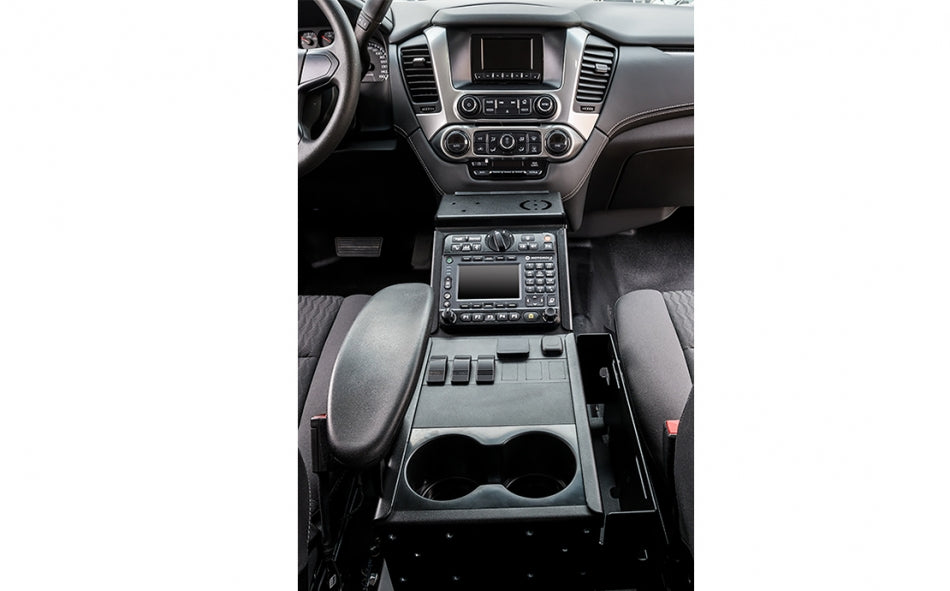

Horizontal, low profile section accommodates 7" (17.78 cm) of mounting space and is designed to house radio control heads and accessories. The included cup holder uses 4.5" (11.43 cm) of that space.
Console box works with manual 4x4 shift lever
Heavy gauge steel, fully welded construction for long-term durability
Black powder coat finish for maximum corrosion resistance
Box will ship fully assembled
3 faceplates and 3 filler panels are included
Height: 16.41 in / 41.7 cm
Width: 13.71 in / 34.8 cm
Depth: 26.67 in / 67.7 cm

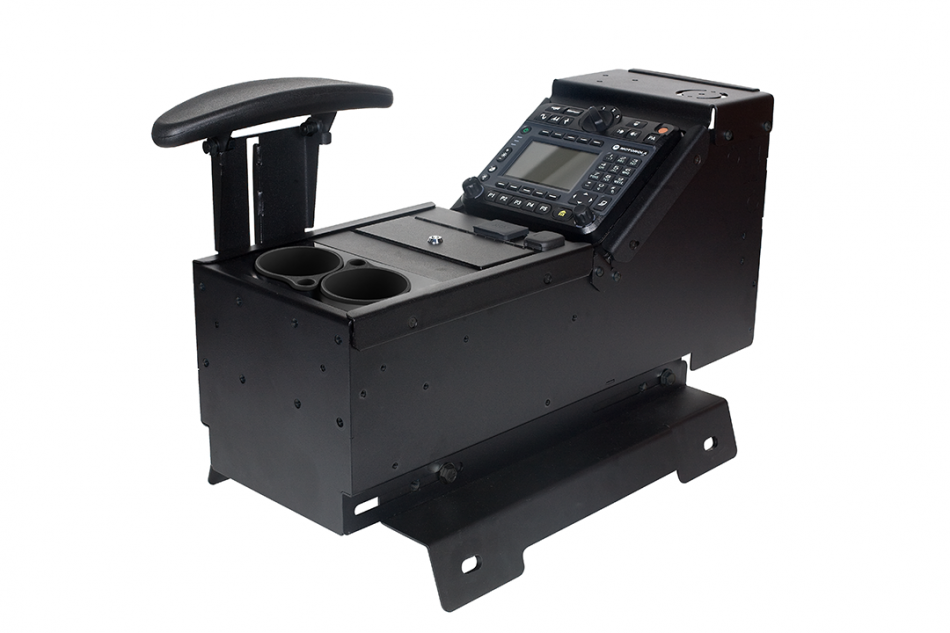

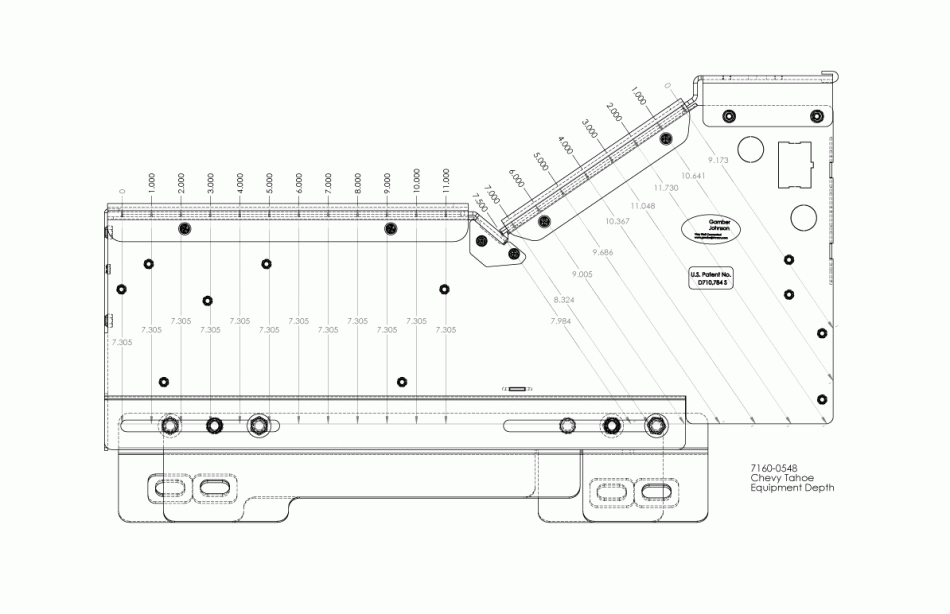

7160-0548 - Console Box
7160-0509 - Leg Kit
7110-1013 - Side Armrest
7160-0846 - Internal Cup Holder

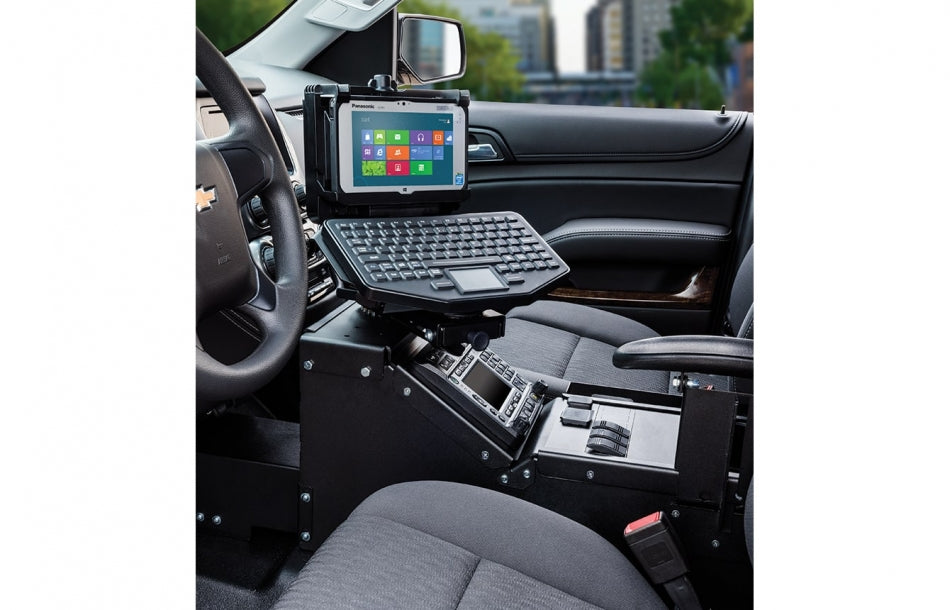

Note: Only the accessories listed above are included in the kit. Items such as control heads, radios, docking stations, motion attachments, computers, toggle switch plates, and locking pocket shown in photos are not included. Must order as is. There are no substitutions for accessories. Accessories may need to be assembled.
2014-2018 Chevrolet Silverado 1500
2015-2019 Chevrolet Silverado 2500/3500
2015-2020 Chevrolet Suburban/Tahoe
2014-2018 GMC Sierra 1500
2015-2019 GMC Sierra 2500/3500
2015-2020 GMC Yukon/Yukon XL
If you require additional cup holders, use any external cup holders. If you require an armrest, there are threaded PEMS on both sides of the console to attach driver armrest (Item No. 7110-1013) and passenger armrest (Item No. 7110-1012). There are also threaded PEMS on the back of the console to use the following armrests: 7160-0429, 7160-0430 or 7160-0524.
WARRANTY: LIMITED LIFETIME
A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
