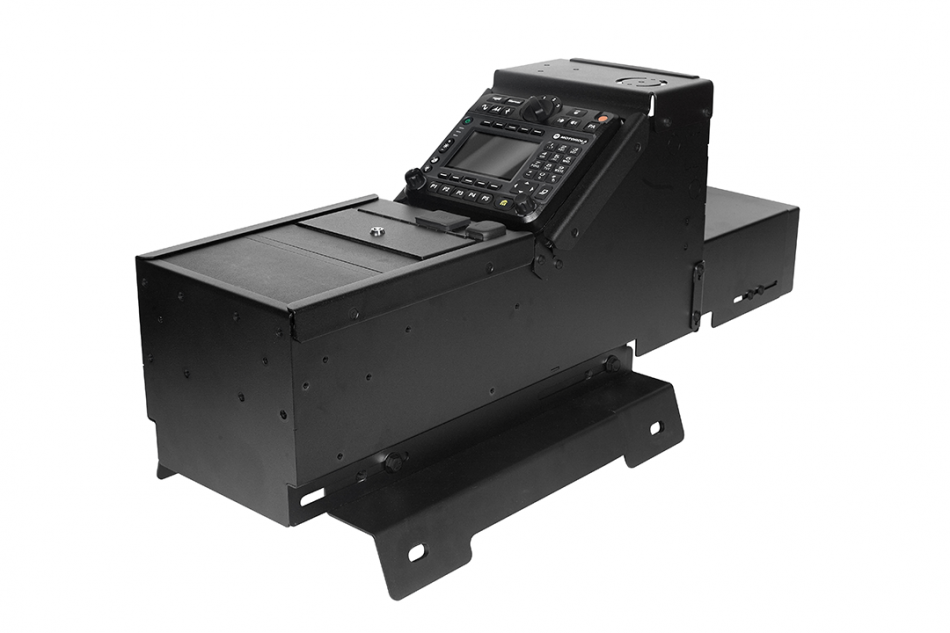

A low profile vehicle specific console box kit crafted for exceptional performance.
7160-0548 - Console Box
7160-0509 - Leg Kit
7110-1024 - Wiring Chase

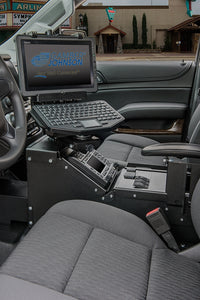

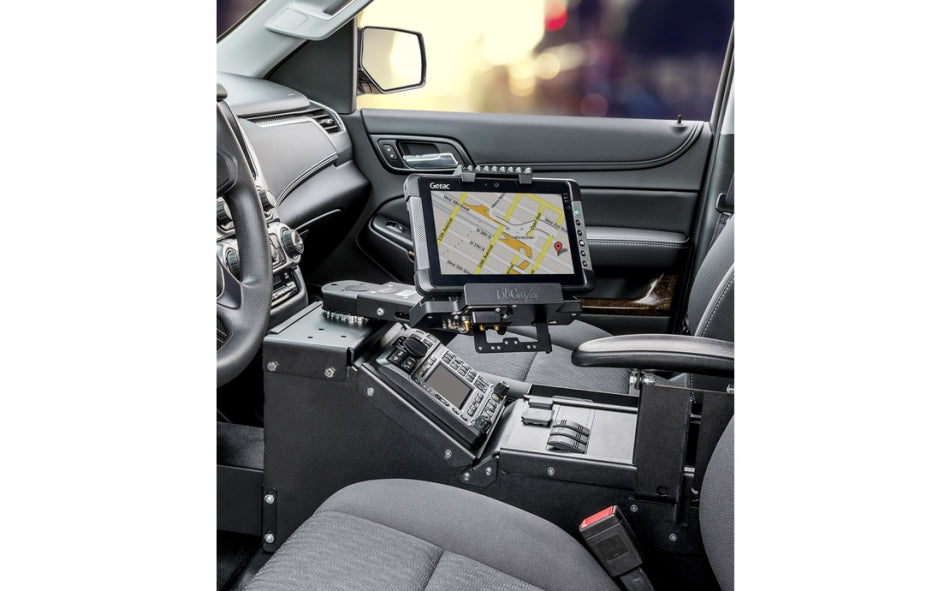

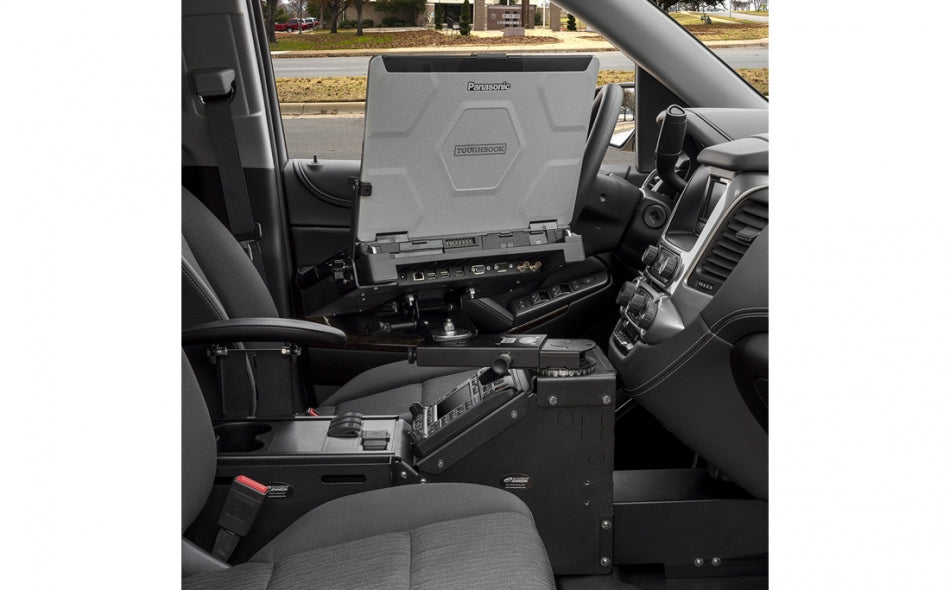

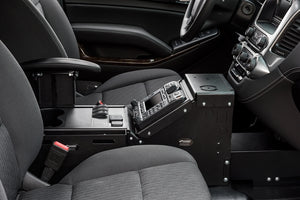

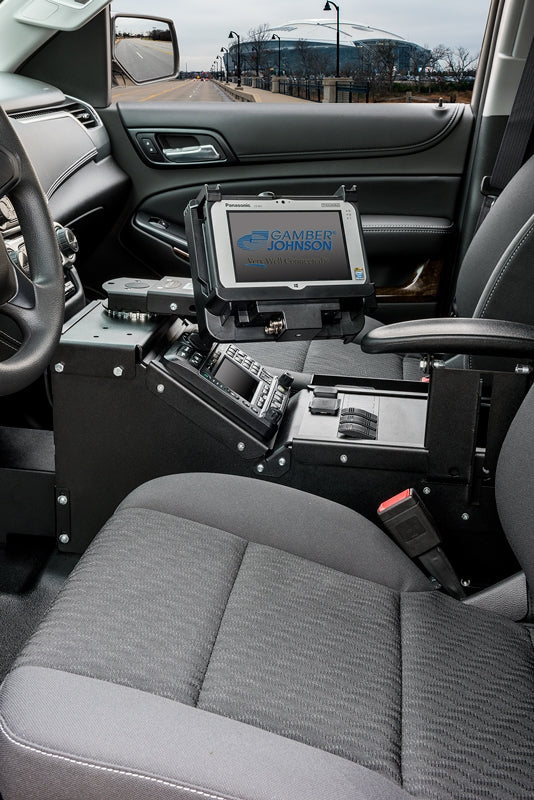

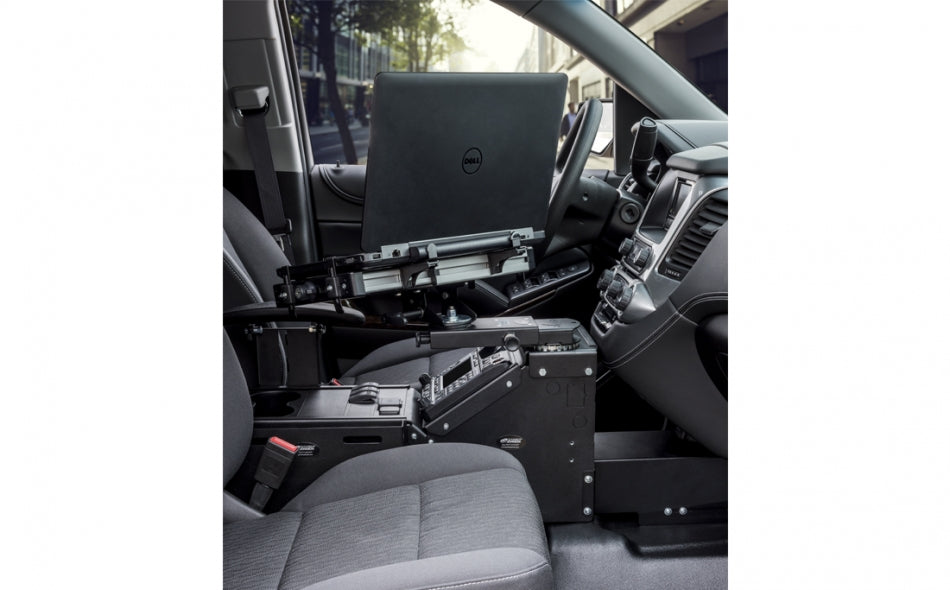

Note: Only the accessories listed in the kit above are included. Items such as control heads, radios, docking stations, motion attachments, computers, toggle switch plates, and locking pocket shown in photos are not included. Must order as is.There are no substitutions for accessories. Accessories may need to be assembled.
Horizontal, low profile section
Accommodates 11.5 (29.21 cm) of mounting spaceexcludinginternal cup holder, designed to house full sized devices and accessories
Accommodates 7" (17.78 cm) of mounting spaceincludinginternal cup holder
Vertical, angled section
Accommodates 7.5" (19.05 cm) of mounting space, designed to house 1 to 2 full sized devices
Attaches to the vehicle without the need to order a separate top plate (leg kit is provided with the console box)
Two 12 volt plug inserts located on passenger side
USB/MP3/SD card from factory console can be relocated on passenger side using knock-outs or USB/MP3/SD card/12 Volt from factory console using faceplate (item no. 15250)
Front plate of console (underneath the dash) allows a fuse block or Lind shut down timer using pre-configured mounted holes
Computer can be center mounted in two locations:
Off-set towards the passenger on the “smiley face pattern"
On the 3-bolt pattern closer to the driver for easy articulation access
Console box works with manual 4x4 shift lever
Heavy gauge steel, fully welded construction for long-term durability
Black powder coat finish for maximum corrosion resistance
Box ships fully assembled
3 faceplates and 3 filler panels are included
Height: 14.82 in / 37.6 cm
Width: 13.71 in / 34.8 cm
Depth: 37.75 in / 95.9 cm
2014-2018 Chevrolet Silverado 1500
2015-2019 Chevrolet Silverado 2500/3500
2015-2020 Chevrolet Suburban/Tahoe
2014-2018 GMC Sierra 1500
2015-2019 GMC Sierra 2500/3500
2015-2020 GMC Yukon/Yukon XL

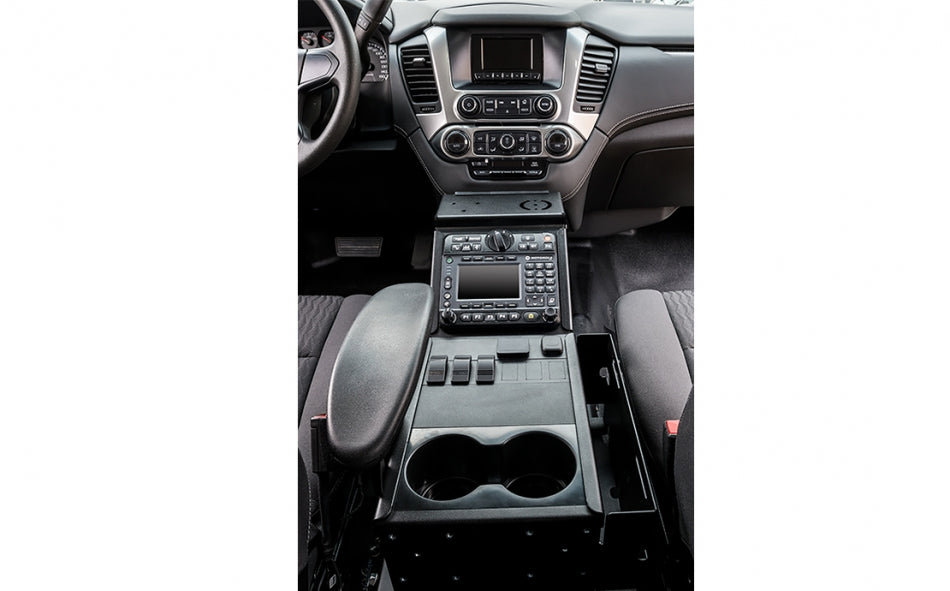

If you require a cupholder, use the Internal Cupholder, item no. 7160-0846 or any external cupholders.
If you require an armrest, there are threaded PEMS on both sides of the console to attach driver armrest, item no. 7110-1013 and passenger armrest item no. 7110-1012. There are also threaded PEMS on the back of the console to use the following armrests: item no. 7160-0429, 7160-0430 or 7160-0524.
WARRANTY: LIMITED LIFETIME
A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
