Gamber Johnson

$1,313.90
SKU: 7160-0882-00

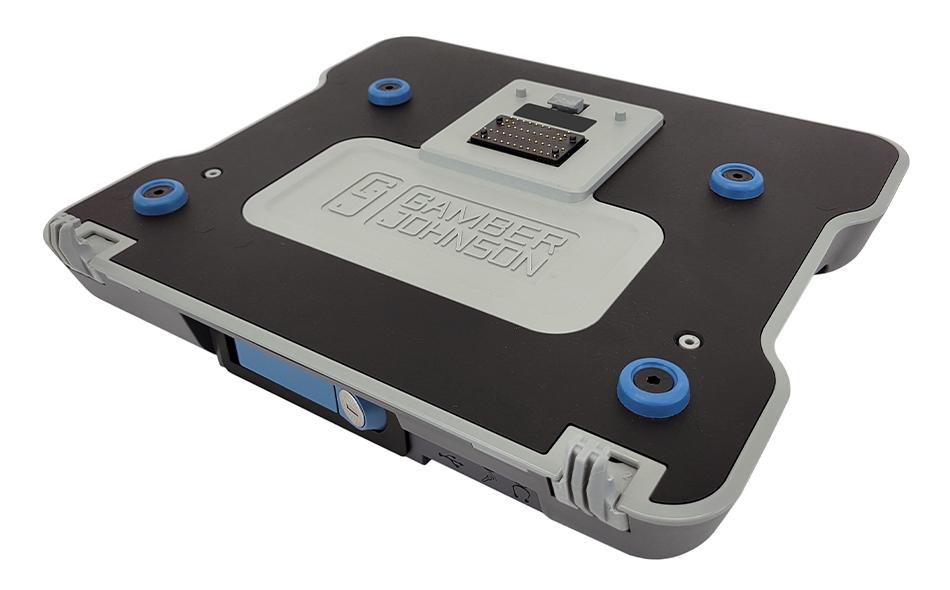

The Dell Latitude Rugged Laptop docking station comes with convenient front-facing USB ports and MIC/AUX ports. This docking station is adjustable to be compatible with the Dell Latitude 14 Rugged, Latitude 14 Rugged Extreme, and Latitude 12 Rugged Extreme Laptop computers.

ANTENNA PASS-THROUGH

  • None

PORT REPLICATION

  • (1) Ethernet, RJ45
  • (2) Serial, D-sub 9-pin
  • (3) USB 3.0 (900mA), 9 pin
  • (1) VGA, D-sub 9 pin
  • (1) HDMI, 19 pin
  • (1 each) Mic / Aux (front-facing)
  • (1) USB 2.0 (500mA) (front-facing), 4 pin
  • Tri RF Pass-through (optional), TNC
  • Power input, 19VDC

POWER SUPPLY

  • Not included - use one of the following power supplies:
    • LIND 90W auto power adapter (Item No. 7300-0468)
    • LIND 12-32 VDC isolated power supply (Item No. 7300-0305)
    • LIND 20-60 VDC isolated power supply (Item No. 7300-0306)
    • LIND 72-110 VDC Isolated Power Adapter (Item No. 7300-0430)

FEATURES

  • Access to all tablet control buttons and ports while the tablet is docked
  • Adjustable front hooks can be set to accommodate the Dell Latitude 12 and 14 Rugged Extreme and 14 Rugged laptop computers
  • Front-facing USB 2.0 and Mic/Aux ports
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • Front-facing docking/release latch
  • Keyed lock for theft deterrence
  • Optional Tri RF (WWAN,WLAN, GPS) TNC
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern
  • Height: 2.36 in / 6.0 cm
  • Width: Hooks expand from 10.7 in - 12.85 in / 27.2 cm - 32.6 cm
  • Depth:  12.13 in / 30.8 cm

COMPATIBLE DELL MODELS

  • Dell® Latitude:
    12 Rugged Extreme 7204/7214/
    14 Rugged Extreme 7404/7414/7424
    14 Rugged 5404/5420/5424/5414
    14 Rugged 5430
    14 Rugged Ext 7330

CERTIFICATIONS & TESTING

  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE
  • SAE J1455 Shock Crash Hazard Test

KIT INCLUDES

  • Dell Latitude Laptop Docking Station
  • Mounting Hardware
  • Installation Instructions

WARRANTY
