Gamber Johnson

$2,148.16
SKU: 7170-0551-03

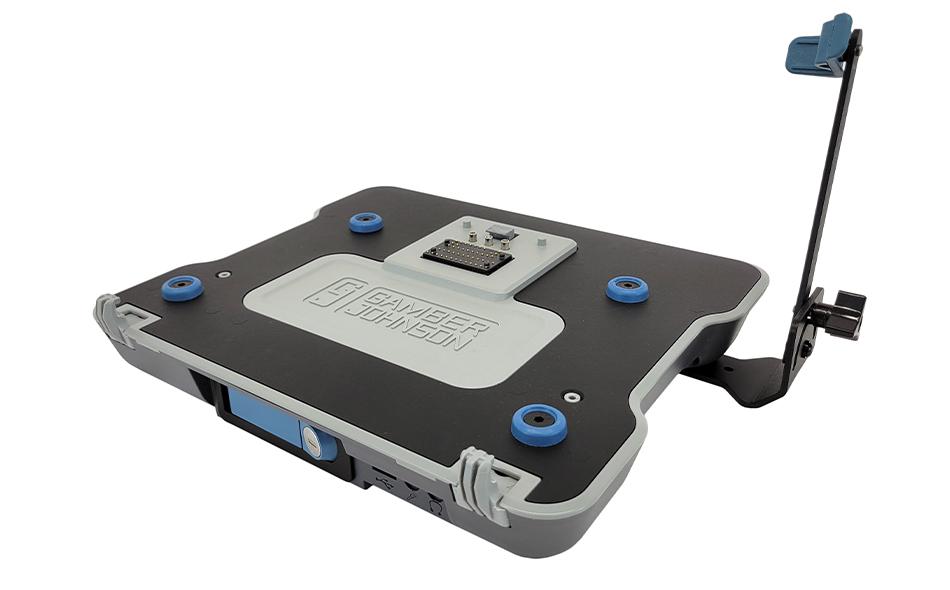

The Dell Latitude Rugged Laptop docking station comes with convenient front-facing USB ports and MIC/AUX ports. This docking station has Tri RF antenna pass through connection and is adjustable to be compatible with the Dell Latitude 14 Rugged, Latitude 14 Rugged Extreme, and Latitude 12 Rugged Extreme Laptop computers. This kit includes a LIND 90W power supply.

ANTENNA PASS-THROUGH

  • Tri RF (TNC)

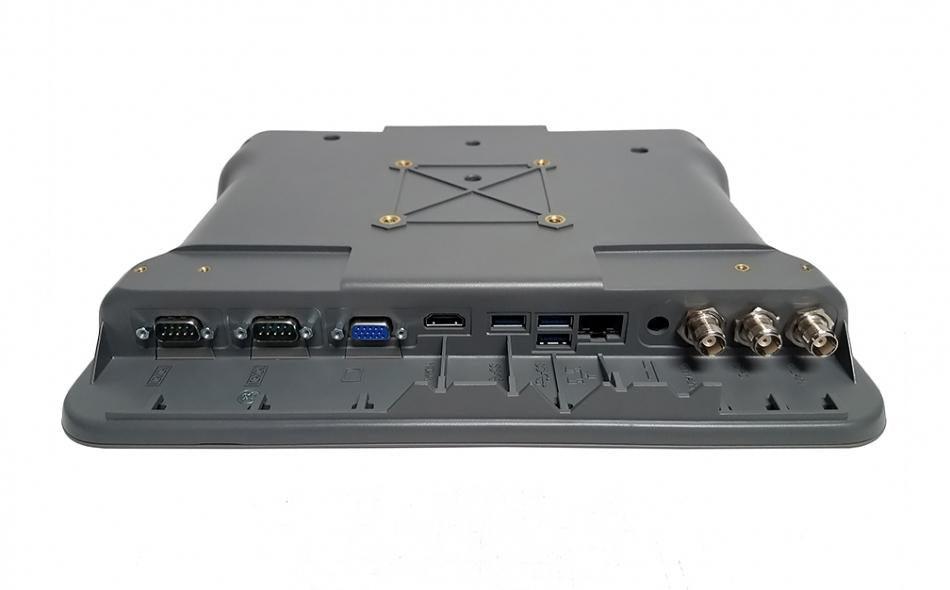

PORT REPLICATION

  • (1) Ethernet, RJ45
  • (2) Serial, D-sub 9-pin
  • (3) USB 3.0 (900mA), 9 pin
  • (1) VGA, D-sub 9 pin
  • (1) HDMI, 19 pin
  • (1 each) Mic / Aux (front-facing)
  • (1) USB 2.0 (500mA) (front-facing), 4 pin
  • Tri RF Pass-through (optional), TNC
  • Power input, 19VDC

POWER SUPPLY

  • Included with this kit:  LIND 90W auto power adapter (7300-0468)

FEATURES

  • Access to all tablet control buttons and ports while the tablet is docked

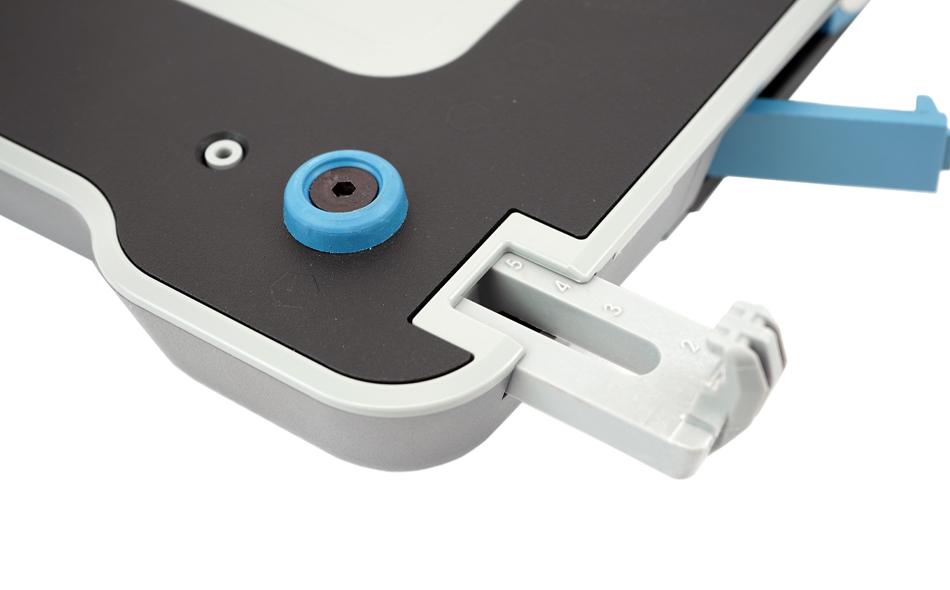

  • Adjustable front hooks can be set to accommodate the Dell Latitude 12 and 14 Rugged Extreme and 14 Rugged laptop computers

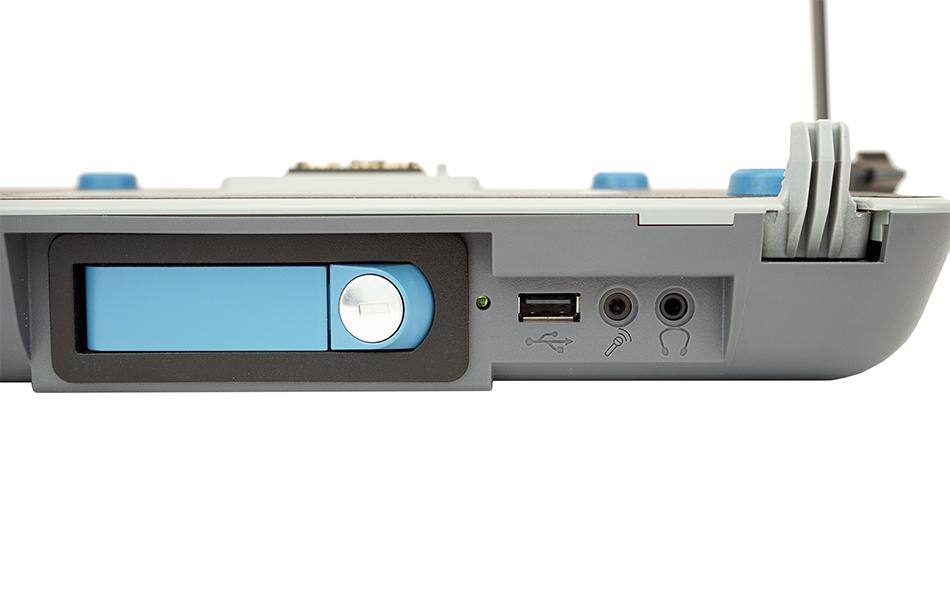

  • Front-facing USB 2.0 and Mic/Aux ports
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • Front-facing docking/release latch
  • Keyed lock for theft deterrence
  • Tri RF (WWAN,WLAN, GPS) TNC
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern
  • Height: 2.36 in / 6.0 cm
  • Width: 10.7 - 12.85 in / 27.2 - 32.6 cm
  • Depth: 12.13 in / 30.8 cm

COMPATIBLE DELL MODELS

  • Dell® Latitude:
    12 Rugged Extreme 7204/7214/
    14 Rugged Extreme 7404/7414/7424
    14 Rugged 5404/5420/5424/5414
    14 Rugged 5430
    14 Rugged Ext 7330

CERTIFICATES & TESTING

  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE
  • SAE J1455 Shock Crash Hazard Test

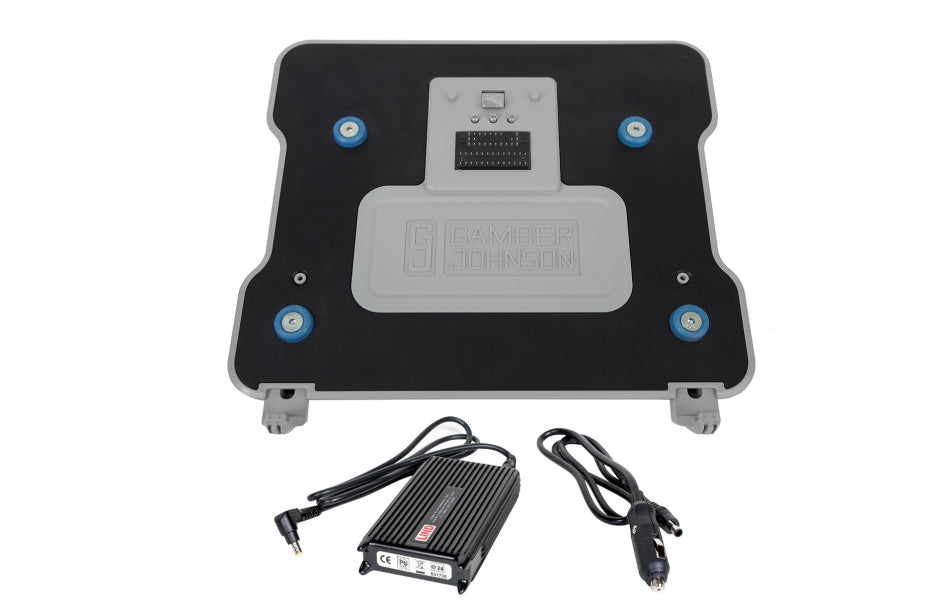

KIT INCLUDES

  • Dell Latitude Rugged Laptop Docking Station (7160-0882-03)
  • LIND 90W Auto Power Adapter (7300-0468)
  • Installation Guide
  • Mounting Hardware
