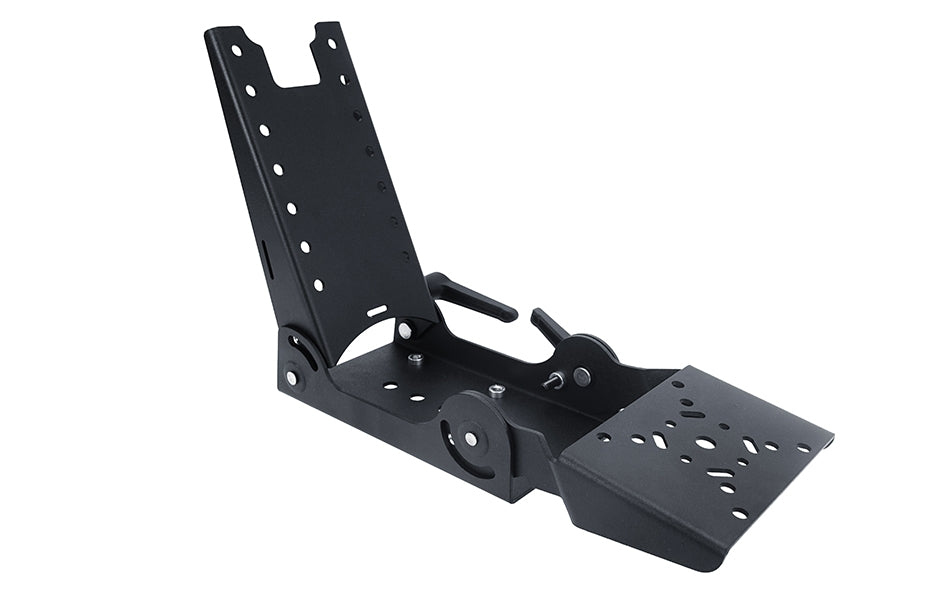

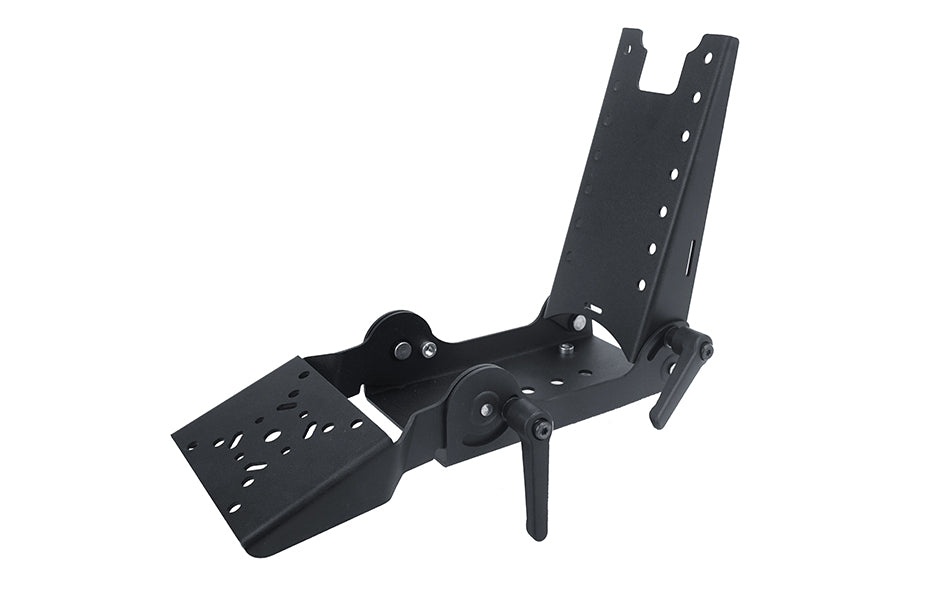

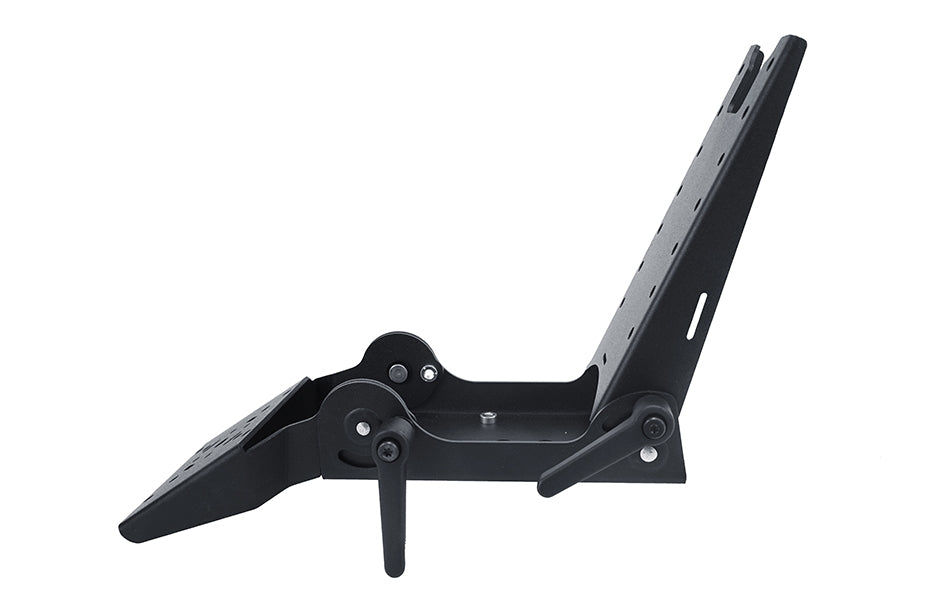

Fold-Up Tablet and Keyboard Mount
Keyboard folds up to make a compact tablet keyboard mount option. Mounting the keyboard and tablet keeps them close by ready to use.
FEATURES

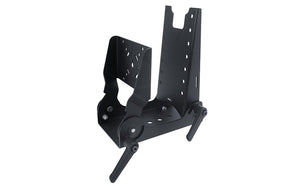

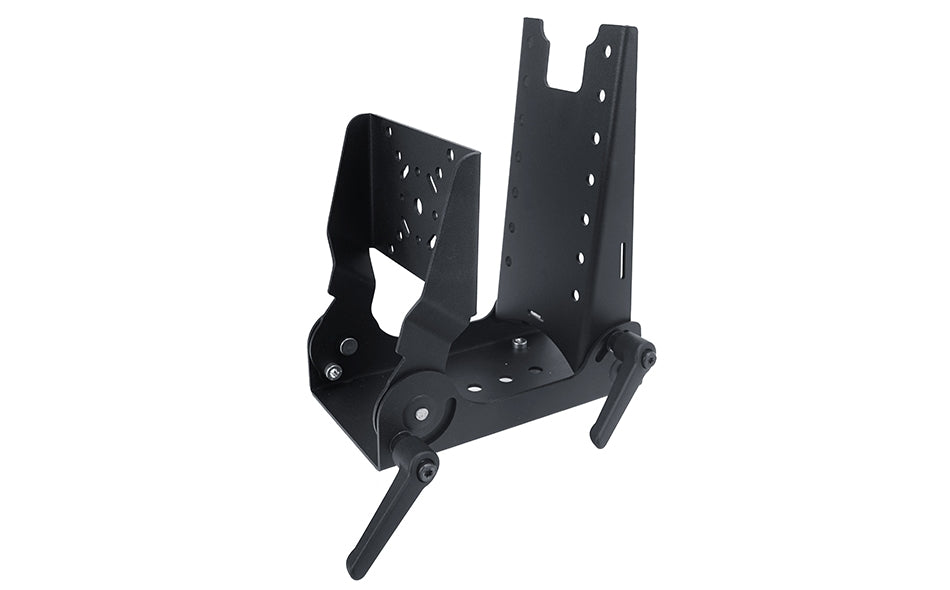

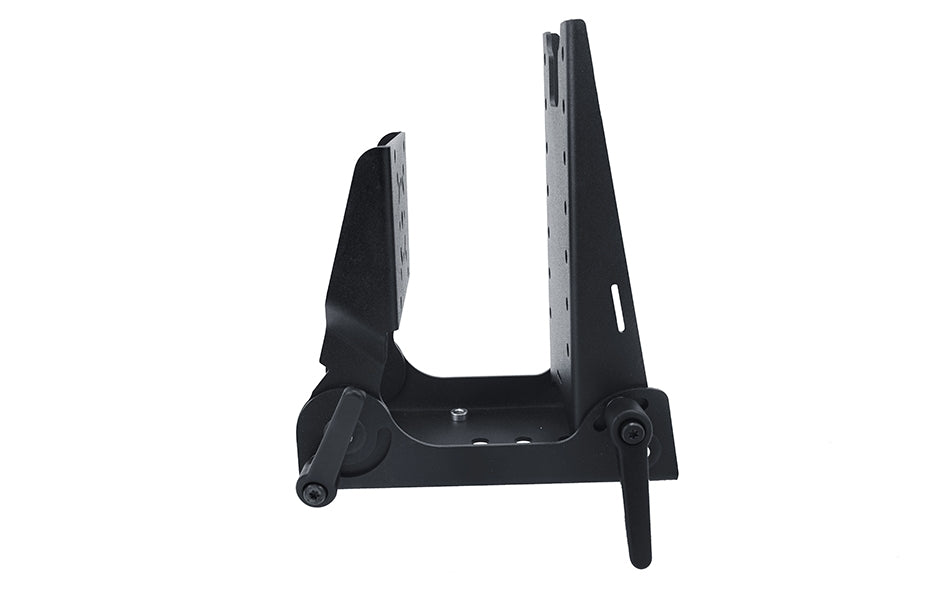

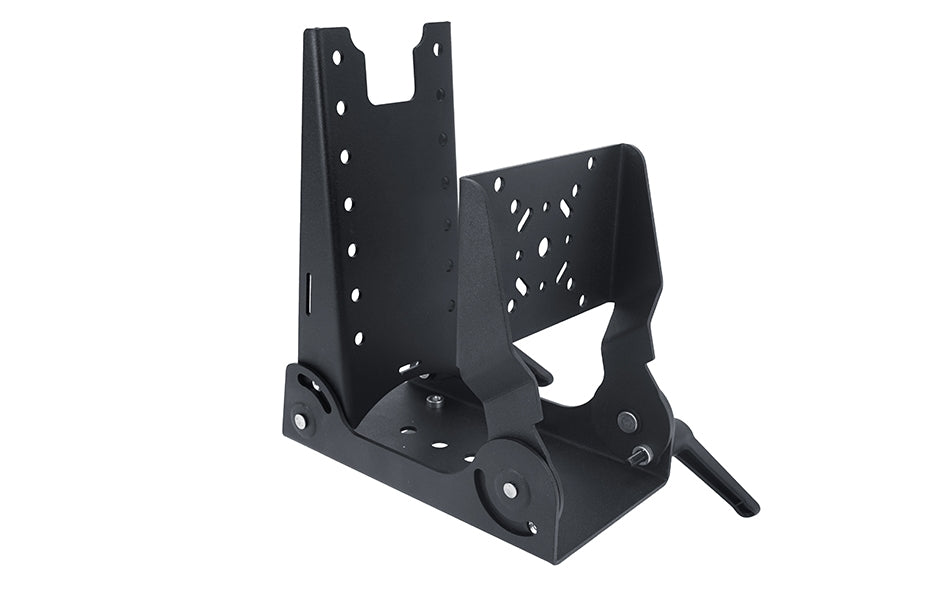

- Fold-up your keyboard when not in use to make the dock and keyboard mounted compact
- Swivel and/or telescope the keyboard and display together for easy viewing and operation
- Ratcheting handles (2) for swift adjustment of keyboard and display
- Ratcheting handles can also be installed on either side of mount depending on the use case
- Keyboard and display can tilt to operater's desired position
- Display can tilt to help avoid unwelcome glare
- Bottom portion features three (3) 3/8" holes allowing the user different positions to mount on motion device

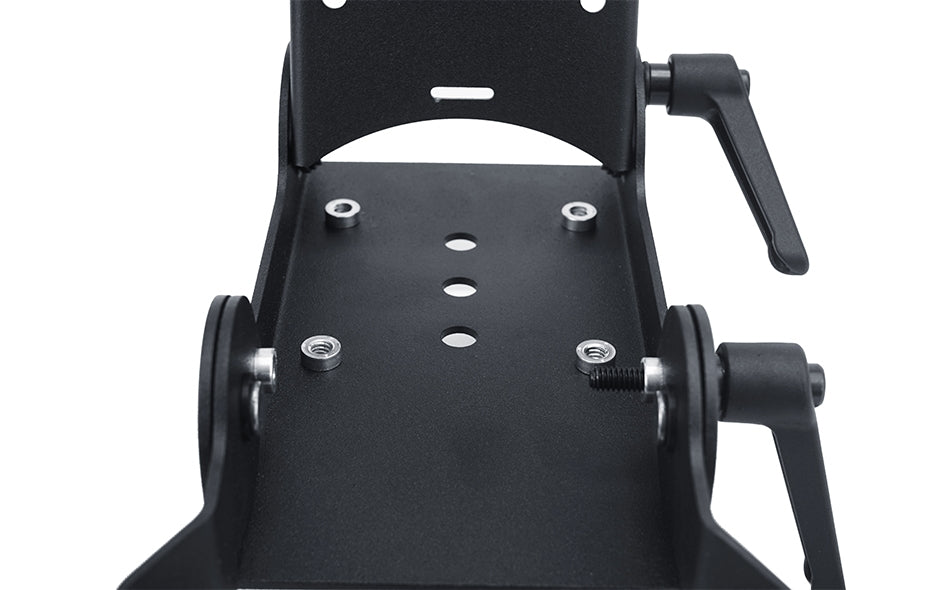

- VESA 75 mm threaded PEMS permits the ability to mount to anything that contains VESA 75 mm holes (i.e. clevis' and universal adapter 7160-0454)
- Keyboard contains VESA 75mm, VESA 50mm, AMPS, and NEC hole patterns to accommedate various mountable keyboards
- Display features 4 different VESA 75 mm positions to accommedate different size tablet docks and cradles
SPECS
- Height: 9.25 in / 23.5 cm
- Width: 6.58 in / 16.71 cm
- Depth: 12.67 in / 32.18 cm
COMPATIBILITY
- Works on any motion attachment with 3/8" stud. Keyboard tray works with mountable keyboards, quick-release keyboard tray (7160-0857), and Gamber-Johnson keyboard tray (7160-1470-00)
RECOMMENDED SOLUTIONS
-
Solution 1:
- Universal Horizontal Surface Base (DS-56)
- Mongoose® - 9" Locking Slide Arm With 3/8" Stud (7160-0427)
- Fold-Up Tablet and Keyboard Mount (7160-1445)
-
Solution 2:
- Universal Horizontal Surface Base (DS-56)
- Mongoose XE 9" 3/8" Stud (7160-1210-09)
- Fold-Up Tablet and Keyboard Mount (7160-1445)
-
Solution 3:
- Universal Horizontal Surface Base (DS-56)
- Mongoose XLE 9" 3/8" Stud (7160-1220-09)
- Fold-Up Tablet and Keyboard Mount (7160-1445)
WARRANTY: LIMITED LIFETIME
- A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
