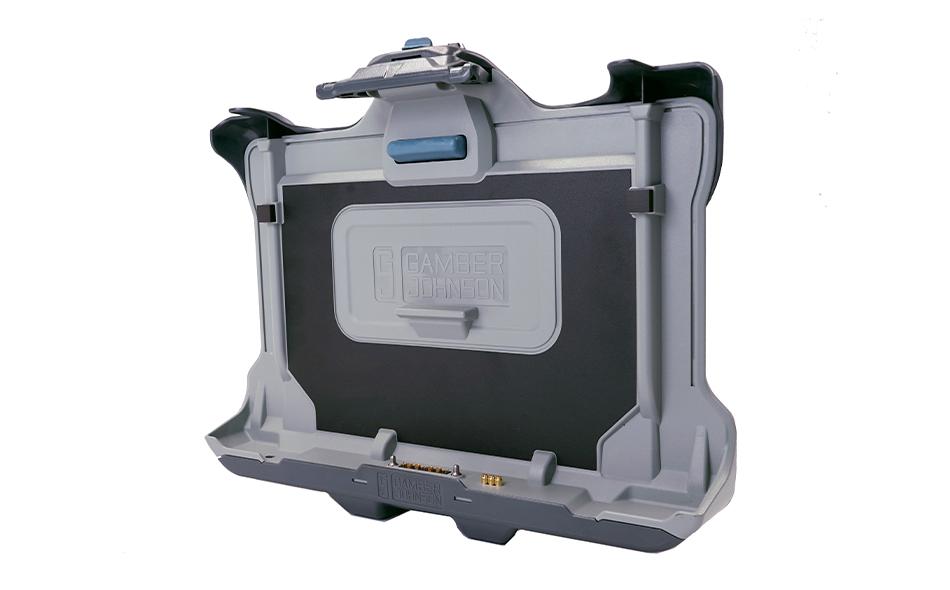

Getac A140 Tablet Docking Station, TRI RF
The Gamber-Johnson Getac A140 Tablet docking station is the perfect complement for the rugged A140 computer and the best way to achieve maximum mobile productivity. This version offers TRI SMA antenna pass-through.
ANTENNA PASS-THROUGH
- Triple RF (SMA)

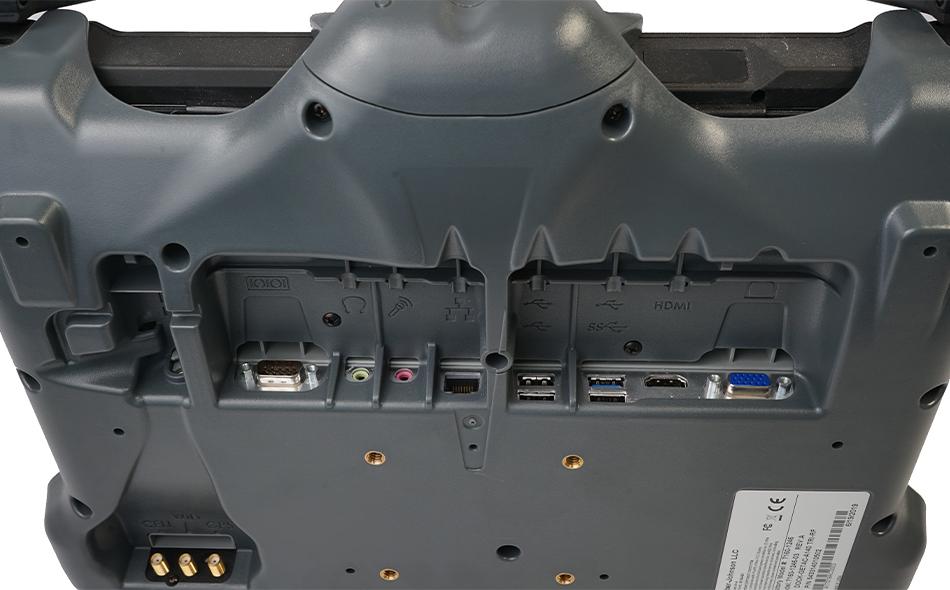

PORT REPLICATION
- Ethernet (1) RJ45
- USB 2.0 (3) 4- pin
- USB 3.0 (1) 9 pin
- VGA (1) D-sub 9 pin
- HDMI (1) 19 pin
- Serial (1) D-sub 9 pin
- Headphones/speakers Stereo phone jack
- Microphone Mono phone jack
- Power Input 19 Vdc
- RF Pass Through SMA
FEATURES

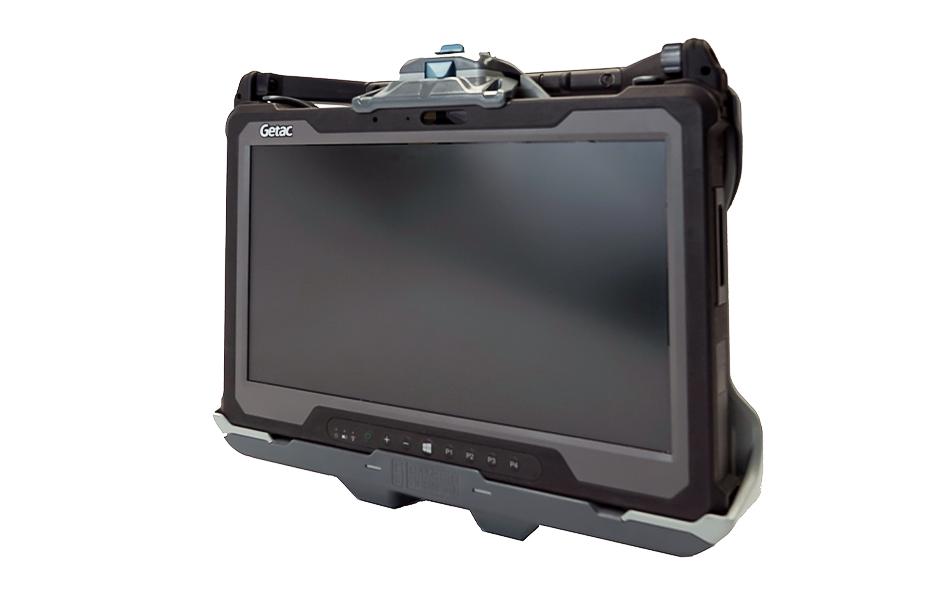

- Designed for the Getac A140 tablet computer
- Docking station design accommodates tablet's built-in rubber hand strap, stylus, and optional multi-function hard handle (sold separately)
- Access to all tablet control buttons, ports, smart card reader and front camera while tablet is docked

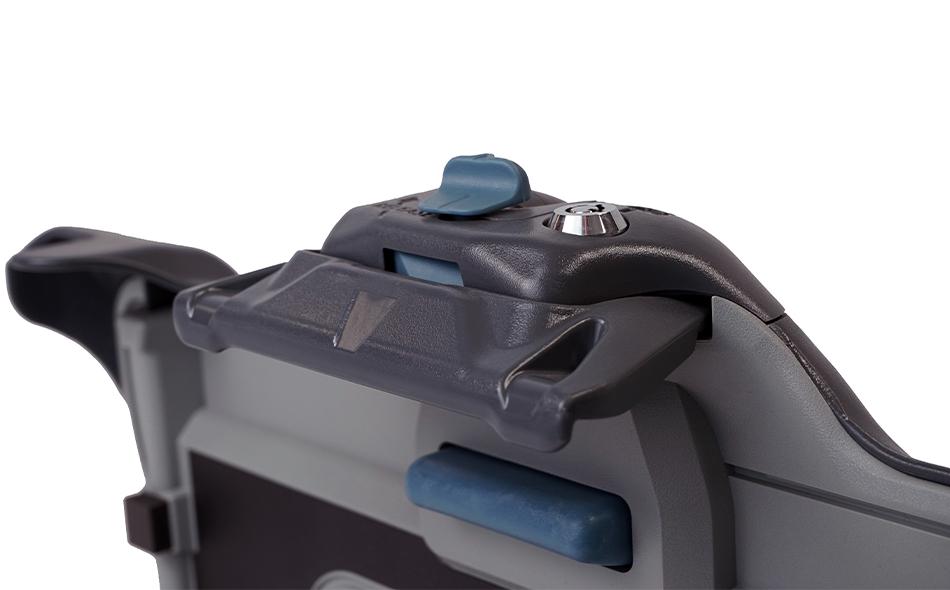

- Easy to use one-handed operation:

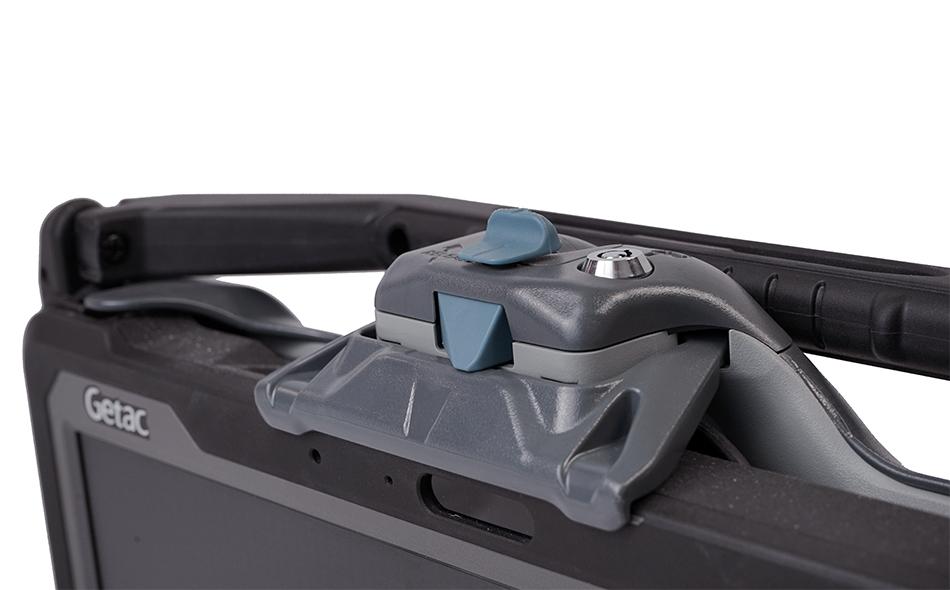

- Insert bottom of computer into the dock, push top of computer against latch button until latch engages
- To remove, push up on latch-button with thumb to disengage and pull computer out of the dock

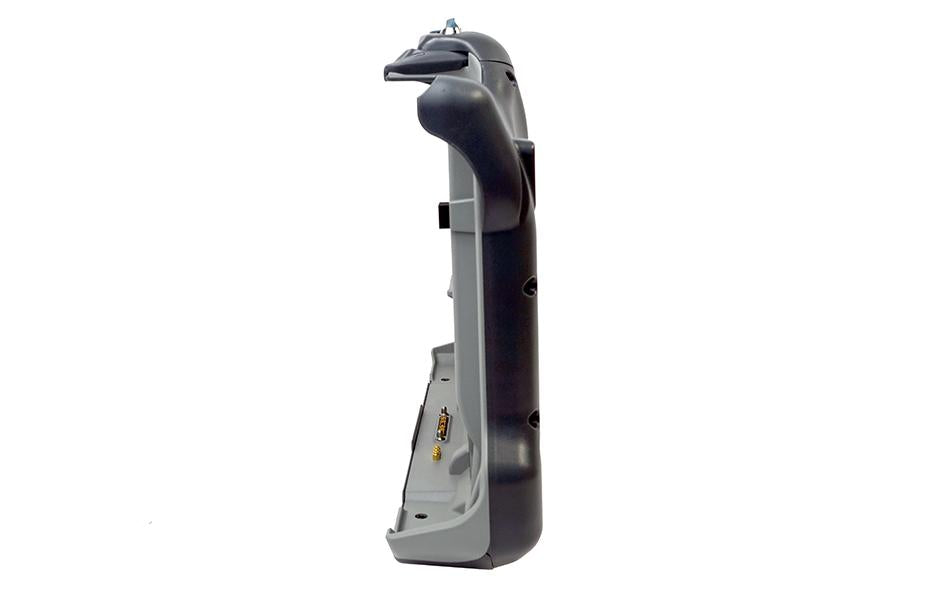

- Upward-facing I/O ports; integrated cable strain relief and cable management system
- Floating docking connector for reliable connectivity in the most rugged environments

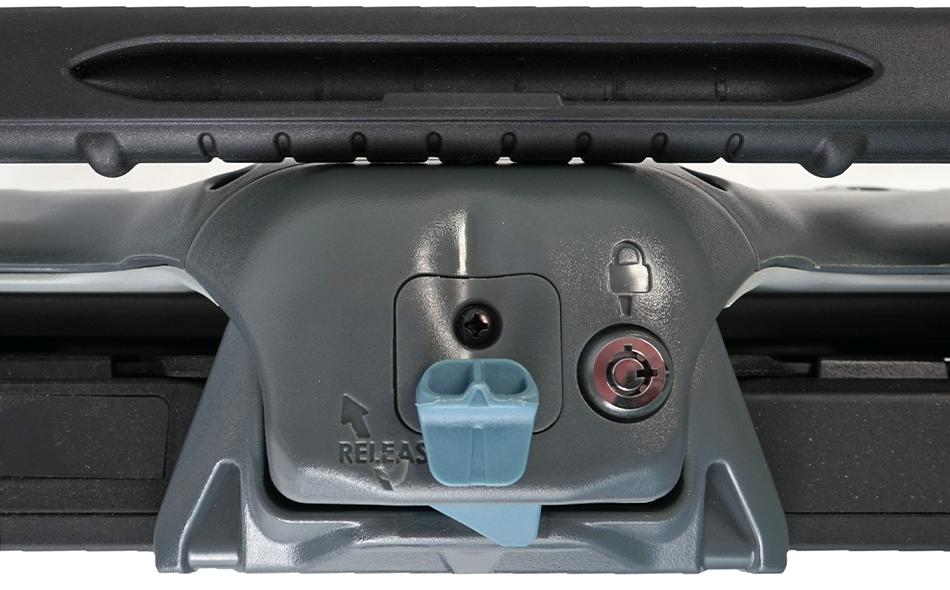

- Optional keyed lock for theft deterrence
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite/aluminum design for reduced weight and durability

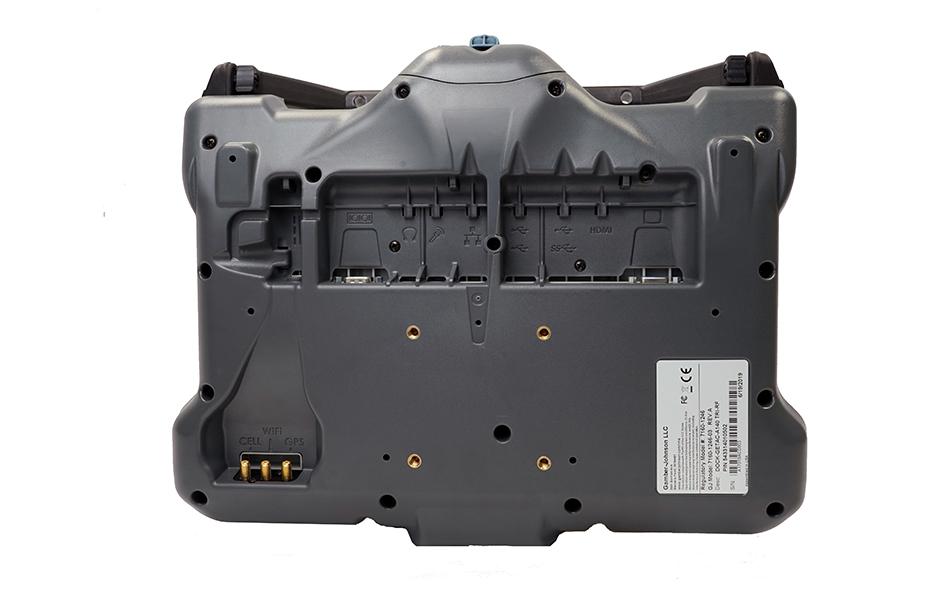

- VESA 75mm mounting pattern
- Height: 12.59 in / 31.9 cm
- Width: 15.18 in / 38.5 cm
- Depth: 3.31 in / 8.4 cm
CERTIFICATION/TESTING
- Getac Certified
- Vibration Tested: MIL-STD 810G Operational/Non-operational
- Shock Crash Hazard: SAE J1455; Mechanical Shock: 40g
- Cycle Test: Latch, lock, and docking connector - 30,000 cycles
- Environmental: Thermal shock; High/low temperature Operational & Storage
- FCC, CE, RoHS Certified
WARRANTY:
- 3-Year Limited Warranty
- Explore our extended warranty program
