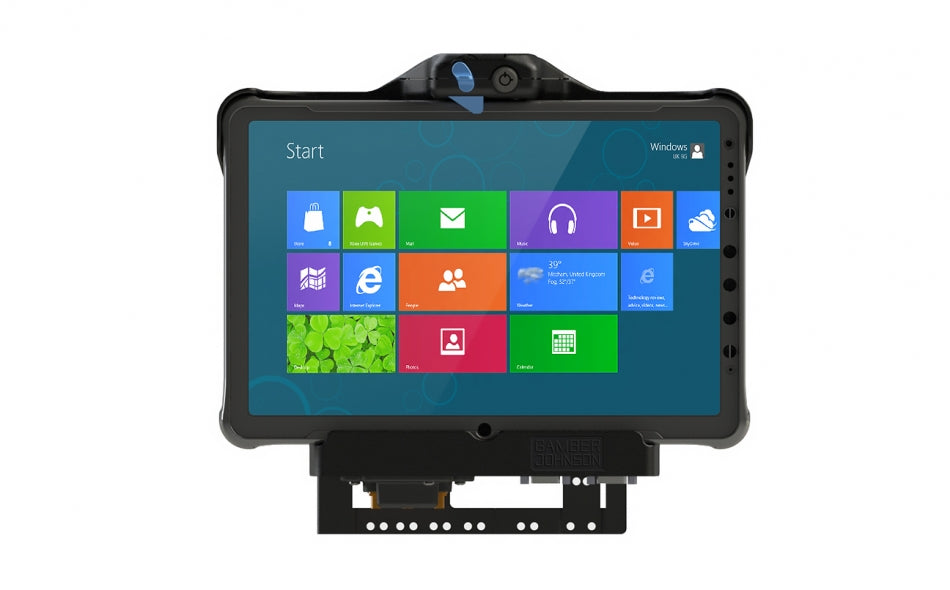

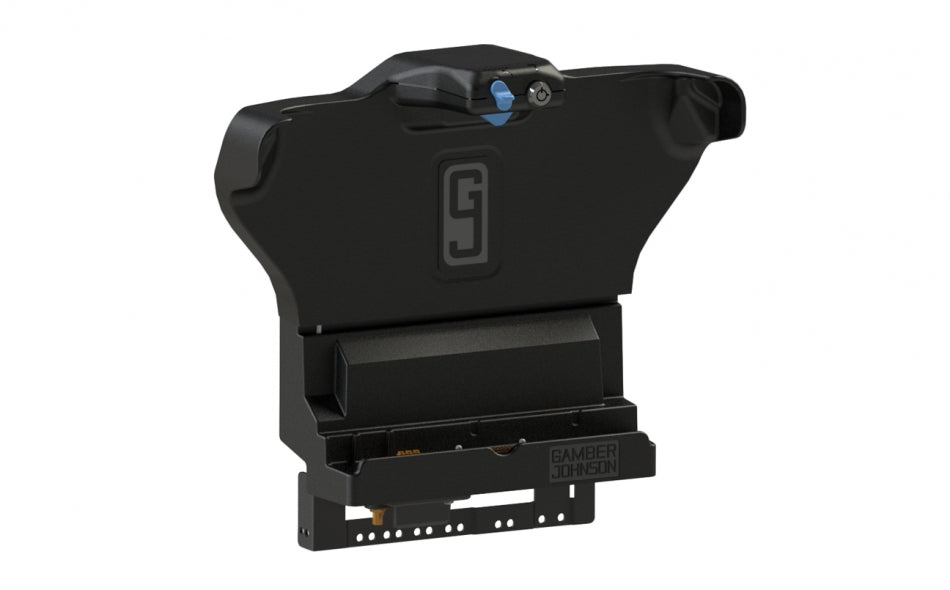

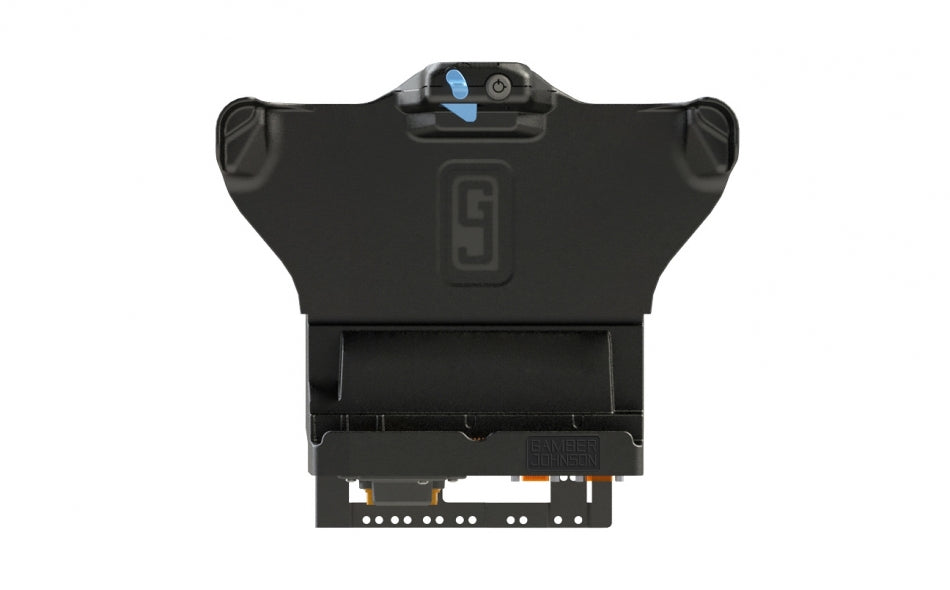

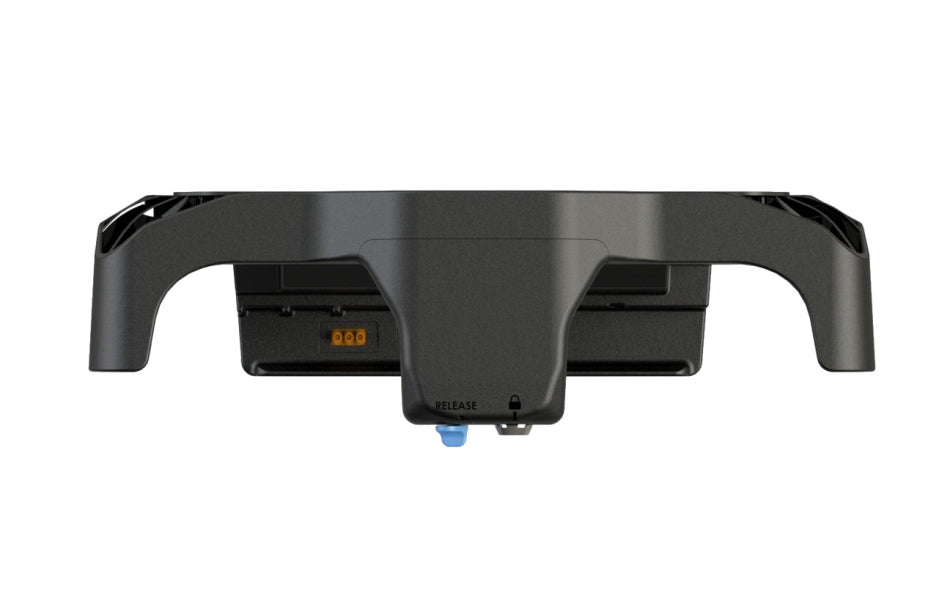

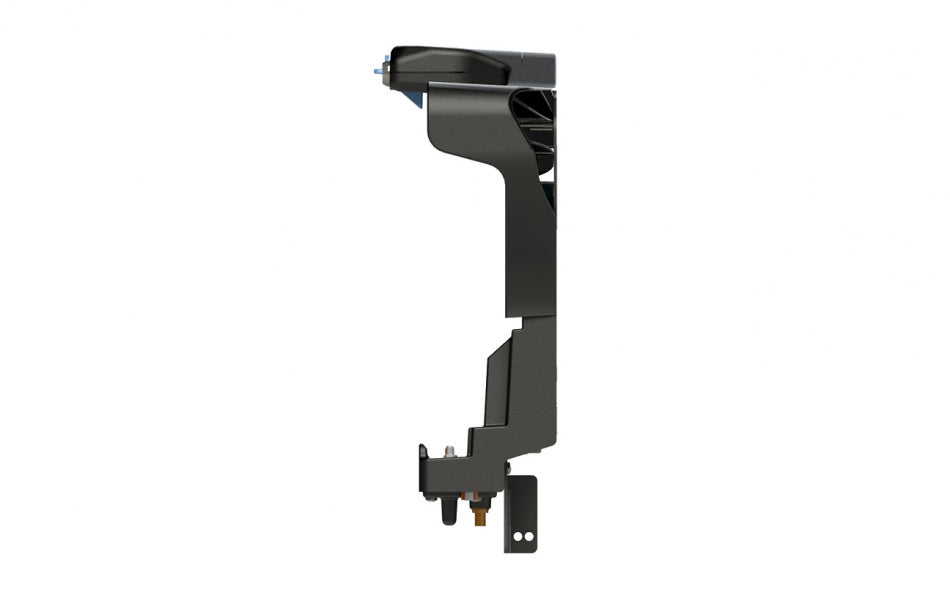

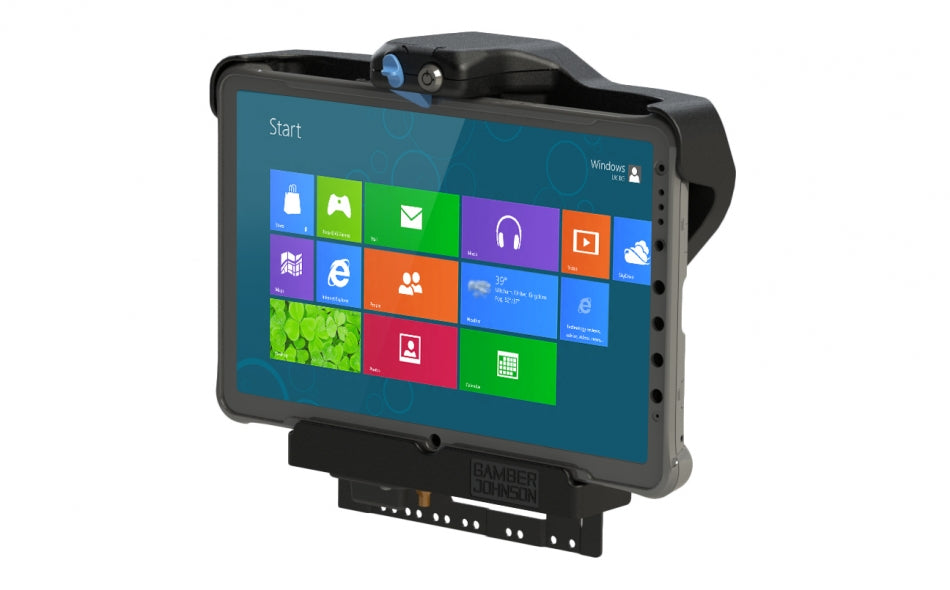

Getac F110 Docking Station, TRI RF

• Triple RF (SMA)

COMPATIBILITY

• Compatible with the Getac F110 and F110 Gen 6 11.6 inch tablet computers

• Getac Certified Electronics
• USB 3.0 - 9 pin (1)
• USB 2.0 - 4 pin (3)
• Ethernet RJ45 (1)
• Serial D-sub 9 pin (2)
• HDMI (1)
• VGA D-sub 15 pin (1)
• Speakers/microphone  (1 each)
• Power Input: 19 Vdc
• TRI antenna pass-through - SMA

Not included - must use one of the following external power supplies:

• Lind 90W Auto Adapter for Getac (Item no. 15110)
• Lind 12-32V Material Handling Isolated Power Adapter for Getac (Item no. 16079)
• Lind 20-60V Material Handling Isolated Power Adapter for Getac (Item no. 16078)
• Lind 80V Material Handling Isolated Power Adapter for Getac (Item no. 16513)

• Compatible with the Getac F110 and F110 Gen 6 11.6 inch tablet computers
• Easy to use one-handed operation:
  • Insert bottom of computer into docking station, push top of computer against latch button until latch engages
  • To remove, push up on latch-button with thumb to disengage and pull computer out of docking station

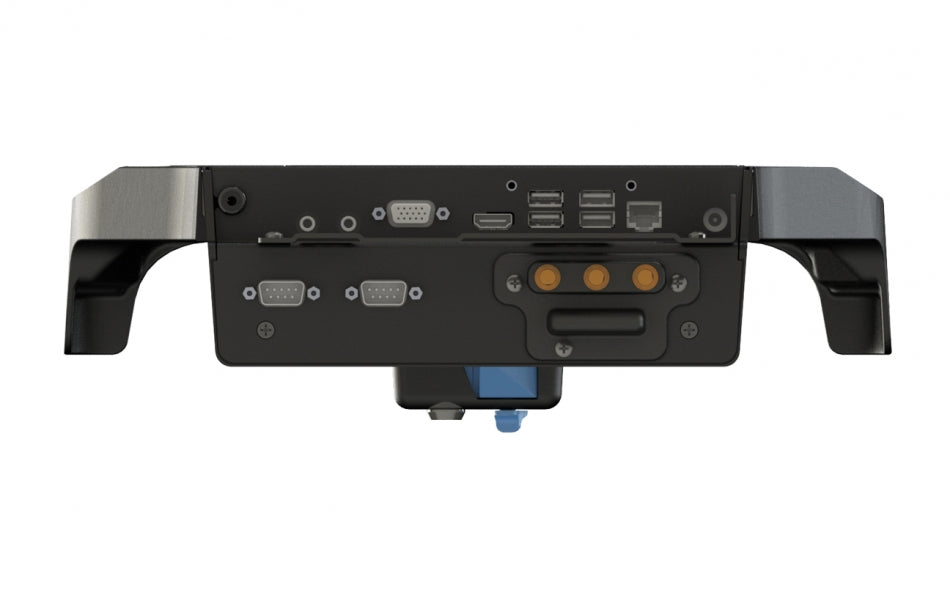

• Downward-facing I/O ports; cable strain relief and cable management system
• Docking Station design accommodates mag strip reader and hand strap without shoulder strap attachment (sold separately)
• POGO pin style docking connector for reliable docking activation
• VESA 75mm mounting pattern
• Front bracket to align computer for ease of docking
• Composite/aluminum design for reduced weight and durability
• Height: 11.28" / 28.6 cm
• Width: 12.72" / 32.3 cm
• Depth: 4.09" / 10.3 cm

• Getac Certified
• RoHS, FCC,CE
• Vibration Tested: MIL-STD 810G Operational/Non-operational
• Shock Crash Hazard:  SAE J1455; Mechanical Shock: 40g
• Environmental: Thermal shock, humidity, High/Low temperature - Storage/Operational
• EMI - Electromagnetic Interference
• Cycle Test: Latch, lock, and docking connector - 30,000 cycles

• 3-Year Limited Warranty
