Gamber Johnson

$1,453.85
SKU: 7160-1584-03

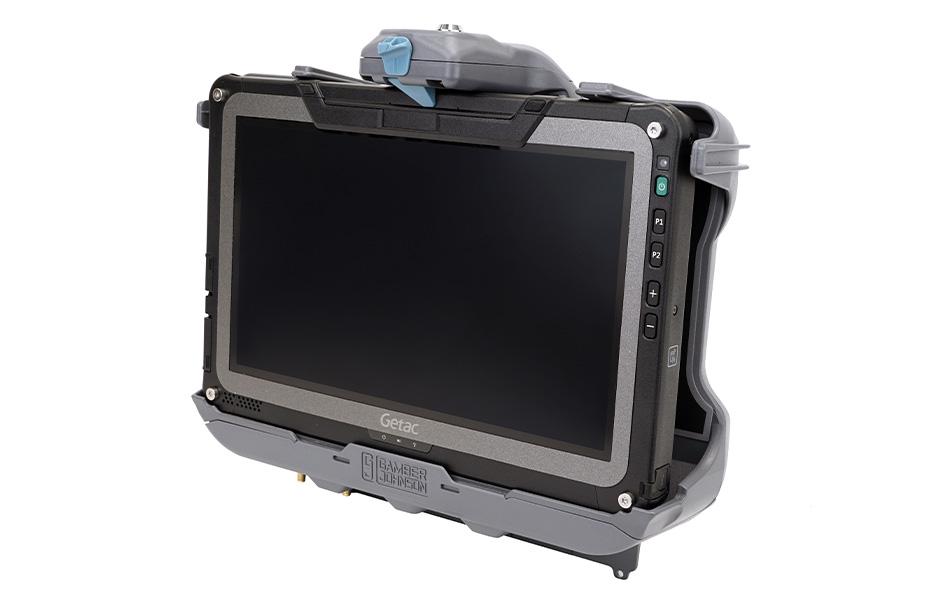

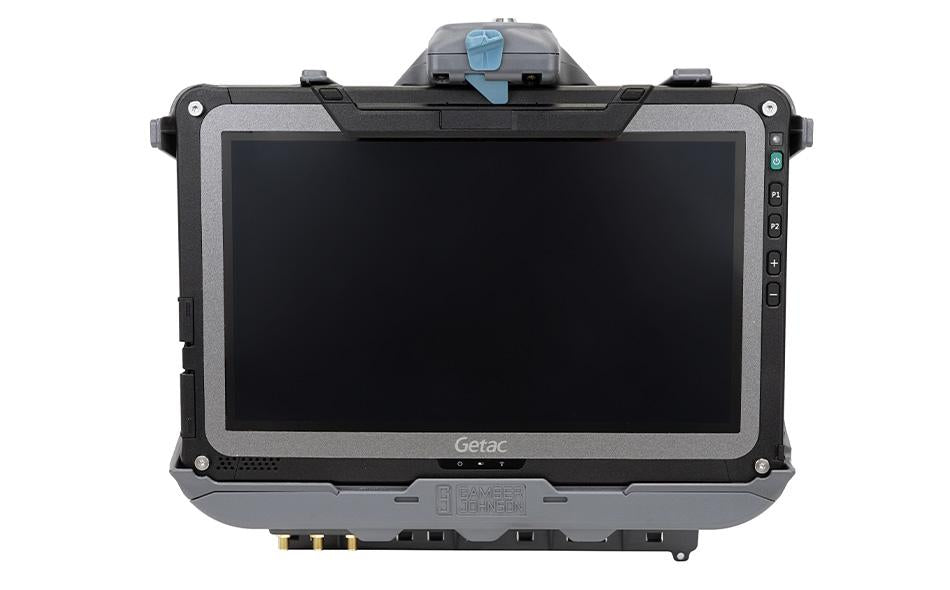

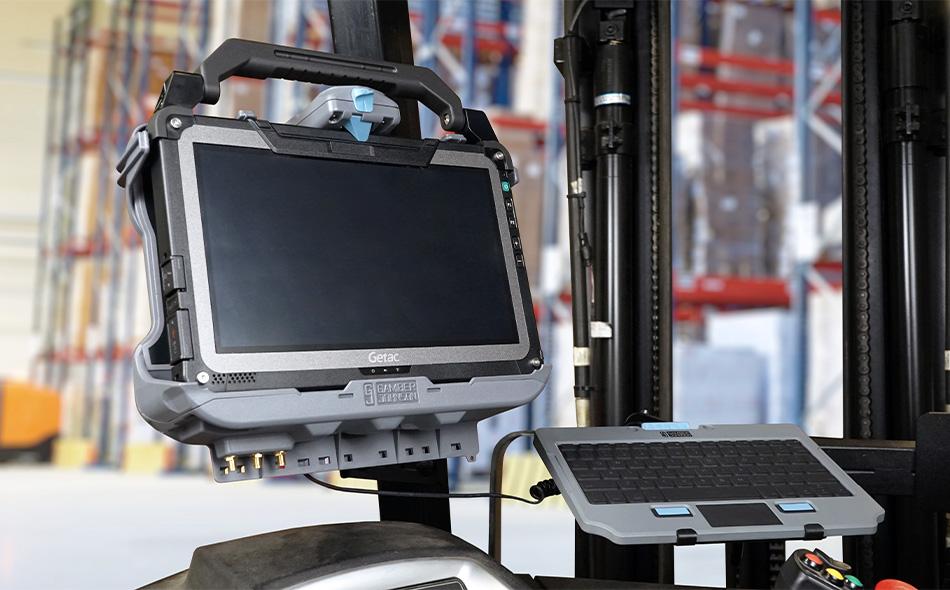

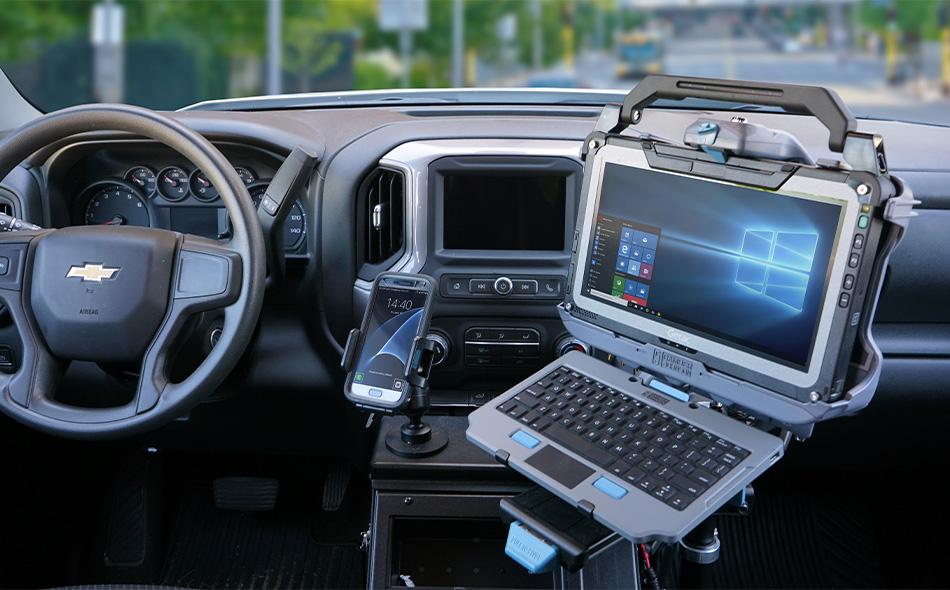

Getac F110 G6 vehicle docking station (Tri RF) with full port replication, easy one-hand docking/release, a keyed lock, and VESA 75mm mounting pattern to mount to a variety of Gamber-Johnson mounting equipment. Now shipping.

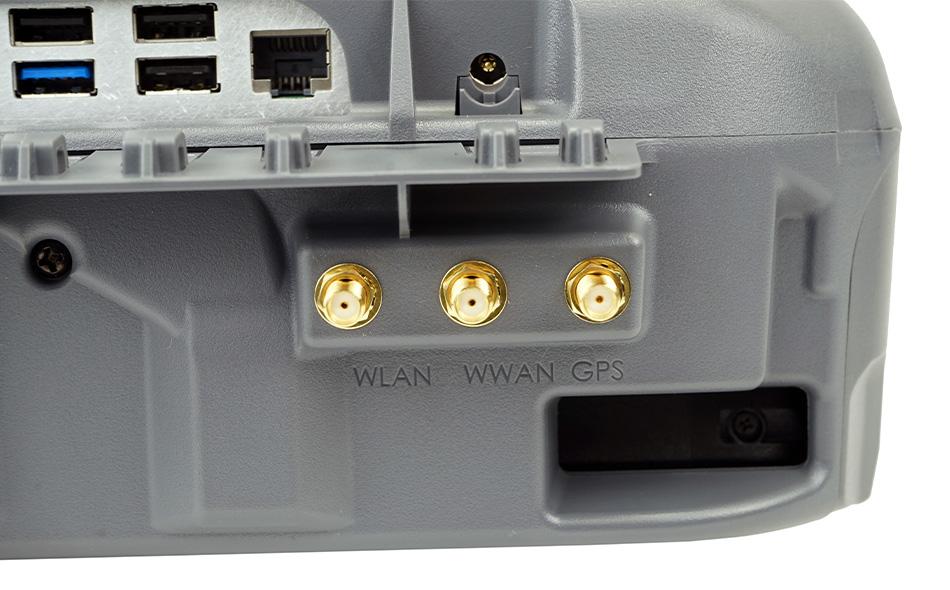

ANTENNA PASS-THROUGH

  • Tri RF (SMA)

COMPATIBILITY

  • Compatible with the Getac F110 Gen 6 tablet computer and backwards compatible with previous versions of the F110 tablet

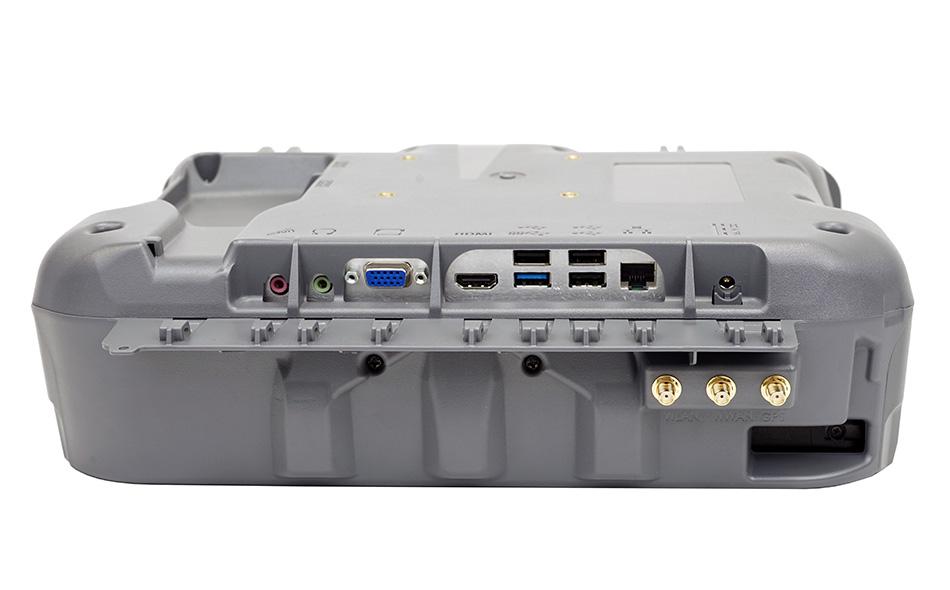

PORT REPLICATOR

  • Getac certified electronics
  • (1) Ethernet - RJ45
  • (3) USB 2.0 (500mA) - 4 pin
  • (1) USB 3.0 (900mA) - 9 pin
  • (1) VGA D-sub - 9 pin
  • (1) HDMI - 19 pin
  • Tri RF Pass-through (optional) - SMA
  • Power input - 19VDC
  • (1 each) Speakers / Microphone

POWER SUPPLY

  • Power adapter is not included, please use one of the following:
    • Getac 120W automotive power adapter with bare wire lead (7300-0516)
    • Getac 120W automotive power adapter with cigarette lighter connector (7300-0471)
    • LIND 12-32V material handling isolated power adapter (7300-0413)
    • LIND 20-60V material handling isolated power adapter (7300-0412)
    • LIND 72-110V material handling isolated power adapter (7300-0416)

FEATURES

  • Getac certified electronics
  • Compatible with the Getac F110 G6 tablet and all previous versions of the F110 tablet
  • Docking station accommodates the tablet's mag strip reader and rotating hand strap

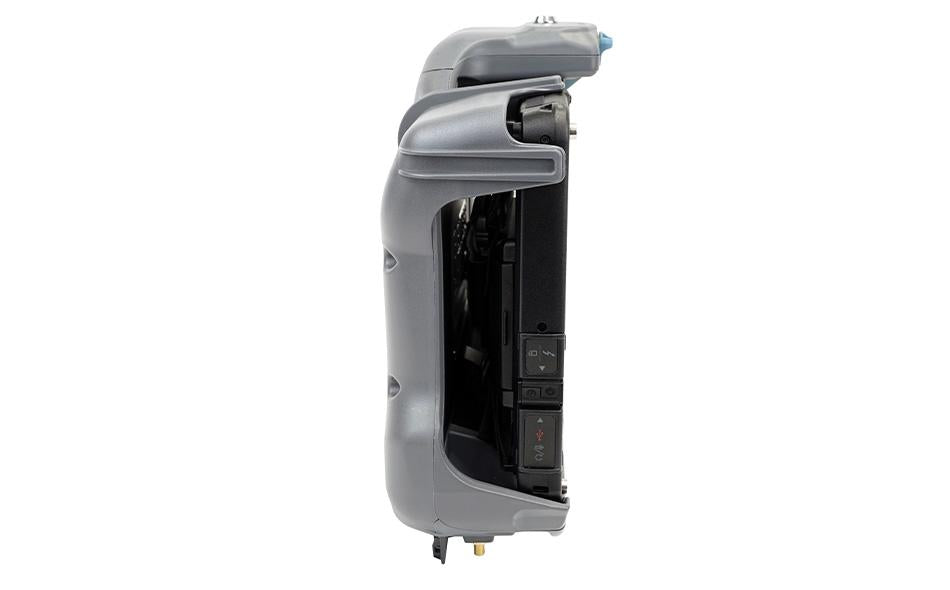

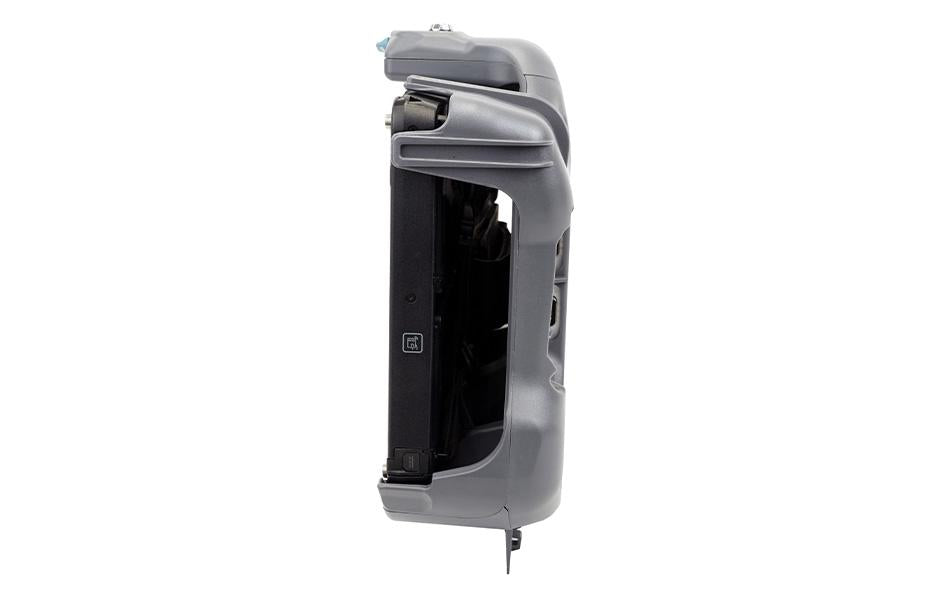

  • Access to all tablet control buttons and ports while the tablet is docked
  • Downward-facing I/O ports; integrated cable strain relief and cable management system

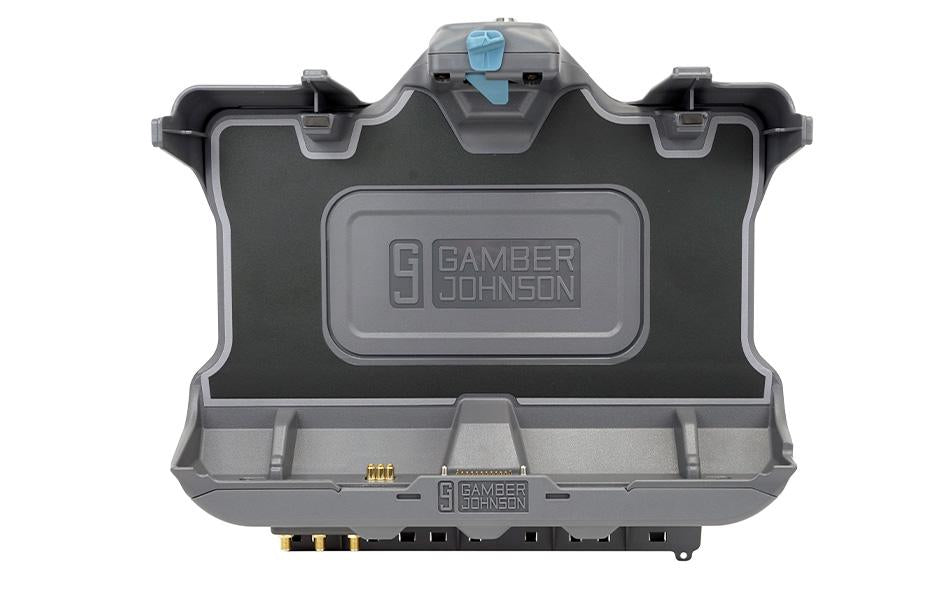

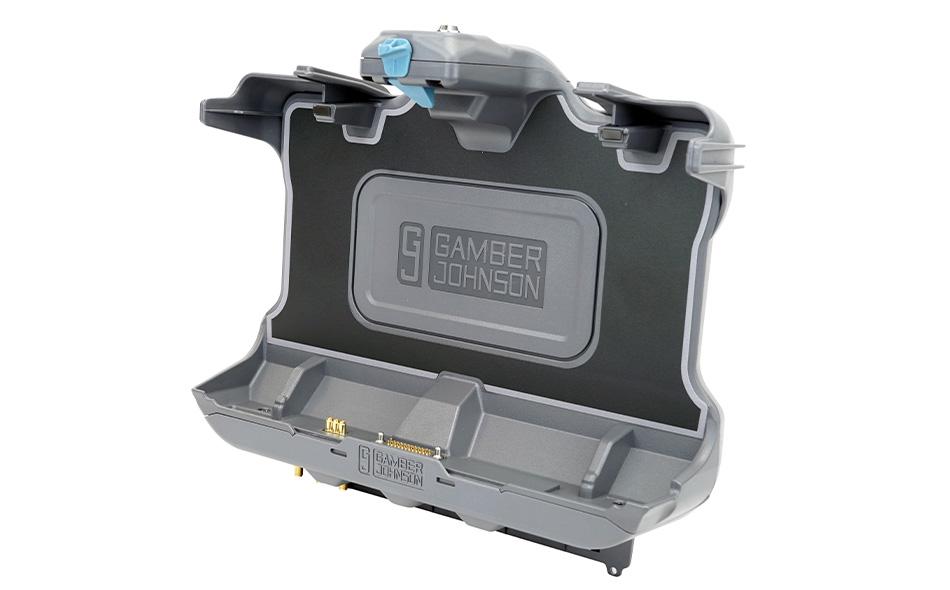

  • Floating docking connector for reliable connectivity in the most rugged environments
  • One-hand docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

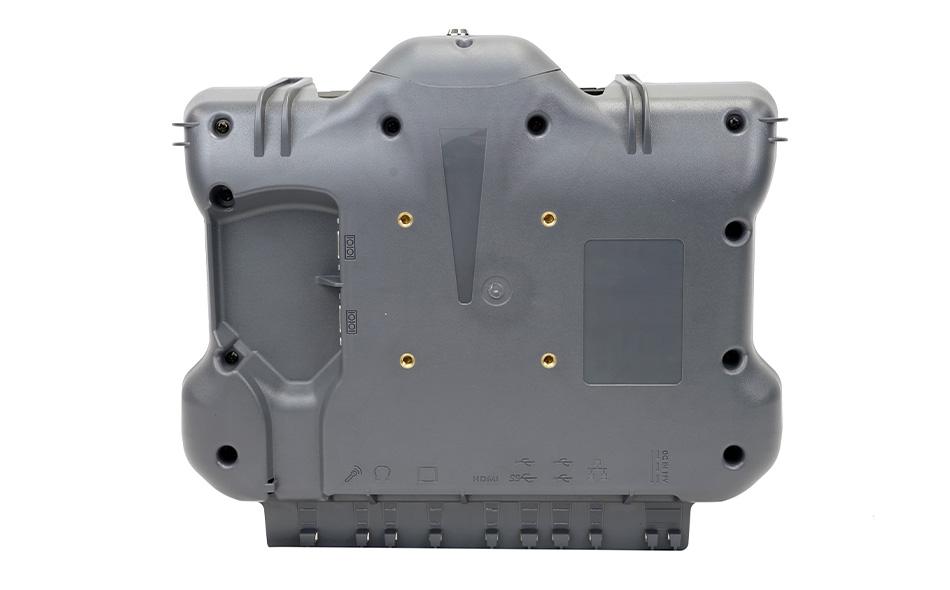

  • VESA 75mm mounting pattern
  • Height: 13.33 in / 33.86 cm
  • Width: 11.75 in / 29.85 cm
  • Depth: 4.69 in / 11.91 cm

TESTING & CERTIFICATES

  • Getac Certified
  • RoHS, FCC, CE, UKCA
  • MIL-STD 810H vibration testing: Operational/Non-operational
  • Shock crash hazard: SAE J1455; Mechanical Shock 40g
  • Environmental: Thermal Shock, Humidity, High/Low Temperature - Storage/Operational
  • EMI - Electromagnetic Interference
  • Cycle Testing: Docking Connector, Latch and Locking mechanism - 30,000 cycles

KIT INCLUDES

  • Getac F110 G6 Vehicle Docking Station
  • Mounting Hardware
  • Installation Instructions
