Gamber Johnson

$1,615.54
SKU: 7170-0902-13

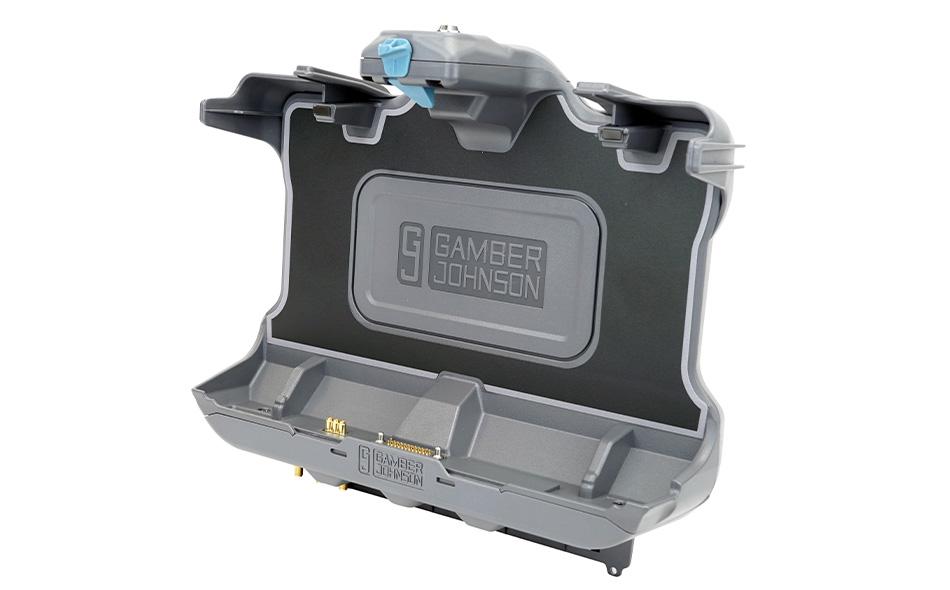

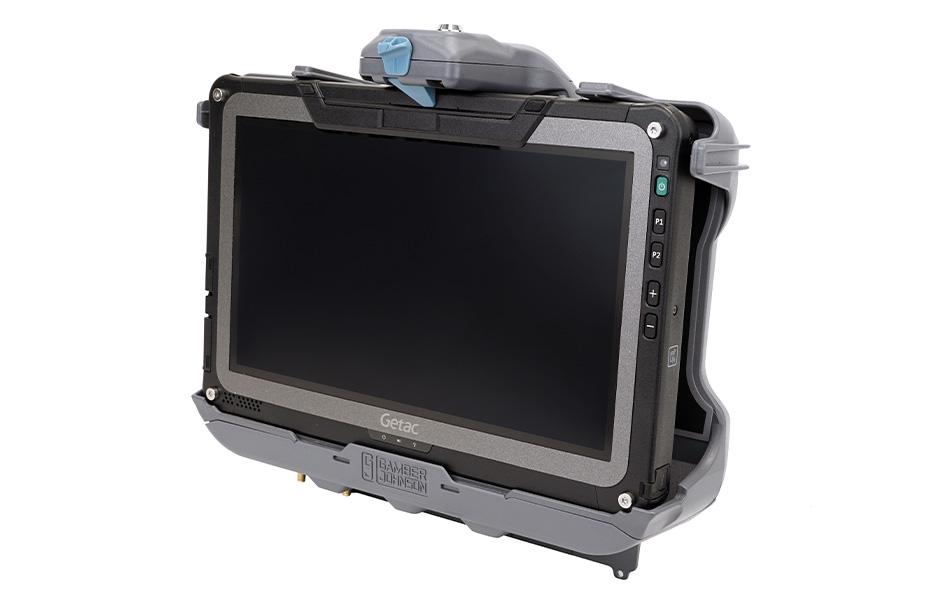

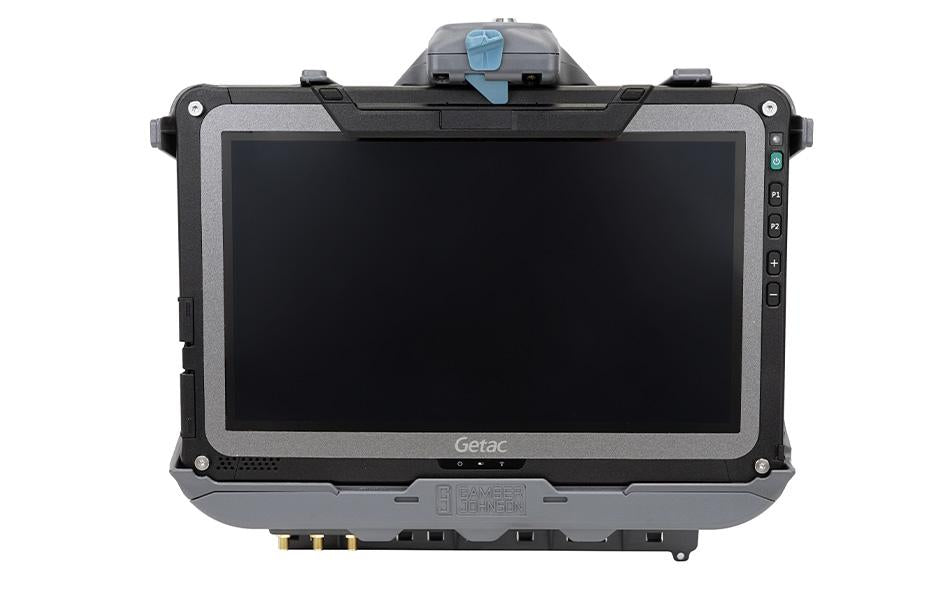

Getac F110 G6 vehicle docking station (Tri RF) with full port replication, easy one-hand docking/release, a keyed lock, and VESA 75mm mounting pattern to mount to a variety of Gamber-Johnson mounting equipment. Kit includes Getac auto power adapter. Now shipping.

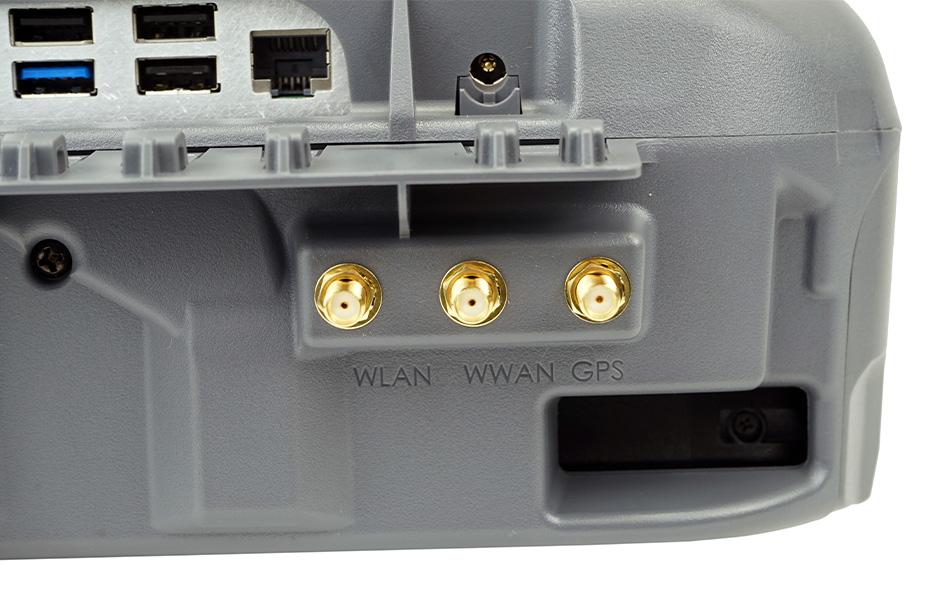

ANTENNA PASS-THROUGH

  • Tri RF (SMA)

COMPATIBILITY

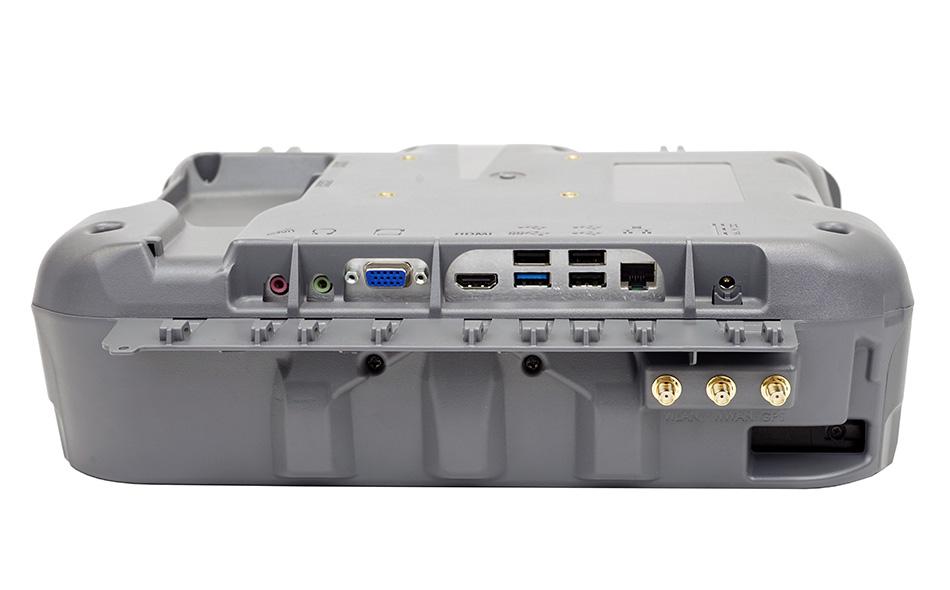

PORT REPLICATOR

  • Getac certified electronics
  • (1) Ethernet - RJ45
  • (3) USB 2.0 (500mA) - 4 pin
  • (1) USB 3.0 (900mA) - 9 pin
  • (1) VGA D-sub - 9 pin
  • (1) HDMI - 19 pin
  • Tri RF Pass-through (optional) - SMA
  • Power input - 19VDC
  • (1 each) Speakers / Microphone

DOCKING STATION

  • Weight: 2.88 lbs / 1.31 kg
    Height: 13.33 in / 33.86 cm
    Width: 11.75 in / 29.85 cm
    Depth: 4.69 in / 11.91 cm

POWER ADAPTER

  • Weight: 0.7 lbs / 0.32 kg
    Height: 5.1 in / 12.95 cm
    Width: 2.6 in / 6.6 cm
    Depth: 1.2 in / 3.05 cm

POWER SUPPLY

  • Getac 120W automotive power adapter with bare wire lead (7300-0516) is included with this kit.
    • Input voltage 12-32 VDC
    • Output voltage 19VDC
    • Output current 6.32 amps (max)
    • Bare wire lead

FEATURES

  • Getac certified electronics
  • Compatible with the Getac F110 G6 tablet and all previous versions of the F110 tablet
  • Docking station accommodates the tablet's mag strip reader and rotating hand strap
  • Access to all tablet control buttons and ports while the tablet is docked
  • Downward-facing I/O ports; integrated cable strain relief and cable management system
  • Floating docking connector for reliable connectivity in the most rugged environments
  • One-hand docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

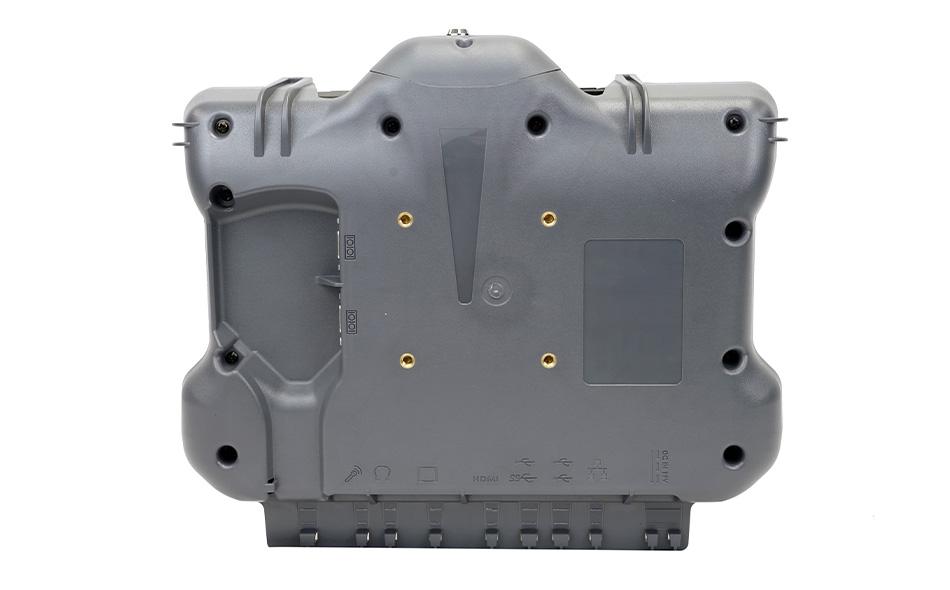

  • VESA 75mm mounting pattern

TESTING & CERTIFICATES

  • Getac Certified
  • RoHS, FCC, CE, UKCA
  • MIL-STD 810H vibration testing: Operational/Non-operational
  • Shock crash hazard: SAE J1455; Mechanical Shock 40g
  • Environmental: Thermal Shock, Humidity, High/Low Temperature - Storage/Operational
  • EMI - Electromagnetic Interference
  • Cycle Testing: Docking Connector, Latch and Locking mechanism - 30,000 cycles

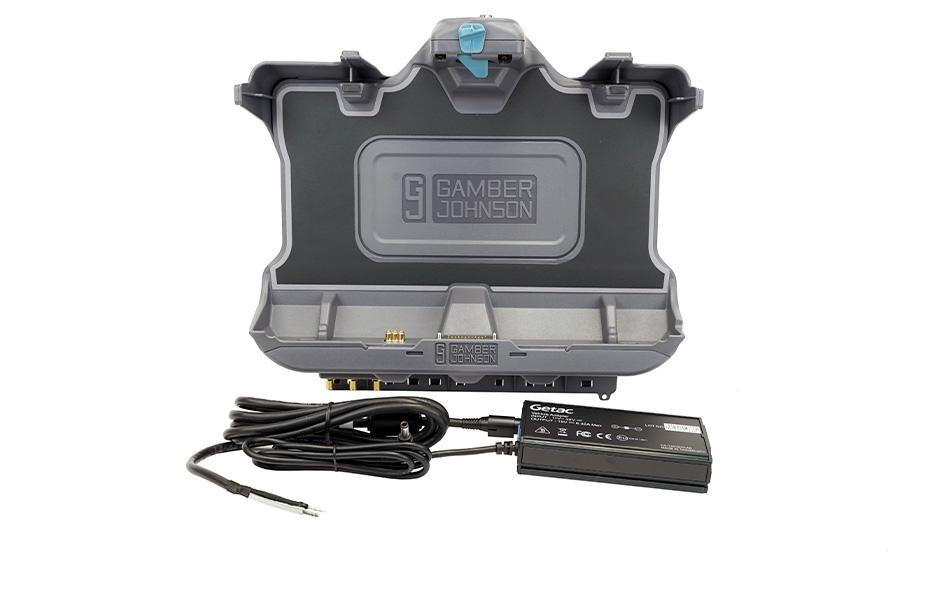

KIT INCLUDES

  • Getac F110 G6 Vehicle Docking Station
  • Getac 120W auto power adapter with bare wire lead
  • Mounting Hardware
  • Installation Instructions

WARRANTY
