Gamber Johnson

$1,958.38
SKU: 7160-0790-03

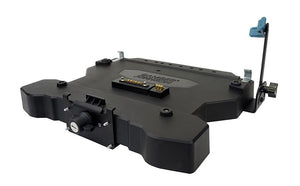

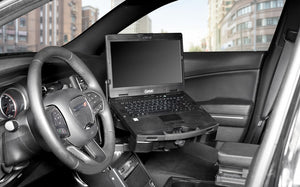

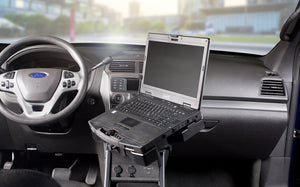

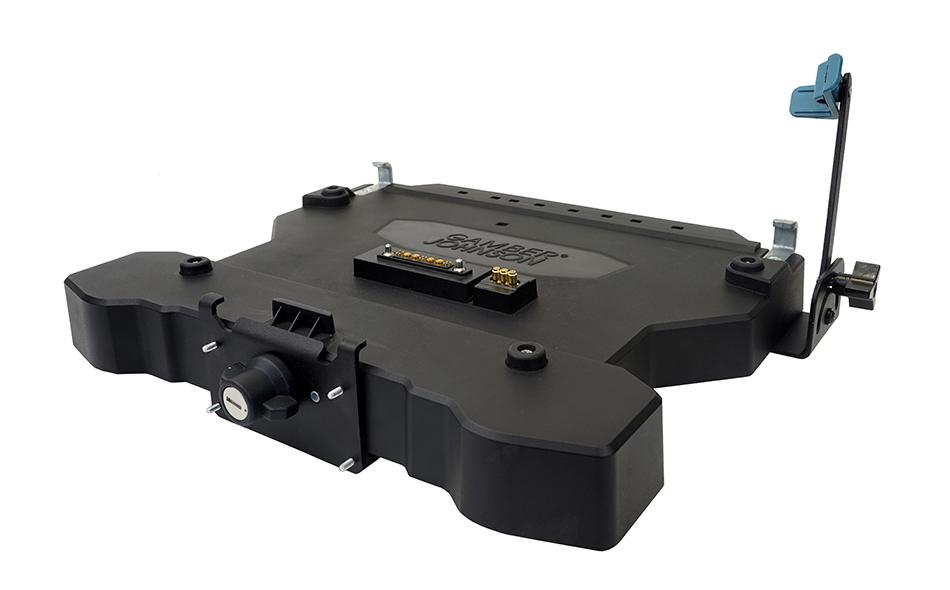

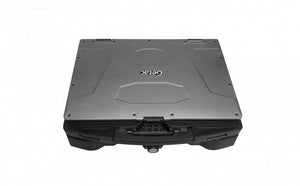

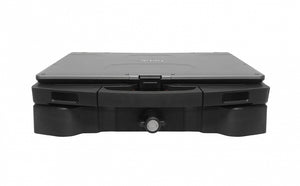

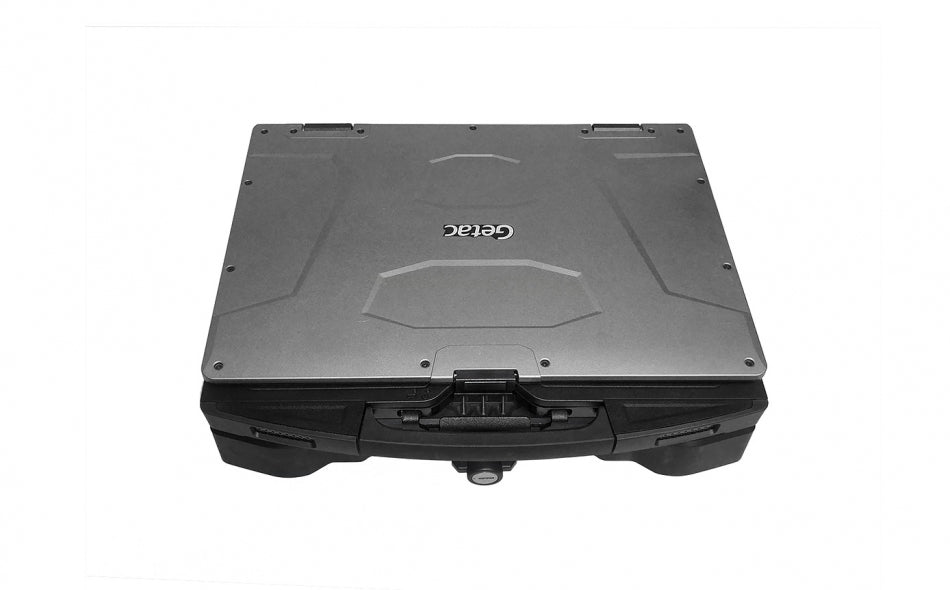

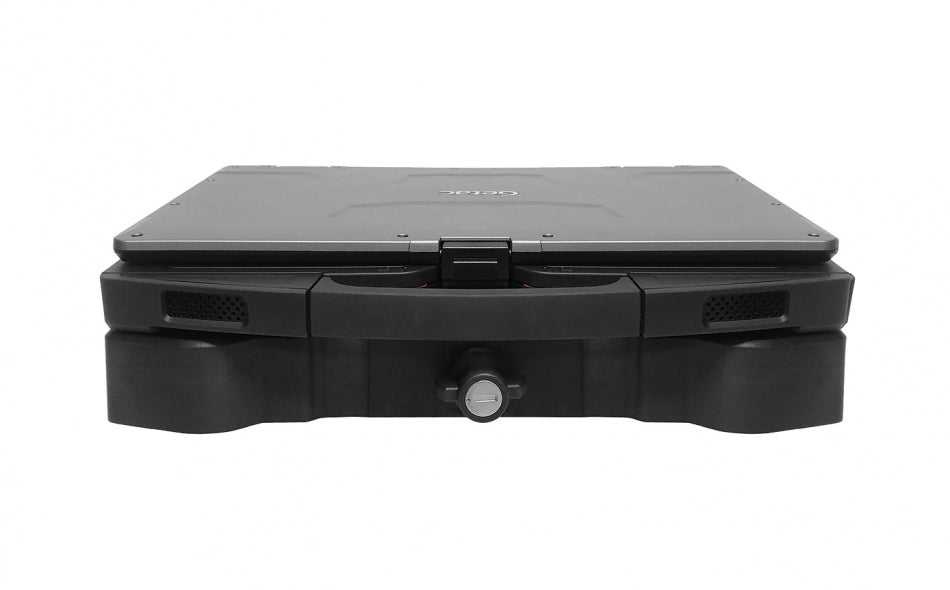

Gamber-Johnson's S410 docking station is designed to mount a Getac S410 notebook in a fleet vehicle. The docking station is thin and light (4.47 lbs/2.03 kg) and features a spring-loaded connector to ensure connectivity even in the roughest terrain.

ANTENNA PASS-THROUGH

  • Triple RF (SMA)

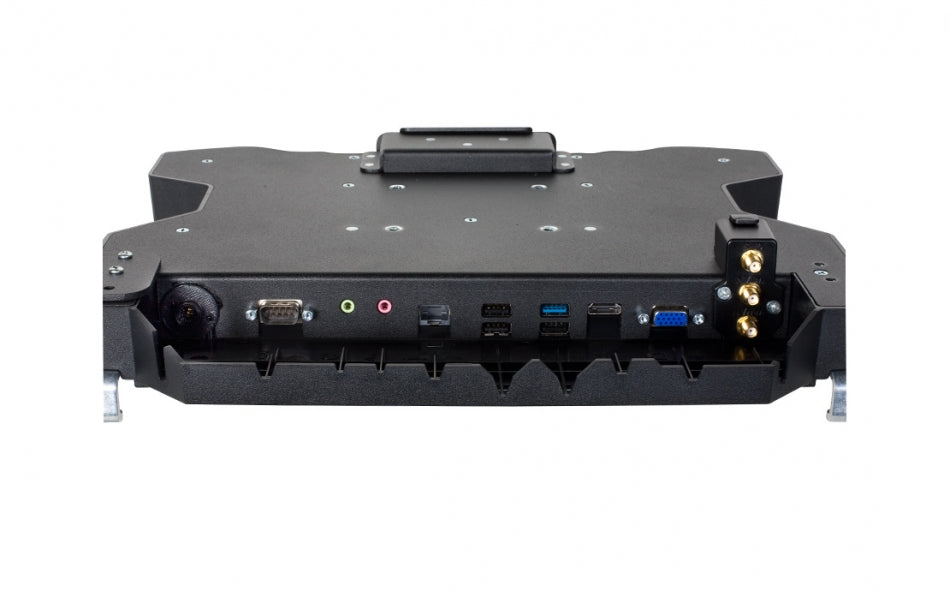

PORT REPLICATION

  • Ethernet - RJ45
  • USB 3.0, 9 Pin (1)
  • USB 2.0, 4 Pin (3)
  • HDMI 19 Pin
  • Serial, D-sub, 9 Pin
  • Input voltage - 19
  • VDC VGA D-sub, 15 Pin
  • Microphone/speaker
  • RF (SMA) antenna pass-through for GPS, WLAN and WWAN (optional)

POWER SUPPLY

  • Not included - must use external Getac 120W auto power adapter (7300-0471)

FEATURES

  • Small footprint designed to maximize available space
  • Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system
  • Rear hooks and guide pins ensure proper alignment and docking connectivity
  • Spring-loaded docking connector to ensure connectivity in the roughest terrain
  • Plate draws back into docking station when the computer is docked
  • Docking station designed to accommodate optional VGA attachments
  • Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern
  • Rugged composite/steel construction with black powder coat finish for long-term durability

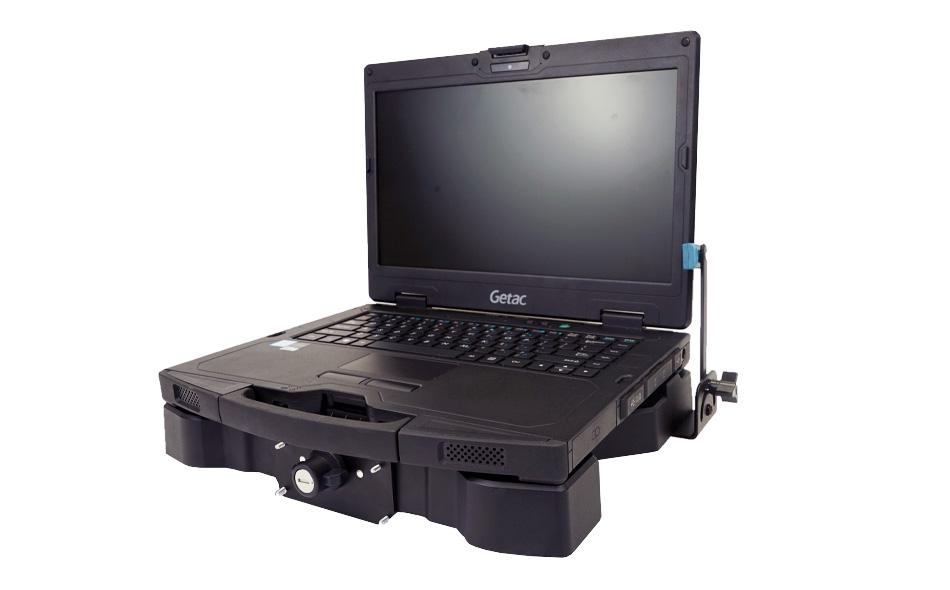

  • Screen support is included with the dock

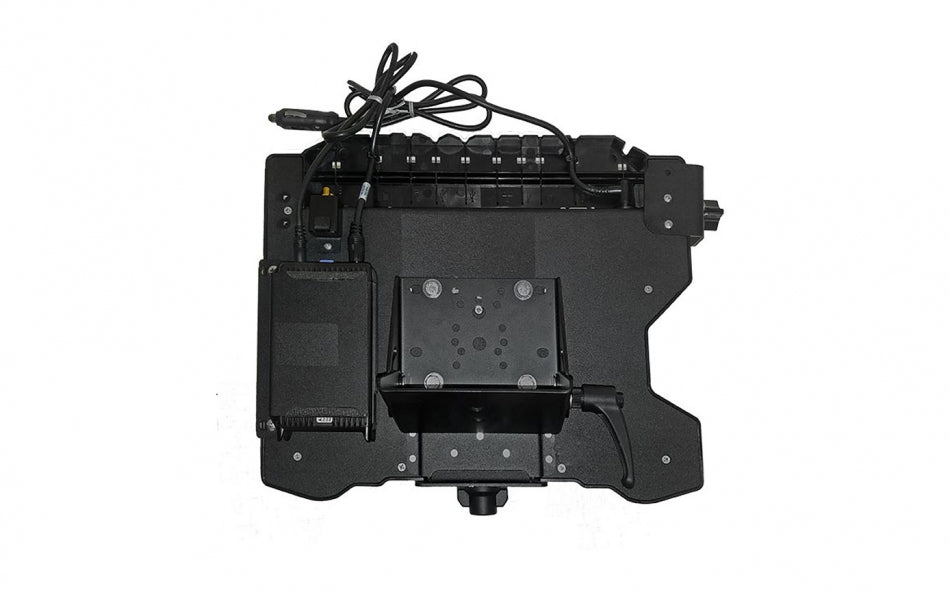

  • Optional power supply bracket (7120-0736) to attach Getac power supply to the bottom of the dock (sold separately)
  • External power supply sold separately
  • Height: 12.39 in /  31.47 cm
  • Width: 13.84 / 35.15 cm
  • Depth: 2.90 in / 7.37 cm

TESTING & CERTIFICATES

  • RoHS, FCC
  • C-Tick
  • MIL-STD 810G Environmental: Humidity, Temperature High/Low (Operational/Storage)
  • Vibration/shock testing: MIL-STD 810G 514.5
  • Docking mechanism tested: 30,000 cycles
  • SAE Standard J1455 Crash Test
