Gamber Johnson

$2,122.54
SKU: 7170-0537

Gamber-Johnson's S410 docking station is designed to mount a Getac S410 notebook in a fleet vehicle. The docking station is thin and light (4.47 lbs/2.03 kg) and features a spring-loaded connector to ensure connectivity even in the roughest terrain.

ANTENNA PASS-THROUGH

  • Triple RF (SMA)

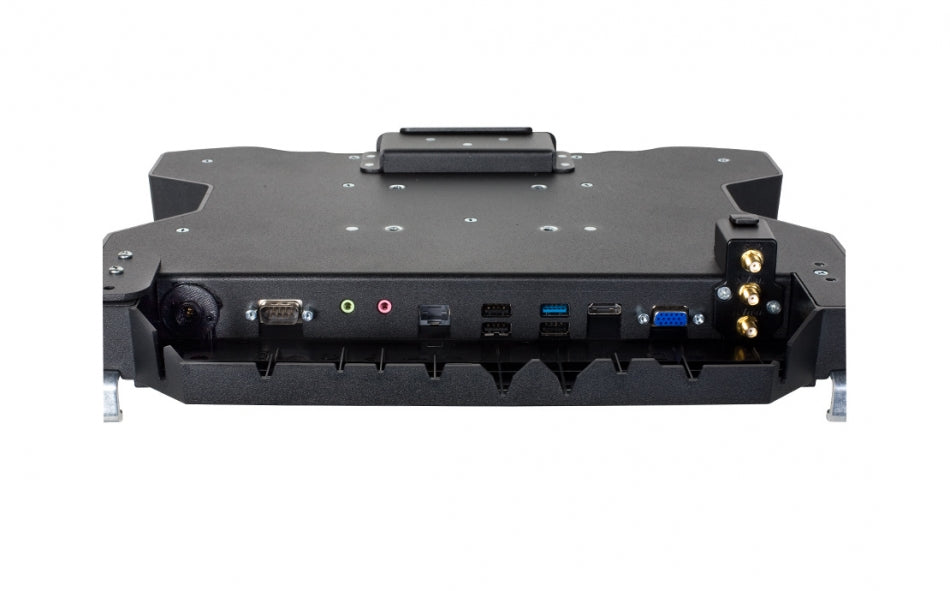

PORT REPLICATION

  • Ethernet - RJ45
  • USB 3.0, 9 Pin (1)
  • USB 2.0, 4 Pin (3)
  • HDMI 19 Pin
  • Serial, D-sub, 9 Pin
  • Input voltage - 19 VDC
  • VGA D-sub, 15 Pin
  • Microphone/speaker
  • RF (SMA) antenna pass-through for GPS, WLAN and WWAN (optional)

POWER SUPPLY INCLUDED

  • Yes - includes Getac 120W Automobile Power Adaptor (item no. 17057)

FEATURES

  • Small footprint designed to maximize available space.
  • Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system.
  • Rear hooks and guide pins ensure proper alignment and docking connectivity.
  • Spring-loaded docking connector to ensure connectivity in the roughest terrain.
  • Plate draws back into docking station when the computer is docked.
  • Docking station designed to accommodate optional VGA attachments.
  • Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern.
  • Rugged composite/steel construction with black powder coat finish for long-term durabililty.
  • Screen support is included with the dock.

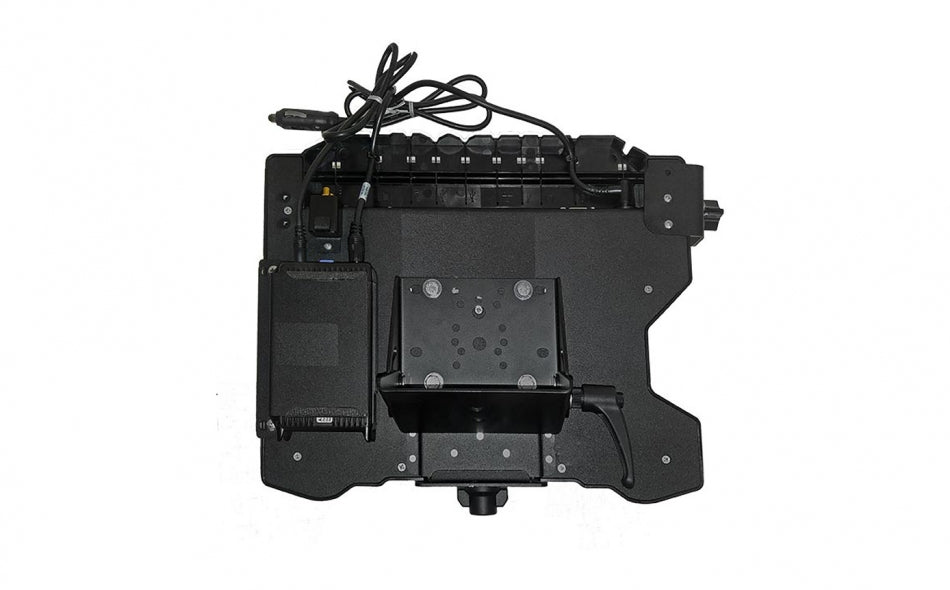

  • Comes with a power supply bracket to attach the Getac power supply (Item No. 17057) to the bottom of the dock.
  • Height: 12.39" / 31.47 cm
  • Width: 13.84" / 35.15 cm
  • Depth: 2.90" / 7.37 cm

TESTING & CERTIFICATES

  • RoHS, FCC
  • C-Tick, E-Mark
  • MIL-STD 810G Environmental: Humidity, Temperature High/Low (Operational/Storage)
  • Vibration/shock testing: MIL-STD 810G 514.5
  • Docking mechanism tested: 30,000 cycles
  • SAE Standard J1455 Crash Test
