Gamber Johnson

$1,277.32
SKU: 7160-0565-03

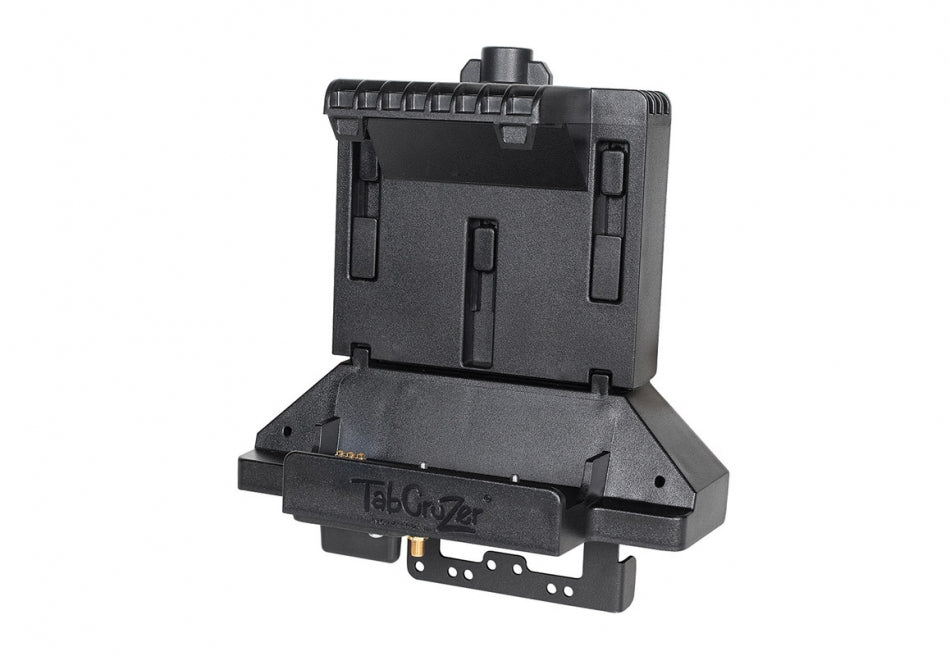

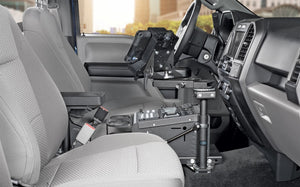

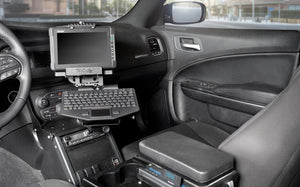

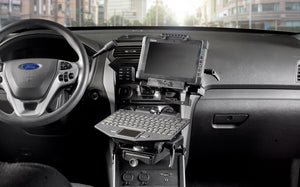

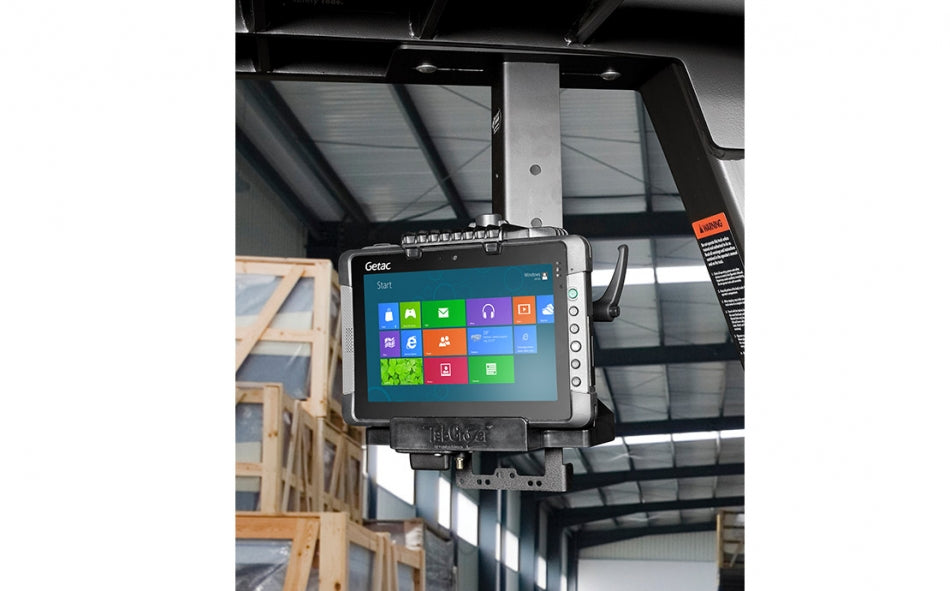

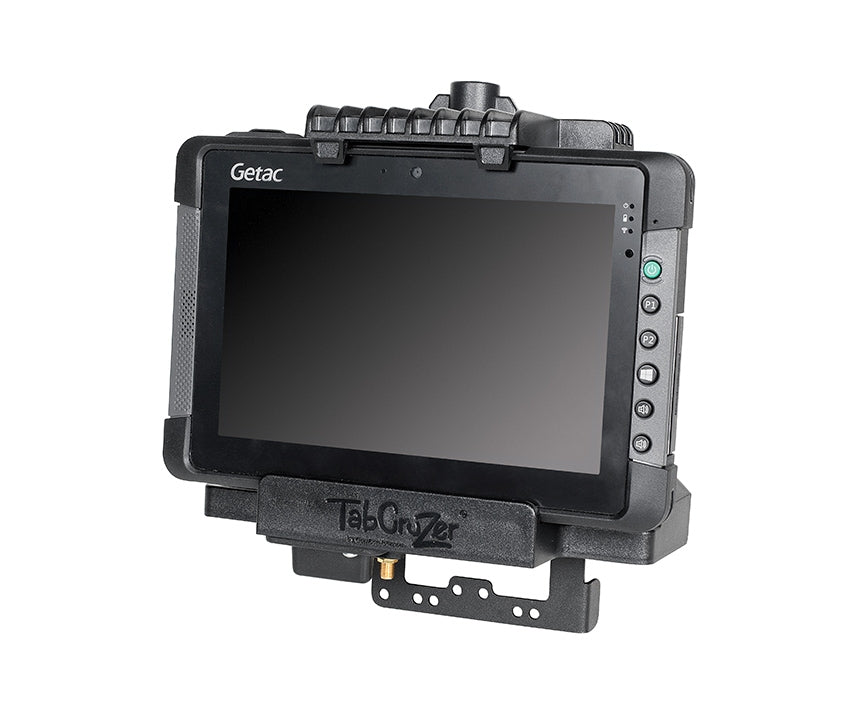

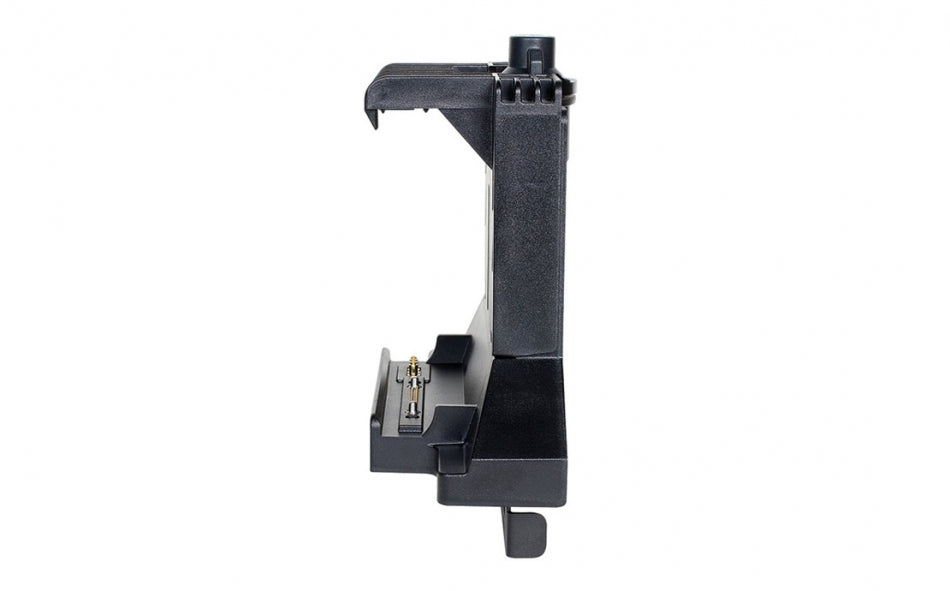

The T800 dock is designed to provide the perfect mobile solution for applications where vehicle cabin space is at a premium. The docking station features bottom-facing ports making it easy to route cables for any vehicle or forklift mounting application. The dock also accommodates the T800’s expandable SnapBack add-ons to fit comfortably into the docking station, including T800 X-Hand Strap, an option every mobile professional will find useful.

ANTENNA PASS-THROUGH

  • Triple RF Pass-through (SMA)

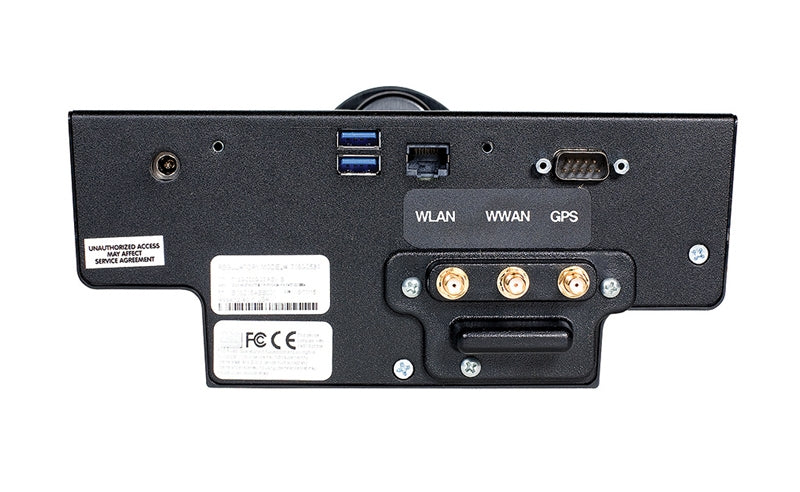

PORT REPLICATOR

  • Ethernet (1) - RJ45
  • Fully Powered USB 3.0 (2) - 9 pin
  • Serial - D-sub 9 pin
  • Triple RF pass-through - SMA
  • Power In - DC

FEATURES

  • Designed for the Getac T800 8.1- inch rugged tablet computers
  • Access to all computer function buttons and ports while tablet is docked
  • VESA 75mm and Gamber-Johnson mounting  patterns located on the back of the dock
  • POGO pin style docking connector for easy docking activation
  • Alignment pins guide the computer for easy docking and connectivity
  • Downward-facing I/O ports; cable strain relief system for easy cable management
  • Docking Station design accommodates SnapBack SmartCard & RFID reader and X-Hand Strap (sold separately)
  • Push and Turn lock with key for theft deterrence
    • Insert computer then push down and turn lock to close and dock computer
  • Composite/aluminum design for reduced weight and durability
  • Use External power supply: 90W Lind Auto Adapter (Item No. 15110)
  • Height: 9.5" / 24.1 cm
  • Width: 8.4" / 21.3 cm
  • Depth: 3.5" / 8.9 cm

CERTIFICATES & TESTING

  • RoHS, FCC, CE
  • Vibration/Shock Testing: MIL-STD 810G
  • SAE Standard J1455 Crash Test
  • Environmental: High/Low temperature - Storage/Operational and Humidity
  • EMI - Electromagnetic Interference
  • Locking and Docking Mechanisms Tested: 30,000 cycles

POWER SUPPLY

Not included - must use one of the following external power supplies:

  • Lind 90W auto power adapter (item no. 15110)
  • Lind 12-32V material handling isolated power adapter (item no. 16079)
  • Lind 20-60V material handling isolated power adapter (item no. 16078)
  • Lind 80V material handling isolated power adapter (item no. 16513)

WARRANTY:

  • 3-Year Limited Warranty (printed circuit board, docking connector)
  • Explore our extended warranty program
