Gamber Johnson

$1,913.43
SKU: 7160-0515-03

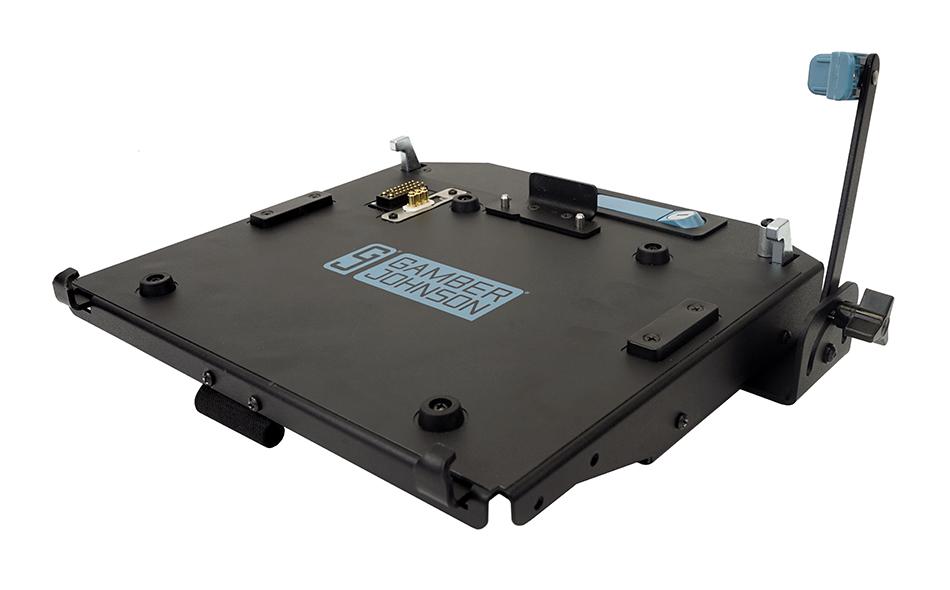

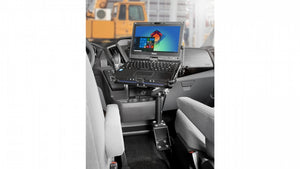

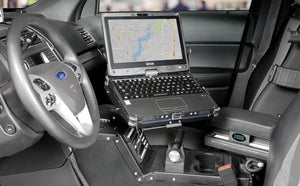

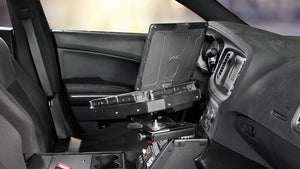

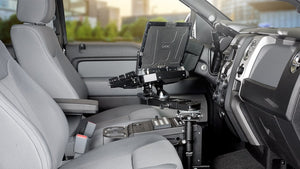

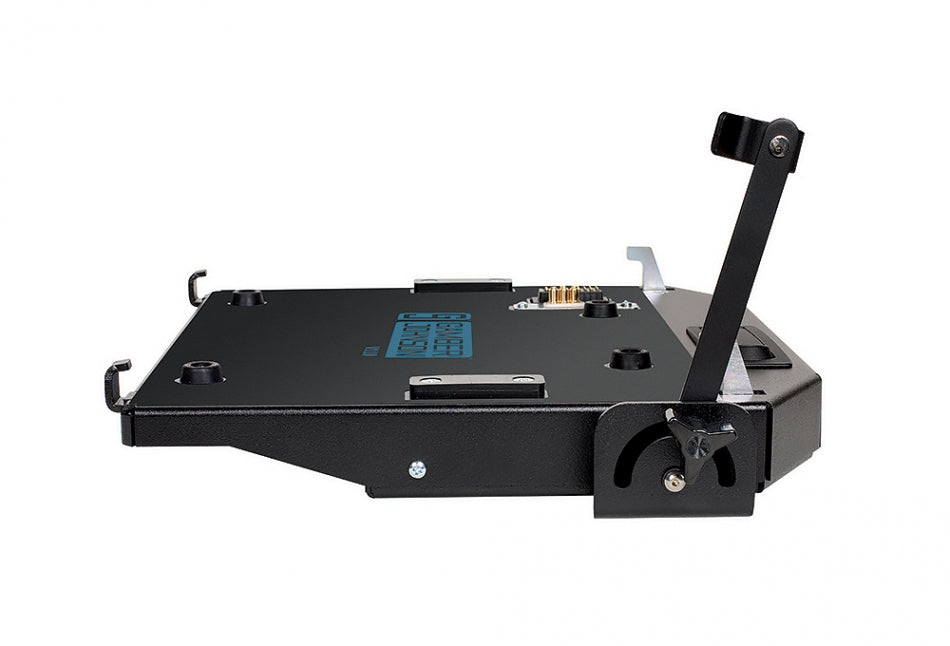

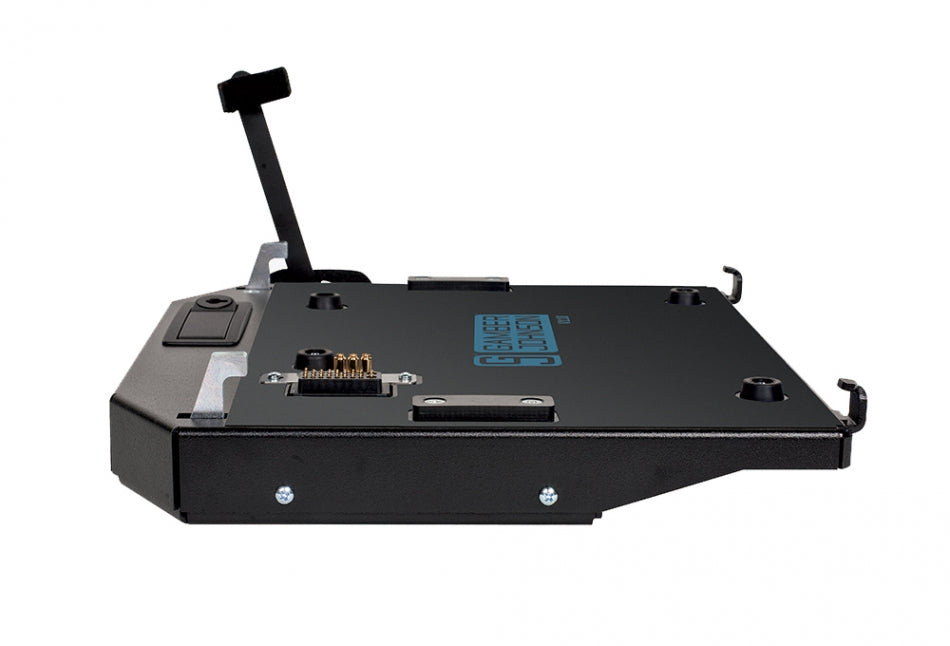

Gamber-Johnson’s Getac V110 vehicle docking station is the perfect match for the Getac V110 fully-rugged notebook. Mount the docking station in the laptop orientation to utilize the V110’s full-sized keyboard or mount the docking station vertically and utilize the V110 in the tablet mode. Ergonomically designed for easy one-handed docking, the push button latch supports easy computer placement and removal. The optional lock is a convenient feature when added security is necessary. The V110 dock comes standard with a screen support.

ANTENNA PASS-THROUGH

  • Triple RF (SMA)

COMPATIBLE WITH

  • Getac V110 convertible computer

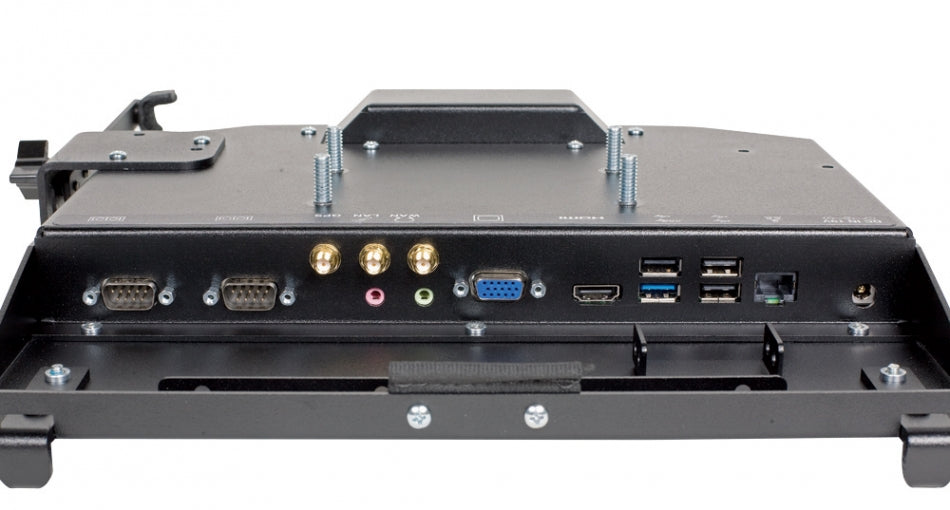

PORT REPLICATION

  • Ethernet
  • Serial (2)
  • Power In
  • USB 2.0 (3) - 4 pin
  • USB 3.0 (1) - 9 pin
  • VGA
  • HDMI
  • Headphones/speakers
  • Microphone
  • Triple RF Pass-through (SMA)

FEATURES

  • Getac electronics

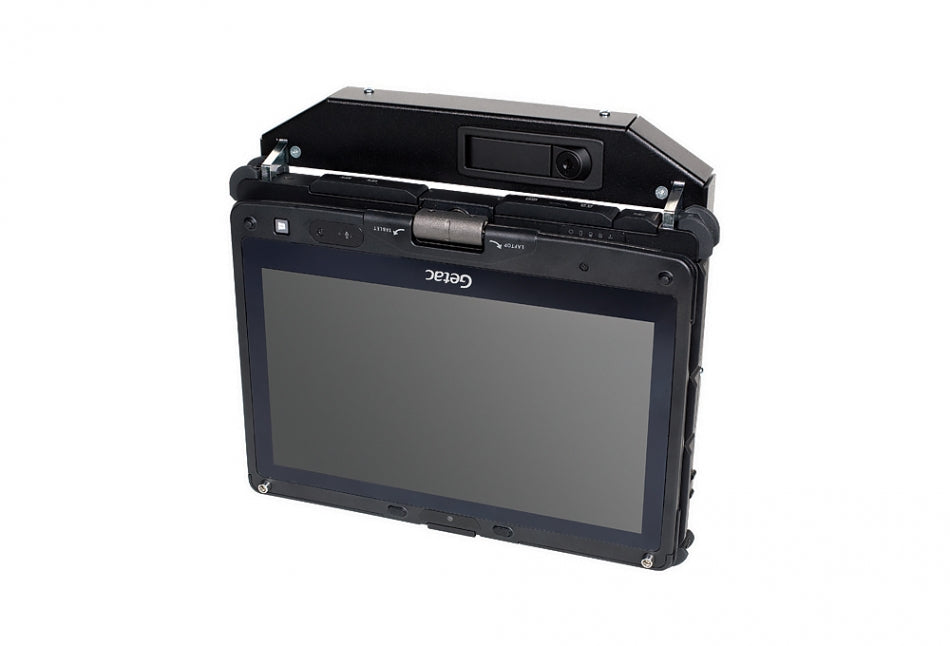

  • Docking station can be used in tablet or laptop position
  • Rugged aluminum construction with black powder coat finish for long-term durability
  • Front-facing l/O ports, integrated cable strain relief system
  • POGO pin style docking connector for easy docking activation
  • Front safety bracket helps align computer for proper docking connectivity
  • Built-in stylus holder Push button latch with keyed lock for theft deterrence:
    • Push the latch to release the docking connector
    • Insert computer and push latch closed to dock computer
  • VESA 75 mounting pattern
  • Use External power supply: Lind Auto Adapter (Item No. 15110)

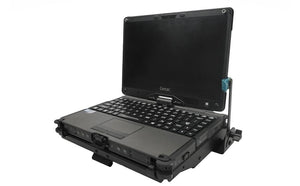

  • Screen support is included with the dock
  • Height: 1.38 in / 3.5 cm
  • Width: 11.60 in / 29.5cm
  • Depth: 10.75 in / 27.3 cm

CERTIFICATES & TESTING

  • RoHS, FCC
  • Vibration/Shock Testing: MIL-STD 810G
  • Environmental: High/Low temperature - Storage/Operational and Humidity
  • Docking Mechanisms Tested: 30,000 cycles
  • SAE Standard J1455 Crash Test
  • EMI - Electromagnetic Interference

POWER SUPPLY

Not included - must use one of the following external power supplies:

  • Lind 90W auto power adapter (7300-0463)
  • Lind 12-32V material handling isolated power adapter (7300-0413)
  • Lind 20-60V material handling isolated power adapter (7300-0412)
  • Lind 80V material handling isolated power adapter (7300-0416)

WARRANTY
