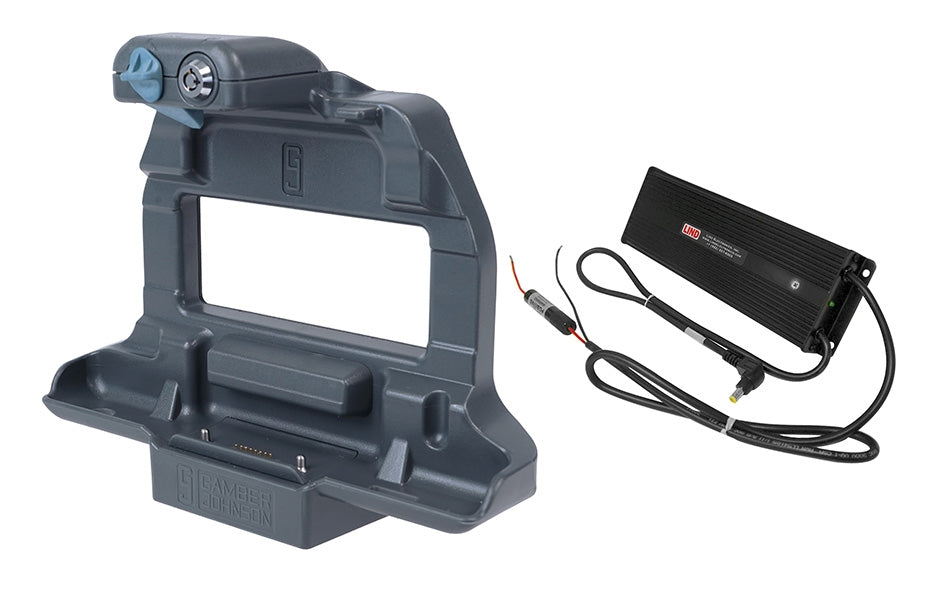

Getac ZX70 Powered Charging Cradle with 20-60V Material Handling Isolated Power Adapter

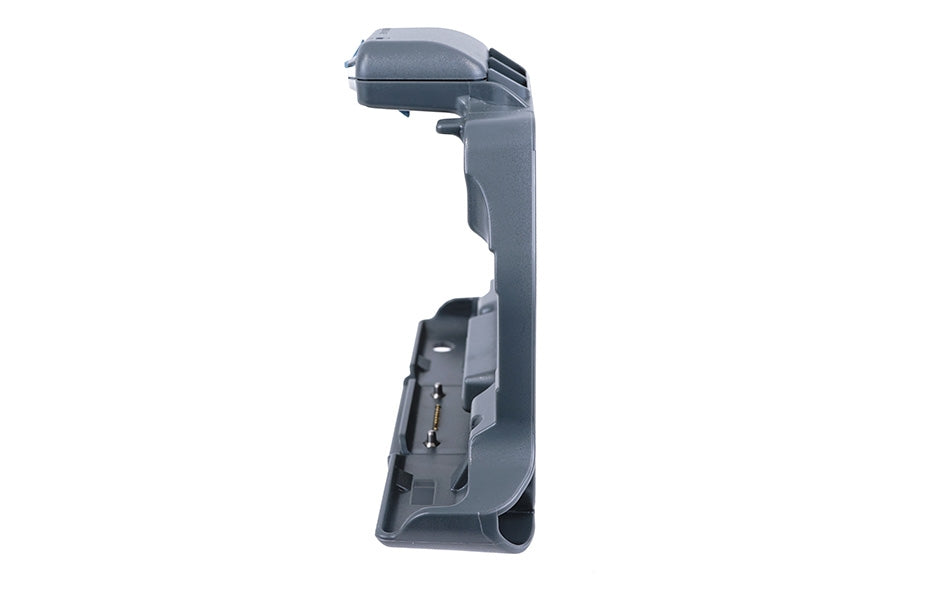

This solution is perfect for a material handling forklift application. The LIND power adapter is designed to power the Getac ZX70 tablet from a 20-60Vdc isolated power source. This ZX70 charging cradle has a power port to directly attach to the power supply and features a POGO style charging connector and keyed lock.
ANTENNA PASS-THROUGH
- No RF
PORT REPLICATION
- No port replication Getac certified pogo connector
- Power Input: 12 Vdc
POWER SUPPLY
- Yes - includes LIND 20-60V Material Handling Isolated Power Adapter (7300-0467)
FEATURES

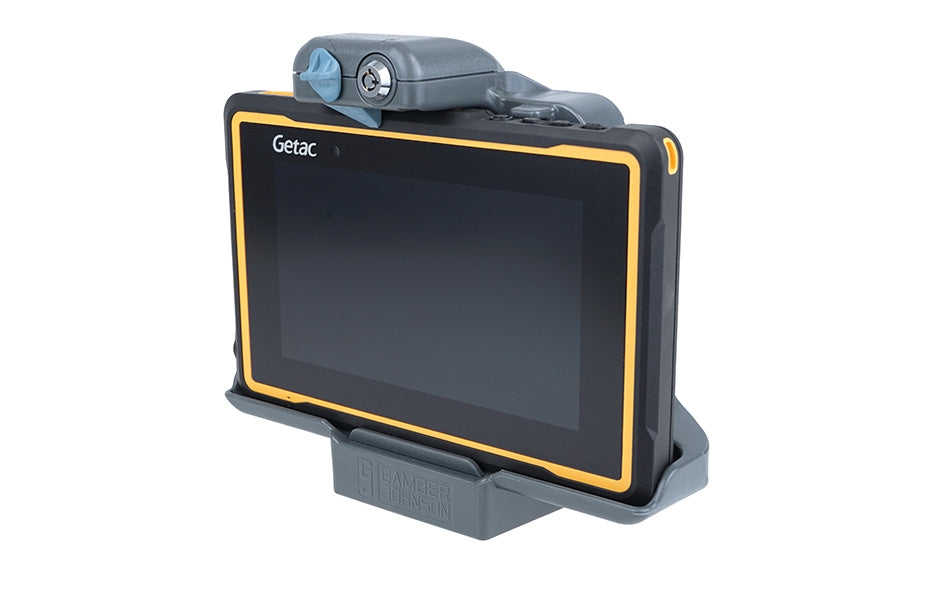

- Designed for the Getac ZX70 tablet computer and backwards compatible with the Z710 tablet Kit includes
- Getac ZX70 charging cradle (7160-1135-01) and LIND isolated power adapter (7300-0467)

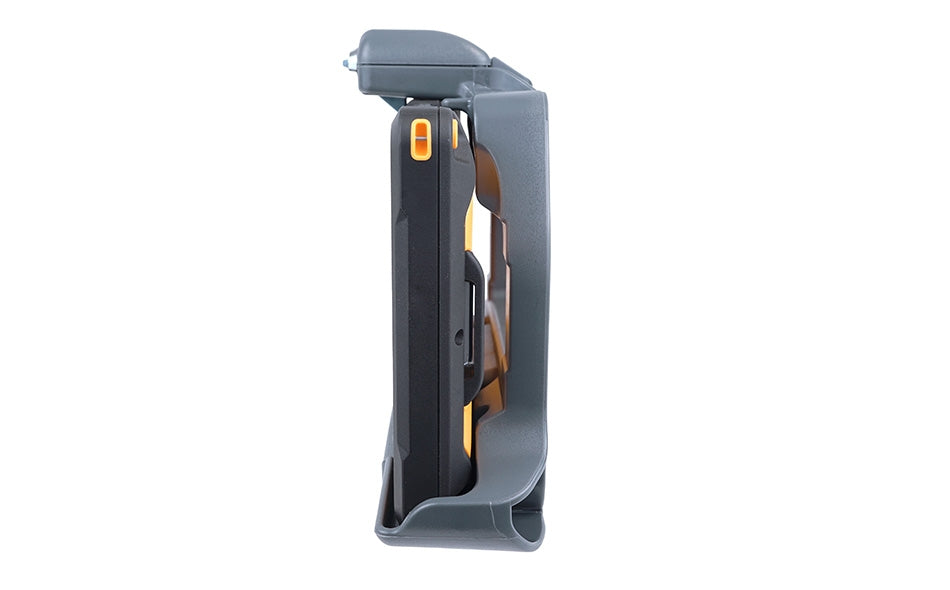

- Easy to use one-handed operation:
- Insert bottom of computer into the cradle, push top of computer against latch button until latch engages
- To remove, push up on latch-button with thumb to disengage and pull computer out of the cradle
- POGO connector for reliable charging
- Power cable strain relief
- Cradle design accommodates rotating hand strap (sold separately)
- Access to all tablet control buttons and USB port while tablet is cradled

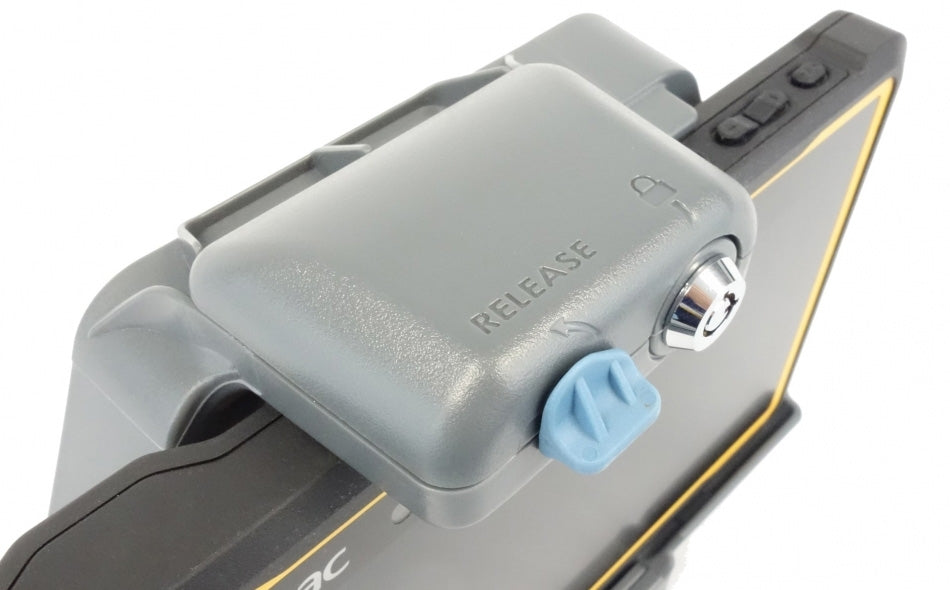

- Optional lock (keyed alike) for theft deterrence
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Extremely light-weight composite/aluminum design
- VESA 75 mounting pattern
- Height: 7.62 in / 19.35 cm
- Width: 8.87 in / 22.52 cm
- Depth: 3.12 in / 7.92 cm
- Weight - Charging Cradle: 0.90 lbs / .41 kg , Power Supply: 1.01 lbs / 0.46 kg
CERTIFICATION/TESTING
- Getac Certified
- Vibration Tested: MIL-STD 810G Operational/Non-operational
- Shock Crash Hazard: SAE J1455; Mechanical Shock: 40g
- Cycle Test: Latch, lock, and docking connector - 30,000 cycles
- FCC, CE, RoHS Certified
WARRANTY
- 3-Year Limited Warranty
- Explore our extended warranty program
