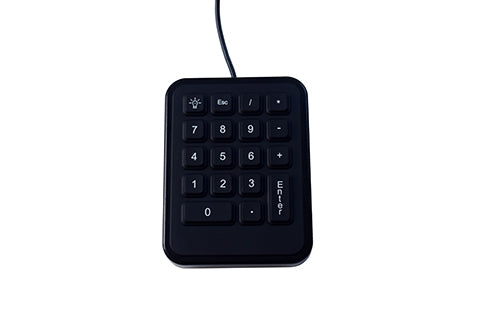

iKey Mobile Numeric Pad
IKEY PRODUCT CODE
- IK-18-USB
FEATURES
- ABS polycarbonate
- AMPS mounting pattern
- PS2 or USB connection
- Black
- Built to IP 65 standards (water-resistant)
- Backlit (green)
DIMENSIONS
- Height: 3.974”
- Width: 5.219”
- Depth: .850”
CERTIFICATES & TESTING
- IP65 certified
- Shock - 3 X 11 ms pulses of 50g on each of 3 axis
- Key switch
- Material: Industrial Silicone Rubber
- Life: Greater Than 10 Million Cycles
- Travel: 0.055 in.
- Actuation Force: 7.05 oz. +/- 1.06oz (200g +/- 30g)
- Feedback: Tactile with Mechanical Snap
- Vibration
- Power Spectral Density: .04g²/HZ
- Frequency Range: 20Hz-2Khz
- Duration of test per axis: 3 hours
- Temperature range
- Storage: -40°F to +194°F (-40°C to +90°C)
- Operating: -40°F to +158°F (-40°C to +70°C)
- Humidity
- 100% Humidity Resistant
NOTES
- A $20 premium per keyboard must be added to the purchase price for non US English keyboard overlay language requirements
- Check with your Customer Service Representative for alternative language overlay availability
- Alternative language overlays may be subject to Minimum Order Quantities
- Keyboards will ship with US English language overlays as standard unless alternative language overlays are clearly requested on the Purchase Order
TECH SUPPORT
- Call the iKey main line at 512-837-0283 or send an email to the RMA team at rma@ikey.com.
