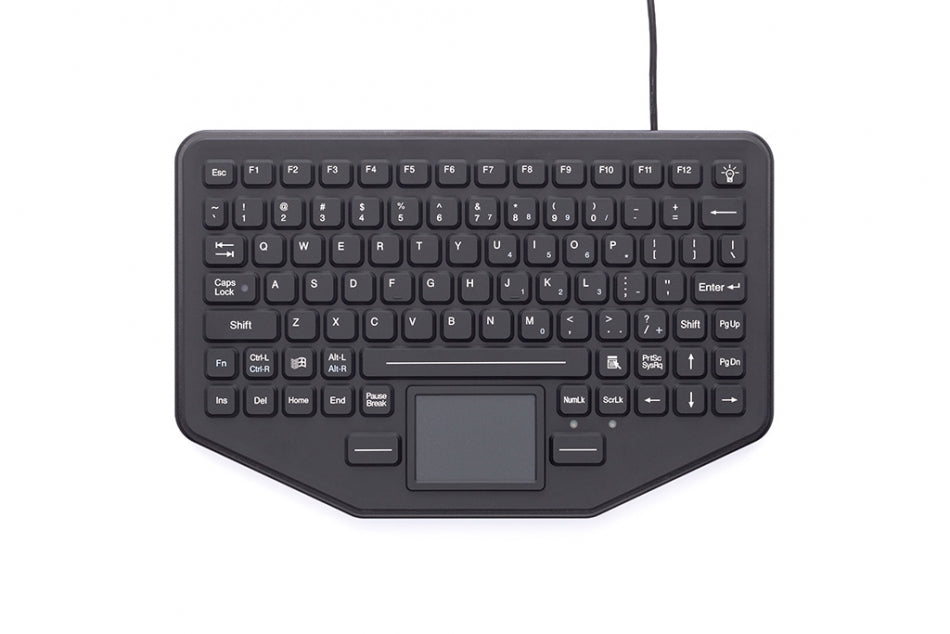

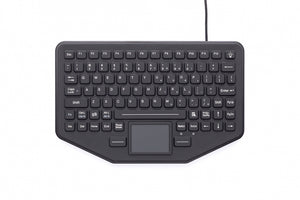

iKey SkinnyBoard™ Mobile Keyboard with Touchpad
iKey Product Code: SB-87-TP-M The SkinnyBoard™ SB-87-TP-M is one of iKey’s thinnest keyboards to date. Its sealed, streamlined case and silicone rubber keys meet IP65 standards, making it fully resistant to spills, cleaning procedures and the elements. Built for convenience and versatility in mobile computing applications, the SB-87-TP-M features an integrated touchpad, eliminating the need for an external pointing device. In addition, its red LED backlighting is ideal for nighttime or ambient-light use. An integrated VESA mounting pattern makes it ideal for in-vehicle mounting.
FEATURES
- 12 Function Keys
- Red Backlit Keys
- Integrated Touchpad Compatible with All Windows and Mac OS
- Silicone Rubber
- VESA Mounting Pattern
- Ultra-Thin Design
DIMENSIONS
- Height: 7.57"
- Width: 11.66"
- Depth: 0.83"
CERTIFICATES & TESTING
- NEMA 4X UL60950, FCC Part 15 Class B, IP64 Certified
- Shock - 3x11 ms pulses of 50g on each of 3 axis
- Key Switch
- Material: Industrial Silicone Rubber
- Life: Greater than 10 million cycles
- Travel: 0.055"
- Actuation Force: 7.05 oz +/- 1.06 oz
- Feedback: Tactile with Mechanical Snap
- Vibration
- Power Spectral Density: 0.04g/Hz
- Frequency Range: 20 Hz - 2kHz
- Duration of Test per Axis: 3 hours
- Temperature Range
- Storage: -40°F to +194°F
- Operating: -40°F to +158°F
- 100 % Humidity Resistant
NOTES
- A $20 premium per keyboard must be added to the purchase price for non US English keyboard overlay language requirements
- Check with your Customer Service Representative for alternative language overlay availability
- Alternative language overlays may be subject to Minimum Order Quantities
- Keyboards will ship with US English language overlays as standard unless alternative language overlays are clearly requested on the Purchase Order
WARRANTY
- 1 year warranty by iKey
