Gamber Johnson

$1,613.80
SKU: 7170-0968-02

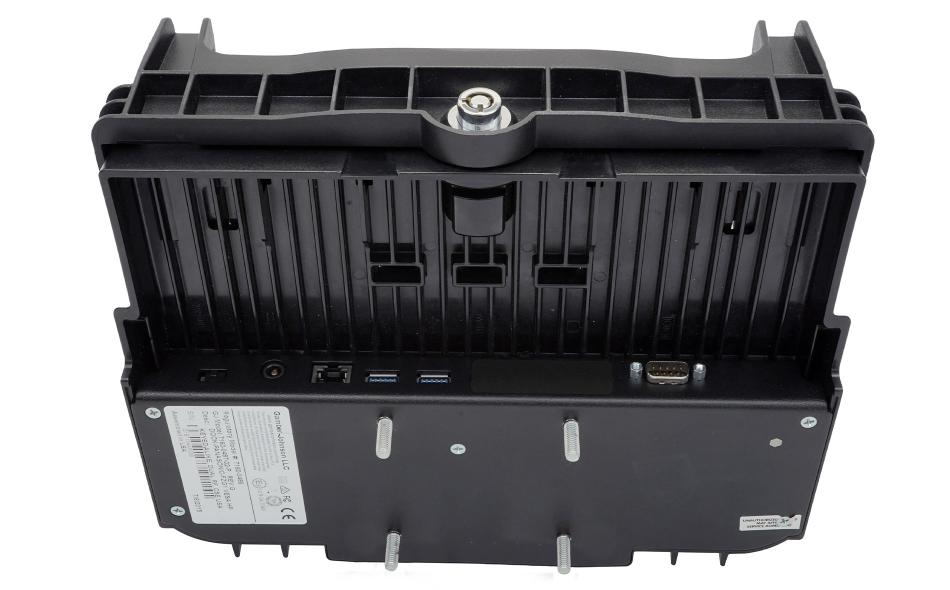

This Toughpad FZ-G1/G2 docking station accommodates the tablet's extended battery, smart card reader, rear hand strap, and bumper guards. This docking station features lite port replication to connect peripherals, dual-antenna pass-through and a VESA 75mm mounting pattern. This Kit includes a LIND power adapter.

ANTENNA PASS-THROUGH

  • Dual RF (TNC)

COMPATIBILITY

PORT REPLICATOR

  • Panasonic certified electronics
  • (1) Ethernet - RJ45
  • (1) Serial - D-sub 9-pin
  • (2) USB 3.0 (900mA) - 9 pin
  • Dual RF Pass-through (optional) - TNC
  • Power input - 16VDC
  • Antenna Switch

DOCKING STATION

  • Weight: 2.5 lbs / 1.13 kg
  • Height: 9.33 in / 23.7 cm
  • Width: 11.22 in / 28.5 cm
  • Depth: 2.56 in / 6.5 cm

POWER ADAPTER

  • Weight: 1.22 lbs / 0.55 kg
  • Height: 1 in / 2.54 cm
  • Width: 5 in / 12.7 cm
  • Depth: 3 in / 7.62 cm

POWER SUPPLY

  • Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)

FEATURES

  • Compatible with the Panasonic Toughpad FZ-G1 and G2 tablet computers with small or large bumper guards
  • Panasonic certified electronics
  • Docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and large bumper guards.
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy docking and release, Insert computer into the docking station, push top of dock down and engage lock to dock computer
  • Upward-facing I/O ports; integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

CERTIFICATES & TESTING

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

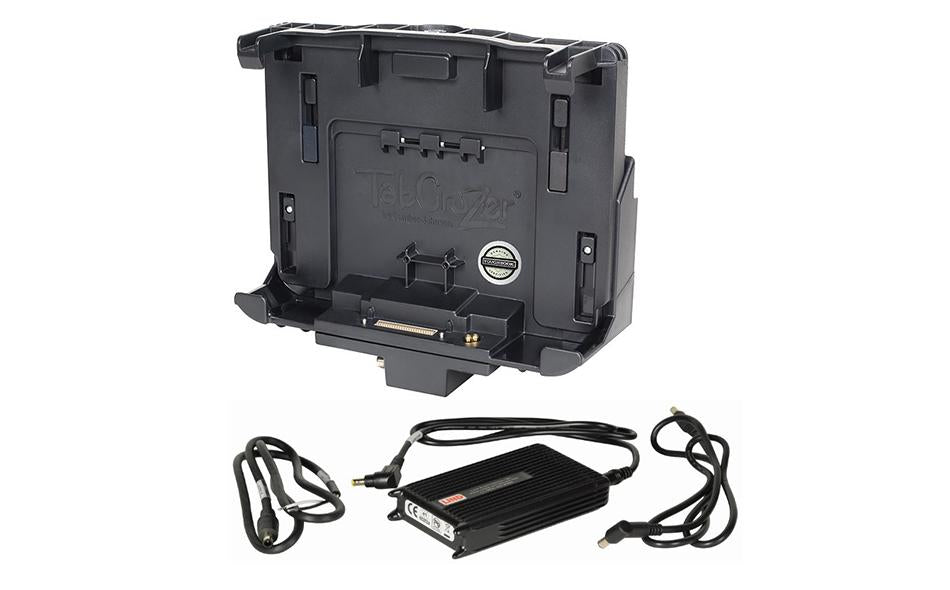

KIT INCLUDES

  • Panasonic FZ-G1 / G2 Docking Station
  • Mounting Hardware
  • LIND 11-16V Auto Power Adapter
  • Installation Instructions

WARRANTY

  • 3-Year Limited Warranty
