Gamber Johnson

$1,641.64
SKU: 7170-0931-02

The Toughpad FZ-G1 THIN docking station is the perfect companion to the G1 tablet if you do not require a handstrap or other accessories for the tablet. This dock features dual RF antenna connection, full port replication to connect peripherals and due to its small footprint, is perfect for conserving cabin space in a smaller vehicle. This kit includes an auto power adapter.

ANTENNA PASS-THROUGH

  • Dual RF (TNC)

COMPATIBILITY

  • Compatible with Panasonic Toughpad FZ-G1 tablet computer with small bumper guards.

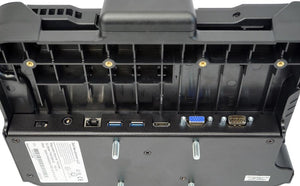

PORT REPLICATOR

  • Panasonic certified electronics
  • (1) Ethernet - RJ45
  • (1) Serial - D-sub 9-pin
  • (1) VGA - D-sub 9 pin
  • (1) HDMI - 19 pin
  • (2) USB 3.0 (900mA) - 9 pin
  • Dual RF Pass-through (optional) - TNC
  • Power input - 16VDC
  • Antenna Switch

DOCKING STATION

  • Weight: 2.5 lbs / 1.13 kg
  • Height: 9.33 in / 23.7 cm
  • Width: 11.22 in / 28.5 cm
  • Depth: 2.56 in / 6.5 cm

POWER ADAPTER

  • Weight: 1.22 lbs / 0.55 kg
  • Height: 1 in / 2.54 cm
  • Width: 5 in / 12.7 cm
  • Depth: 3 in / 7.62 cm

POWER SUPPLY

  • Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)

FEATURES

  • Compatible with the Panasonic Toughpad FZ-G1 tablet computer with small bumper guards
  • Panasonic certified electronics
  • Docking Station is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy to use one-handed docking and release, Insert bottom of computer into the docking station, push top of computer against latch button to dock computer
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
  • Upward-facing I/O ports; integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

CERTIFICATES & TESTING

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

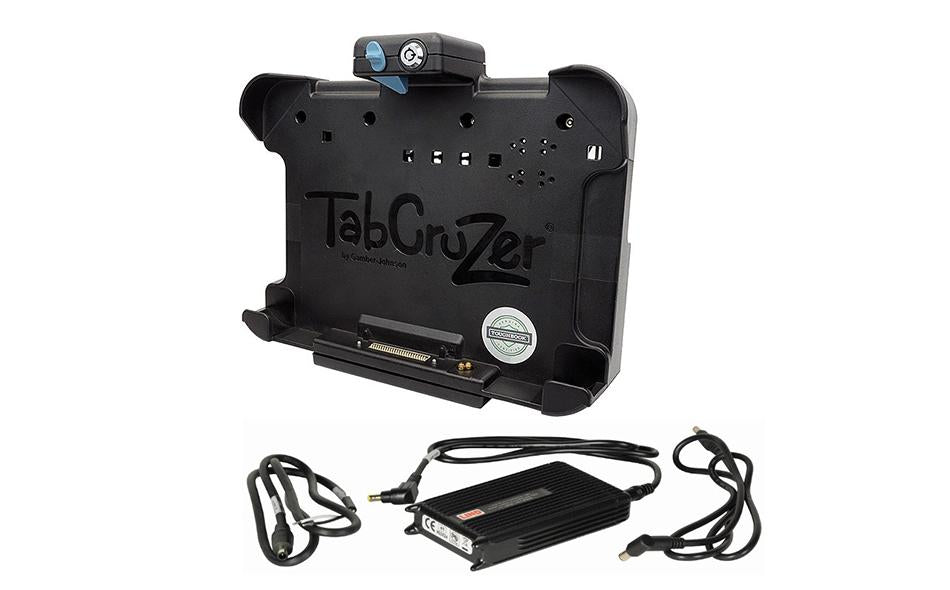

KIT INCLUDES

  • Panasonic FZ-G1 / G2 Docking Station
  • Mounting Hardware
  • LIND 11-16V Auto Power Adapter
  • Installation Instructions

WARRANTY

  • 3-Year Limited Warranty
