Gamber Johnson

$278.03
SKU: 7170-0951

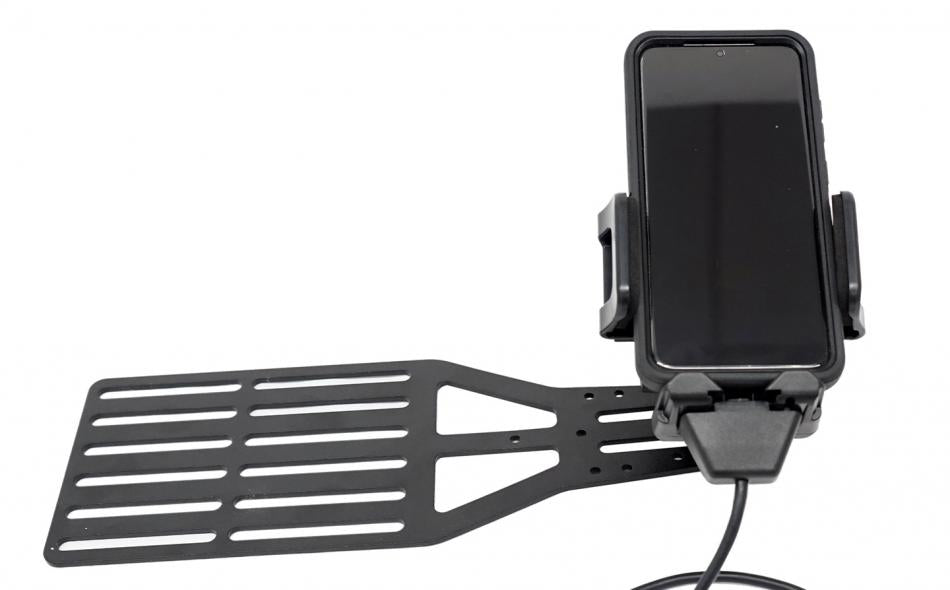

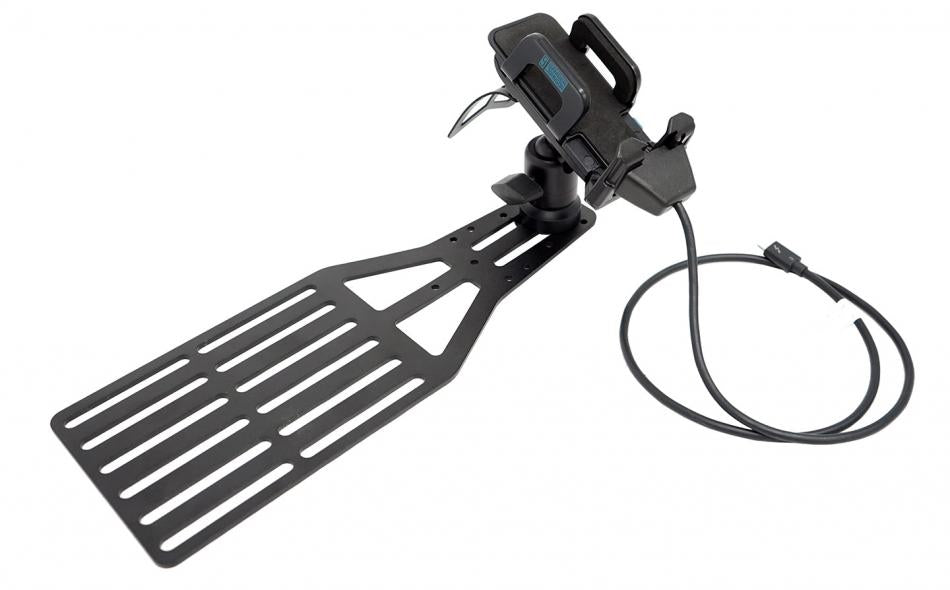

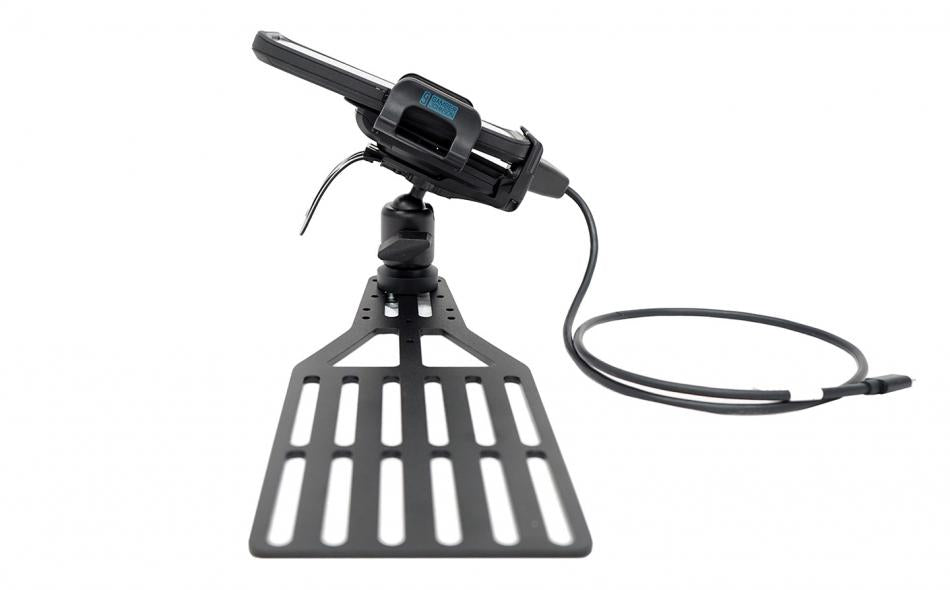

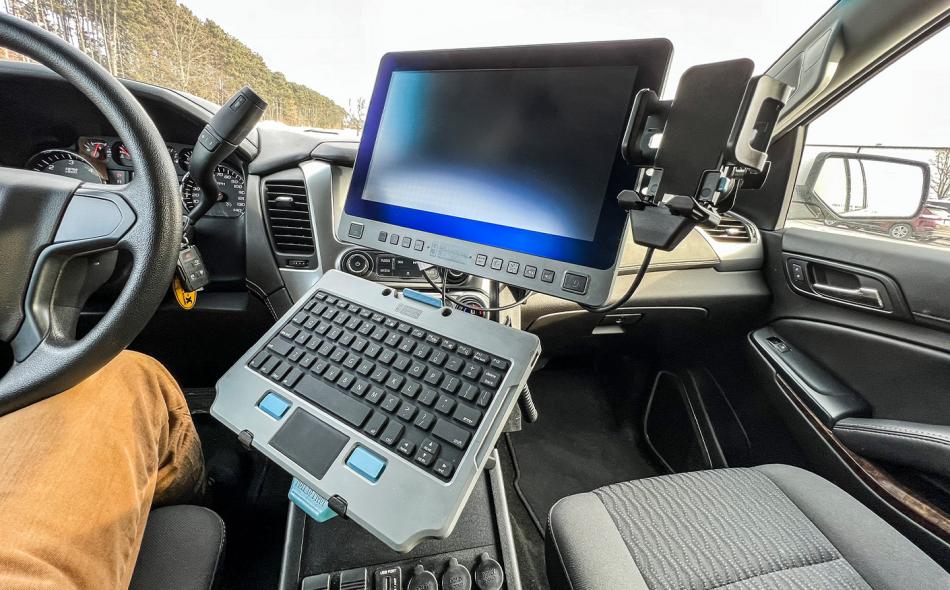

This kit includes a Universal USB-C Phone Docking Station, Zirkona Heads Up Articulating Mount, Threaded Adapter and Heads Up Mounting Bracket. This Universal Phone cradle provides USB-C charging and data capabilities enabling the phone to be connected to a secondary touchscreen to mirror the screen on the phone. Combine this Universal cradle with a touchscreen, Rugged Hub, and keyboard to build a full vehicle mobile office. The cradle features features adjustable arms, one-button push release, and an adjustable USB-C connection for compatibility across many handheld devices.

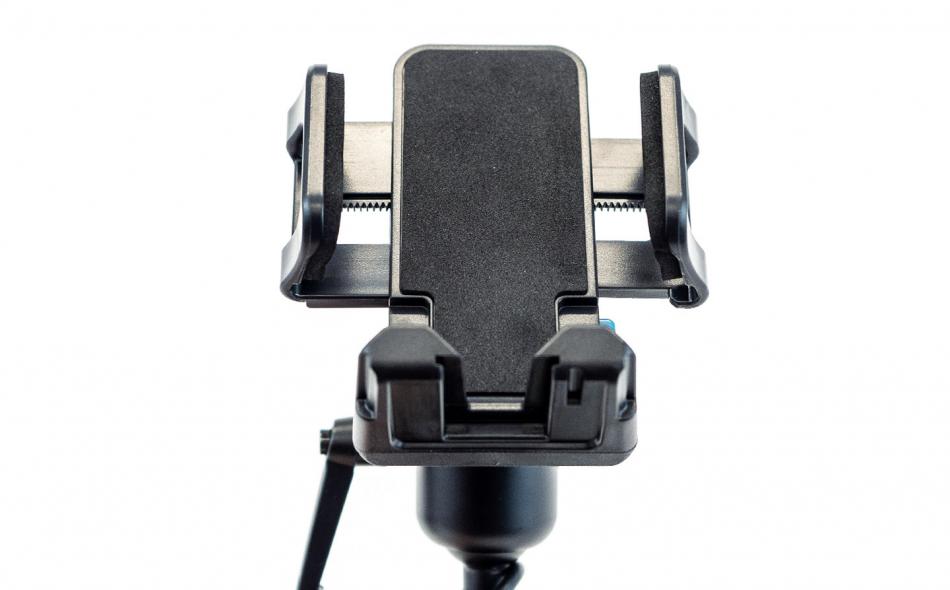

Universal USB-C Phone Charging Cradle

Weight: 0.3 lbs / 0.14 kg
Height: 5.5 in / 13.97 cm
Width: 2.6 in / 6.6 cm
Depth:2.4 in / 6.1 cm


Maximum Device Size for Cradle

Height: 7 in / 17.78 cm
Width: 3.5 in / 8.89 cm
Depth: 0.9 in / 2.29 cm

Zirkona Medium 2-Down Joiner with Brake

Weight: 0.5 lbs / 0.23 kg
Height: 4.5 in / 11.43 cm
Width: 3.38 in / 8.59 cm
Depth: 1.54 in / 3.91 cm


Zirkona Female Threaded Adapter

Weight: 0.1 lbs / 0.05 kg
Diameter: 1.44 in / 3.66 cm
Height: 0.5 in / 1.27 cm

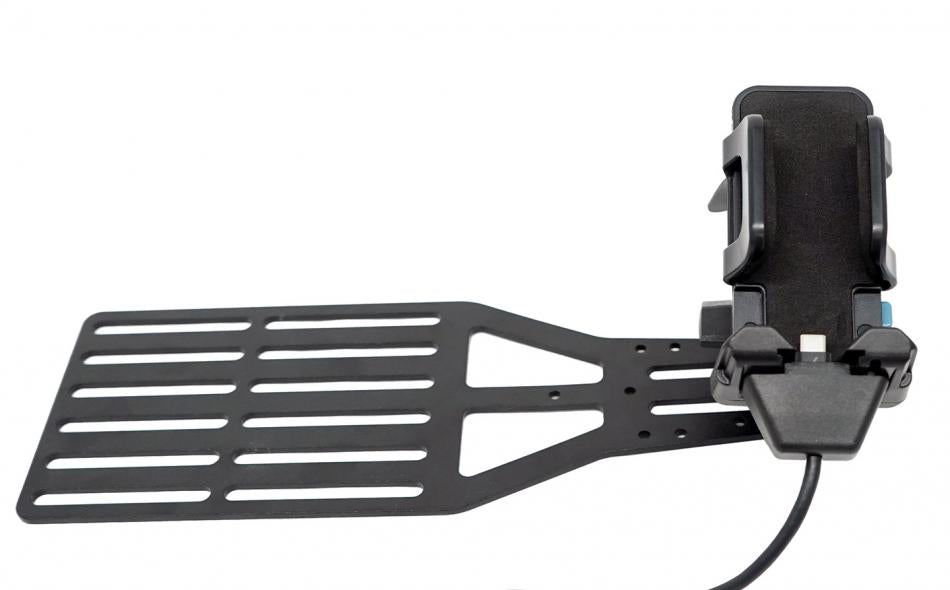

Zirkona Heads Up Mounting Bracket

Weight: 0.74 lbs / 0.34 kg
Height: 0.5 in / 1.27 cm
Width: 12 in / 30.48 cm
Depth: 5.75 in / 14.61 cm



FEATURES

  • Keep your phone or handheld device in clear view for GPS or charging your device.
  • Compatible with phones using USB-C charging ports
  • USB-C charging and data transfer cable, male to male connector (1.2 meter length)
  • Use your phone as a second screen or a touchpad device when you connect to a secondary touchscreen

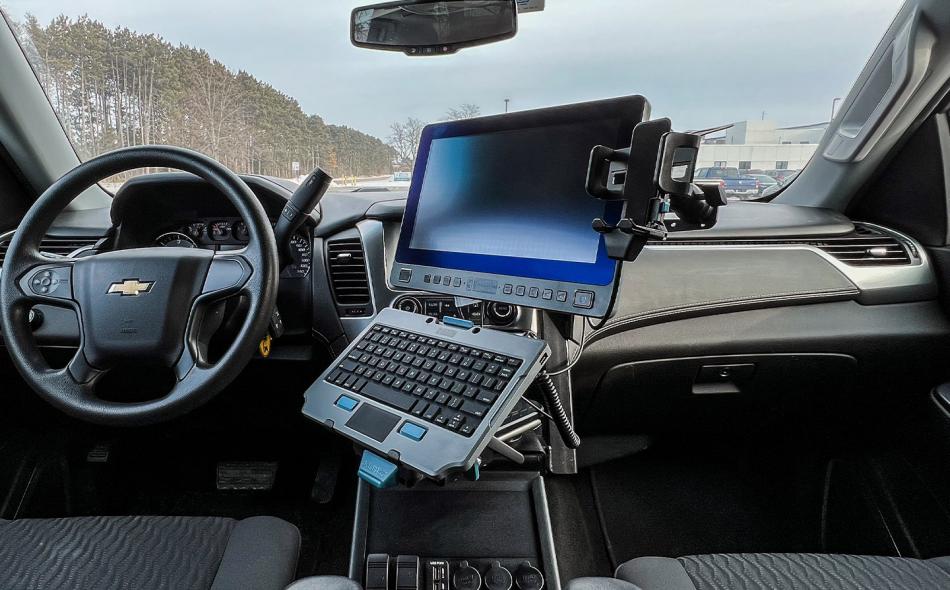

  • Combine your phone cradle with a touchscreen, keyboard, and special mounting equipment to build a complete mobile office solution
  • Adjustable charging connector to fit a wide variety of phones
  • Phone cradle holds a wide variety of phones and device with up to 3.5" of expanding clamps

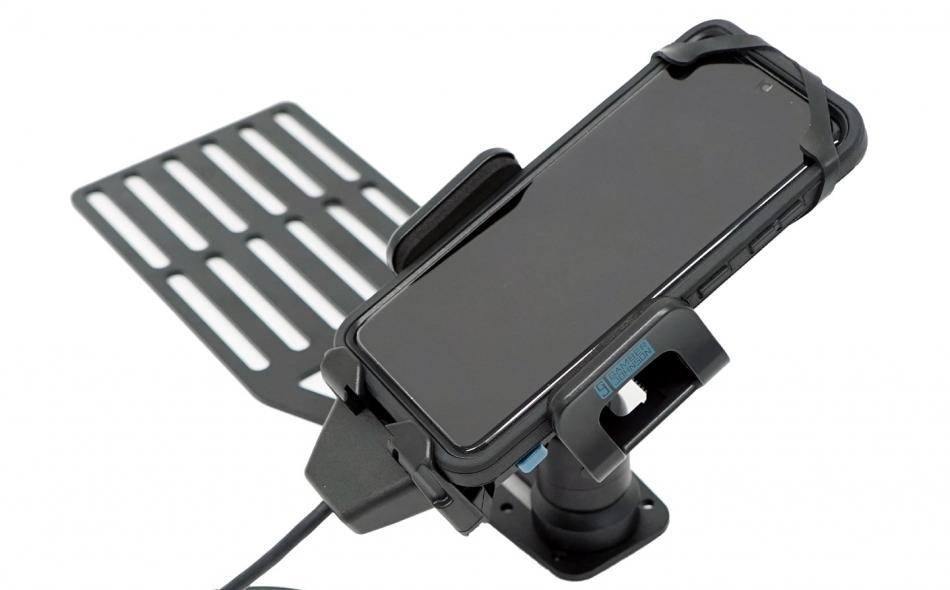

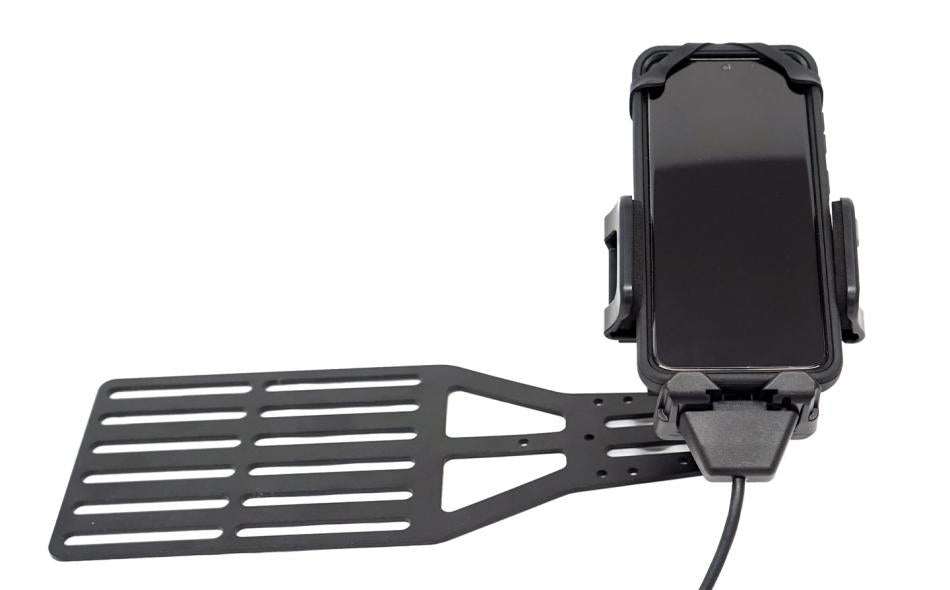

  • Silicone strap adds additional security for safe mounting in any environment
  • 20mm threaded adapter to attach a variety of Zirkona mounting solutions for any application
  • Button push release for easy one-handed operation
  • Folding legs for added support when needed
  • Heads Up articulating mount can be easily and quickly adjusted for different users to obtain the perfect viewing angle
  • Installation guide and mounting hardware included

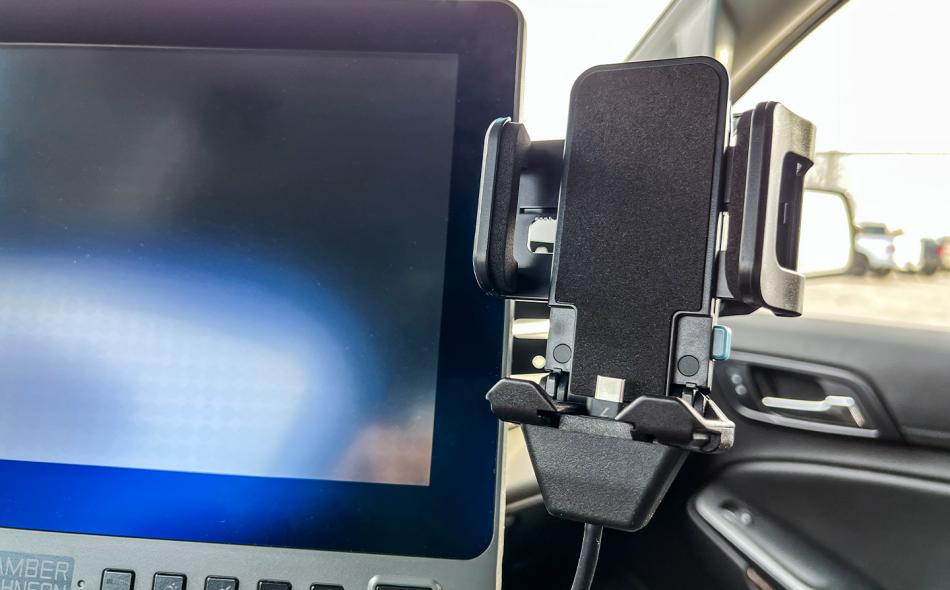

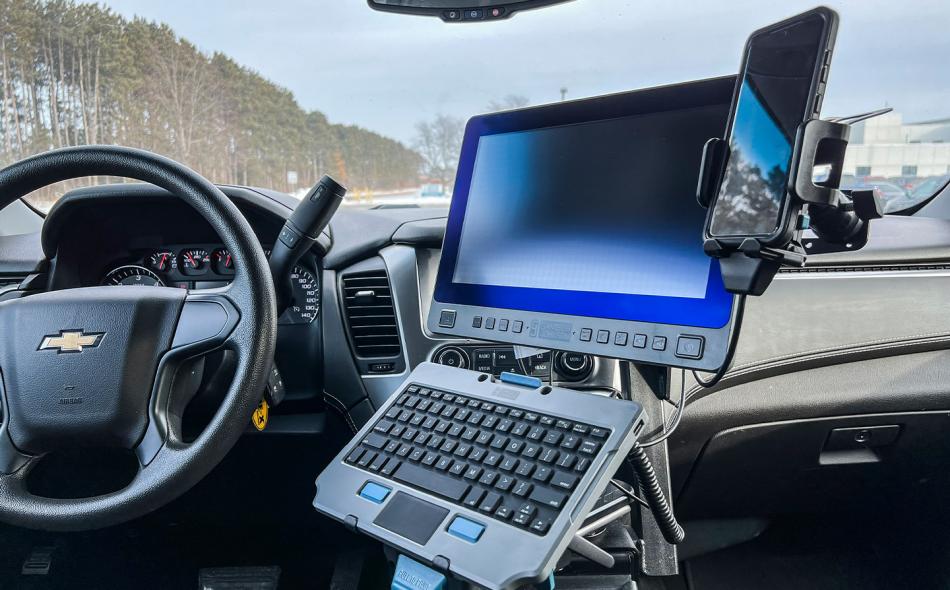

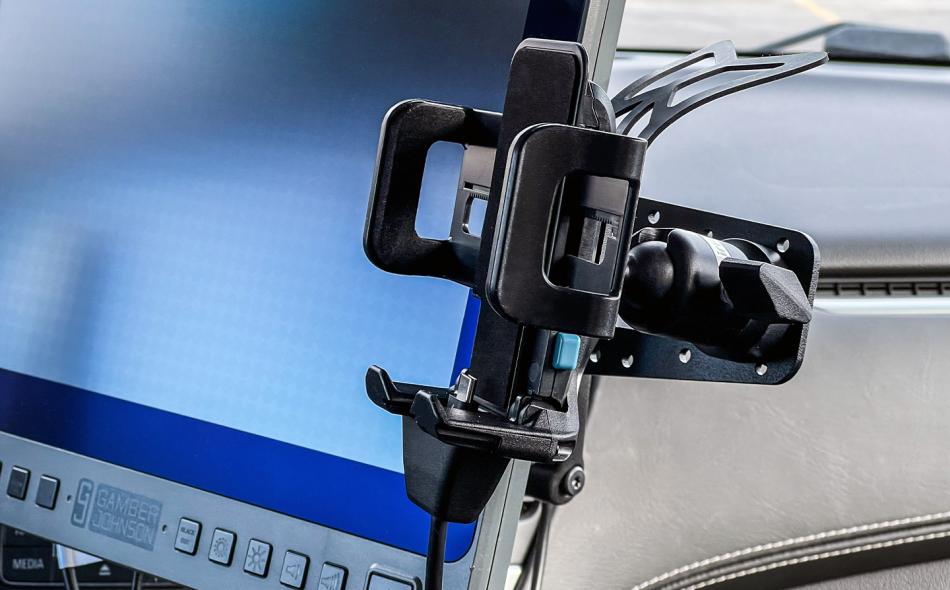

  • Use the Heads Up Mounting Bracket to position your Phone Charging Cradle next to your touch screen for the best view ability

CERTIFICATES & TESTING

  • SAE J1455 30mph Crash Testing
  • RoHS, REACH, FCC, CE, and UKCA Compliance

COMPATIBILITY

  • Compatible with handheld devices and cases that do not exceed 7 Height x 3.5 Width x 0.9 Depth inches in dimensions. Device must have charge and data transfer via USB-C connection.

KIT INCLUDES

  • Universal Phone Docking Station with Silicone Strap (7160-1659-10)
  • Zirkona Small Mega-Short Joiner (7110-1237)
  • Zirkona Threaded Adapter (17394)
  • Zirkona Heads Up Mounting Bracket (18540)

WARRANTY

  • 1-Year Limited Warranty: Universal USB-C Phone Docking Station
  • Limited Lifetime Warranty: Zirkona Heads Up Articulating Mount, Zirkona Threaded Adapter, Zirkona Heads Up Mounting Bracket
