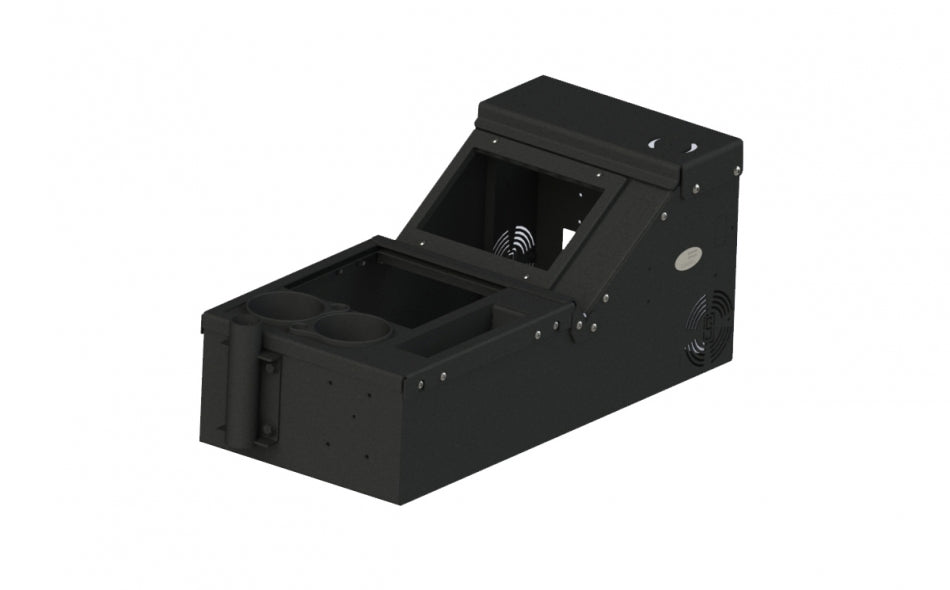

Kit: Wide Body Console with Cup Holder, Pocket and Vertical Surface Mount

Kit: Wide Body Console with Cup Holder, Pocket and Vertical Surface Mount
Kit: Wide Body Console with Cup Holder, Pocket and Vertical Surface Mount
Kit: Wide Body Console with Cup Holder, Pocket and Vertical Surface Mount
Kit: Wide Body Console with Cup Holder, Pocket and Vertical Surface Mount

Gamber Johnson

$1,210.22
SKU: 7170-0567-03

KIT INCLUDES

  • Wide body console box (item no. 7160-0894)
  • Internal cup holder (item no. 7160-0846)
  • Vertical surface mount with hardware
  • 2-inch wide pocket (item no. 7160-0924)

SPECS

  • Height: 10.88" / 27.6 cm
  • Width: 11.83" / 30.1 cm
  • Depth: 25.75" / 65.4 cm

FEATURES

  • Horizontal, low profile section:
    • Has a consistent mounting space height of 11.5". The included cup holder uses 4.5" (11.43 cm) of that space.
    • Designed to house full-sized devices and accessories.
    • Has additional side mounting area of 2-inch that will accommodate the pocket (item no. 7160-0924), 2-inch faceplate for switches or power ports or a smaller device.
  • Vertical, angled sections:
    • Accommodates 5" of mounting space for one to two full-sized devices or faceplates.
    • Two 12-volt plug knockouts, located on top passenger side and two knockouts for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension.
  • Other Features:
    • Low profile, universal console with sloped front mounting area.
    • Designed to work with top plate/tunnel plate and leg kits.
    • Two 12 volt plug knockouts, located on passenger side wall of console box and one knockout for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension.
    • PEM’s for mounting mic clip (item no. 7120-0723) on both sides.
    • Side vented openings for air flow or mounting a speaker inside the console box.
    • PEM’s on back of console box for mounting external cup holder (item no. 7160-0847) and armrest (7160-0429) or printer armrest (item no. 7160-0430).
    • Front plate of console underneath the dash area has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes.
    • Computer can be center mounted either off‐set towards the passenger on the “smiley face pattern” or on the 3‐bolt pattern closer to the driver for easy articulation access.
    • Fully welded construction for long term product life span.
    • 3 faceplates and 3 filler panels are included.
    • Box ships fully assembled (except for accessories).

WARRANTY: LIMITED LIFETIME

  • A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
