Kit: Zebra ET50/51 55/56 8" Docking Station with Lind Auto Power Supply

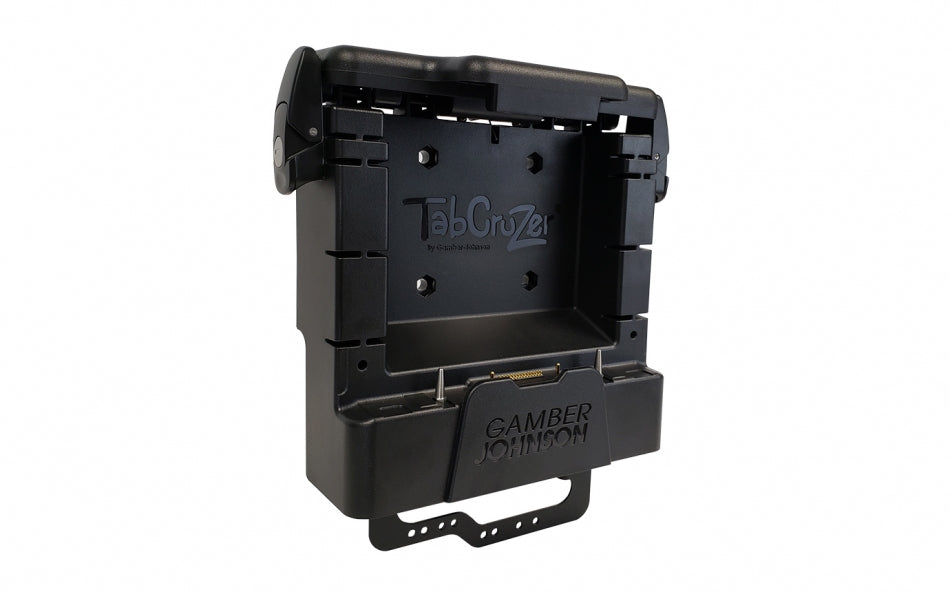

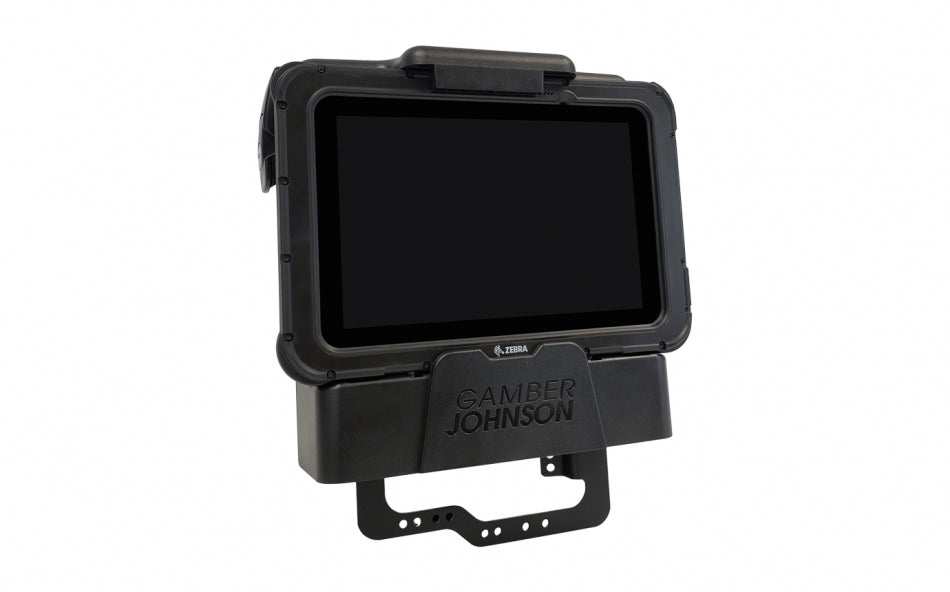

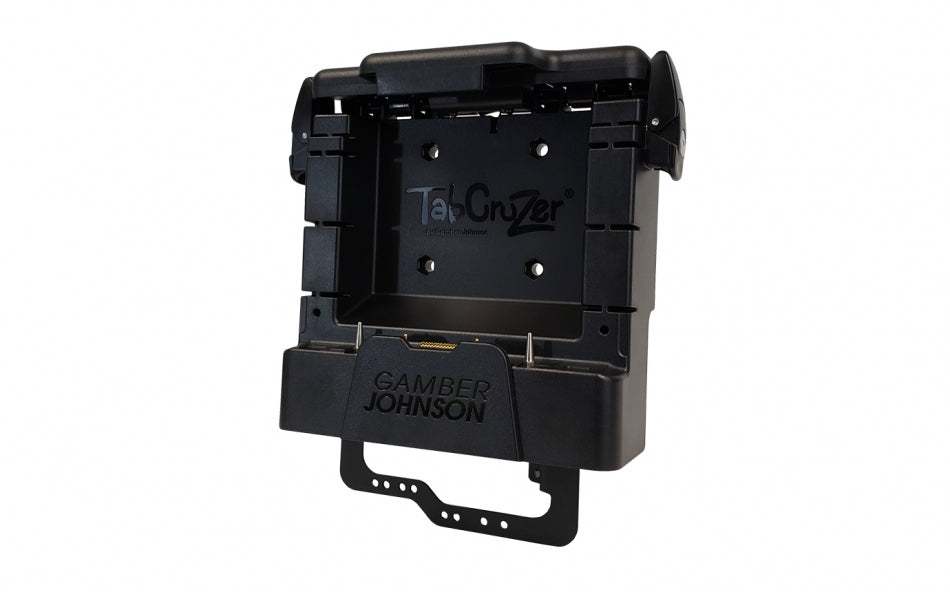

The Zebra ET50/51 55/56 8 inch docking station features draw latches to ensure the tablet is kept in place. Guide pins on the front make it easy to put the tablet into the docking station correctly and ensures there is full connectivity. The tablet’s scanner, hand strap, battery bay, and stylus all work with the docking station. This dock features a powered RS232 port to connect hand-held or mobile computers, scales, scanner guns, or printers. Additional ports include Ethernet, USB 3.0, HDMI, and power input. This kit includes a LIND Auto power adapter.
*Starting Aug 23rd 2022 Gamber-Johnson does not offer HDMI output on all ET5X docks because of global video chip shortages
ANTENNA PASS-THROUGH
- None

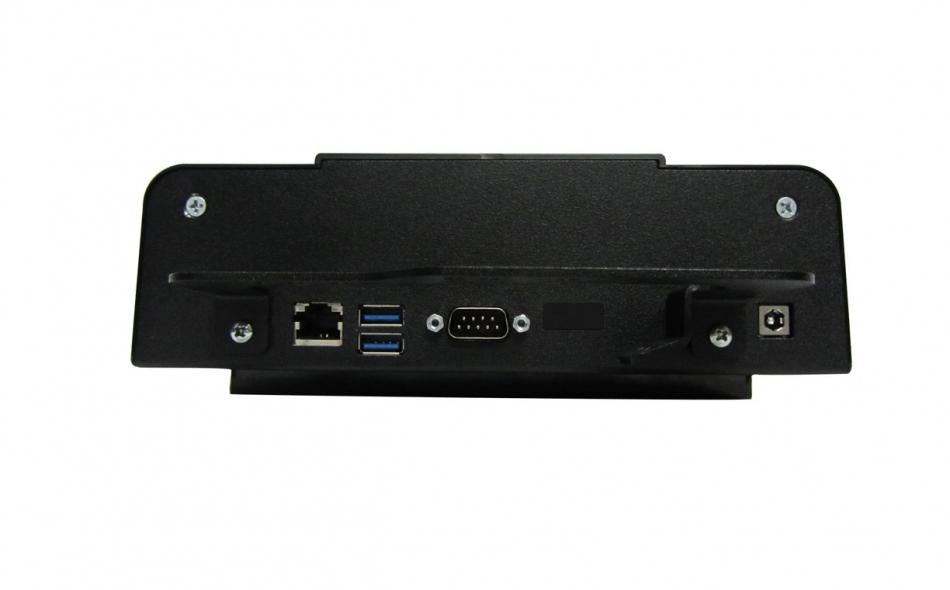

PORT REPLICATION
- RS232 serial power on pin 9 - 1 amp
- Power input
- USB (1.1A charging)
- USB 3.0 Ethernet RJ45 (1)
FEATURES

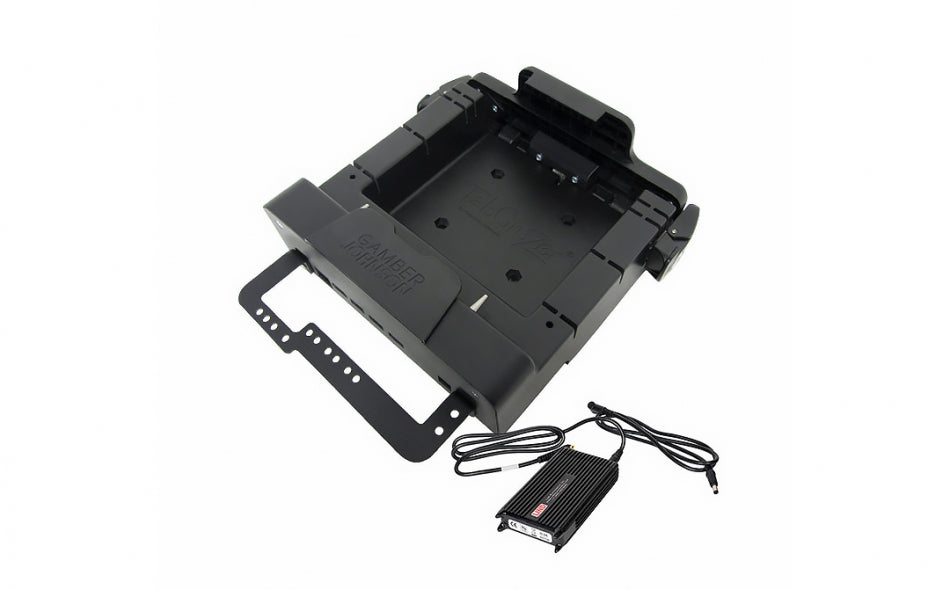

- Kit includes:
- Docking station (7160-0861-00)
- Auto power supply by Lind
- Designed and tested for MIL-STD 810G specifications
- Compatible with Zebra enterprise tablets with the rugged frame option
- Accommodates expansion back of the ET50/51 55/56 to easily add accessories like a scanner/hand strap, battery bay, or stylus
- Front camera on ET5X accessible when the tablet is in the docking station
- Compatible with Windows or Android operating systems

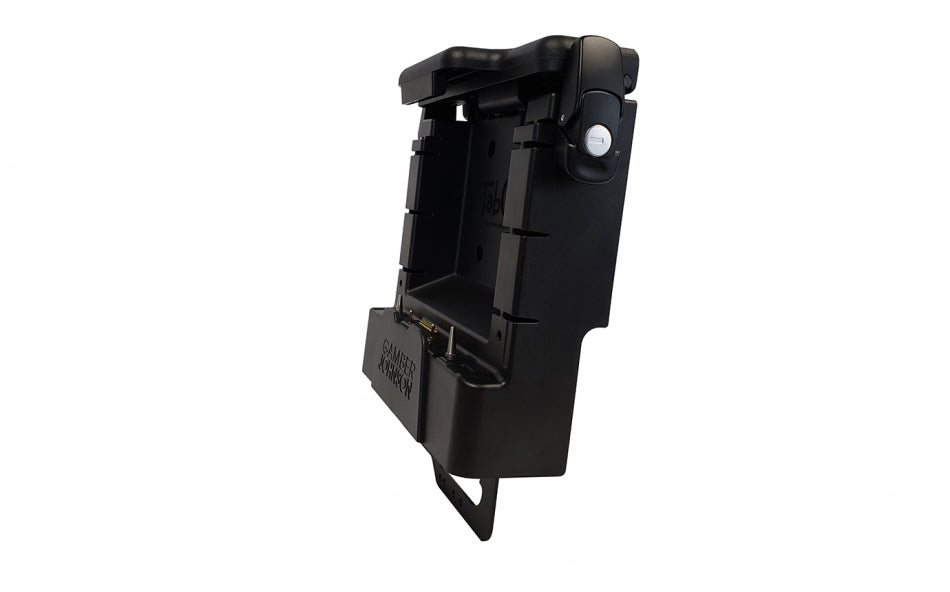

- Dual latch/locks provide stability and docking connectivity
- Guide pins prevent damage to the docking connection when docking the tablet

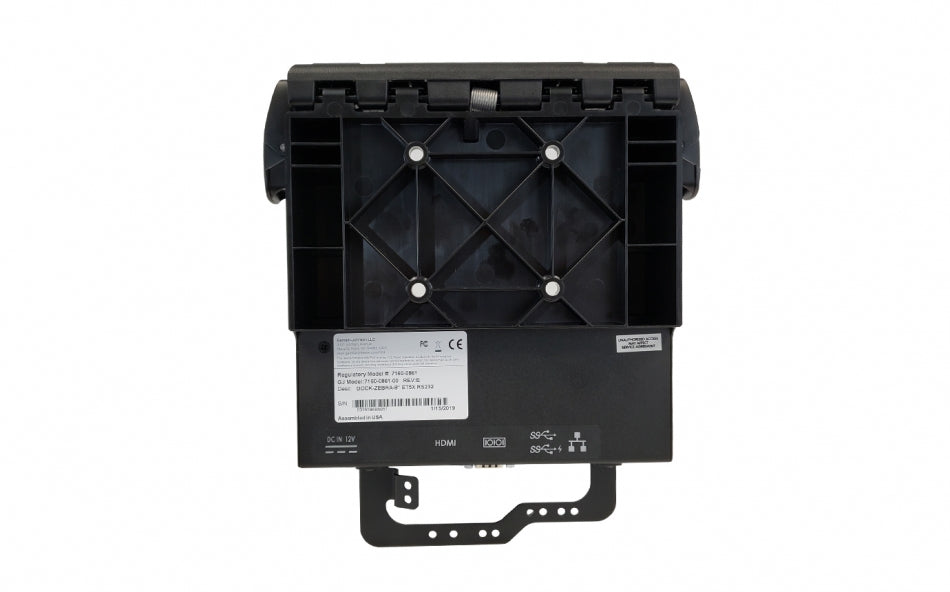

- VESA 75mm mounting pattern
- Steel and composite design for reduced weight 3 year limited warranty
- Height: 10.0 in / 25.4 cm
- Width: 9.0 in / 22.9 cm
- Depth: 3.35 in / 8.5 cm
WARRANTY
- 3-Year Limited Warranty
