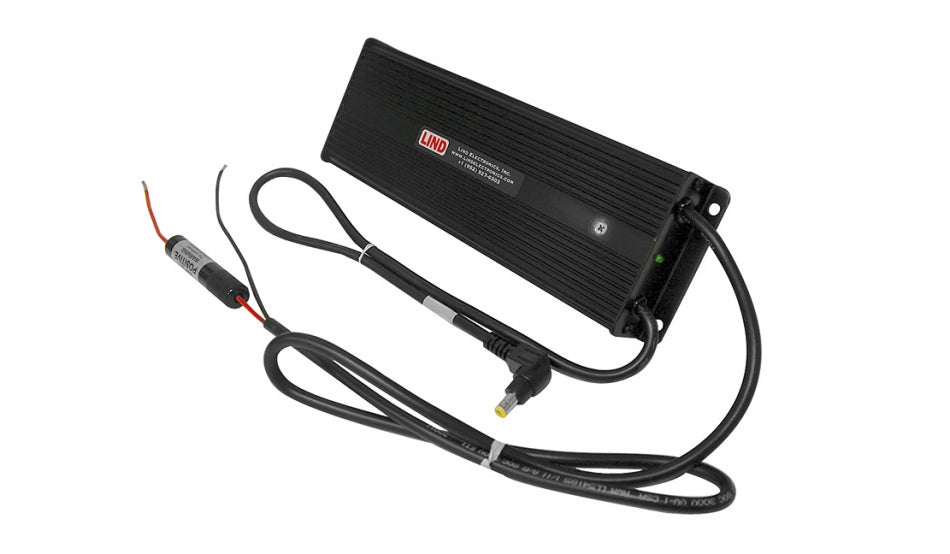

Lind 72-110V Material Handling Isolated Power Adapter for Panasonic
The Lind 72-110V isolated power adapter provides regulated power to the docking stations an cradles for the Panasonic Toughbook 18/19/20, N1, and Toughpad A2, G1, M1/B2 and E1/X1. The rugged design of the Lind power adapters makes them ideally suited for use in harsh mobile environments. Formerly Item No. 16514
FEATURES
- Full continuous rated power output.
- Sealed and potted in aluminum extrusions for the harshest operating environments.
- Input voltage: 72 to 110 Vdc
- Output voltage: 15.0 Vdc
- Output current: 5.5 amps (max)
- Isolated voltage: 2121 Vdc input to output (Output tied to Chassis)
- Operating temp = -4 to 104 deg. F (-20 to 40 deg. C)
DIMENSIONS
- Height: 1.15 in /2.92 cm
- Width: 9.3 in / 23.6 cm
- Depth: 3.0 in / 7.62 cm
COMPATIBLE DOCKING STATIONS/CRADLES
- Panasonic Toughpad FZ-G1
- Panasonic Toughpad FZ-M1/B2
- Panasonic Toughpad FZ-X1/E1
- Panasonic Toughbook N1
- Panasonic Toughbook 20
