MOBILE MOUNTS - Accessory Power Distribution Unit

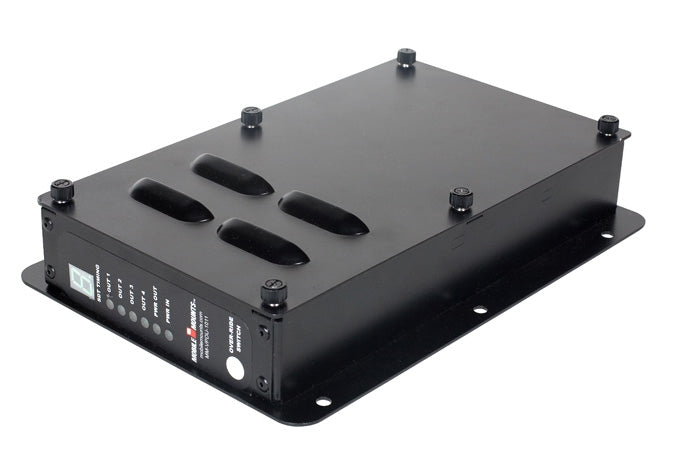

MOBILE MOUNTS Product Code: MM-APDU The Accessory Power Distribution Unit (MM-APDU) is ideal for applications where there are several devices (radios, modems, AVL, etc.) that need to have uninterrupted, continual power. This product has all the features of the standard VPDU -- with four(4) mini-ATO fuses controlled by the timer and one(1) constant 'on' -- and adds six(6) more fuses that are constant 'on'. The Accessory Power Distribution Unit can offer a space saving and cost effective solution to adding circuit protection when there are limited available constant ‘on’ fuse positions on the standard VPDU. Units can be ordered with quick-disconnect, environmentally sealed Weather Pack connectors.
CIRCUITS
- Seven (7) continuous power (120 Amps max); four (4) timed power (30 Amps max)
USB PORTS
- None
DIMENSIONS
- Height: 1.75" (4.5 cm)
- Width: 7.25" (18.4 cm)
- Depth: 11.25" (28.6 cm)
FEATURES
- Ideal for applications where several devices need to have uninterrupted, continual power
- Dip switch setable time delay from 15 seconds - 8 hours (constant 'on' is also available)
- Low voltage cutoff at 10.5 Volts
- High voltage cutoff at 18.0 Volts
- Loads up to 150 AMPS total; 30 Amps max per circuit
- LED display indicates the time delay and status
- Automatic activation by seeking battery voltage
- Optional activation by wiring to ignition sense point
- Four circuits controlled by timer
- Over-ride switch for 15 minutes of on-demand operation
- LED lights show operative state of fuse positions
- Reverse polarity protected
WARRANTY
- 3 year limited warranty by MOBILE MOUNTS
