Compatible with the Panasonic Toughbook 20 and G2 tablets with attachable keyboards
Panasonic Toughbook® 20 Docking Station with LIND 90W Auto Power Adapter, Lite Port, No RF

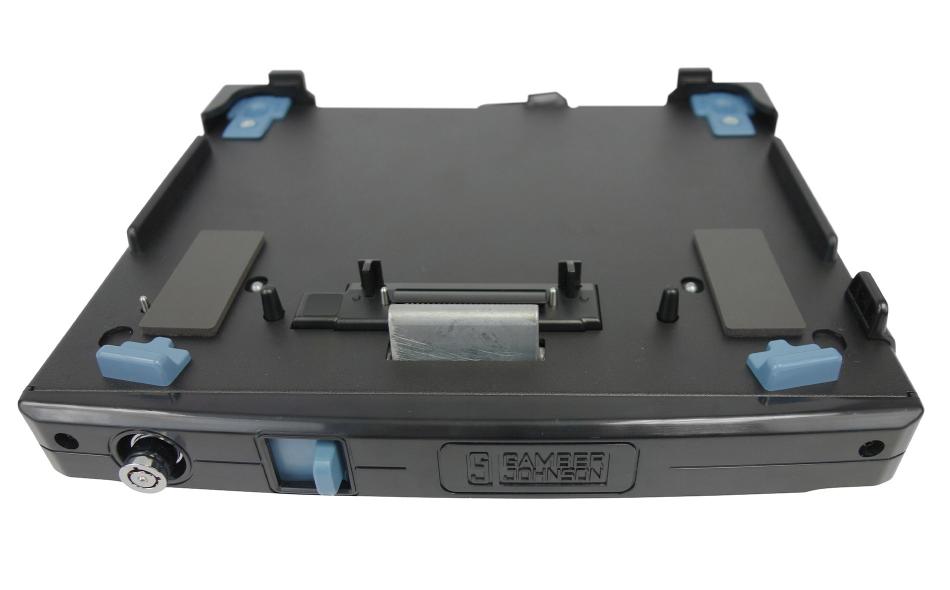

Designed for the Panasonic Toughbook® 20 with attachable keyboard; position the docking station in laptop or tablet mode. This docking station offers lite port replication, and a keyed lock. This docking station also features double protection for the docking connector including protection around and in between each docking pin and an automatic docking connector cover which automatically retracts when the computer is docked. This kit includes a LIND 90W auto power adapter.
ANTENNA PASS-THROUGH
- None
COMPATIBILITY
PORT REPLICATOR
- Panasonic certified electronics
- (2) USB 3.0 - 9 pin
- (1) Serial - D-sub 9-pin
- (1) Ethernet - RJ45
- Antenna switch
- Power supply input - DC 15.6V-16V
DOCKING STATION
- Weight: 5 lbs / 2.27 kg
- Height: 2.5 in / 6.35 cm
- Width: 11.6 in / 29.46 cm
- Depth: 12.1 in / 30.73 cm
POWER ADAPTER
-
Weight: 1.22 lbs / 0.55 kg
- Height: 1 in / 2.54 cm
- Width: 5 in / 12.7 cm
- Depth: 3 in / 7.62 cm
POWER SUPPLY
- Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
FEATURES
- Compatible with the Panasonic Toughbook 20 and G2 2-in-1 notebook computers
- Panasonic Toughbook Certified utilizing Panasonic Certified electronics

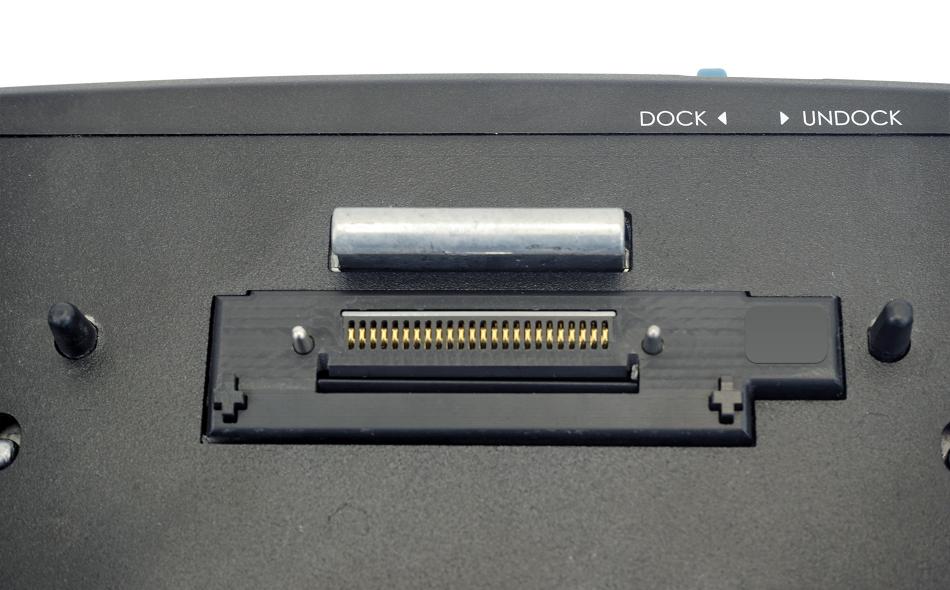

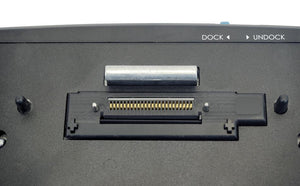

- Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
- Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin

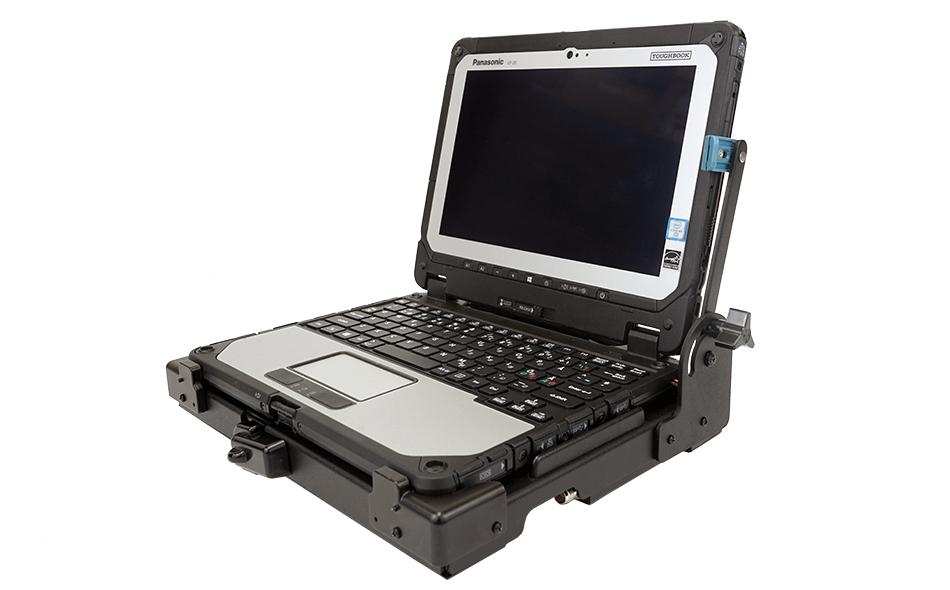

- Can be used in either laptop or tablet orientation.
- Composite/aluminum design for reduced weight and durability
- Designed with rounded edges to enhance personal safety

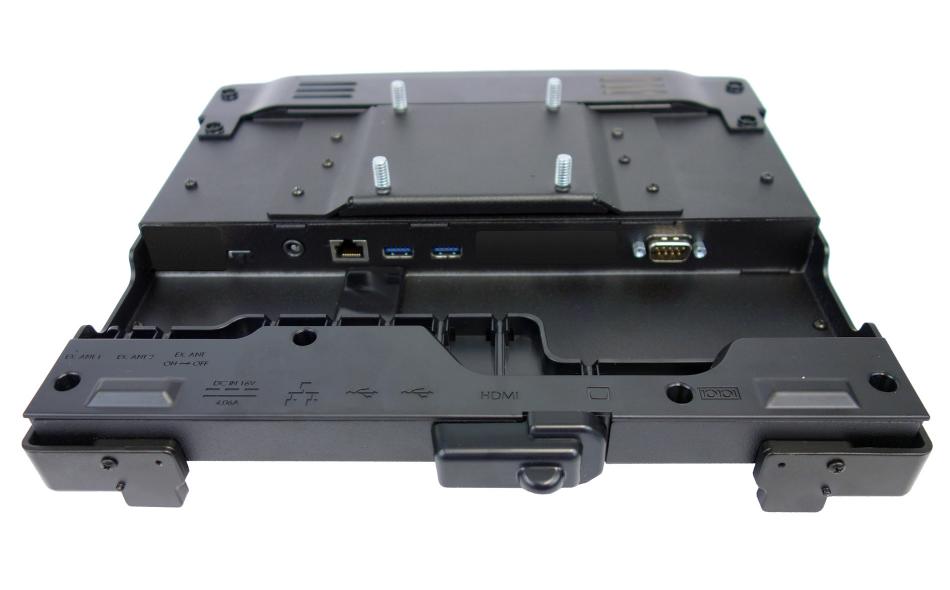

- Rear-facing I/O ports; integrated cable strain relief and cable management system
- Floating docking connector for reliable connectivity in the most rugged environments

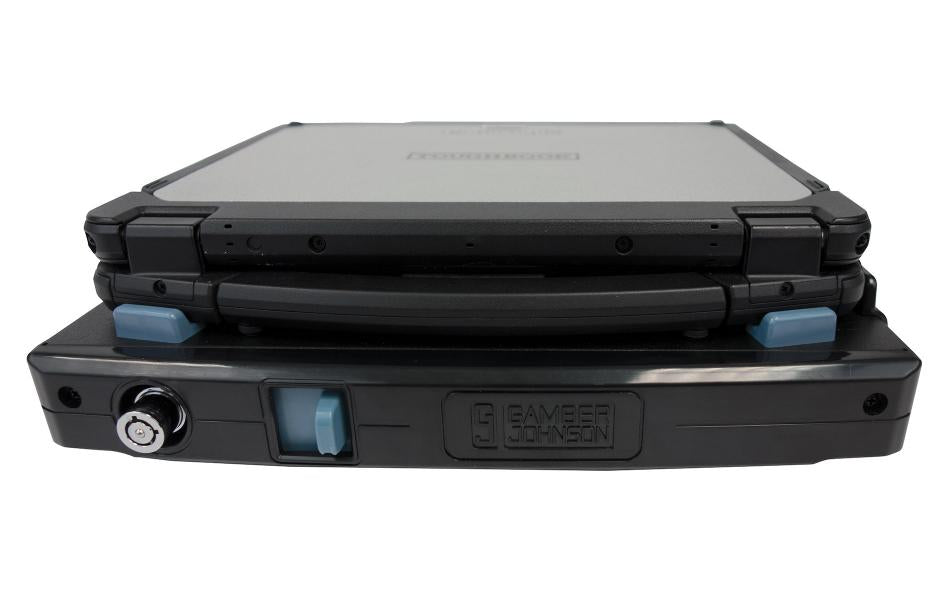

- Keyed lock for theft deterrence, NOTE: The lock secures the Toughbook 20 keyboard and tablet, but only secures the keyboard for the G2.
- VESA 75 mm mounting pattern
TESTING & CERTIFICATES
- Toughbook Certified
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE, C-TICK, UKCA
- SAE J1455 Shock Crash Hazard Test

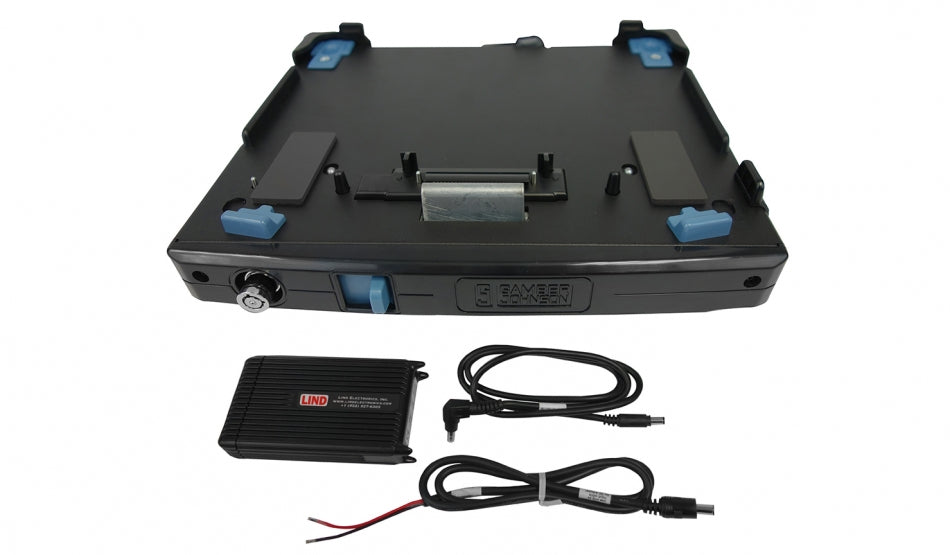

KIT INCLUDES
- Panasonic Toughbook 20 Docking Station
- Mounting Hardware
- LIND 11-16V Auto Power Adapter
- Installation Instructions
WARRANTY
- 3-Year Limited Warranty
