Compatible with Panasonic Toughbook 54 and 55 models

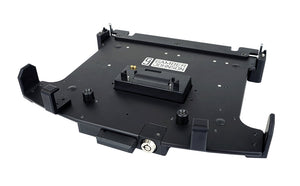

Panasonic Toughbook® 55 TrimLine™ Laptop Docking Station, Lite Port, DUAL RF

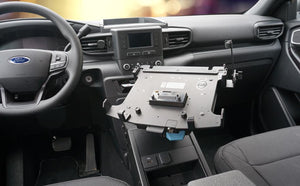

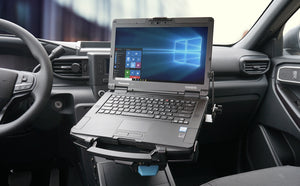

The TrimLine™ vehicle docking station for the Panasonic Toughbook 54/55 laptop provides lite port replication, dual RF antenna pass-through, and an ergonomic design built with user safety in mind.
ANTENNA PASS-THROUGH
- Dual RF (TNC)
COMPATIBILITY
PORT REPLICATOR
- Serial D-Dub 9 Pin
- Ethernet RJ45
- Fully Powered USB 3.0 (2) 900mA
- Power Input 15.6Vdc
- External Antenna Switch
POWER SUPPLY
-
Not included. Use power supplies:
- LIND 120W auto power adapter with bare wire lead (7300-0461)
- LIND 102W auto power adapter with LED indicator and cigarette lighter connector (7300-0216)
FEATURES
- Compatible with Panasonic Toughbook 54 and 55 computers
- Integrated genuine Panasonic PCB and connector for trouble free service
- Aluminum construction for strength and durability
- Auto-retracting docking connector cover reduces potential damage to critical components
- Floating connector for reliable docking connection
- Rear-facing I/O ports with Integrated cables restraint/cable management system
- Captured key lock with auto-latching mechanism ensures user safety, protection and device security
- Universal mounting interface including VESA 75 for optimum compatibility with new and existing infrastructure
- Ergonomic design for safety and single hand operation
- Minimal footprint for increased usable cabin space
- Available as a kit with LIND power adapter
- Height: 2.8 in / 7.11 cm
- Width: 12.7 in / 32.26 cm
- Depth: 12.3 in / 31.24 cm
CERTIFICATES & TESTING
- Pending Panasonic Toughbook Certified
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (Storage/Operational)
- SAE RJ1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE Certified
KIT INCLUDES
- Panasonic Toughbook 54/55 Laptop Docking Station
- Installation Guide
- Mounting Hardware
WARRANTY
- Limited Lifetime Warranty on structural components
- 3-Year Limited Warranty on electronics
- Explore our extended warranty program
