This Toughbook® G2 / Toughpad FZ-G1 docking station accommodates the tablet's extended battery, smart card reader, rear hand strap and bumper guards. This docking station features full port replication to connect peripherals, dual antenna pass-through, and the GJ 2" x 4" mounting pattern.
Dual RF (TNC)
Height: 9.89 in / 25.12 cm
Width: 11.22 in / 28.5 cm
Depth: 3.8 in / 9.65 cm
Fully Powered USB 3.0 (2) - 9 pin

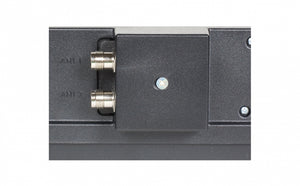

Dual Antenna Pass-Through (TNC)
Serial (1) D-sub 9 pin
VGA - D-sub 15 pin
HDMI 19 pin
Power supply input DC
Push, button key lock, to release docking connector. Locks are keyed alike. (Please contact Gamber-Johnson's Sales Department if you require a lock that is keyed differently per docking station for your fleet.)
Compatible with the Panasonic Toughbook G2 and Toughpad FZ-G1 tablet computers with small or large bumper guards
Accommodates extended battery, smart card reader, rear hand strap and bumper guards.
Can be mounted using the Gamber-Johnson hole pattern.
Can be mounted either vertically or horizontally.
Alignment tabs prevent damage to the docking connector when docking the computer.
Can be purchased with locks that are keyed differently for each docking station in your fleet.
