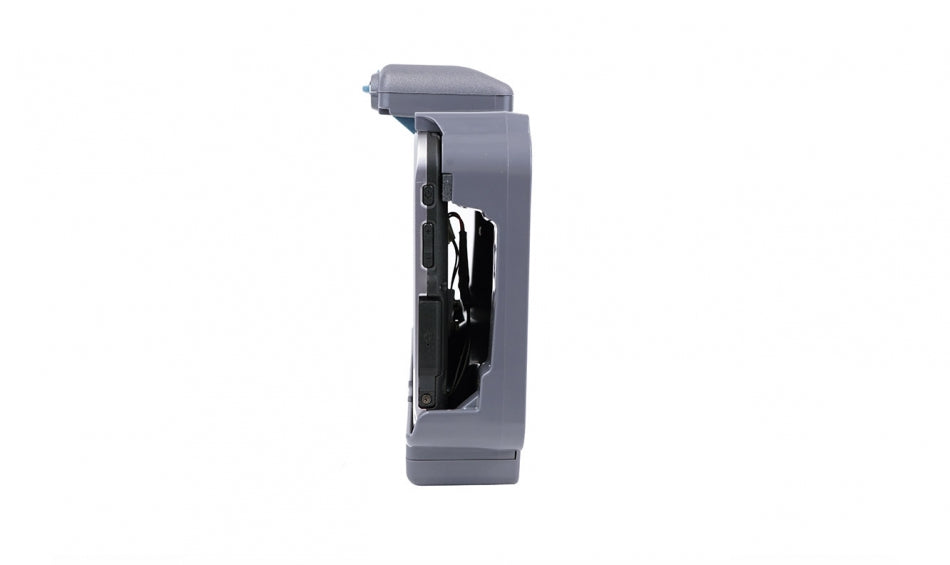

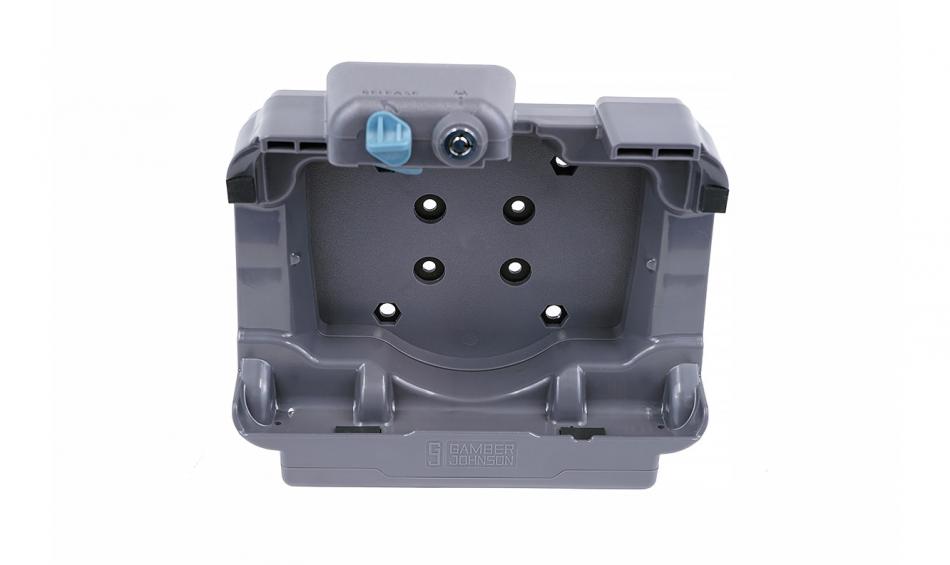

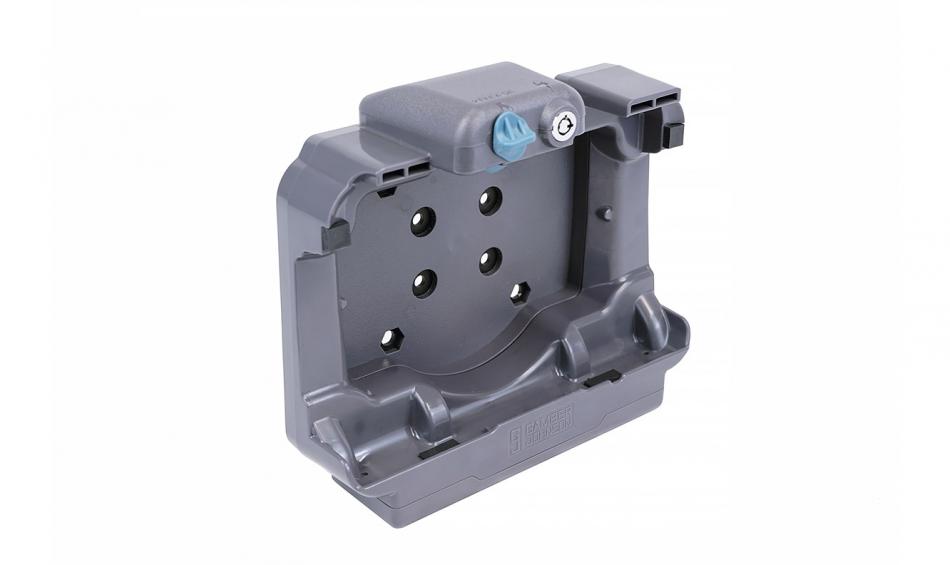

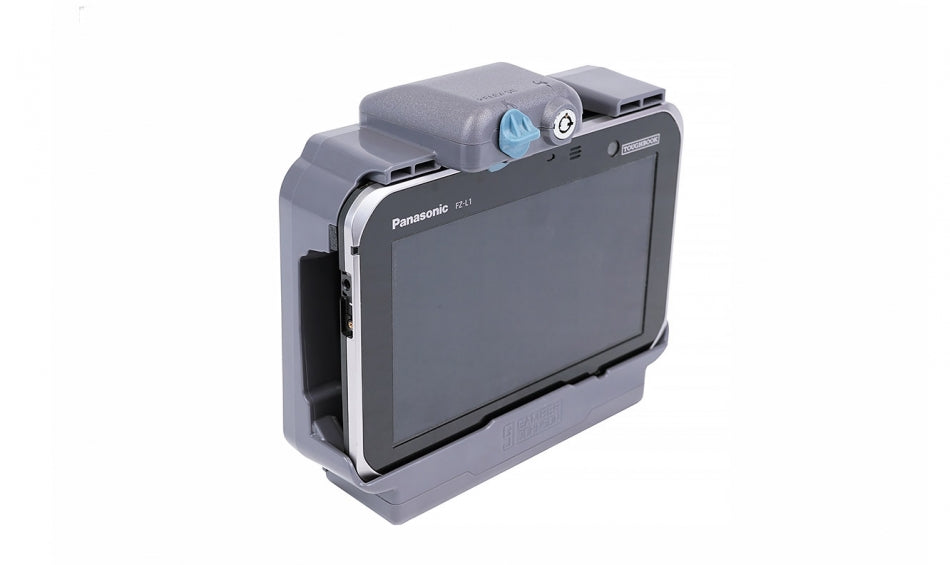

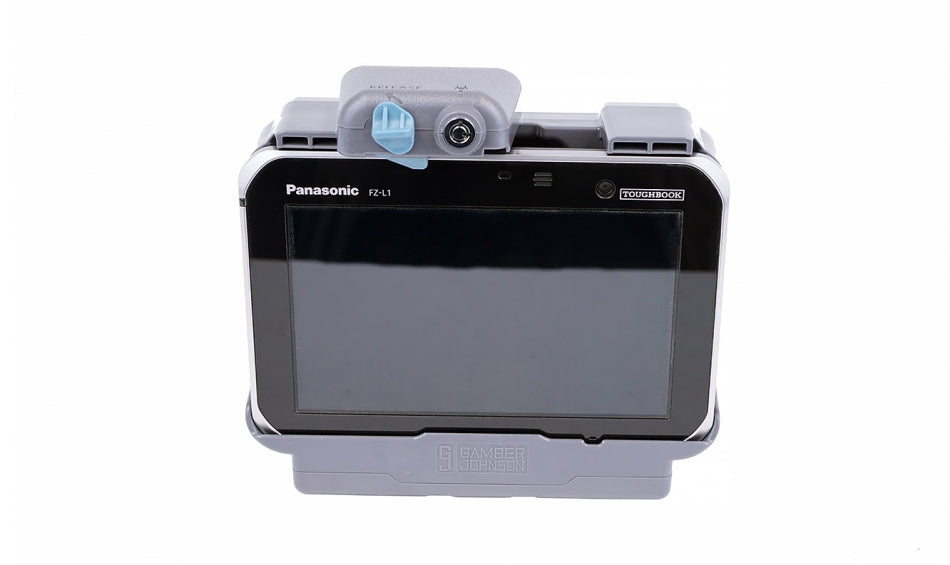

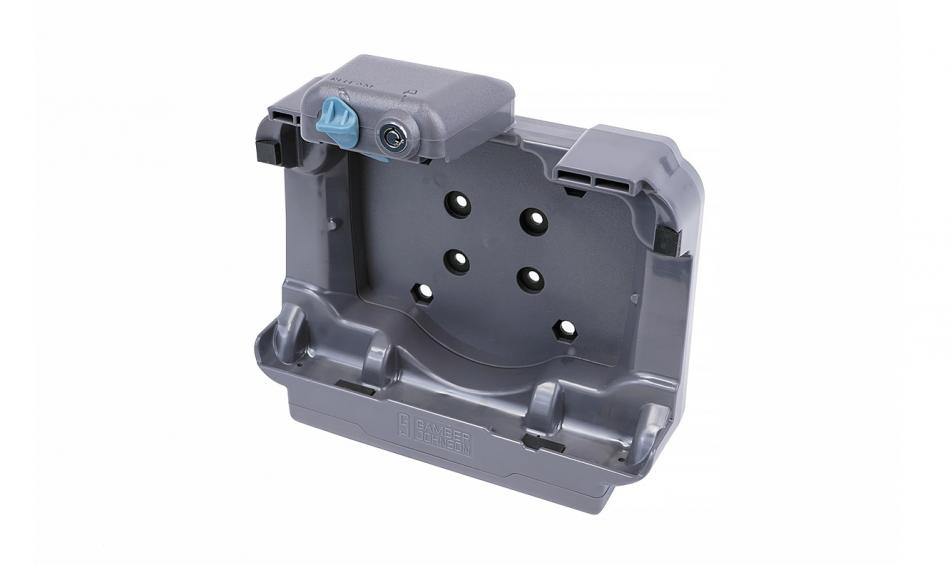

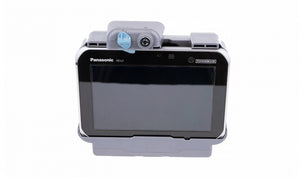

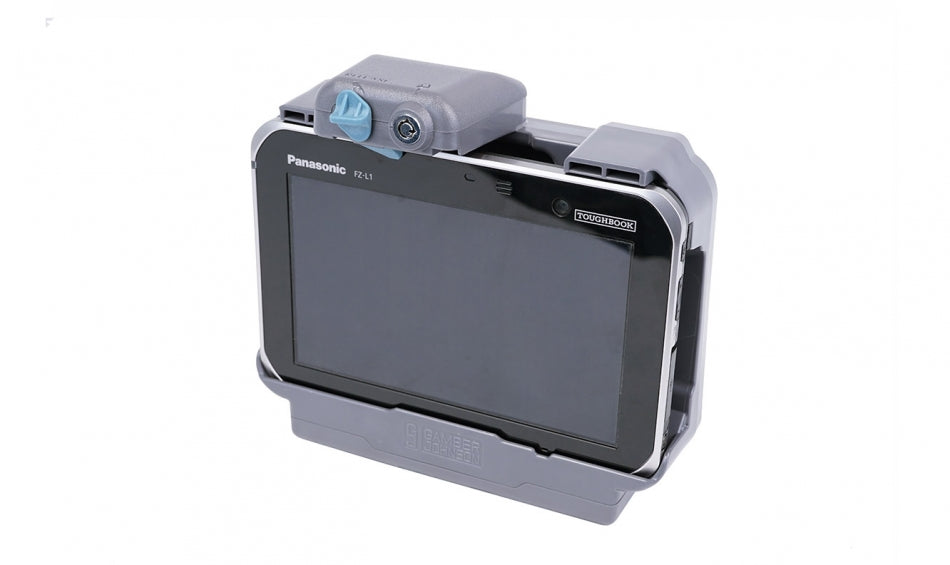

This Panasonic Toughbook S1/L1 cradle is an economical way to hold and protect your L1 tablet while it is in your vehicle. The thin design of this Panasonic Toughbook L1 cradle will enable the tablet to be mounted close to the instrument panel and will still accommodate the tablet's large battery and bar code reader.
Compatible with the Panasonic Toughbook L1 and S1 Tablet computer without RF Pass-Through and tablet hand strap.
No port replication
Not included- must use either:
External LIND power supply cigarette adapter or
LIND bare wire power adapter
Compatible with the Panasonic L1 and S1 Tablet computer
This cradle is designed to accommodate the L1/S1 tablet's large battery and bar code reader (sold separately)
Easy to use one-handed operation:
Insert bottom of computer into the cradle, push top of computer against latch button until latch engages
To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
Access to all tablet control buttons and ports while tablet is cradled
Optional keyed lock for theft deterrence
VESA 75mm and AMPS mounting patterns
Rounded edges to enhance personal safety
Depth: 3.03 in / 7.69 cm
Height: 7.21 in / 18.31 cm
Width: 7.97 in / 20.24 cm
CERTIFICATES & TESTING
Panasonic Toughbook Certified
MIL-STD 810G Shock & Vibration Tested
Cycle Tested: Docking connector, latching and locking mechanisms. 30,000 cycles.
