Gamber Johnson

$1,026.39
SKU: 7160-1265-10

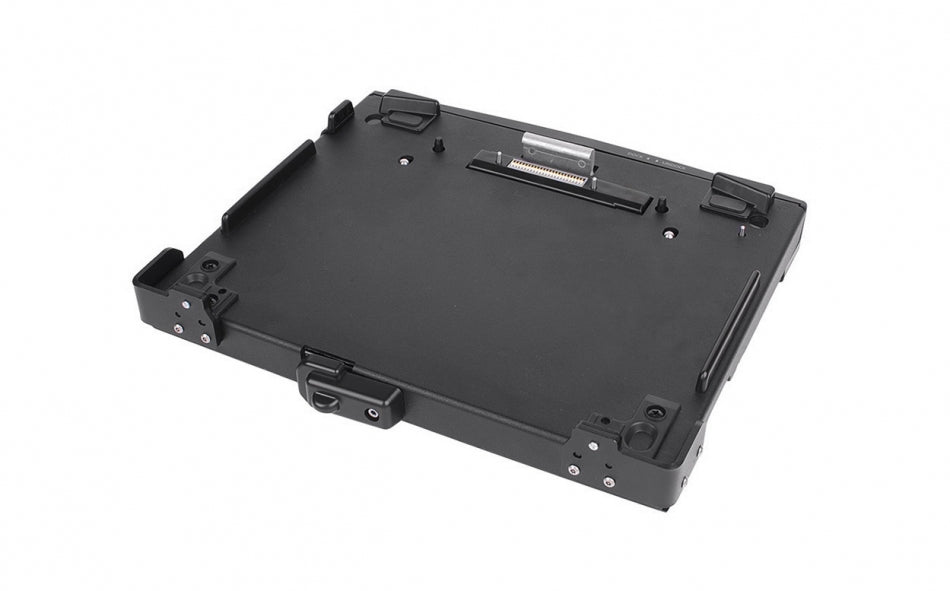

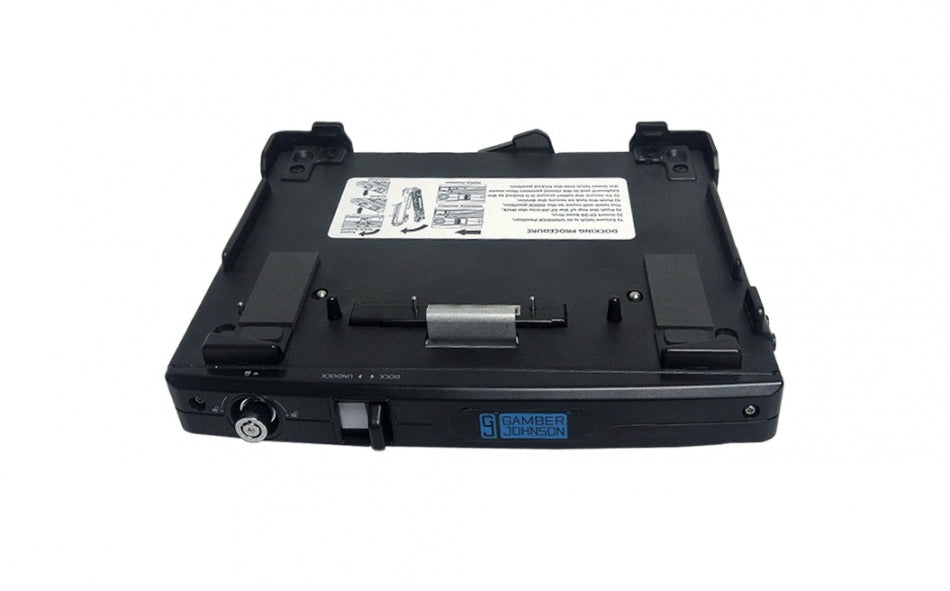

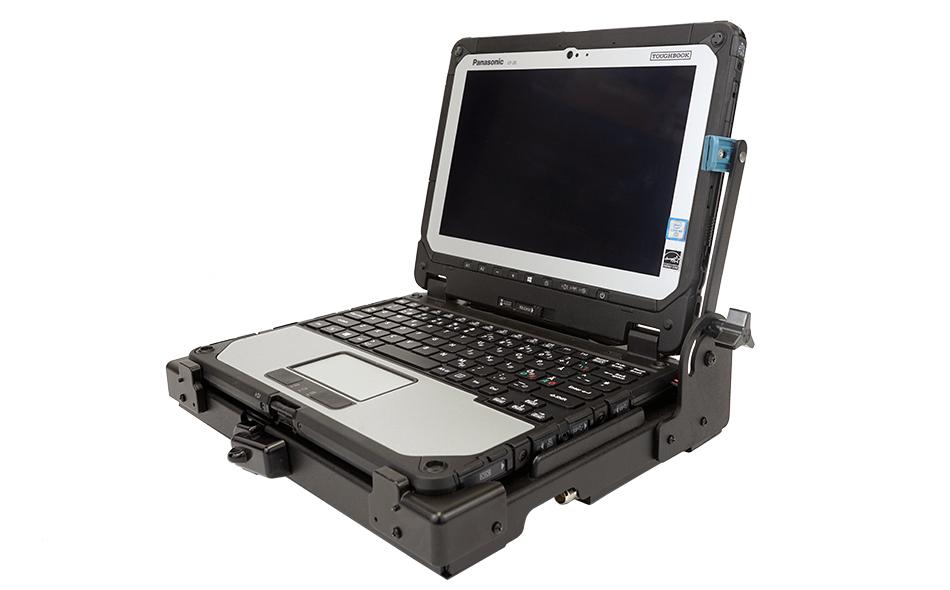

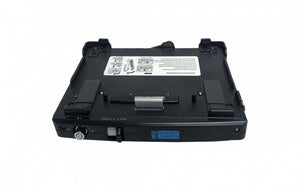

This Gamber-Johnson Laptop docking station is designed to work with the Panasonic Toughbook® 20 and G2 computers with an attachable keyboard. Position the computer in tablet or laptop mode and remove the computer to use outside your mobile office.  The docking station offers full port replication to support a mobile office environment and the keyed lock provides additional security to protect your investment.

ANTENNA PASS-THROUGH

  • None

PORT REPLICATION

  • None

COMPATIBILITY

  • Compatible with the Panasonic Toughbook 20 with attachable keyboard

DIMENSIONS

  • Height: 10.9 in / 27.69 cm
  • Width: 11.4 in / 28.96 cm
  • Depth: 3 in / 7.62 cm

POWER SUPPLY

  • Power adapter is not included, please use one of the following:
    • LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
    • LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
    • LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
    • LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
    • LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)

FEATURES

  • Compatible with the Toughbook 20 and G2 computers with an attachable keyboard
    Panasonic Certified electronics
    Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
    Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin

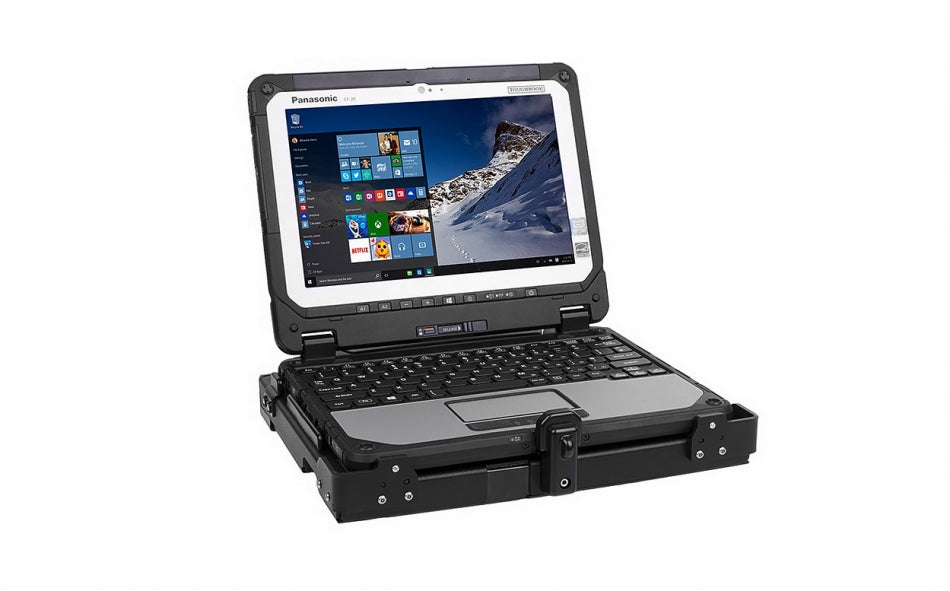

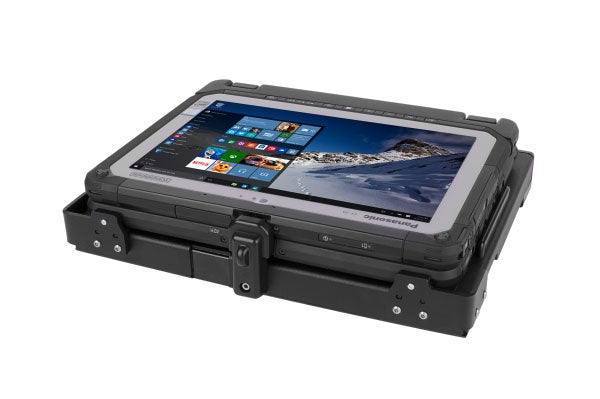

    Can be used in either laptop or tablet orientation.
    Composite/aluminum design for reduced weight and durability
    Designed with rounded edges to enhance personal safety
    Rear-facing I/O ports; integrated cable strain relief and cable management system
    Access to all notebook control buttons and ports while the notebook is docked

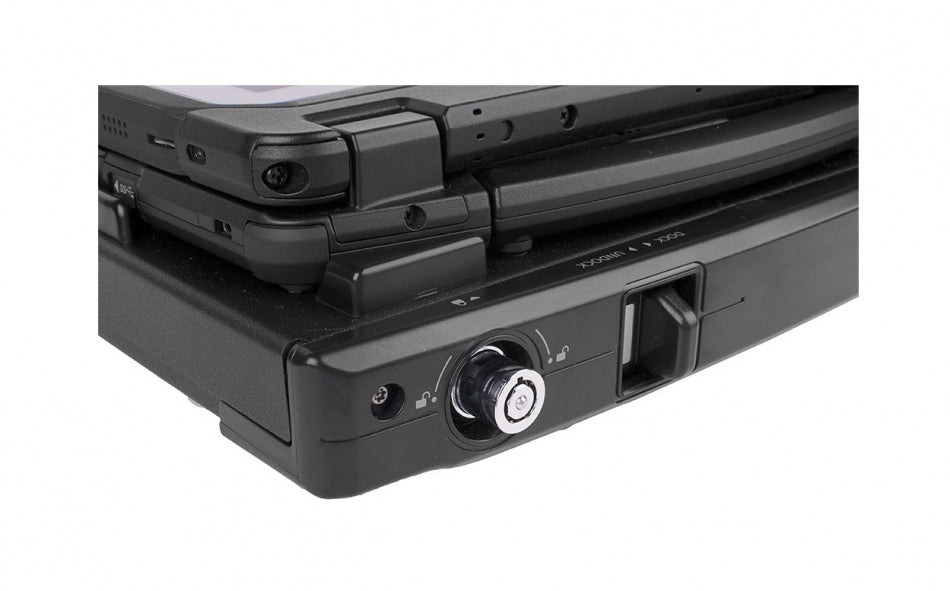

    Keyed lock for theft deterrence. NOTE: The lock secures the Toughbook 20 keyboard and tablet, but secures only the keyboard for the G2.
    VESA 75 mm mounting pattern
    3-year limited warranty

TESTING & CERTIFICATES

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

KIT INCLUDES

  • Panasonic Cradle
  • Mounting Hardware
  • Installation Instructions

WARRANTY

  • 3-Year Limited Warranty
