Gamber Johnson

$2,510.66
SKU: 7170-0681-02

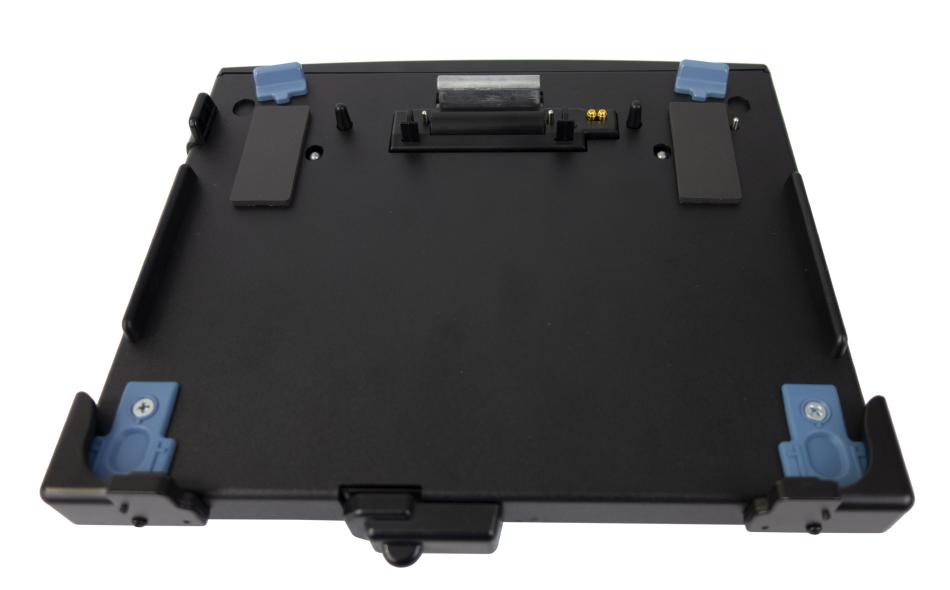

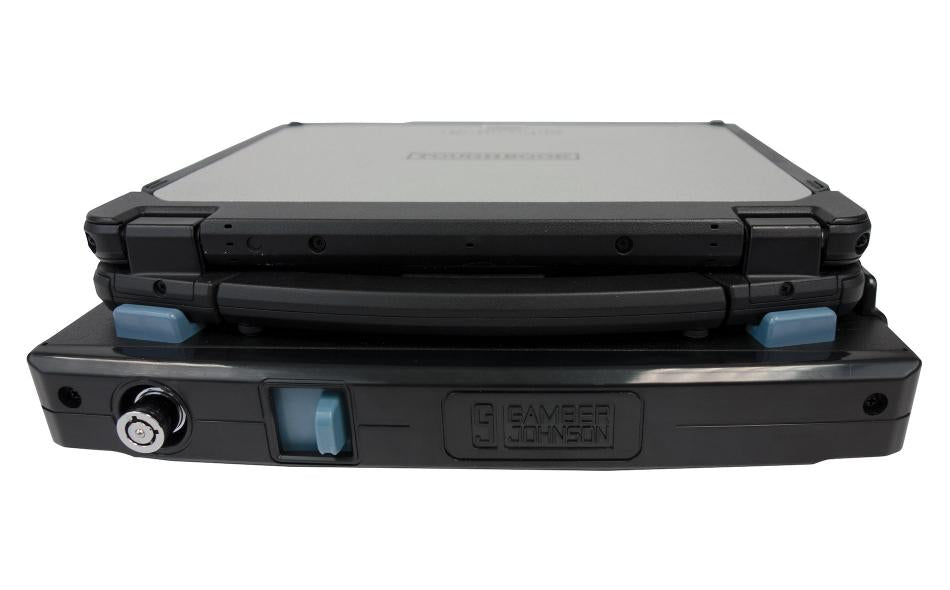

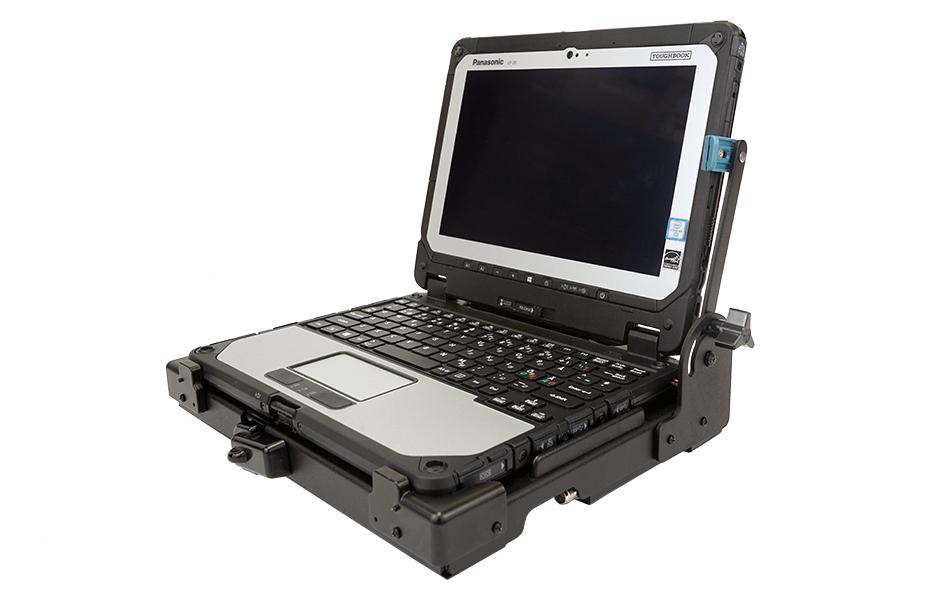

Designed for the Panasonic Toughbook® 20 with attachable keyboard; position the docking station in laptop or tablet mode. This docking station offers full port replication, dual antenna pass-through, and a keyed lock. This docking station also features double protection for the docking connector including protection around and in between each docking pin and an automatic docking connector cover which automatically retracts when the computer is docked. This kit includes a LIND 90W auto power adapter.

ANTENNA PASS-THROUGH

  • Dual RF (TNC)

COMPATIBILITY

  • Compatible with the Panasonic Toughbook 20 with an attachable keyboard

DOCKING STATION

  • Weight: 5 lbs / 2.27 kg
  • Height: 2.5 in / 6.35 cm
  • Width: 11.6 in / 29.46 cm
  • Depth: 12.1 in / 30.73 cm

POWER ADAPTER

  • Weight: 1.22 lbs / 0.55 kg
  • Height: 1 in / 2.54 cm
  • Width: 5 in / 12.7 cm
  • Depth: 3 in / 7.62 cm

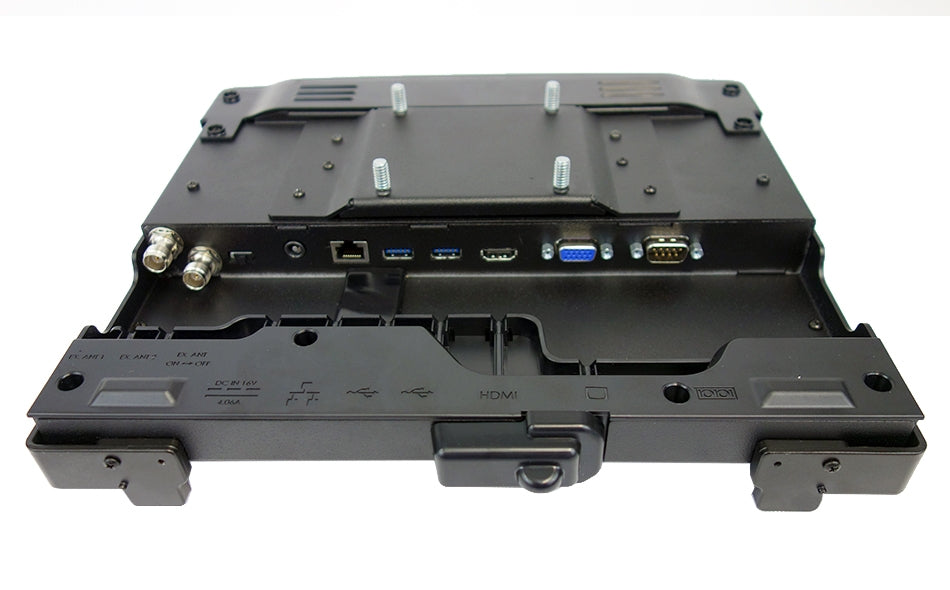

PORT REPLICATOR

  • Panasonic certified electronics
  • (2) USB 3.0 - 9 pin
  • (1) HDMI - 19 pin
  • (1) Serial - D-sub 9-pin
  • (1) Ethernet - RJ45
  • (1) VGA D-sub -15-pin
  • Antenna switch
  • Dual RF Pass-Through (optional) - TNC
  • Power supply input - DC 15.6V-16V

POWER SUPPLY

  • Includes LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)

FEATURES

  • Compatible with the Panasonic Toughbook 20 computer
  • Panasonic Toughbook Certified utilizing Panasonic Certified electronics
  • Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection

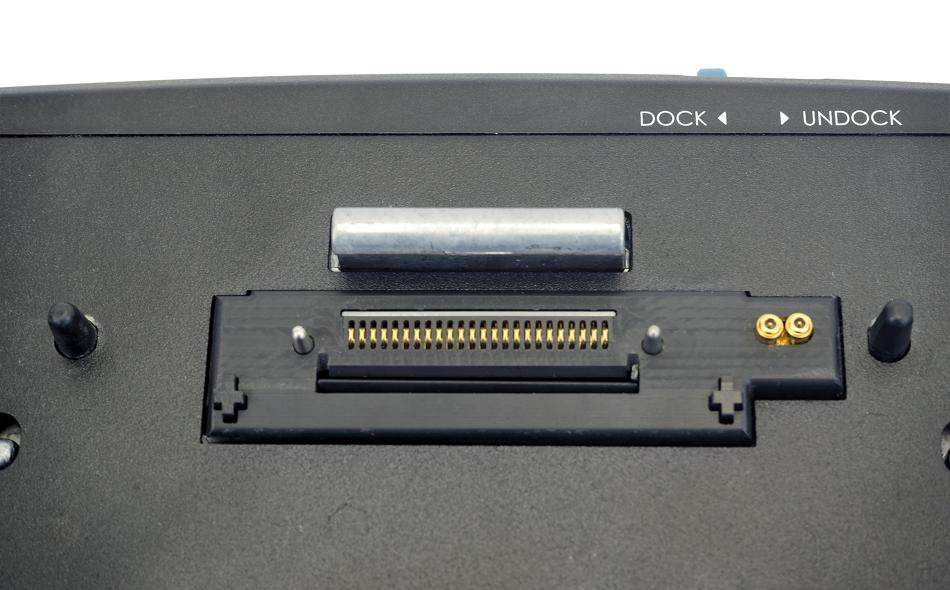

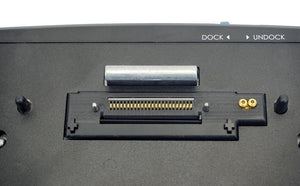

  • Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin

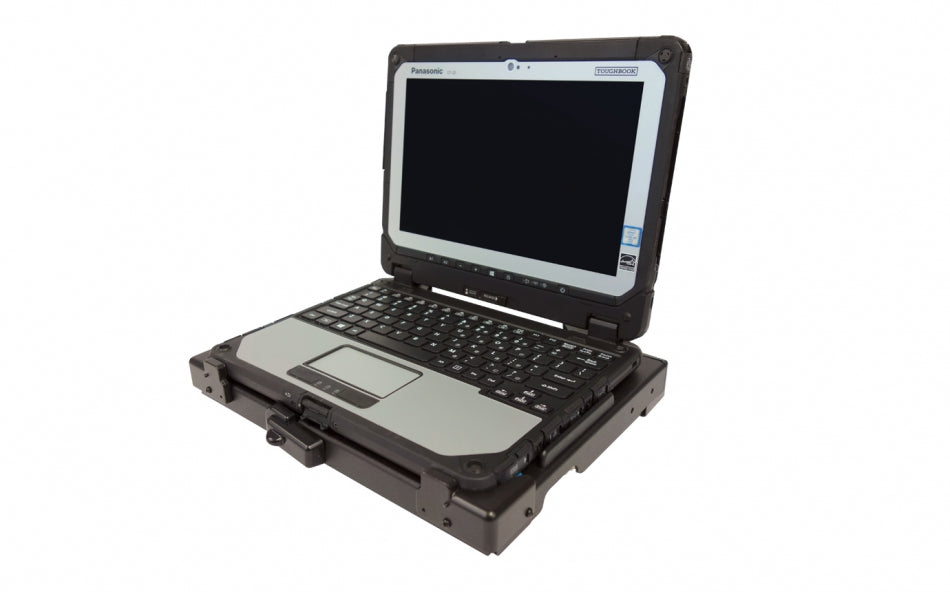

  • Can be used in either laptop or tablet orientation.
  • Composite/aluminum design for reduced weight and durability
  • Designed with rounded edges to enhance personal safety
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • Access to all notebook control buttons and ports while the notebook is docked
  • Floating docking connector for reliable connectivity in the most rugged environments

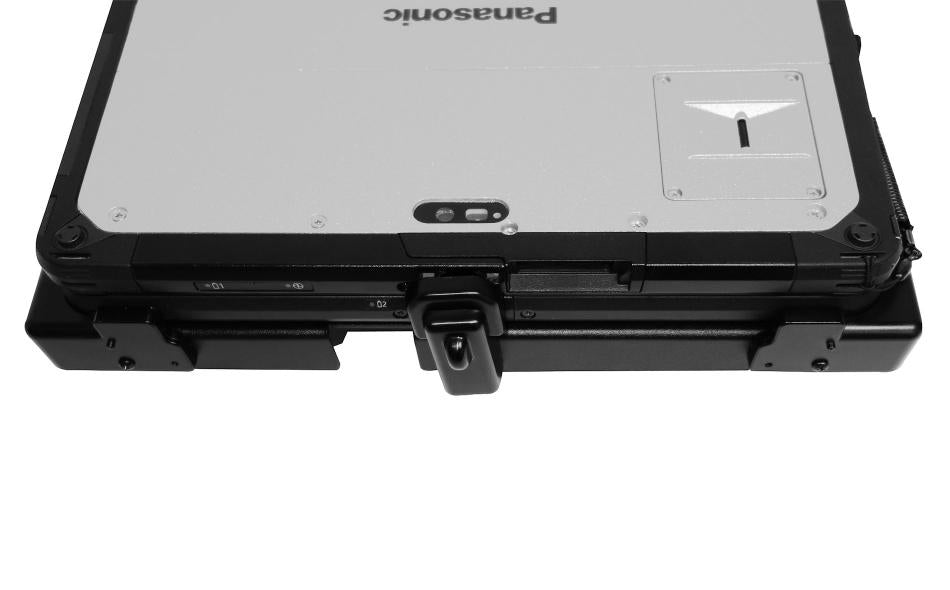

  • Keyed lock for theft deterrence
  • VESA 75 mm mounting pattern

TESTING & CERTIFICATES

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

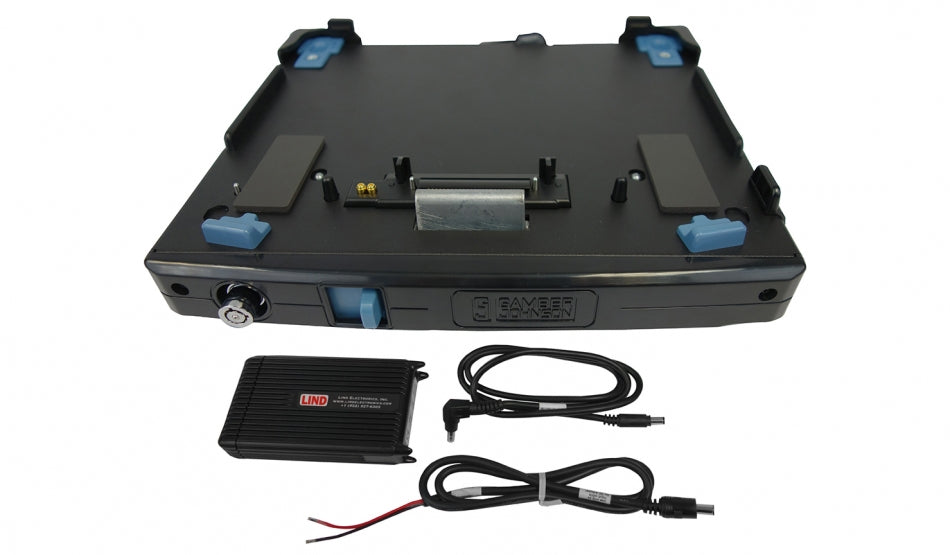

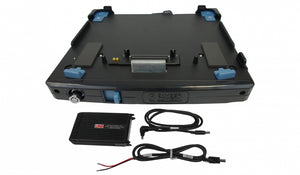

KIT INCLUDES

  • Panasonic Docking Station
  • Mounting Hardware
  • LIND 11-16V Auto Power Adapter
  • Installation Instructions

WARRANTY

  • 3-Year Limited Warranty
