Gamber Johnson

$2,097.50
SKU: 7160-1265-20

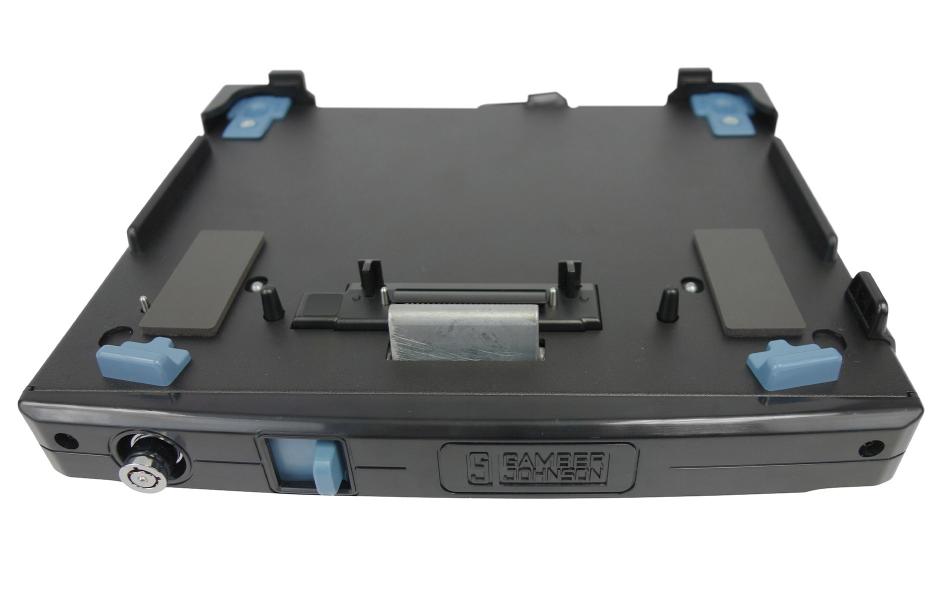

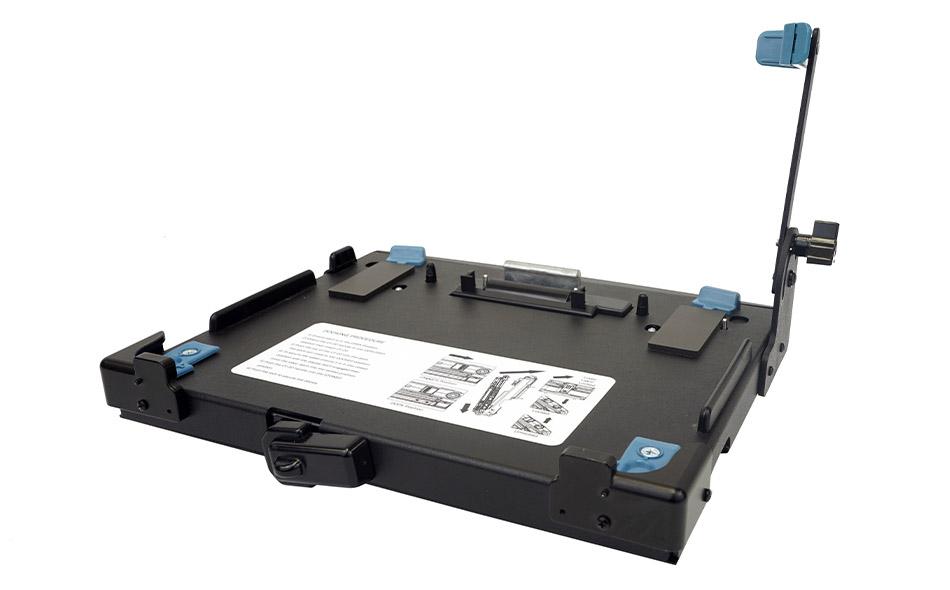

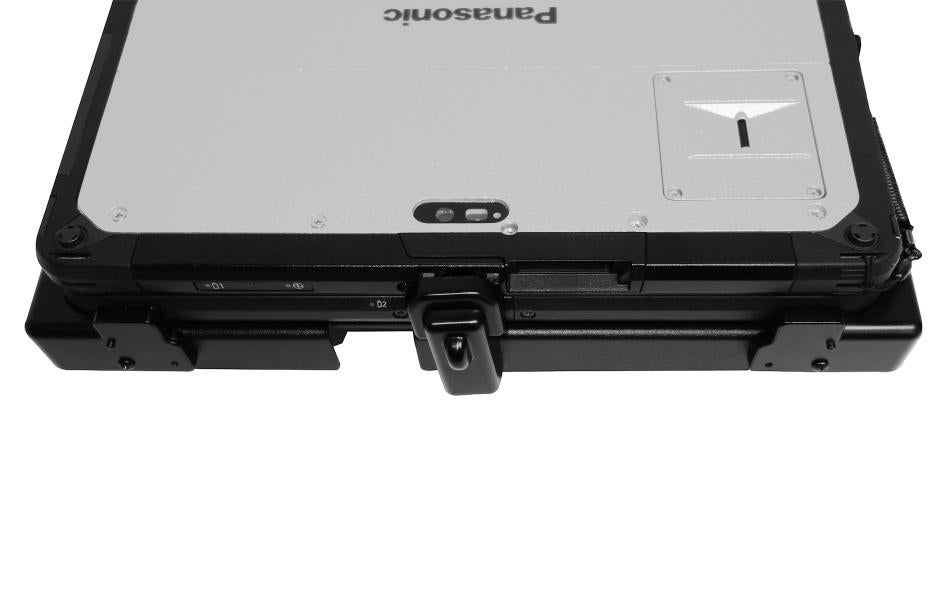

Designed for the Panasonic Toughbook® 20 with attachable keyboard; position the docking station in laptop or tablet mode. This docking station offers lite port replication, and a keyed lock. This docking station also features double protection for the docking connector including protection around and in between each docking pin and an automatic docking connector cover which automatically retracts when the computer is docked.

ANTENNA PASS-THROUGH

  • No RF

COMPATIBILITY

  • Compatible with the Panasonic Toughbook 20 with an attachable keyboard

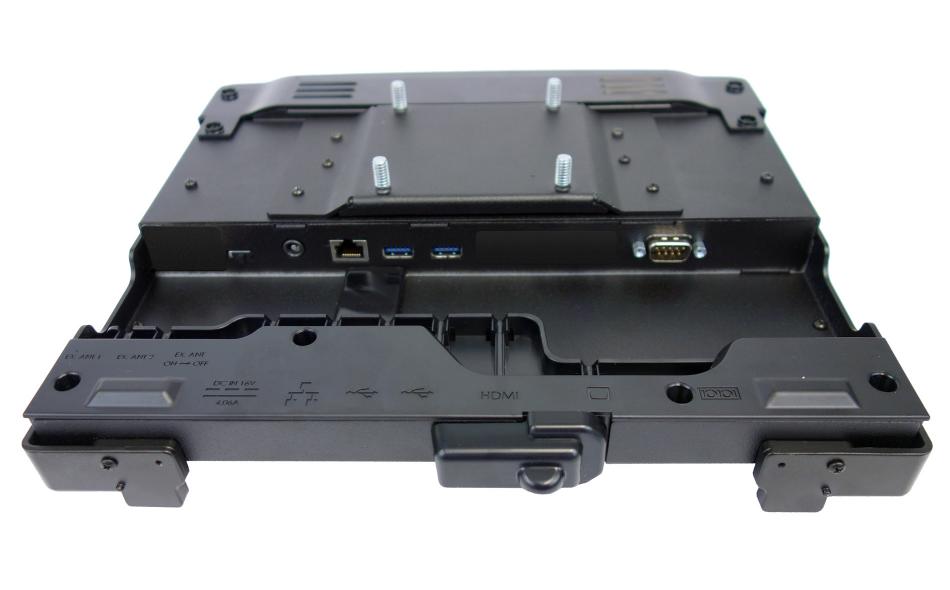

PORT REPLICATORS

  • Panasonic certified electronics
  • (2) USB 3.0 - 9 pin
  • (1) Serial - D-sub 9-pin
  • (1) Ethernet - RJ45
  • Antenna switch
  • Power supply input - DC 15.6V-16V

POWER SUPPLY

  • Power adapter is not included, please use one of the following:
    • LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
    • LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
    • LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
    • LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
    • LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)

FEATURES

  • Compatible with the Panasonic Toughbook 20 computer
  • Panasonic Toughbook Certified utilizing Panasonic Certified electronics

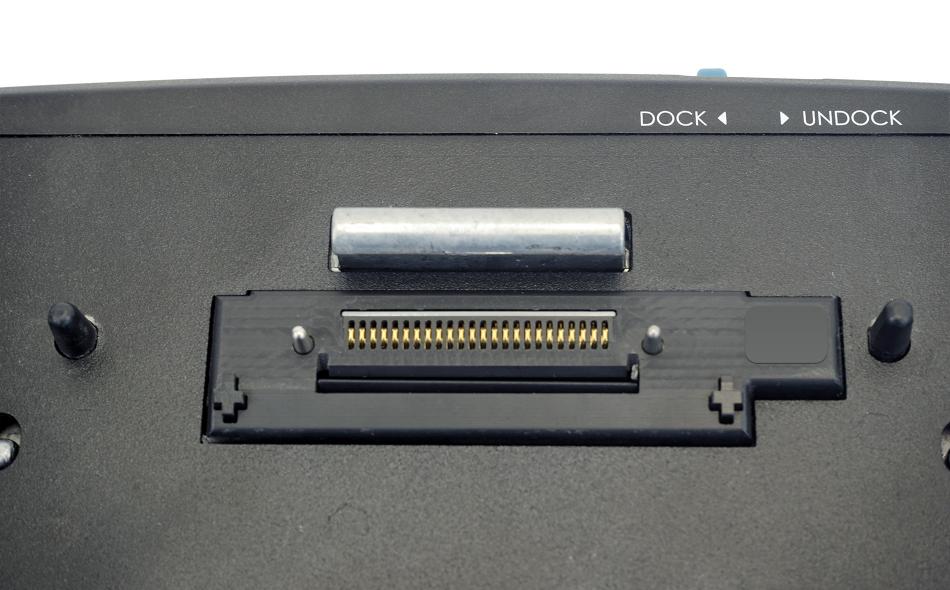

  • Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
  • Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin

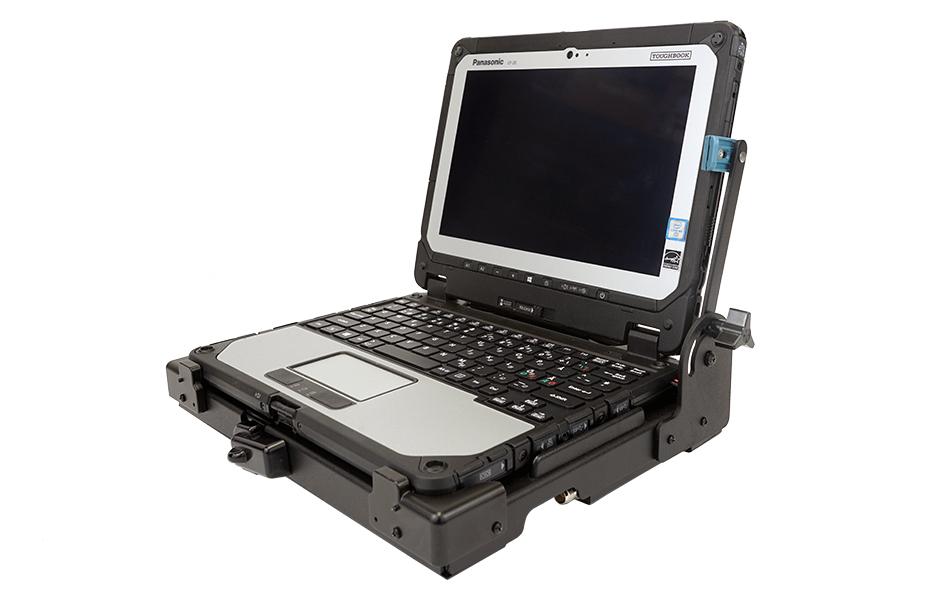

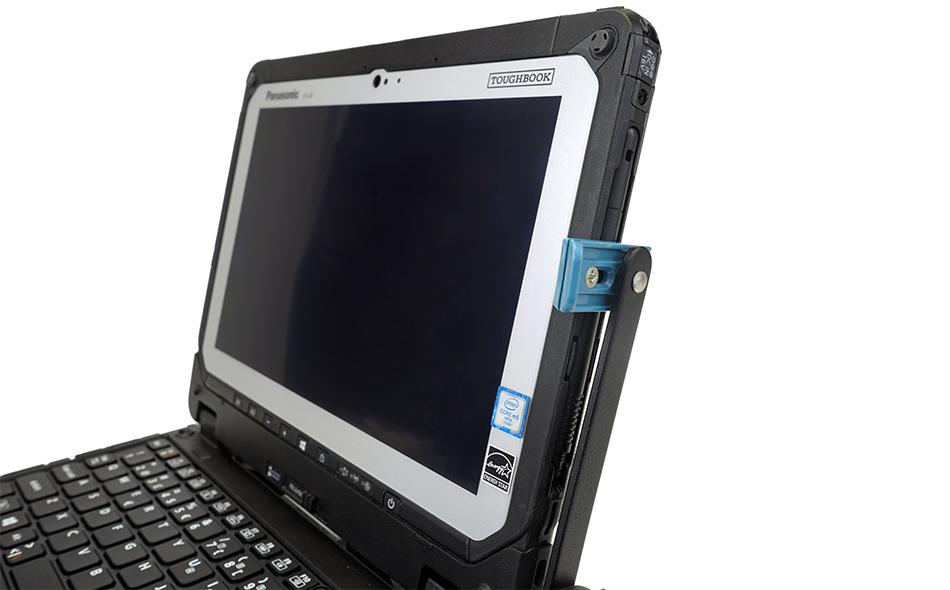

  • Can be used in either laptop or tablet orientation.
  • Composite/aluminum design for reduced weight and durability
  • Designed with rounded edges to enhance personal safety

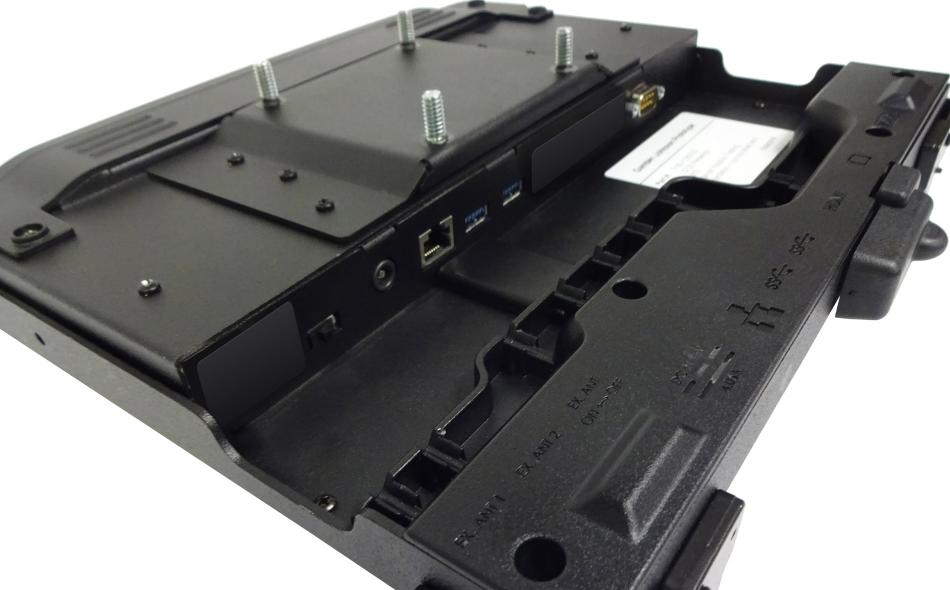

  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • Access to all notebook control buttons and ports while the notebook is docked
  • Floating docking connector for reliable connectivity in the most rugged environments

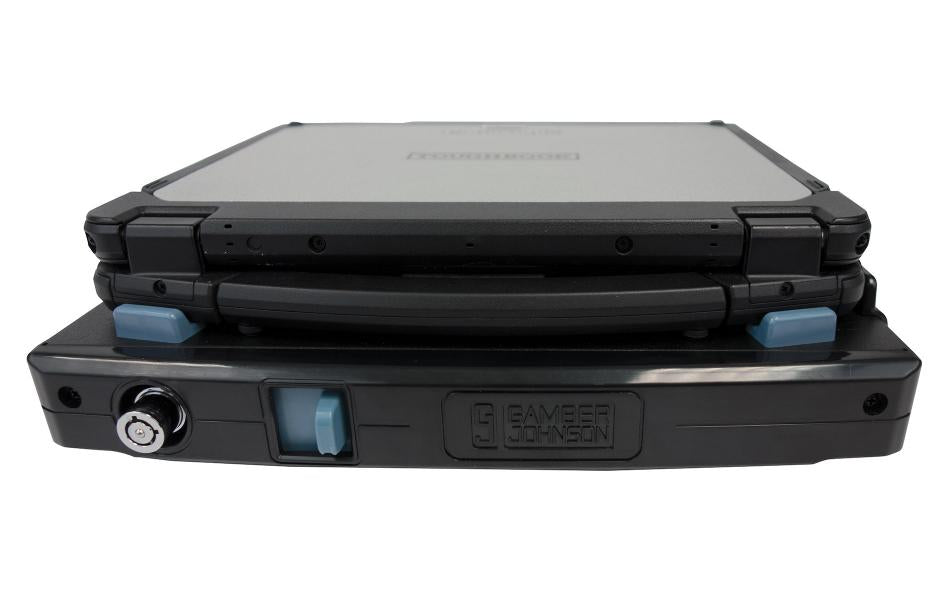

  • Keyed lock for theft deterrence
  • VESA 75 mm mounting pattern
  • Height: 2.5 in / 6.35 cm
  • Width: 11.6 in / 29.46 cm
  • Depth: 12.1 in / 30.73 cm

TESTING & CERTIFICATES

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

KIT INCLUDES

  • Panasonic Toughbook 20 Docking Station
  • Mounting Hardware
  • Installation Instructions

WARRANTY

  • 3-Year Limited Warranty on electronics
