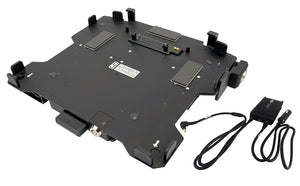

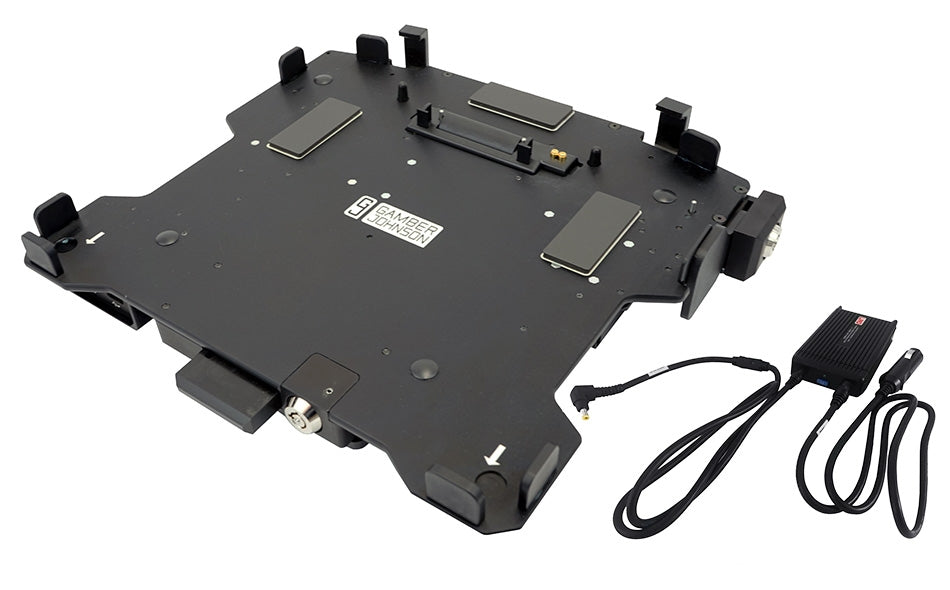

Panasonic Toughbook 33 TrimLine™ Laptop Docking Station DUAL RF with Screen Lock and LIND Auto Power Adapter

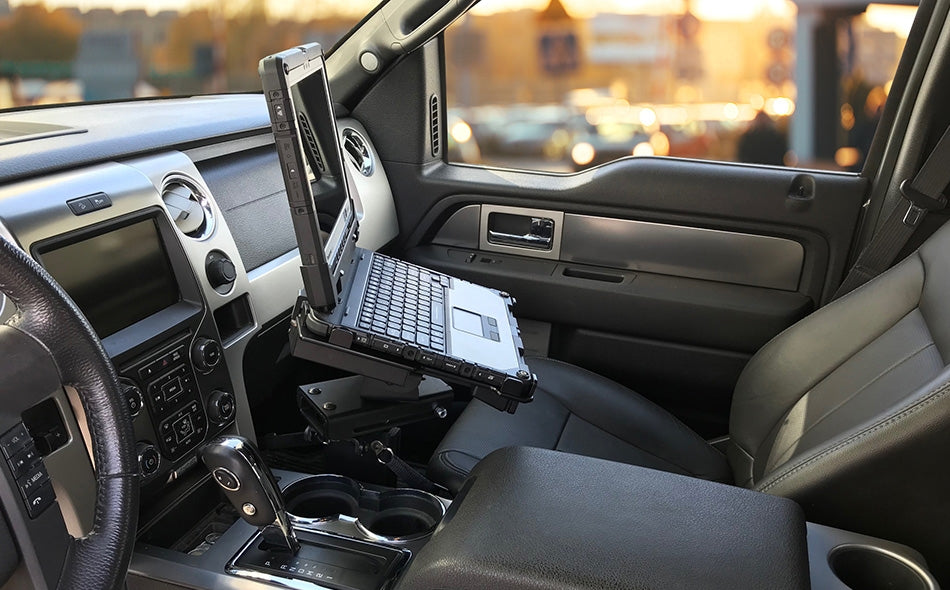

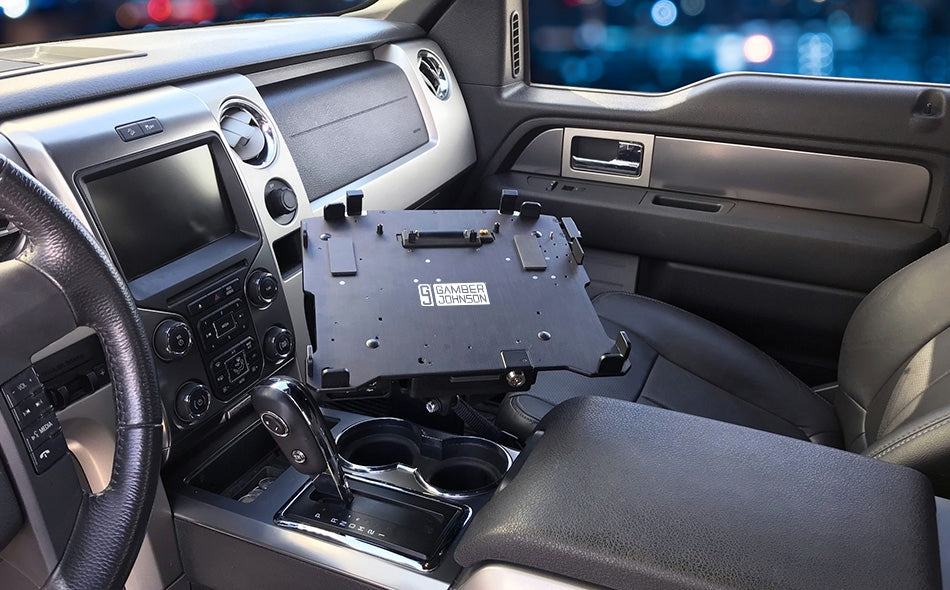

The TrimLine™ vehicle docking station for the Panasonic Toughbook 33 laptop provides full port replication and an ergonomic design built with user safety in mind. This docking station kit includes a Screen Lock and LIND auto power adapter.
ANTENNA PASS-THROUGH
- Dual RF
PORT REPLICATOR
- Serial
- HDMI
- VGA
- Ethernet (2)
- USB 3.0 (2) 900mA
- USB 2.0 Front-facing(20, Bottom-facing(2) 500mA
- Power Input 16Vdc
- External Antenna Switch
POWER SUPPLY INCLUDED
- Yes - LIND Auto Power Adapter
FEATURES
- Aluminum construction for strength and durability
- Docking station can be docked in both laptop and tablet orientation
- Shutter cover design on connector for protection from external elements
- Floating connector for reliable docking connection
- Integrated genuine Panasonic circut board
- Key lockable for added theft deterrence
- Optional tablet theft deterrence module for additional safety
- Ergonomic design for safety and single hand operation
- VESA 75 mounting pattern
- Minimal footprint for increased usable cabin space
- Height: 2.8 in / 7.11 cm
- Width: 12.7 in / 32.26 cm
- Depth: 12.3 in / 31.24 cm
KIT INCLUDES
- Toughbook 33 TrimLine™ Laptop Docking Station DUAL RF
- Screen Lock
- LIND auto power adapter
CERTIFICATES & TESTING
- This docking station is designed and tested to rugged environmental standards, it is Toughbook Certified, and has passed MIL-STD- 810G shock/vibration, RoHS, FCC, and CE testing
WARRANTY
- Limited Lifetime Warranty on structural components
- 3-Year Limited Warranty on electronics
