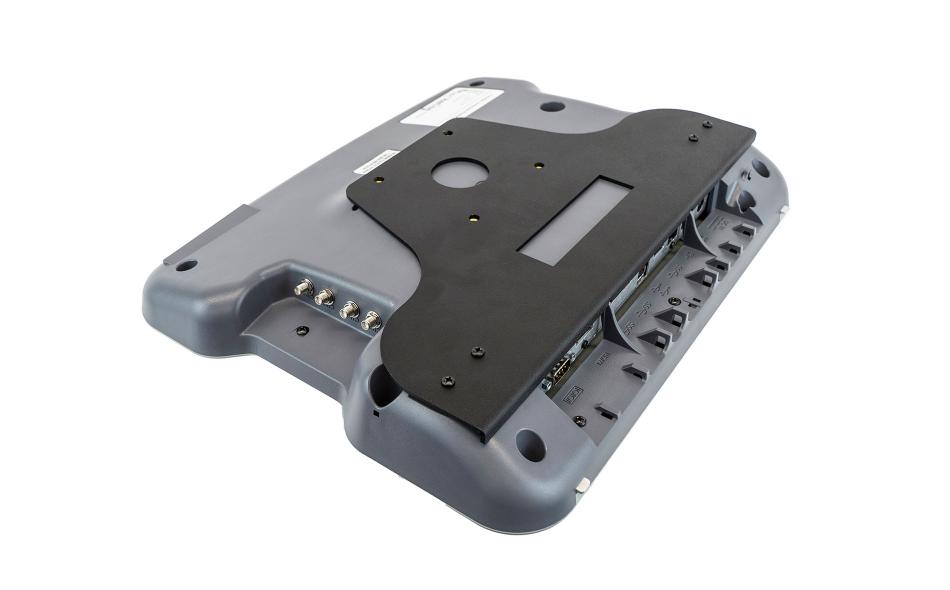

Panasonic Toughbook 40 Docking Station, Full Port, Quad RF
This docking station is designed for reliable compatibility with the Panasonic Toughbook 40 rugged computer. This docking station features Quad RF antenna pass-through and full port replication, including: Ethernet, Serial, HDMI, USB-A, USB-C, and USB-C with DisplayPort.
ANTENNA PASS-THROUGH
- Quad RF (SMA)
PORT REPLICATOR
- Panasonic Certified Electronics
- (2) Ethernet, RJ45
- (1) Serial, 9-pin
- (1) HDMI, 19 pin
- (2) USB-C 10Gbps (Max 1.5A@5V) with DisplayPort Alternate Mode*
- (1) USB-C 0.5Gbps (500mA) front facing
- (1) USB-A 10Gbps (900mA)
- (2) USB-A 0.5Gbps (500mA)
- Power input (15V)
- *The two USB Type-C ports support DisplayPort Alternate Mode. (When the two ports are connected, only one port can be used for display output. The port closer to the HDMI port takes priority).
POWER ADAPTER OPTIONS
FEATURES
- Uses Panasonic Toughbook Certified electronics for reliable connectivity
- Access to all computer control buttons and most ports while docked
- Rear-facing I/O ports; integrated cable strain relief and cable management system
- LED indicator light reflects docking connection to ensure proper docking
- Shutter cover for extra docking connector protection
- Designed to the footprint of the computer to preserve cabin space
- Right-facing docking/release latch for easy docking and undocking
- Keyed lock for theft deterrence
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
- VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
- Height: 2.8 in / 7.11 cm
- Width: 14.65 in / 37.21 cm
- Depth: 12.31 in / 31.27 cm
CERTIFICATES & TESTING
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE
- SAE J1455 Shock Crash Hazard Test
KIT INCLUDES
- Panasonic Toughbook 40 Docking Station, Full Port, Quad RF (7160-1728-02)
- Mounting Hardware
- Installation Instructions
WARRANTY
- 3-Year Limited Warranty
