Gamber Johnson

$2,017.75
SKU: 7160-1728-06

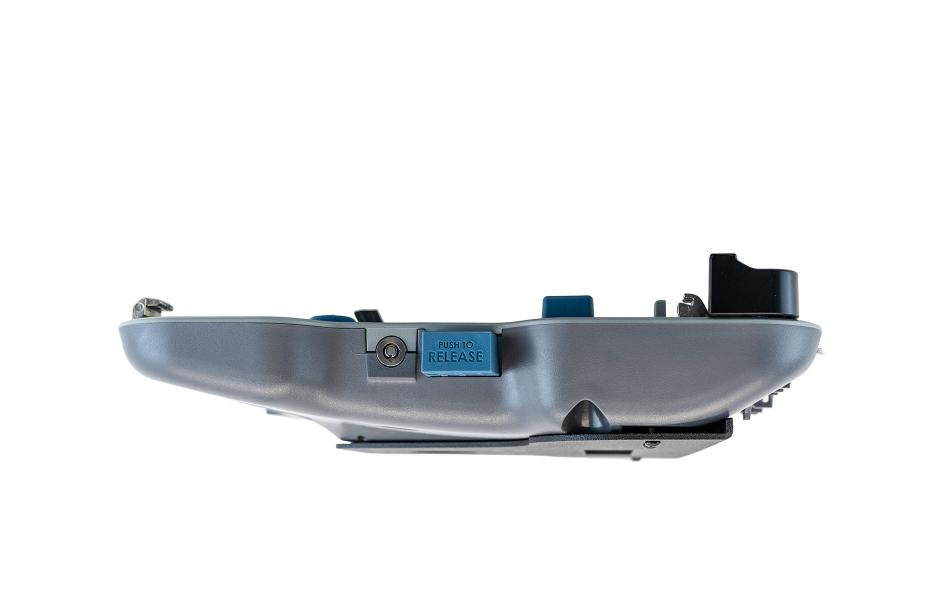

This docking station is designed for reliable compatibility with the Panasonic Toughbook 40 rugged computer. This docking station features lite port replication including: Ethernet, Serial, USB-A, and USB-C.

ANTENNA PASS-THROUGH

  • None

PORT REPLICATOR

  • Panasonic Certified Electronics
  • (2) Ethernet, RJ45
  • (1) Serial, 9-pin
  • (2) USB-C 3.2   (Max 1.5A@5V)
  • (1) USB-C 2.0   (500mA) front facing
  • (1) USB-A 3.2   (900mA) - 9 pin
  • (2) USB-A 2.0   (500mA) - 4 pin
  • Power input (15V)

POWER ADAPTER OPTIONS

  • Power adapter is not included, please use one of the following:
    • LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
    • LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
    • LIND 11-16VDC Auto Power Adapter with cigarette lighter connector (7300-0462)

FEATURES

  • Uses Panasonic Toughbook Certified electronics for reliable connectivity
  • Access to all computer control buttons and most ports while docked
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • LED indicator light reflects docking connection to ensure proper docking
  • Shutter cover for extra docking connector protection
  • Designed to the footprint of the computer to preserve cabin space
  • Right-facing docking/release latch for easy docking and undocking
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
  • Height: 2.8 in / 7.11 cm
  • Width: 14.65 in / 37.21 cm
  • Depth: 12.31 in / 31.27 cm

CERTIFICATES & TESTING

  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE
  • SAE J1455 Shock Crash Hazard Test

KIT INCLUDES

  • Panasonic Toughbook 40 Docking Station, Lite Port, No RF (7160-1728-06)
  • Mounting Hardware
  • Installation Instructions

WARRANTY

  • 3-Year Limited Warranty
