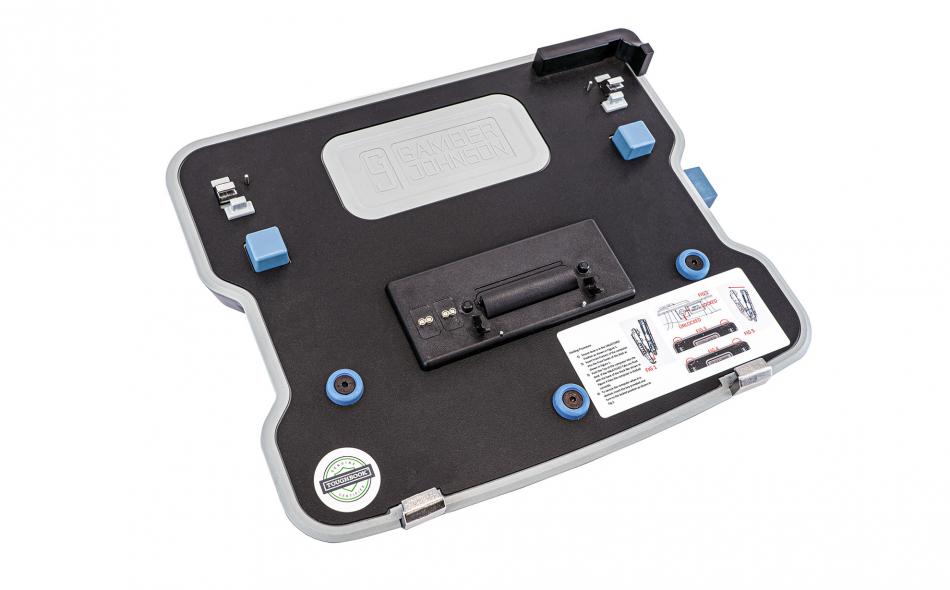

Panasonic Toughbook 40 Docking Station with LIND 120W Auto Bare Wire Leads Power Adapter, Lite Port, Quad RF

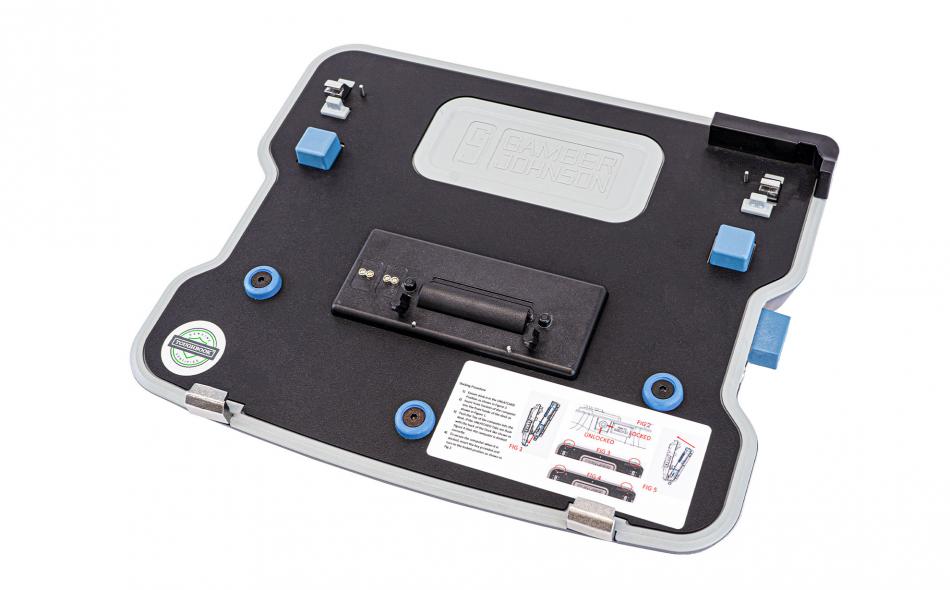

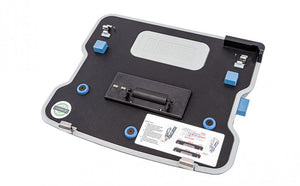

This docking station is designed for reliable compatibility with the Panasonic Toughbook 40 rugged computer. This docking station features Quad RF antenna pass-through and lite port replication including: Ethernet, Serial, USB-A, and USB-C. Gamber-Johnson Toughbook 40 docking station kit includes Panasonic Toughbook 40 docking station with Quad RF (7170-0944-07) and Lind external power adapter (7300-0461).
ANTENNA PASS-THROUGH
- Quad RF (SMA)

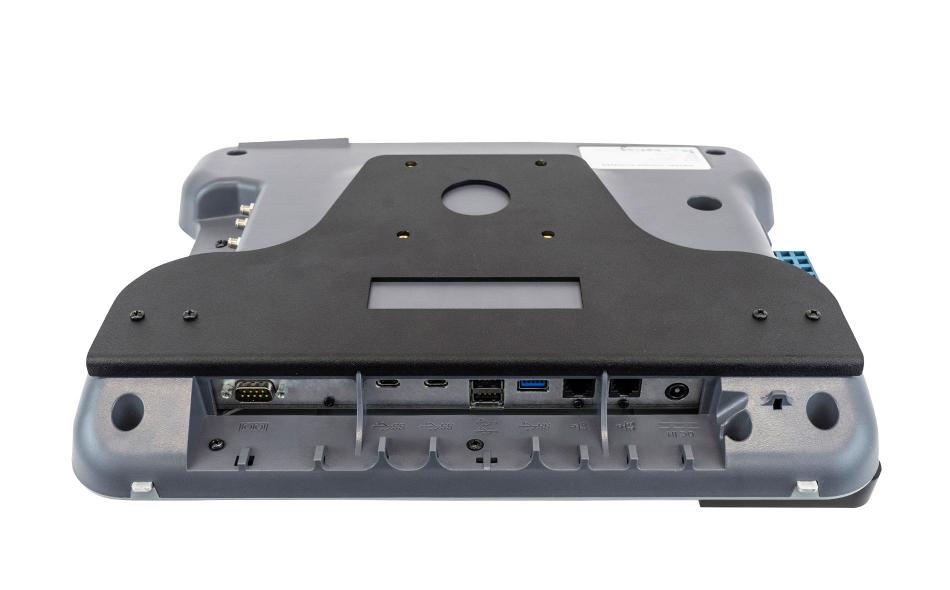

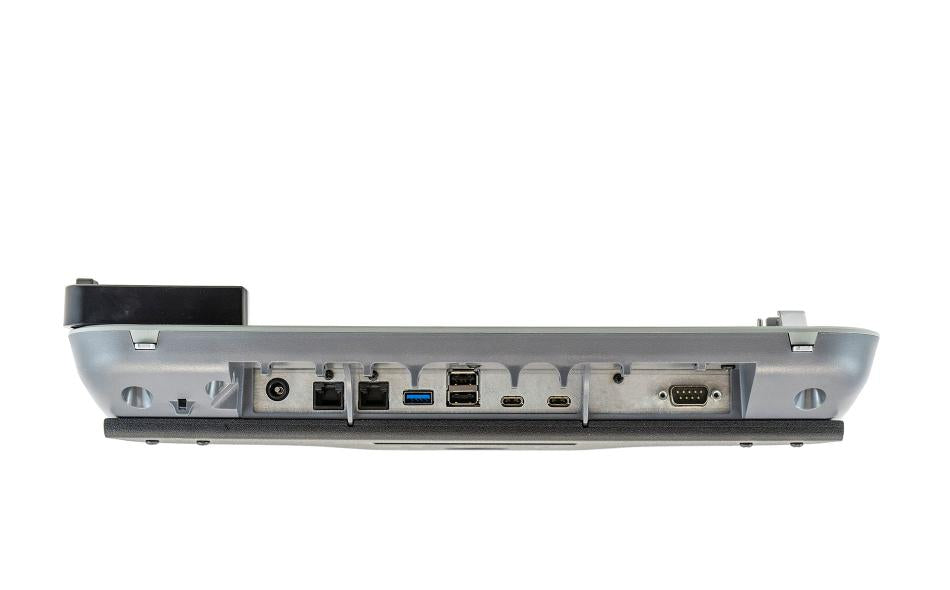

PORT REPLICATOR
- Panasonic Certified Electronics
- (2) Ethernet, RJ45
- (1) Serial, 9-pin
- (2) USB-C 3.2 (Max 1.5A@5V)
- (1) USB-C 2.0 (500mA) front facing
- (1) USB-A 3.2 (900mA) - 9 pin
- (2) USB-A 2.0 (500mA) - 4 pin
- Power input (15V)
POWER ADAPTER
- Yes, includes an external Lind 120W auto bare wire leads power adapter (7300-0461)
FEATURES
- Uses Panasonic Toughbook Certified electronics for reliable connectivity
- Access to all computer control buttons and most ports while docked

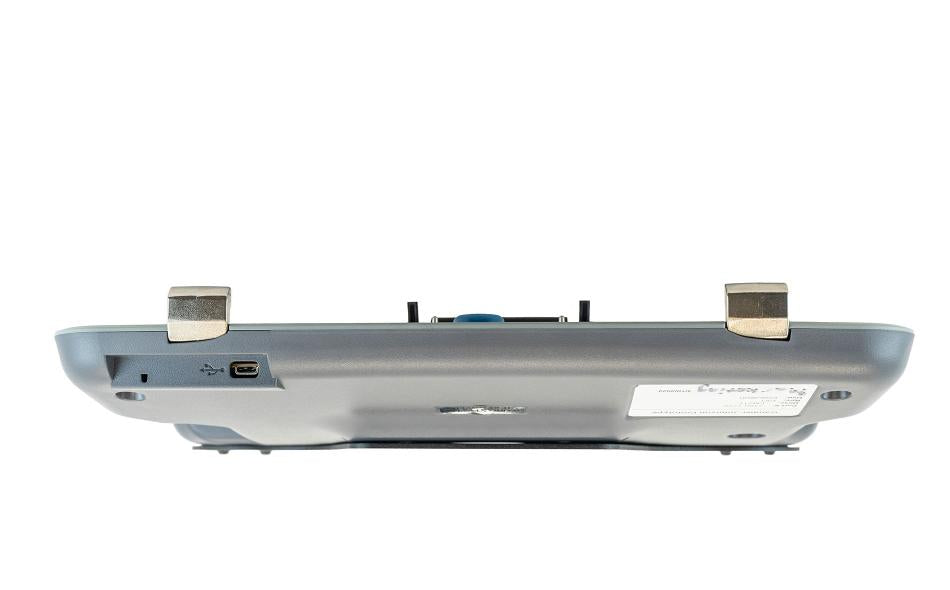

- Rear-facing I/O ports; integrated cable strain relief and cable management system
- LED indicator light reflects docking connection to ensure proper docking
- Shutter cover for extra docking connector protection
- Designed to the footprint of the computer to preserve cabin space

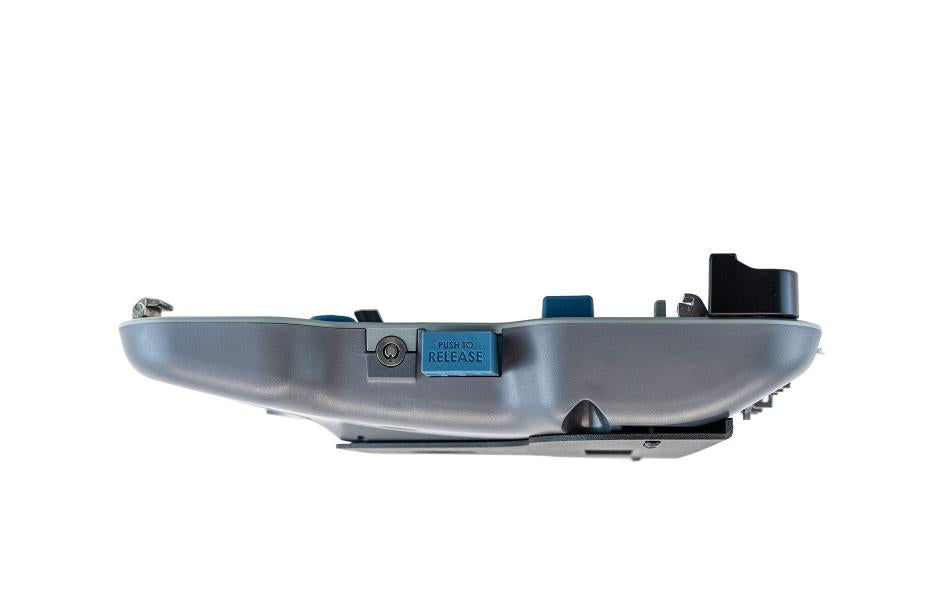

- Right-facing docking/release latch for easy docking and undocking
- Keyed lock for theft deterrence
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability

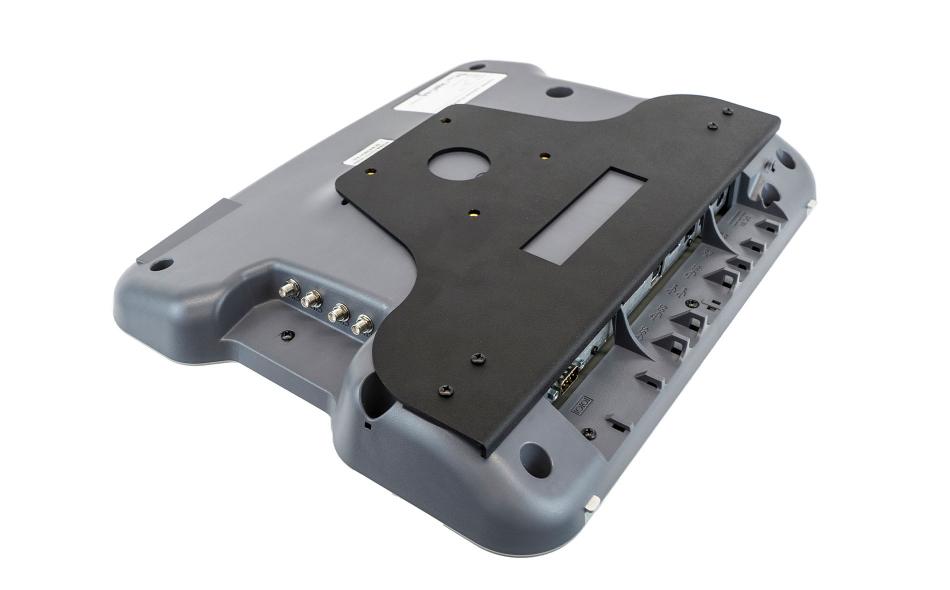

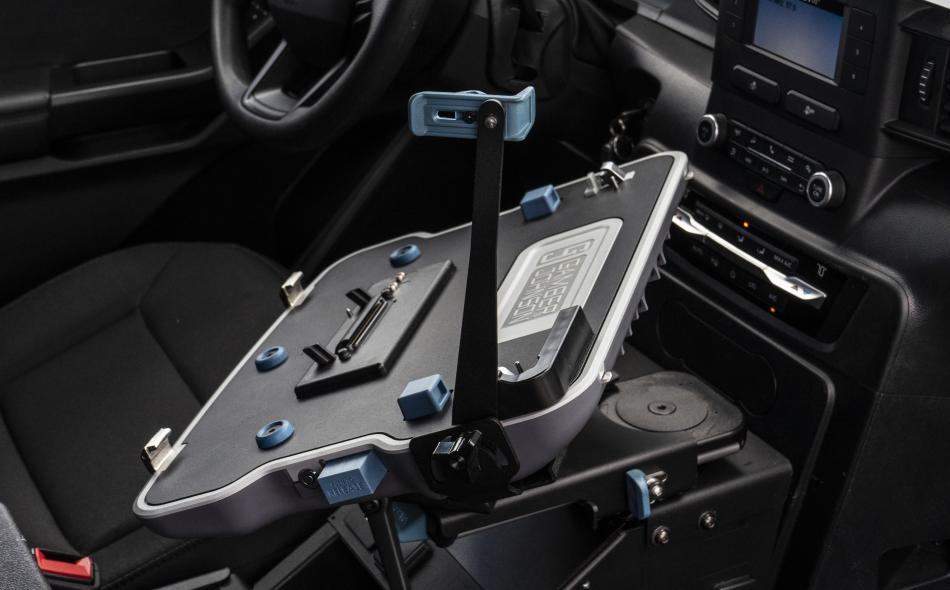

- VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
- Height: 2.8 in / 7.11 cm
- Width: 14.65 in / 37.21 cm
- Depth: 12.31 in / 31.27 cm
CERTIFICATES & TESTING
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
- Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
- RoHS, FCC, CE
- SAE J1455 Shock Crash Hazard Test

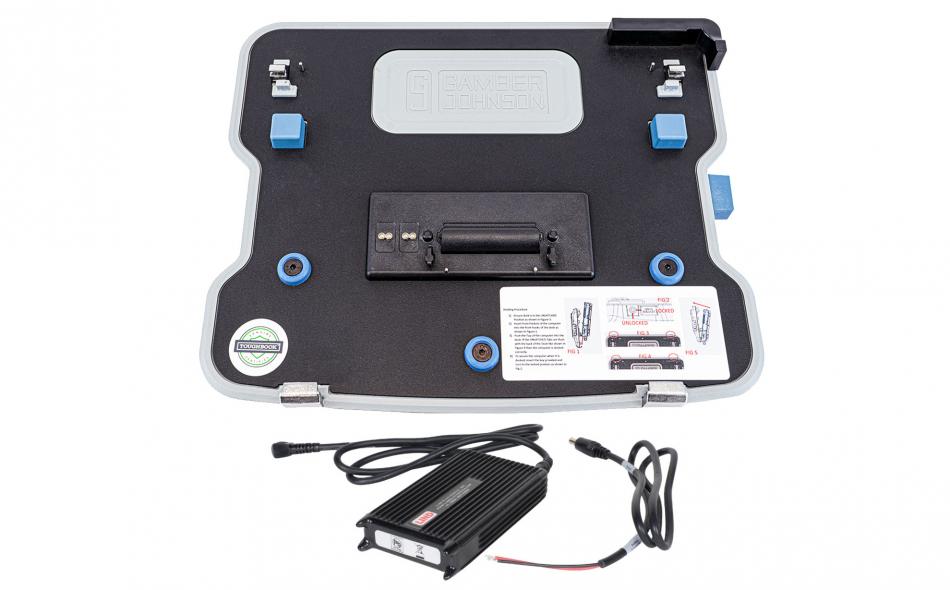

KIT INCLUDES
- Panasonic Toughbook 40 Docking Station, Lite Port, Quad RF (7160-1728-07)
- Lind 120W Automobile Bare Wire Leads Power Adapter for Panasonic (7300-0461)
- Mounting Hardware
- Installation Instructions
WARRANTY
- 3-Year Limited Warranty
