Gamber Johnson

$3,652.74
SKU: 7300-0605-12

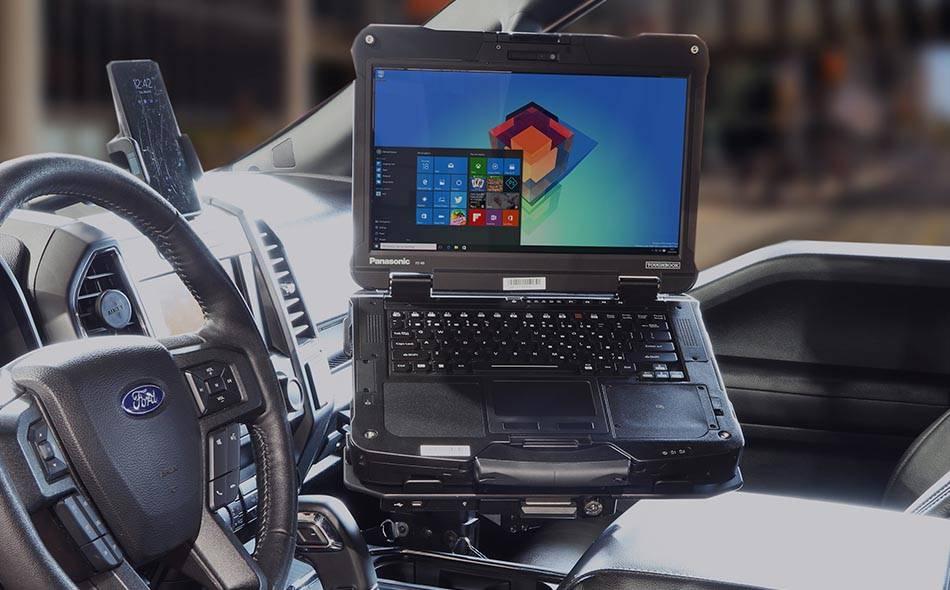

Docking station for Panasonic Toughbook® 40 laptop, comes with 'Full' port replication using genuine Panasonic electronics, includes a key lock for increased security and aluminum construction provides rugged durability. This is the 'full' port replication, quad RF pass-through version. No RF pass-through and 'Lite' port replication versions also available. Power adapter included.

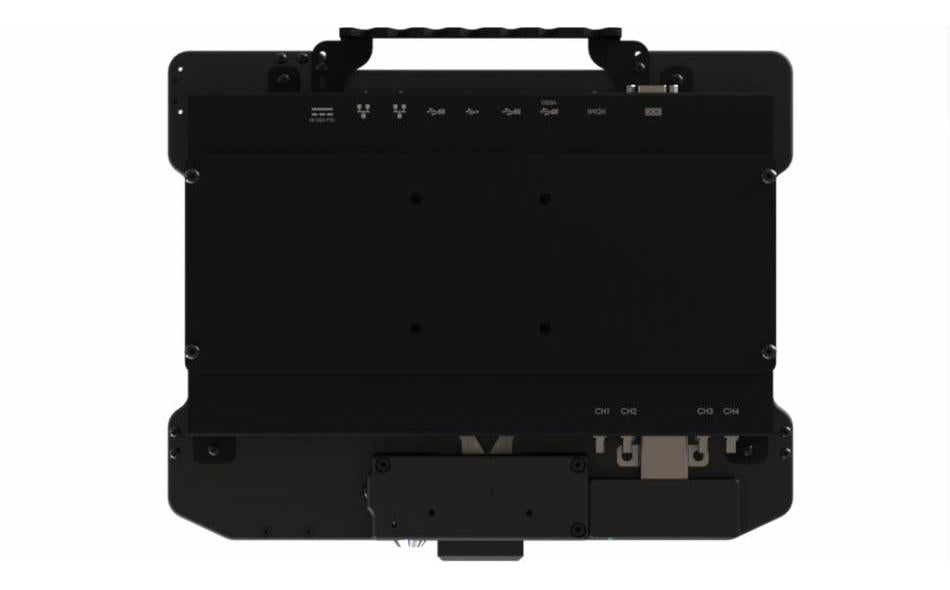

ANTENNA PASS-THROUGH

  • Quad RF (SMA)

COMPATIBILITY

  • Panasonic Toughbook 40 laptop

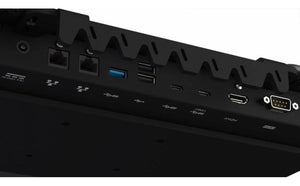

PORT REPLICATOR

  • Panasonic Certified Electronics
  • (2) Ethernet, RJ45
  • (1) Serial, 9-pin
  • (1) HDMI,  19 pin
  • (2) USB-C 10Gbps   (Max 1.5A@5V) with DisplayPort Alternate Mode*
  • (1) USB-C 0.5Gbps  (500mA) front facing
  • (1) USB-A 10Gbps   (900mA)
  •  (2) USB-A 0.5Gbps  (500mA)
  • Power input (15V)
  • *The two USB Type-C ports support DisplayPort Alternate Mode. When the two ports are connected, only one port can be used for display output. The port closer to the HDMI port takes priority.

POWER SUPPLY

  • Yes - Power adapter included

FEATURES

  • CNC Aluminum construction for rugged reliability
  • Space saving and ergonomic design improves ergonomics and safety

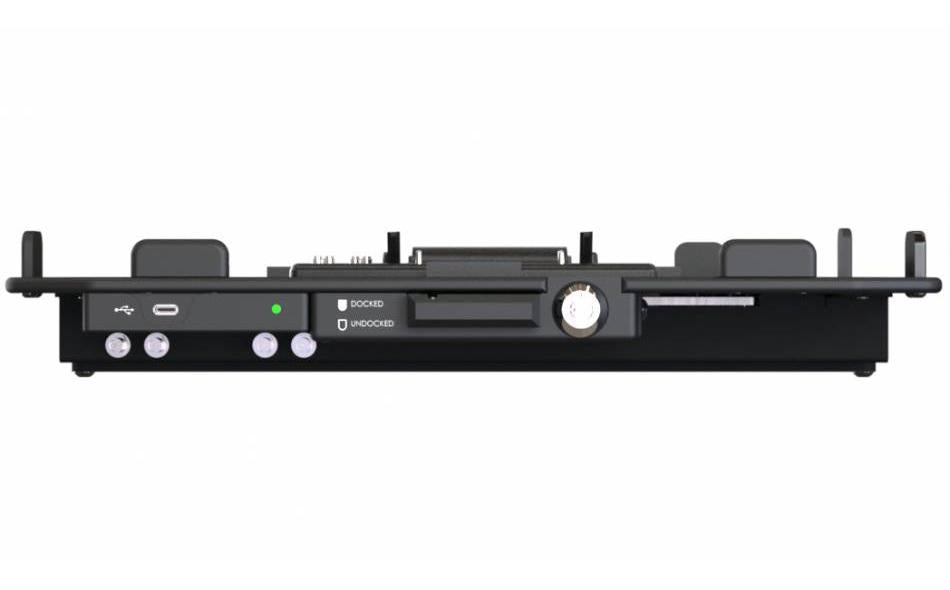

  • Captured key lock with auto-latching mechanism ensures user safety, protection and device security
  • Auto-retracting connector cover to reduce connector damage
  • Integrated genuine Panasonic PCB and connector for trouble free service
  • Rear facing ports with integrated cable tie rail

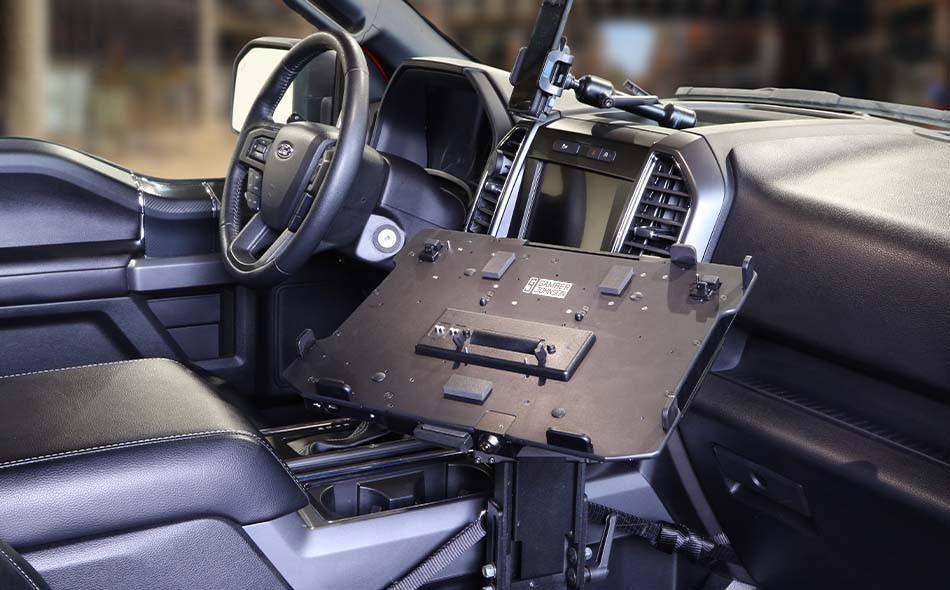

  • Universal mounting interface including VESA 75 for optimum compatibility with new and existing infrastructure
  • Height: 2.31 in / 5.87 cm
  • Width: 14.6 in / 37.08 cm
  • Depth: 12.74 in / 32.36 cm

CERTIFICATES & TESTING

  • Panasonic Toughbook Certified - Pending
  • MIL-STD 810G; SAE J1455 tested and certified

KIT INCLUDES

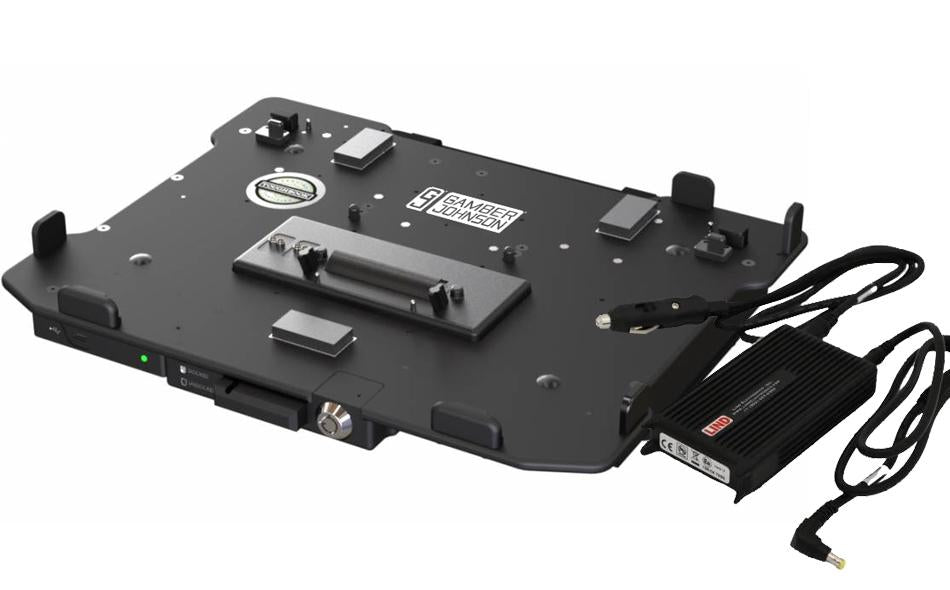

  • Panasonic Toughbook 40 Trimline Docking Station, Quad RF
  • Lind 120W Automobile Bare Wire Leads Power Adapter for Panasonic
  • Mounting Hardware
  • Installation Instructions

WARRANTY

  • Limited Lifetime Warranty
  • Extended warranty available - see Gamber Guard
