Gamber Johnson

$2,306.07
SKU: 7170-0251

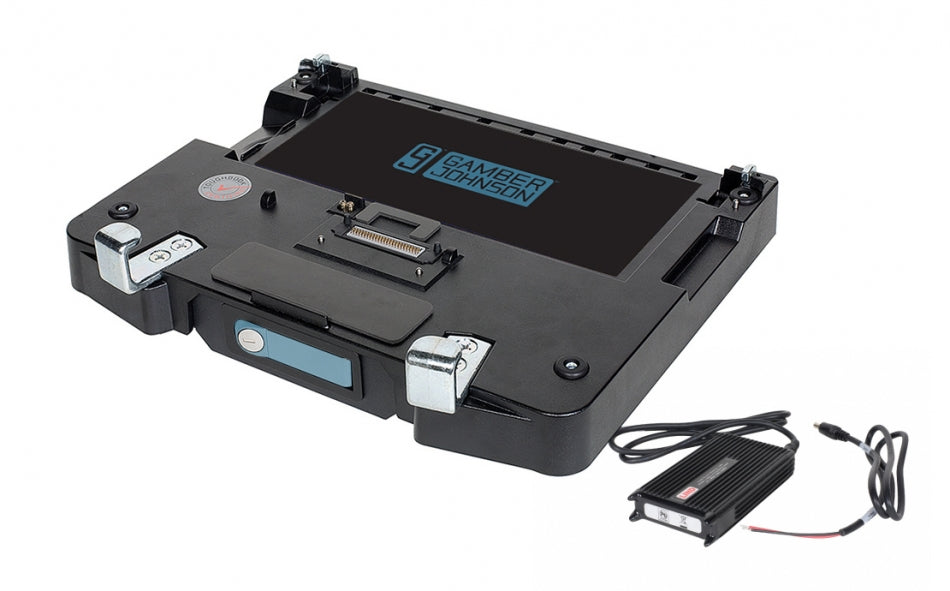

Gamber-Johnson Toughbook 54 Docking Station Kit - Includes Panasonic Toughbook 54 Docking Station with Dual RF (Item No. 7160-0577-02) and Lind external power supply (Item No. 7300-0461).

ANTENNA PASS-THROUGH

  • Dual RF (TNC)

DIMENSIONS

  • Height: 3.50 in / 8.9 cm
  • Width: 13.48 in / 34.2 cm
  • Depth: 11.85 in / 31.0 cm

PORT REPLICATORS

  • Ethernet RJ45
  • Fully Powered USB 3.0 (2) - 9 pin
  • VGA D-sub 15 pin
  • HDMI 19 pin
  • Serial D-sub 9 pin
  • Antenna Pass-Through (2) - TNC
  • Input Voltage 15.6 V DC
  • RF Switch

POWER SUPPLY INCLUDED

  • Yes, includes Lind 120W Automobile Bare Wire Leads Power Adapter (Item No. 7300-0461)

FEATURES

  • Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
  • Small footprint - designed to maximize available space inside of vehicle
  • Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as Toughbook Certified
  • Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system
  • Spring-loaded docking connector to ensure connectivity in the roughest terrain
  • Front safety bracket and rear corners ensure proper alignment and docking connectivity
  • Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
  • This docking station accommodates the optional modular expansion area on the Toughbook 54/55 computer
  • Special access area for smart card reader makes it easy to insert and eject card
  • Push button latch with keyed lock for theft deterrence:
    • Push the latch to release the docking connector
    • Insert computer and push latch closed to dock computer
  • Can be used with Motion Attachments with the VESA 75mm hole pattern only
  • Rugged composite/steel construction with black powder coat finish for long-term durability
  • Antenna switch position:
    • Switch set toward outside of dock: Uses exterior antenna
    • Switch set to inside of the dock: Uses laptop antenna

CERTIFICATIONS & TESTING

  • Toughbook Certified
  • RoHS, FCC
  • C-Tick, E-Mark
  • Vibration Testing: MIL-STD 810G 514.5
  • Docking Handle Tested: 10,000 cycles
  • SAE Standard J1455 Crash Test

WARRANTY

  • 3-Year Limited Warranty
