Gamber Johnson

$1,449.94
SKU: 7160-0595-22

The Toughpad FZ-G1 THIN docking station is the perfect companion to the G1 tablet if you do not require a handstrap for the tablet, this dock features dual RF antenna connection, lite port replication to connect peripherals and due to its small footprint, is perfect for conserving cabin space in a smaller vehicle.

ANTENNA PASS-THROUGH

  • Dual RF (TNC)

COMPATIBILITY

  • Compatible with Panasonic Toughpad FZ-G1 tablet computer with small bumper guards.

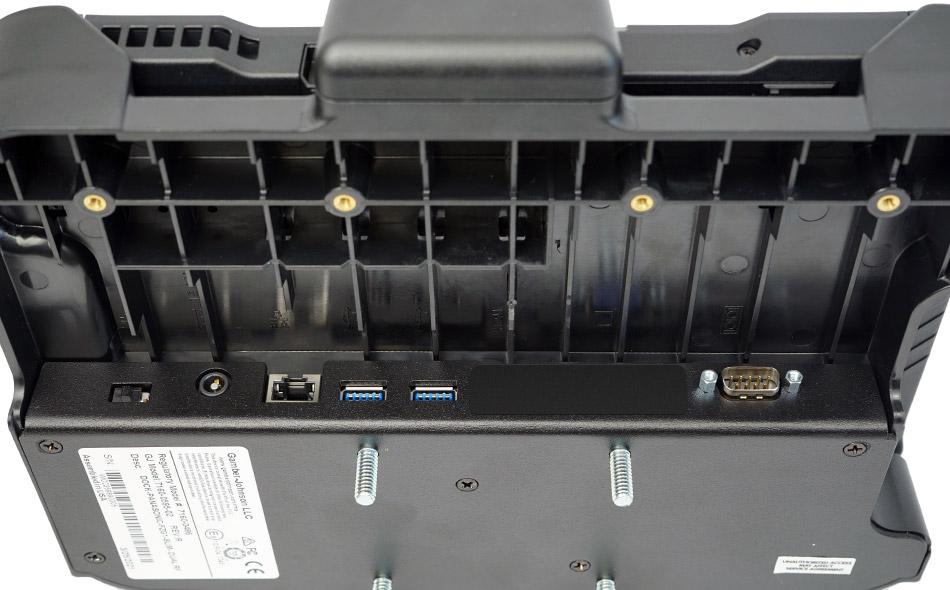

PORT REPLICATOR

  • Panasonic certified electronics
  • (1) Ethernet - RJ45
  • (1) Serial - D-sub 9-pin
  • (2) USB 3.0 (900mA) - 9 pin
  • Dual RF Pass-through (optional) - TNC
  • Power input - 16VDC
  • Antenna Switch

POWER SUPPLY

  • Power adapter is not included, please use one of the following:
    • LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
    • LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
    • LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
    • LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
    • LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)

FEATURES

  • Compatible with the Panasonic Toughpad FZ-G1 tablet computers with small bumper guards
  • Panasonic certified electronics
  • Docking Station is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy to use one-handed docking and release, Insert bottom of computer into the docking station, push top of computer against latch button to dock computer
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
  • Upward-facing I/O ports; integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • Height: 9.33 in / 23.7 cm
  • Width: 11.22 in / 28.5 cm
  • Depth: 2.56 in / 6.5 cm

CERTIFICATIONS & TESTING

  • Toughbook Certified
  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
  • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
  • RoHS, FCC, CE, C-TICK, UKCA
  • SAE J1455 Shock Crash Hazard Test

KIT INCLUDES

  • Panasonic FZ-G1 Docking Station
  • Mounting Hardware
  • Installation Instructions

WARRANTY

  • 3-Year Limited Warranty
