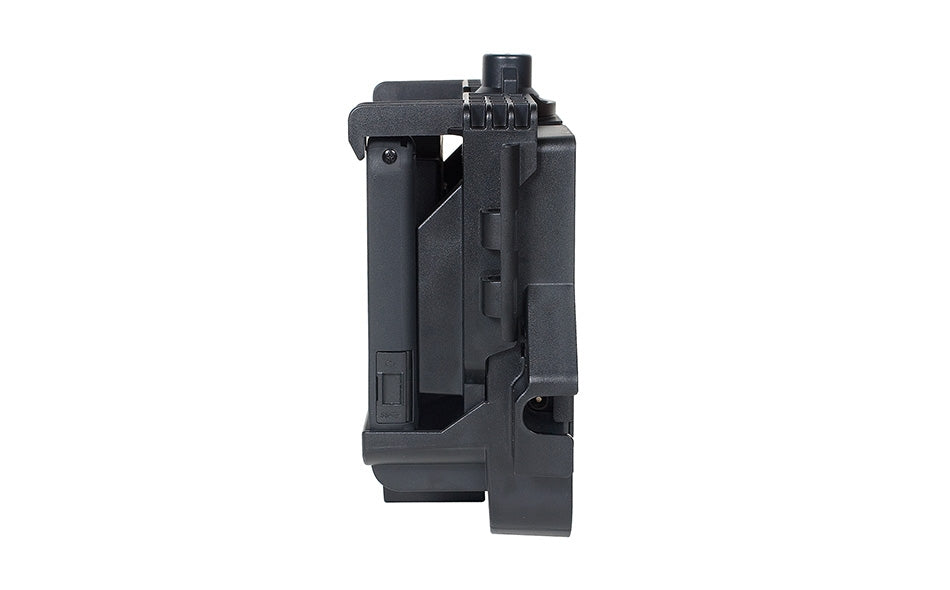

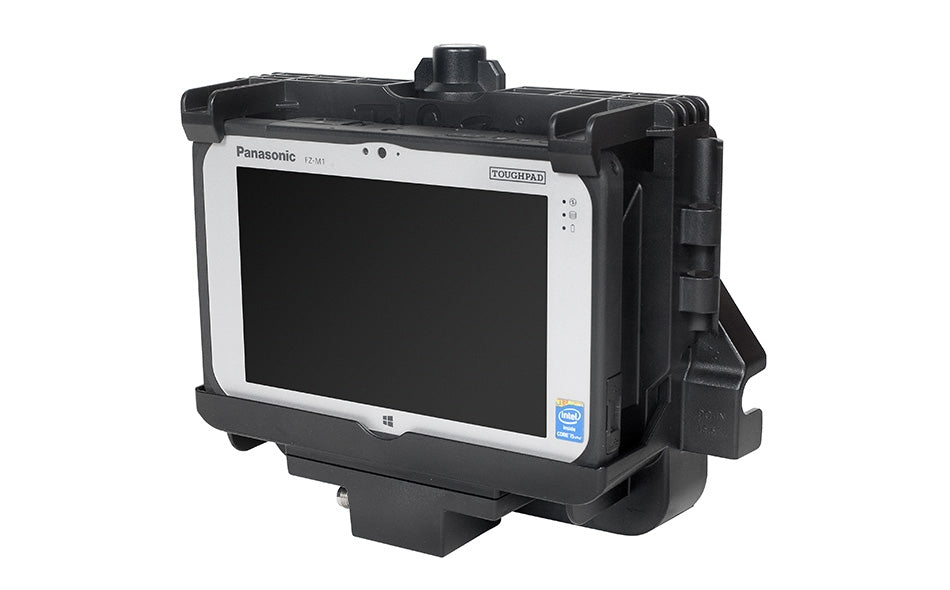

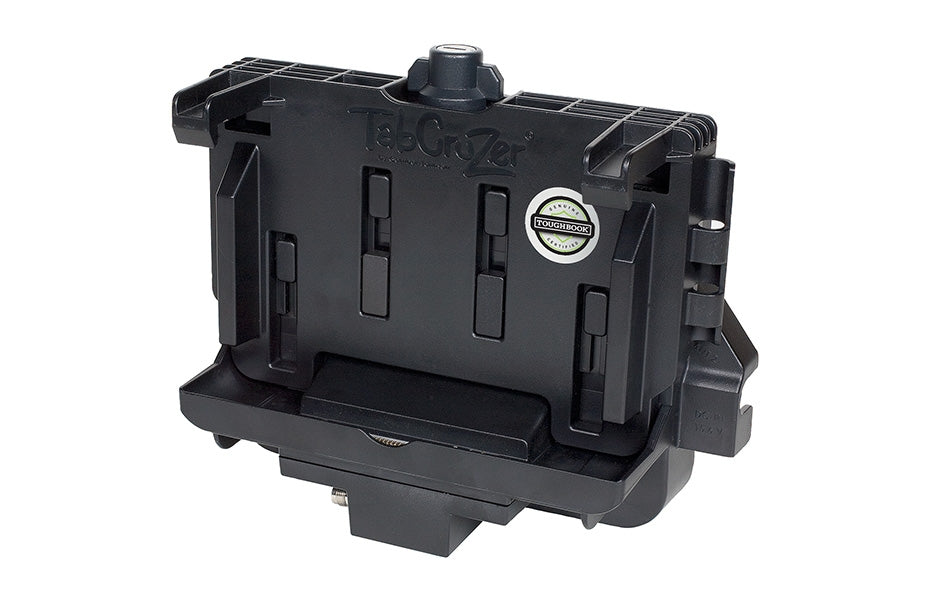

Panasonic Toughpad FZ-M1 Docking Station, Dual RF, Full Port

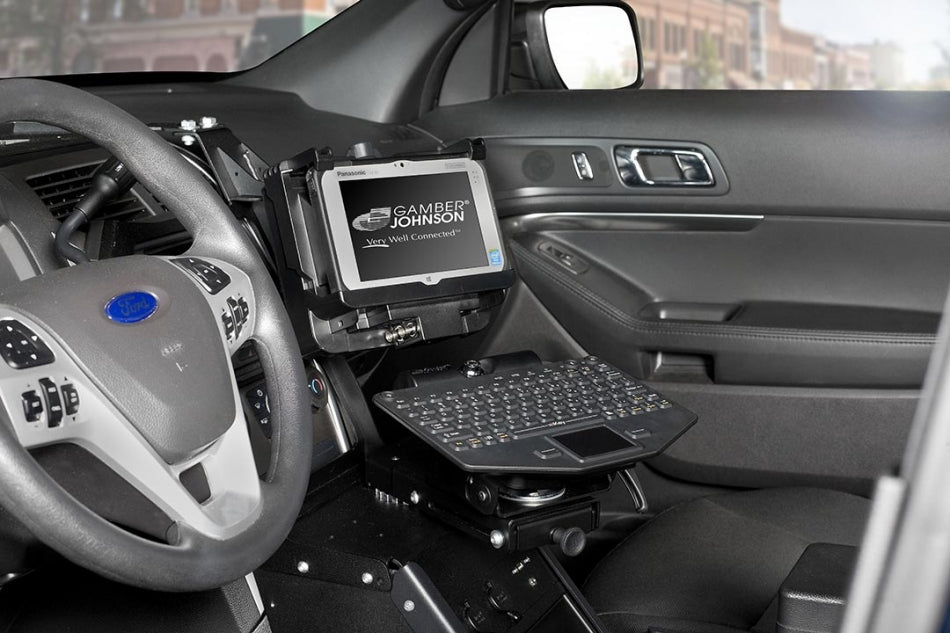

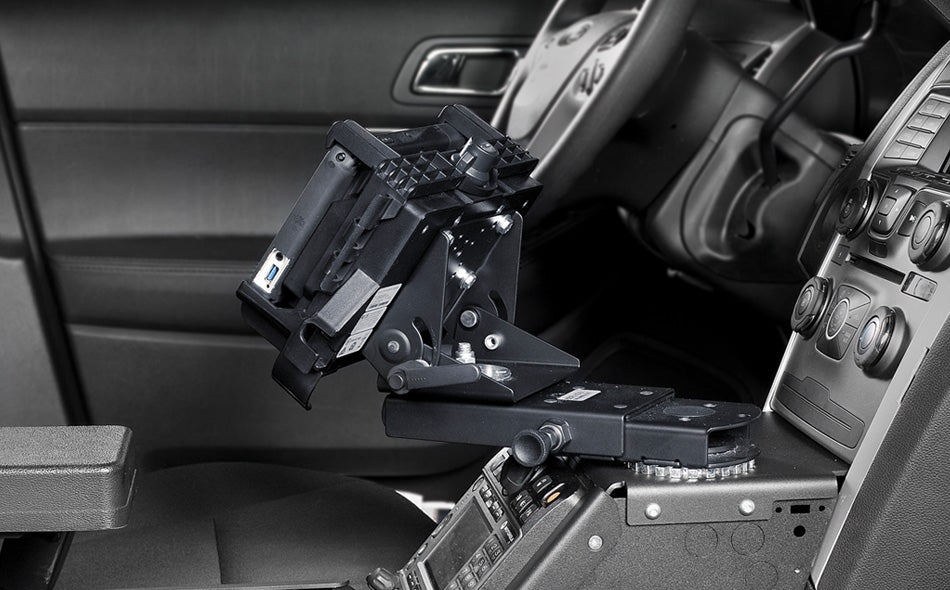

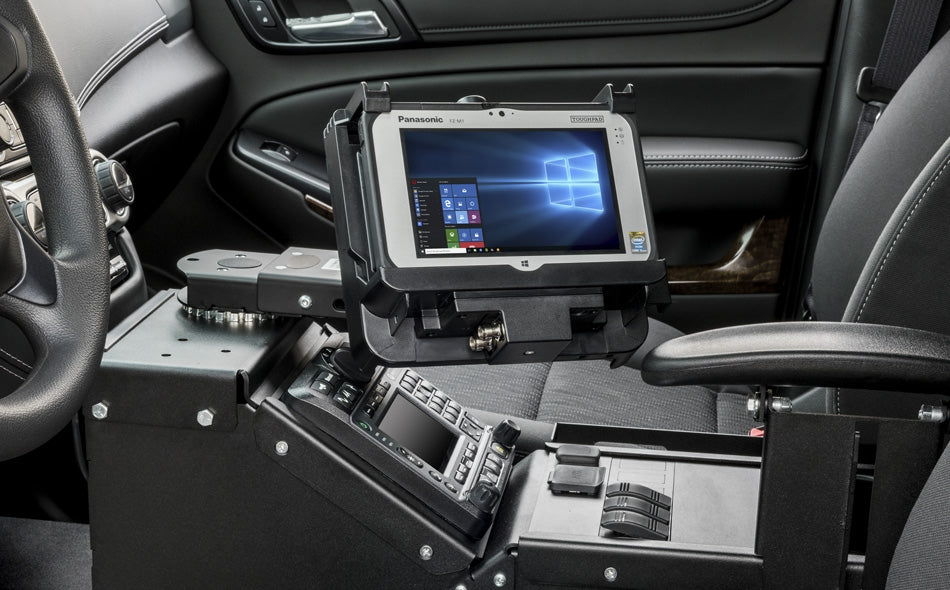

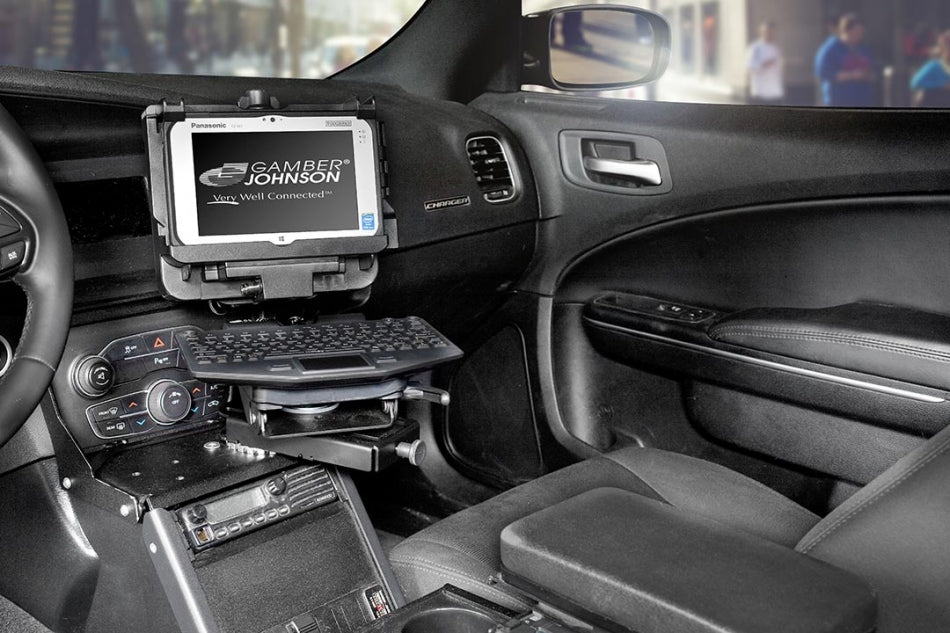

ONLY AVAILABLE IN EUROPE. Specifically designed for the Panasonic Toughpad FZ-M1 7-inch tablet computer, the FZ-M1 docking station minimizes the overall footprint of the FZ-M1 solution making the FZ-M1 the perfect mobile computer solution. A push and turn lock makes docking and undocking the computer easy – this is especially important in a mobile application. Bottom-facing ports make it easy to route cables for any vehicle or forklift mounting application. In addition, the dock can accommodate the FZ-M1 magnetic card reader or the X hand strap.
ANTENNA PASS-THROUGH
- Dual RF (TNC)
DIMENSIONS
- Height: 8.1" / 20.6 cm
- Width: 9.63" / 24.5 cm
- Depth: 3.57" / 9.1 cm

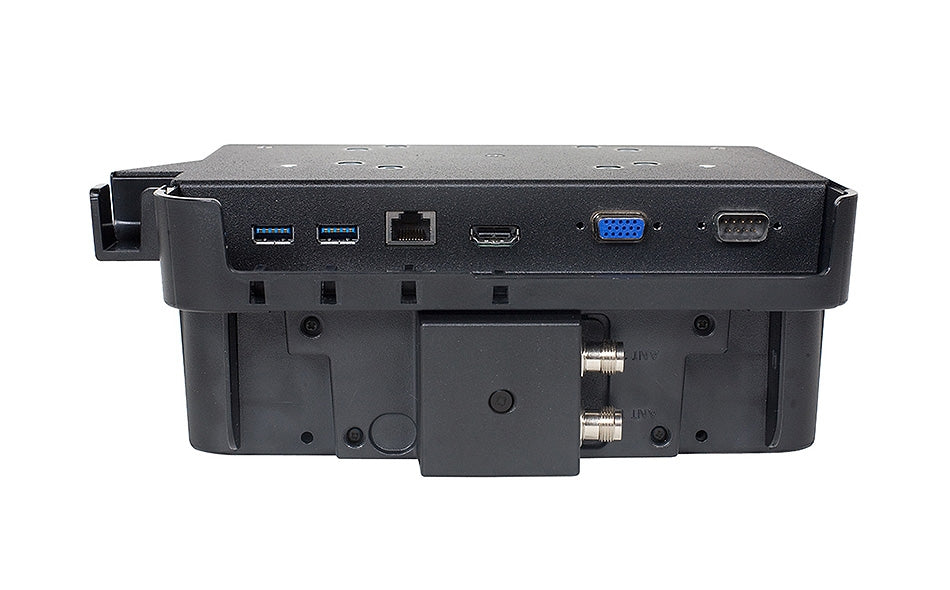

FULL PORT REPLICATOR
- Fully Powered USB 3.0 (2) - 9 pin
- Dual Antenna Pass-Through - TNC
- Ethernet - RJ45
- Serial (1) - D-sub 9 pin
- VGA - D-sub 15 pin
- HDMI - 19 pin
- Input Power - DC
FEATURES
- Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as Toughbook Certified
- Design works with Toughpad FZ-M1 tablet computer only

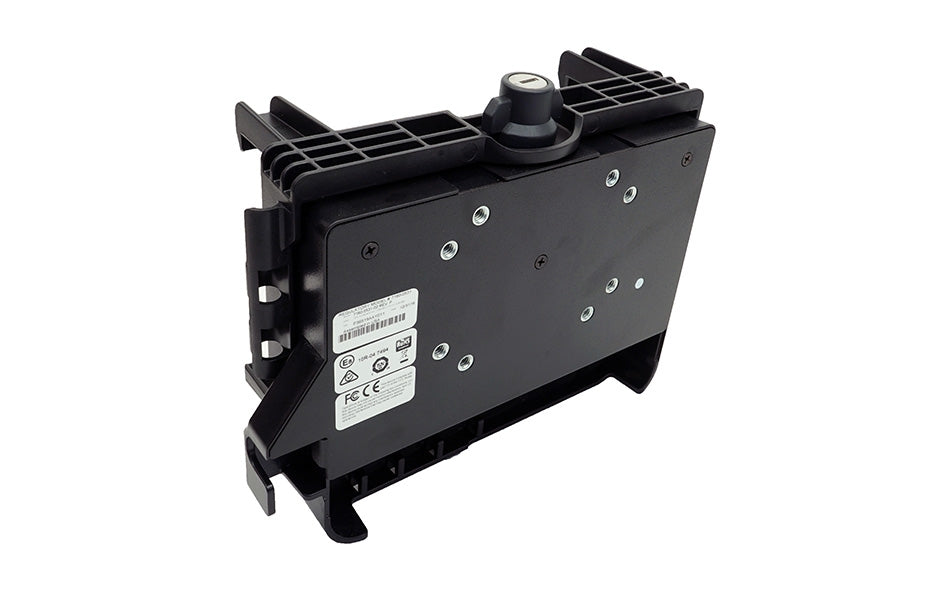

- VESA 75mm or Gamber-Johnson mounting hole patterns
- Downward-facing I/O ports; cable strain relief system for easy cable management
- Docking Station design accommodates mag strip reader or hand strap (sold separately)
- Push and Turn lock with key for theft deterrence
- Insert computer then push down and turn lock to close and dock computer
- Docking Station is a Full Port Replication version
- Use Lind Auto Adapter (Item No. 11798)
- Composite/steel design for reduced weight
CERTIFICATIONS & TESTING
- Toughbook Certified
- RoHS, CE, FCC, C-Tick, TUV
- Vibration/Shock Testing: MIL-STD 810G
- SAE J1455 Crash Test
- Cycle test: Lock and docking mechanism – 30,000 cycles
WARRANTY
- 3-Year Limited Warranty
