Gamber Johnson

$1,308.89
SKU: 7160-0531-03

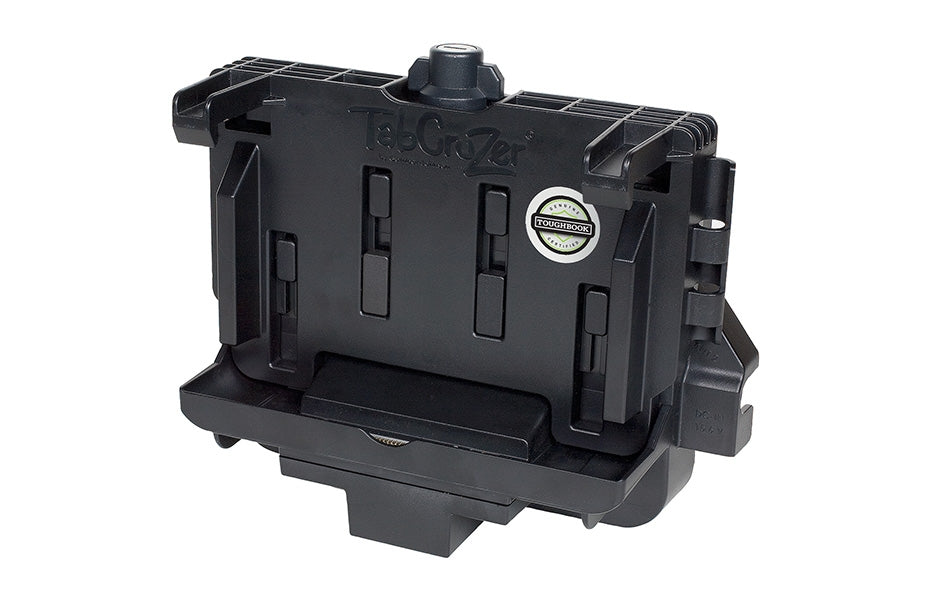

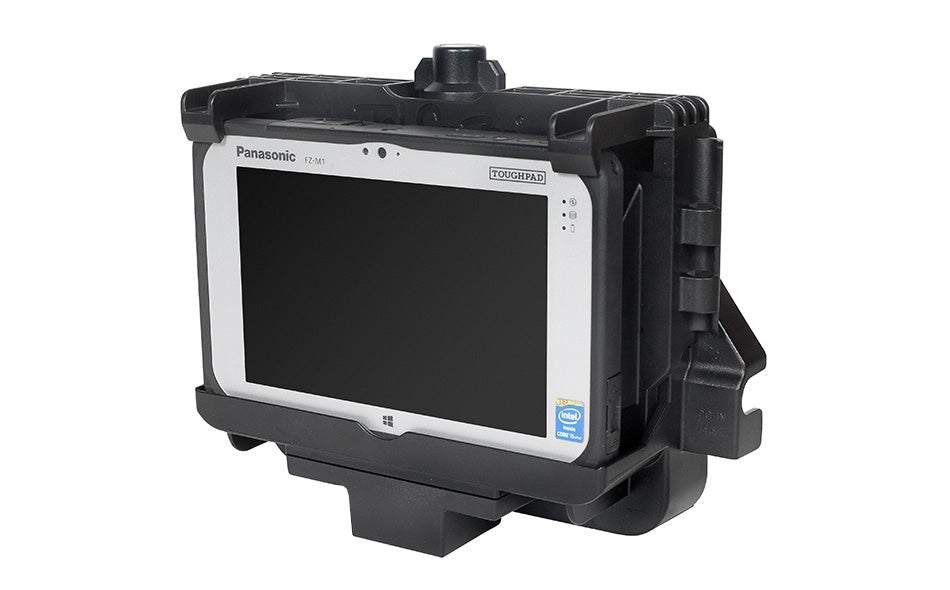

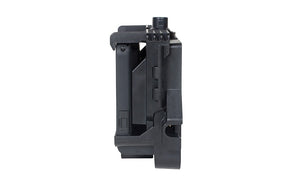

ONLY AVAILABLE IN EUROPE. Specifically designed for the Panasonic Toughpad FZ-M1 7-inch tablet computer, the FZ-M1 docking station minimizes the overall footprint of the FZ-M1 solution making the FZ-M1 the perfect mobile computer solution. A push and turn lock makes docking and undocking the computer easy – this is especially important in a mobile application. Bottom-facing ports make it easy to route cables for any vehicle or forklift mounting application. In addition, the dock can accommodate the FZ-M1 magnetic card reader or the X hand strap.

ANTENNA PASS-THROUGH

  • None

DIMENSIONS

  • Height: 8.10" / 20.6 cm
  • Width: 9.63" / 24.5 cm
  • Depth: 3.57" / 9.1 cm

FULL PORT REPLICATOR

  • Fully Powered USB 3.0 (2) - 9 pin
  • Ethernet - RJ45
  • Serial (1) - D-sub 9 pin
  • VGA - D-sub 15 pin
  • HDMI - 19 pin
  • Input Power - DC

FEATURES

  • Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as Toughbook Certified
  • Design works with Toughpad FZ-M1 tablet computer only
  • VESA 75mm or Gamber-Johnson mounting hole patterns
  • Downward-facing I/O ports; cable strain relief system for easy cable management
  • Docking Station design accommodates mag strip reader or hand strap (sold separately)
  • Push and Turn lock with key for theft deterrence
  • Insert computer then push down and turn lock to close and dock computer
  • Docking Station is a Full Port Replication version
  • Use Lind Auto Adapter (Item No. 11798)
  • Composite/steel design for reduced weight

CERTIFICATIONS & TESTING

  • Toughbook Certified
  • RoHS, CE, FCC, C-Tick, TUV, ESD
  • Vibration/Shock Testing: MIL-STD 810G
  • SAE J1455 Crash Test
  • Cycle test: Lock and docking mechanism – 30,000 cycles

WARRANTY

  • 3-Year Limited Warranty
