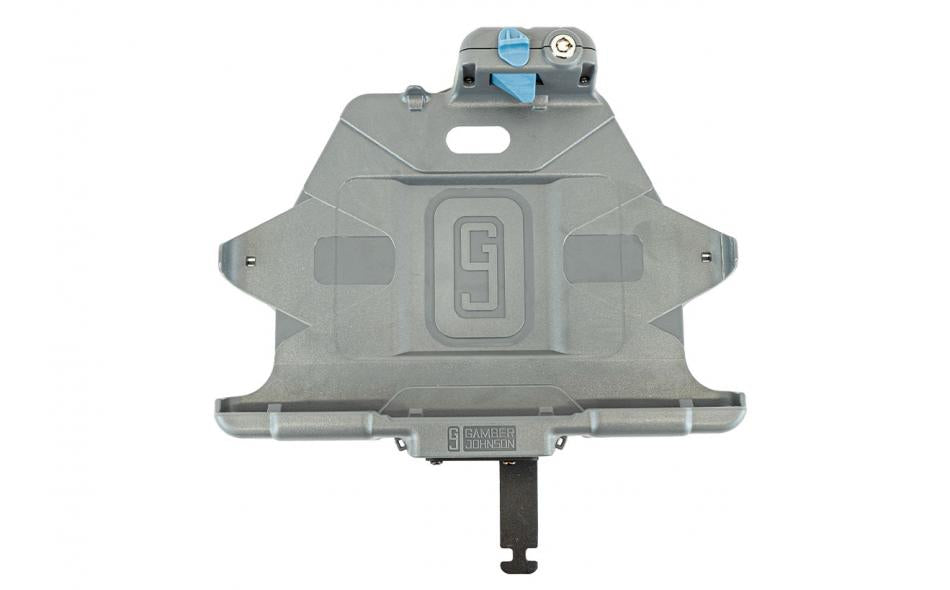

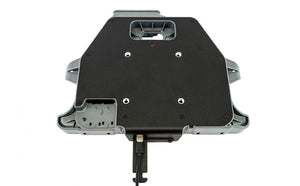

Samsung Galaxy Tab Active Pro/Active4 Pro Cradle (Charging Only)
This Gamber-Johnson charging cradle is compatible with both the Samsung Galaxy Tab Active Pro and Tab Active4 Pro. This charging cradle features a POGO pin connector and includes a wiring harness and power supply to provide power to the tablet's battery allowing it to stay charged and usable all day long in a material handling or other rugged environments.
Available Fall 2022
ANTENNA PASS-THROUGH
- None
COMPATIBILITY
- Samsung 10-inch Tab Active Pro/Active4 Pro
PORT REPLICATOR
- None
POWER SUPPLY INCLUDED
- Yes; Power Supply 12-24 VDC 5V 3A Bare Wire USB-C (19161)
FEATURES
- Designed for the Samsung Galaxy Tab Active PRO/ Active4 PRO 10 Inch rugged tablet with rugged case
- Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
- Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
- Simple, one-handed docking and release operation:
- Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
- Push latch button up with your thumb then remove the tablet from the docking station.
- Push-button lock with key for theft deterrence.
- VESA 75mm mounting pattern; compatible with Zirkona mounting products.
- Can be mounted on a flat vertical surface.
- Composite design for reduced overall weight.
- 12-24V power input range to support a wide range of mobile applications
- 5V, 3A Max of output
- USB-C charging port with integrated cable restraint (to connect to power supply), includes USB-C charging cable with bare wire end
- Height: 8.5 in / 21.59 cm
- Width: 10.5 in / 26.67 cm
- Depth: 2.5 in / 6.35 cm
KIT INCLUDES
- Samsung Tab Active Pro/Active4 Pro Charging Cradle (7160-1418-40)
- Power Supply 12-24Vdc, 5V with Bare Wire Lead
WARRANTY
- Lifetime Limited Warranty
